User Manual for Feiyu G6 Plus 3-Axis Handheld Gimbal Stabilizer Click to enlarge the picture
Contents of the user manual for the Feiyu G6 Plus 3-Axis Handheld Gimbal
- Product category: See All Gimbal Stabilizers Feiyu
- Brand: Feiyu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Feiyu See All Gimbal Stabilizers
 |
User manual for the Feiyu G6 Plus 3-Axis Handheld Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Feiyu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Feiyu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Feiyu product will considerably shorten its lifespan!
|
Product description - FULL TUTORIAL of G6 Plus | FeiyuTech Tutorial
- Support all types of camera within 800g | G6 Plus | FeiyuTech
- How to solve the vibration in G6 Plus | FeiyuTech Tutorial

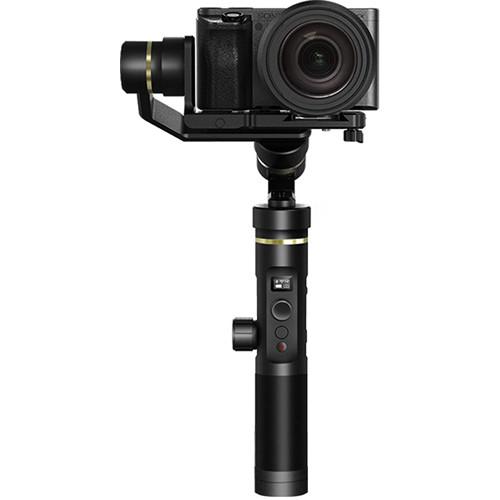

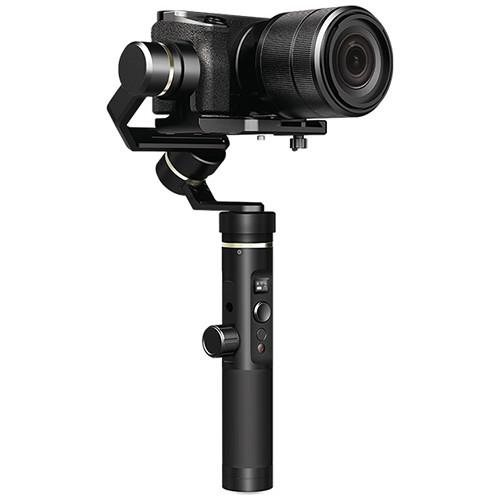

The Feiyu G6 Plus Handheld Gimbal Stabilizer is designed for compact cameras and lenses, such as the Sony a6500 with the Sony 16-50mm E-mount lens combination. One of the main features of the G6 Plus is that it allows for direct record start/stop triggering, zooming, and focusing with select cameras using the gimbal controls. Please see the Features section below for the list of cameras.
The G6 Plus allows you to pan, tilt, and roll for up to 12 hours on a single battery charge and to capture smooth, stable, cinematic-looking footage. On top of that, the ability to record/zoom/focus without having to touch the camera adds to the stability of your shot, provides a more fluid workflow, and also prevents having to rebalance the gimbal—as pressing the record button or other control on the camera often throws a gimbal off balance.

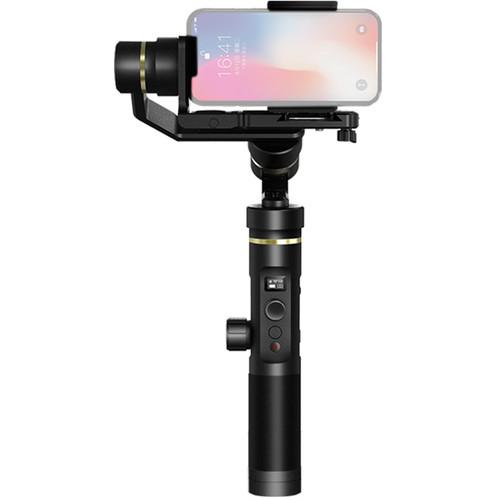

The initial setup for direct record/zoom/focus control is done by synchronizing the camera and gimbal via the Feiyu ON app for iOS and Android, which is available to you as a free download. The app also lets you make several settings adjustments and provides various other remote control functions. If you'll be mounting a smartphone on the gimbal (using an optional adapter), you can download the free Feiyu Vicool app which provides its own features and functions for smartphones.

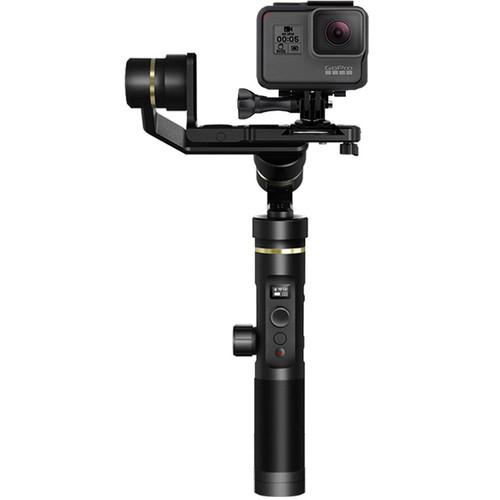

The G6 Plus supports cameras up to 2.75" in height (a bigger camera might not clear the gimbal) and weighing up to 1.75 lb. It also comes with an action camera mounting adapter so you can attach your GoPro or other action cam. The G6 Plus is also splash-proof, giving you the flexibility to use it under certain conditions where it would otherwise be impossible to get your shot, such as rain. Please note that it isn't waterproof and cannot be used underwater nor exposed to salt water. Also, the splash-proof capability is affected during charging. - Key Features
-
- Designed for compact/pocket cameras and action cams (smartphones supported via an optional adapter)
- Direct record/zoom/focus capability with select cameras (see lists below)
- 260° tilt, 320° roll, and unlimited 360° pan motion
- Up to 12-hour runtime
- Splash-proof

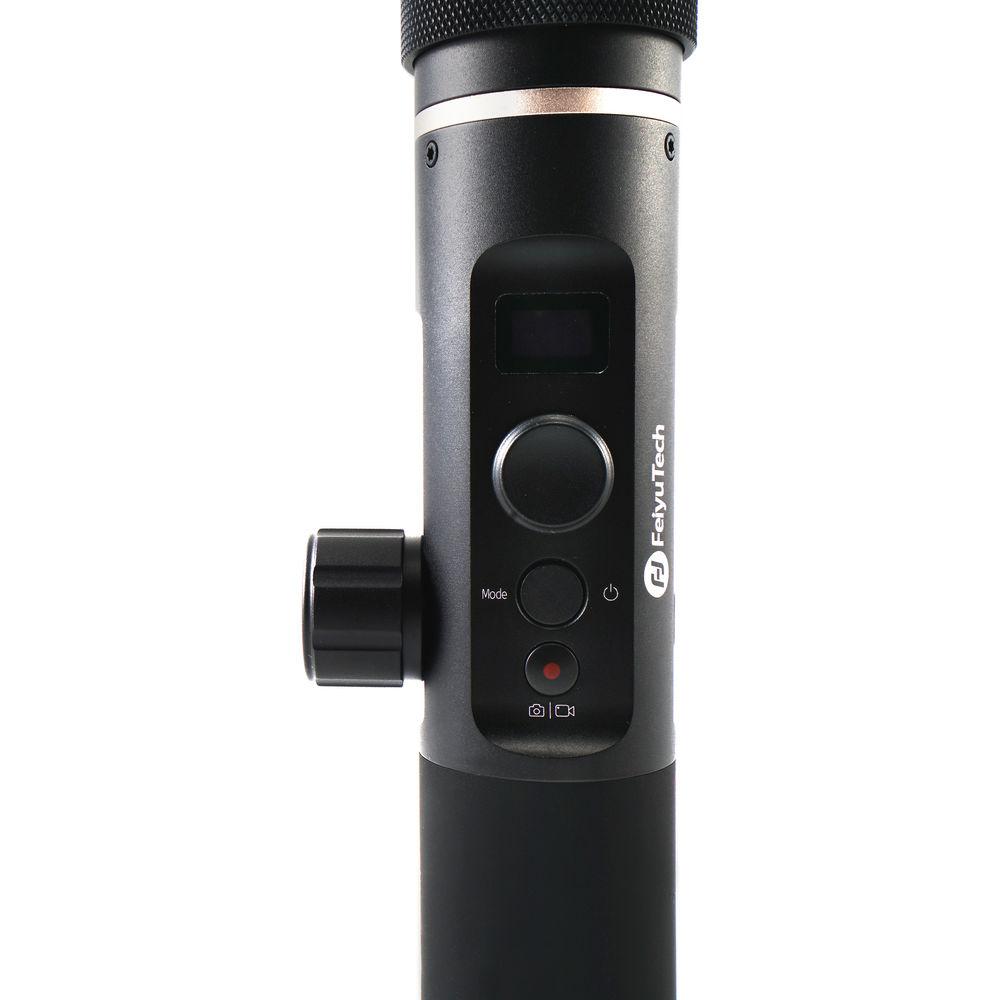

- OLED status display
- Feiyu ON iOS and Android app provided as a free download
- 2.75" max camera height supported
- 1.75 lb payload
- Approximately 3-hour charge time using an optional USB charger
- 1/4"-20 mounting holes on the side and bottom for attaching extensions, mini tripods, and accessories
- Supported Cameras for Record Triggering
-
- GoPro HERO 5/6
- Sony RX0, RX100 VI, a6500, a6300, a5100, AS50, X3000, QX1
- Panasonic LX10
- Canon EOS M50
- Supported Cameras for Zooming
-
- Sony a6500, a6300, a6000, a5100 with select motor-zoom lenses, such as the Sony 16-50mm E-mount lens
- Sony RX100 VI
- Panasonic LX10
- Supported Cameras for Focusing
-
UPC: 719821438984 In the Box Feiyu G6 Plus 3-Axis Handheld Gimbal Stabilizer 26650 Rechargeable Battery USB Cable Action Camera Mounting Adapter 1/4"-20 Camera Mounting Screw Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Feiyu G6 Plus 3-Axis Handheld Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeiyu G6 Plus Specs | | | Number of Axes | 3-Axis (Pitch, Roll, Yaw) | | Rotation Range | Pitch (Tilt): 260
