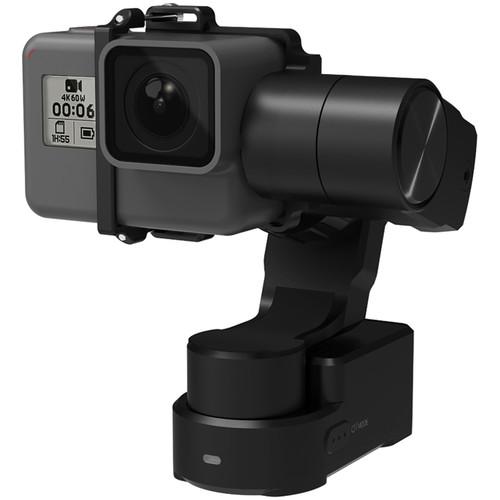

User Manual for Feiyu WG2X 3-Axis Wearable Gimbal for Action Cams Click to enlarge the picture
Contents of the user manual for the Feiyu WG2X 3-Axis Wearable Gimbal for
- Product category: Gimbal Stabilizers Feiyu
- Brand: Feiyu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Feiyu Gimbal Stabilizers
 |
User manual for the Feiyu WG2X 3-Axis Wearable Gimbal for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Feiyu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Feiyu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Feiyu product will considerably shorten its lifespan!
|

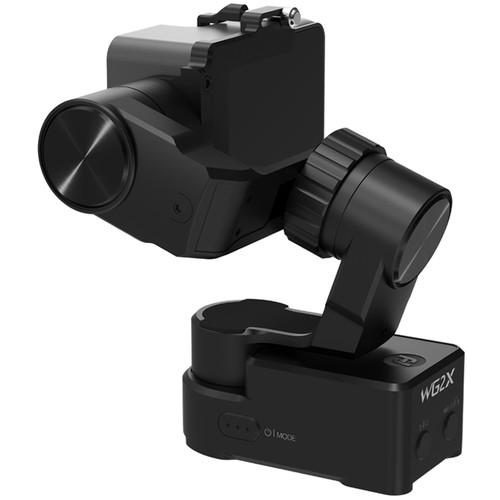

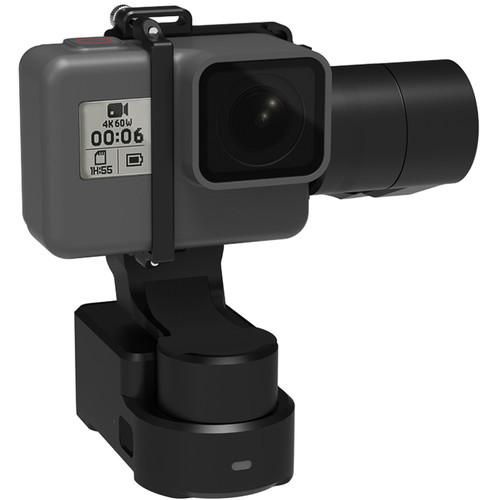

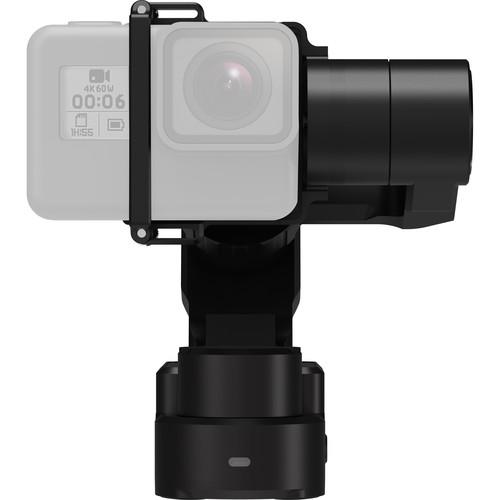

Product description Smooth Action Capture with the Feiyu-Tech WG2X Gimbal Read More The Feiyu WG2X is a wearable and mountable 3-axis gimbal stabilizer without the standard handle. It's designed for action cameras and directly supports the GoPro HERO7 Black/Silver/White, HERO6 Black, and HERO5 Black, as well as a variety of other cameras of similar shape and size including the HERO4, YI Technology 4K/4K+, and select SJCAM and AEE models. It also supports the GoPro HERO Session via an included adapter and the Sony RX0 via an optional RX0 adapter available from Feiyu. The WG2X is a follow-up to the WG2 but features an angled motor arm that leaves the camera LCD unobstructed. The WG2X also weighs slightly less and has a shutter button and mode button at the base in addition to a power on/off switch. Also, while the previous model can be used in up to 3' of water for a short while, the WG2X is designed to be splash-proof only, for those misty weather conditions.
The WG2X can be used mounted on your person, such as on a helmet or chest support, and also on remote supports such as a desktop tripod. It also works great in balancing the camera when attached to handlebars and selfie sticks. It attaches via a 1/4"-20 threaded mounting hole on the bottom.
The WG2X is built with three motors that allow for unlimited 360° pan, 360° tilt, and 70° roll angle motion. One of the selectable modes of operation is an autorotation mode that allows you to assign a pre-set travel route with start and end points and a constant speed. This mode can be used for automated standard video capture as well as effective time-lapse photography.

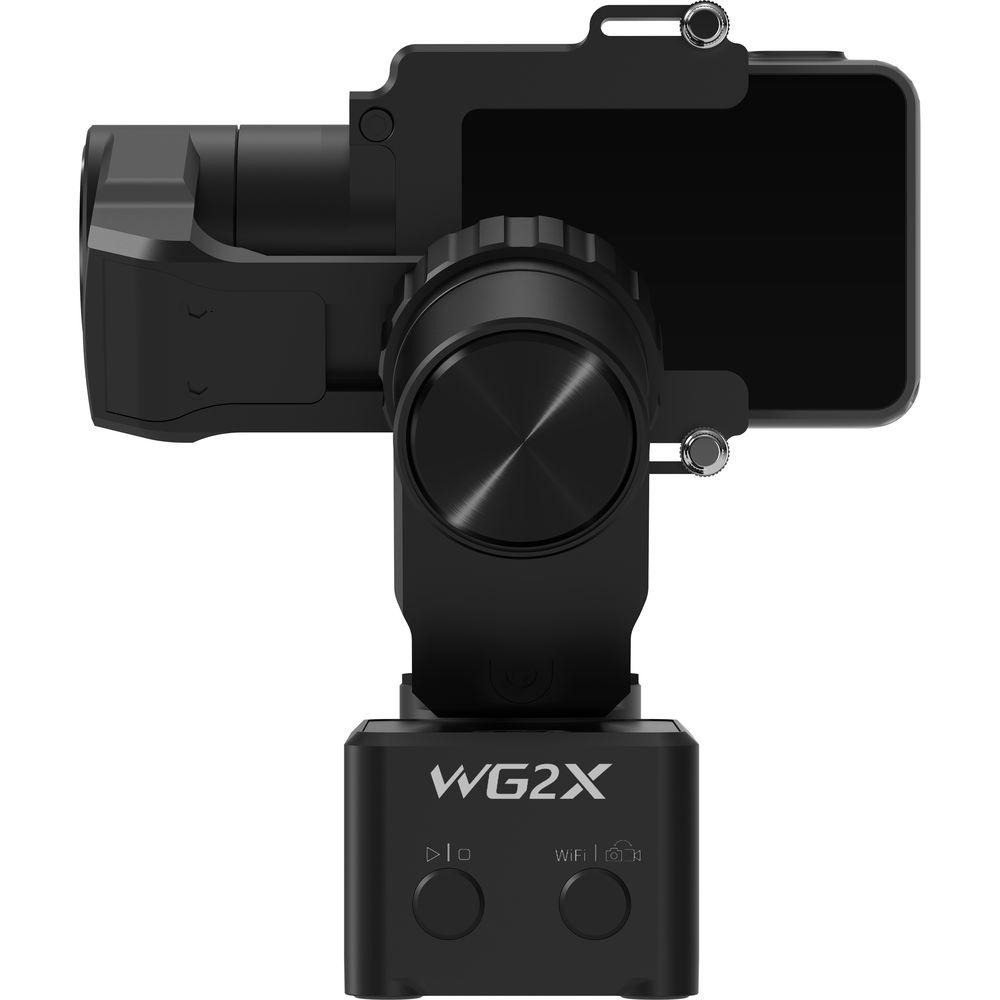

The mode button at the base toggles between the multiple modes of the gimbal, such as pan, tilt, and lock. An LED indicator at the base confirms the selected mode. The WG2X operates on a built-in 1500mAh battery that runs for approximately 2.5 hours and can be recharged in about 2 hours.
Also included with the gimbal (as a free download) is the Feiyu ON mobile app for iOS and Android. The app allows for remote operation of the gimbal from your phone, as well as adjustment of settings. The WG2X folds and packs away compact into a supplied carry bag. - Key Features
-
- Wearable and mountable 3-axis gimbal stabilizer
- Supports GoPro HERO7 Black/Silver/White and similar-sized cameras
- GoPro HERO Session adapter included; optional Sony RX0 adapter supported
- 360° pan and tilt rotation, 70° roll angle rotation
- Auto-rotation mode with assignable travel route for video capture and time-lapse photography
- 2.5-hour built-in 1500mAh battery
- Includes Feiyu ON remote control app for iOS and Android
- Splash-proof for misty and similar weather conditions
- 1/4"-20 mounting thread on the bottom

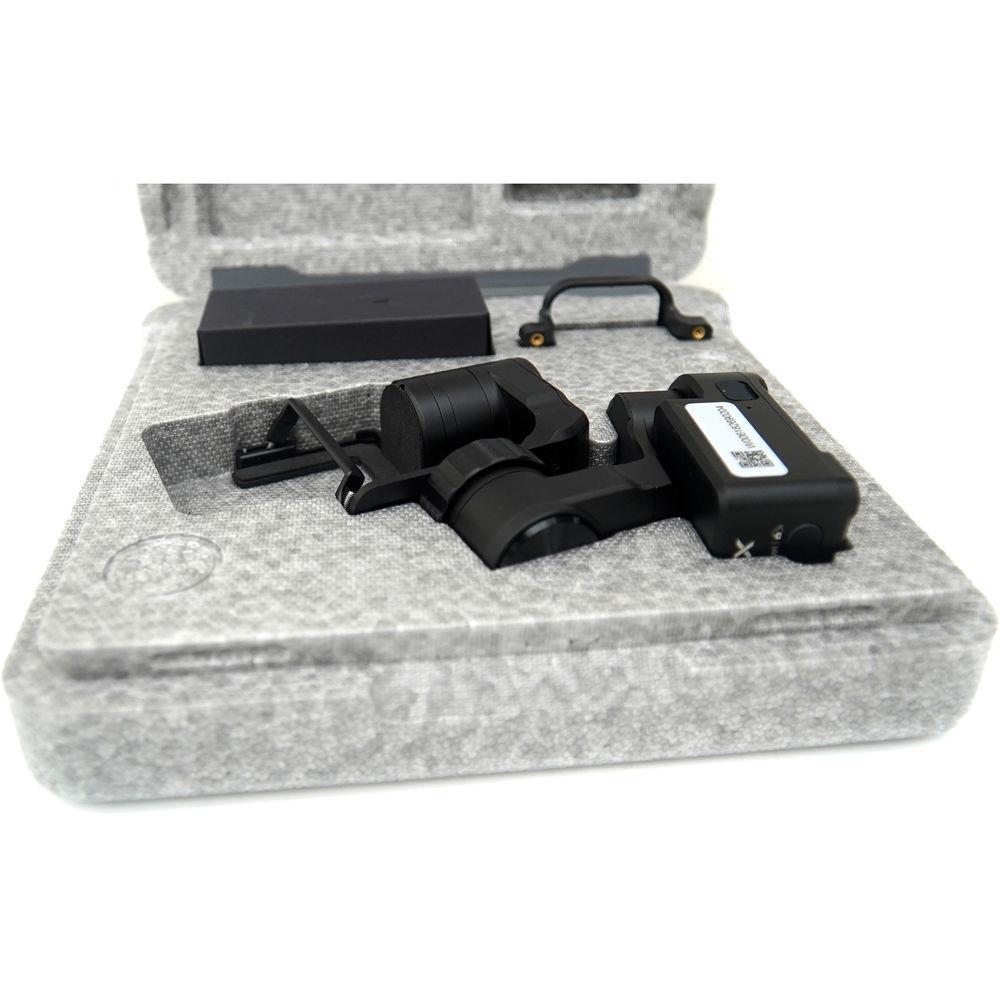

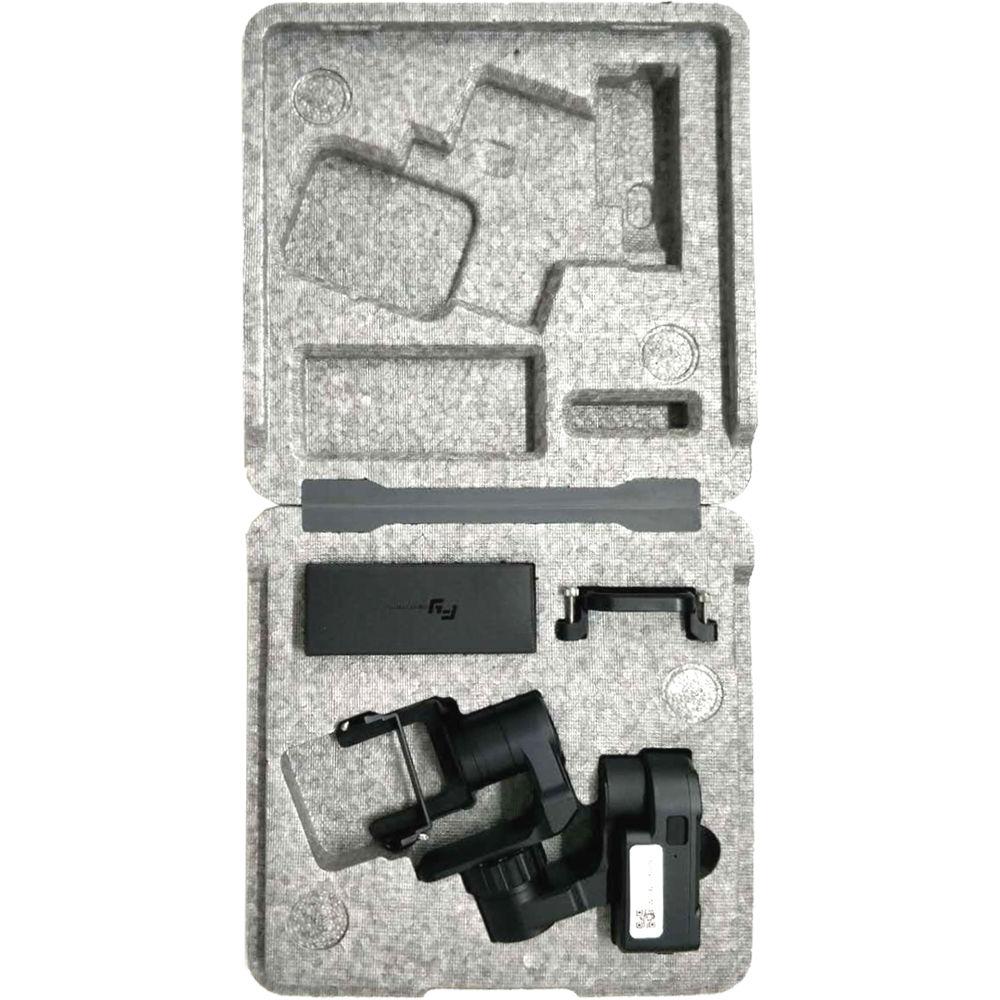

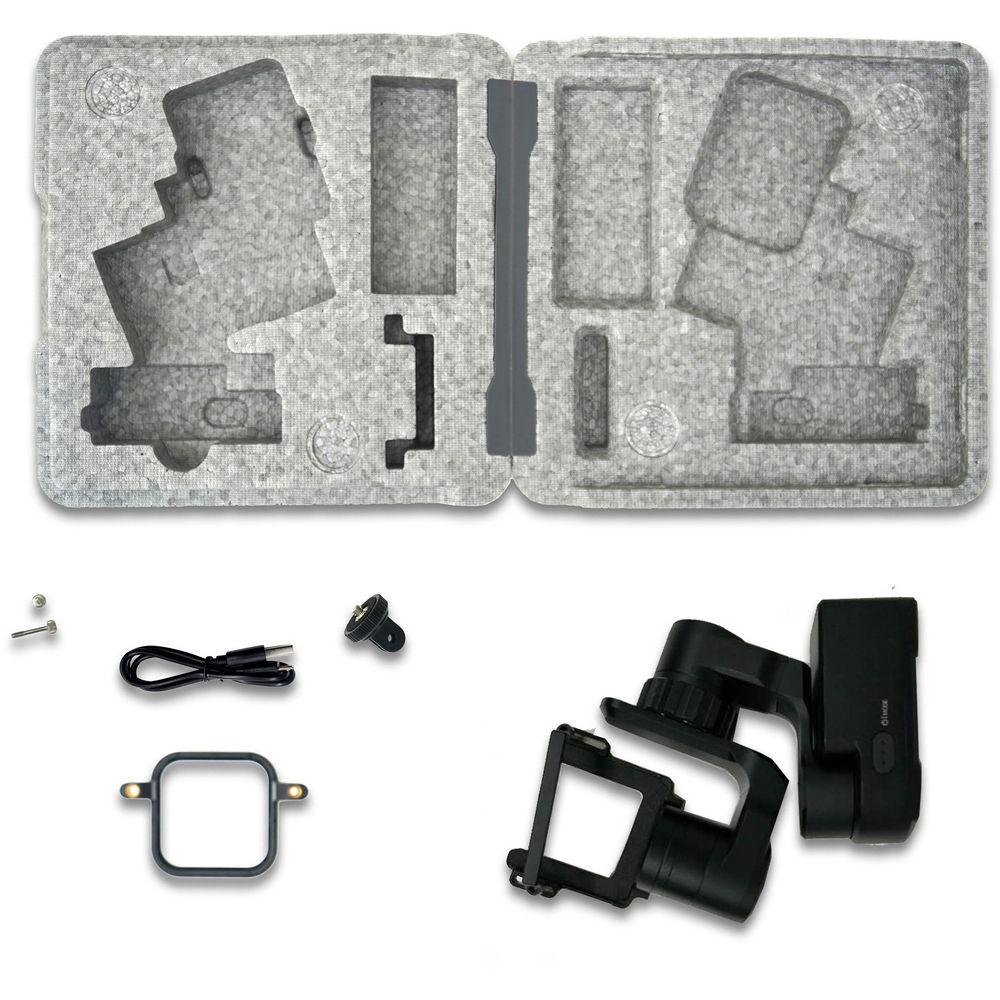

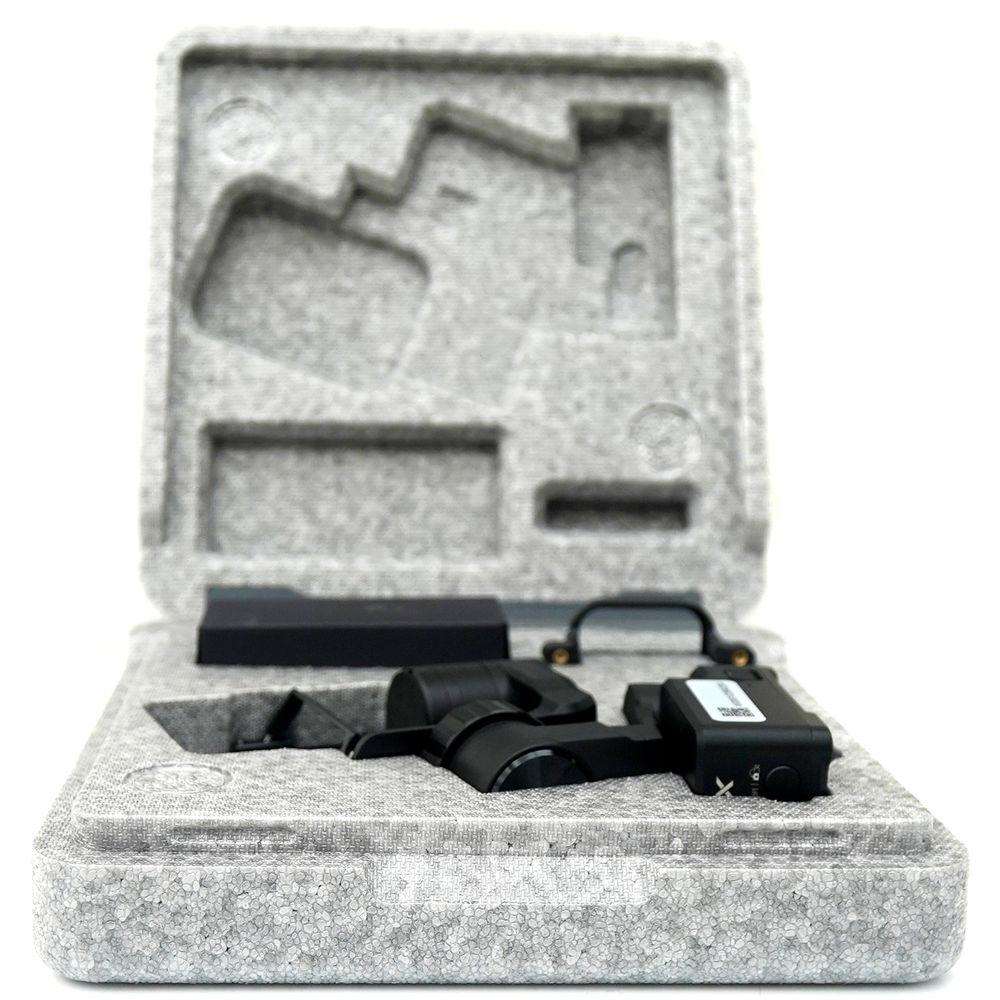

In the Box Feiyu WG2X 3-Axis Wearable Gimbal for Action Cams USB Cable Adapter Mount for GoPro Session Set of Screws 1/2" T-Head Connector Carry Bag Limited 1-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Feiyu WG2X 3-Axis Wearable Gimbal for Action Cams in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFeiyu WG2X Specs | | | Number of Axes | 3-Axis (Pitch, Roll, Yaw) | | Rotation Range | Yaw (Pan): 360
