User Manual for Fender FIGHTER 12" 2-Way 1100W Active PA Speaker Click to enlarge the picture
Contents of the user manual for the Fender FIGHTER 12" 2-Way 1100W Active
- Product category: Portable PA Systems Fender
- Brand: Fender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fender Portable PA Systems
 |
User manual for the Fender FIGHTER 12" 2-Way 1100W Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fender product will considerably shorten its lifespan!
|

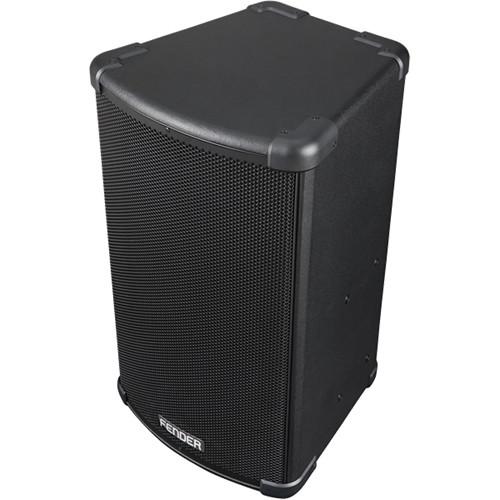

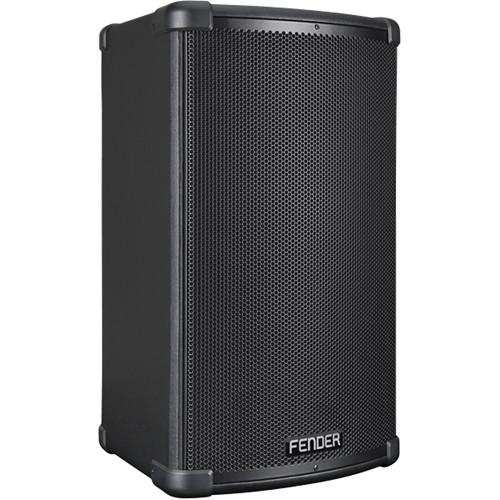

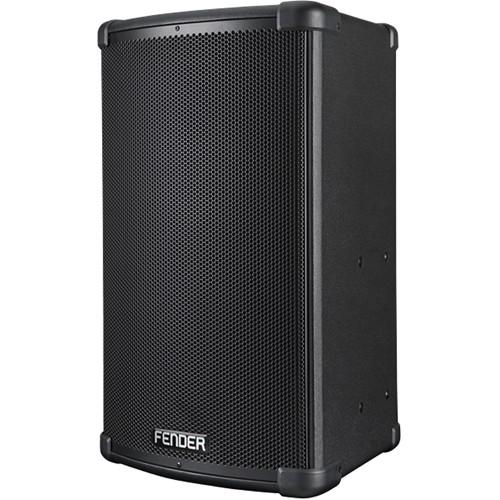

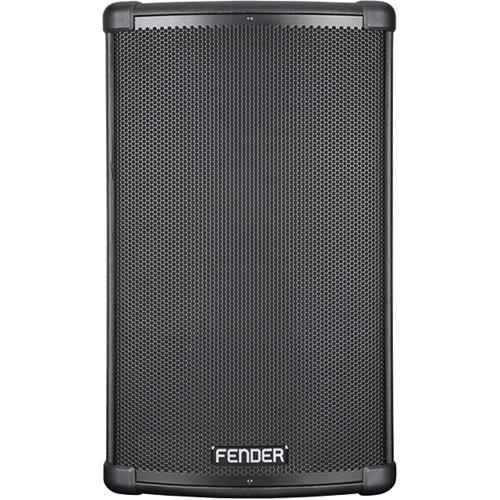

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The FIGHTER 12" 2-Way 1100-Watt Active PA Speaker by Fender is a powered loudspeaker that's ideal for bands, performers, DJs, schools, houses of worship, and businesses. The Fighter 12" is equipped with a 1100W Class-D power amplifier that provides power for its 12" woofer and 1" titanium horn-loaded high-frequency compression driver. It's designed with dynamic limiting circuitry that continuously monitors headroom and seamlessly adjusts system gain for distortion-free power, even at higher volume levels. - Key Features
-
- Two-way full-range active loudspeaker with Bluetooth audio streaming
- 12" low-frequency speaker; 1" titanium horn-loaded high-frequency compression driver
- 1100W Class-D power amplifier with active crossover
- Three input channels; two-band EQ per input channel; loop output with the subwoofer crossover switch
- Dual tuned-port system for extended bass response; dynamic limiting circuitry continuously monitors headroom to prevent distortion
- Rugged, compact, and lightweight wood enclosure with a perforated steel grille, protective corners, and dual rear handles; 35mm pole-mount socket

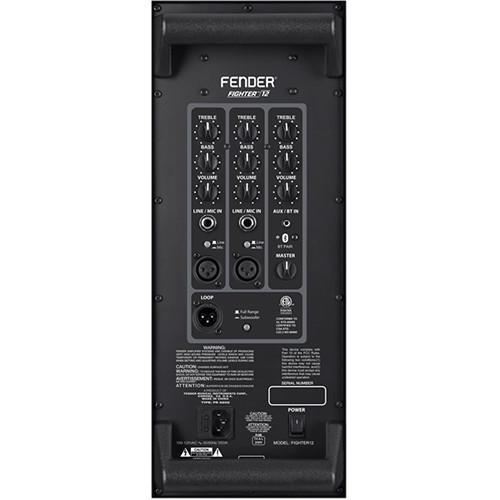

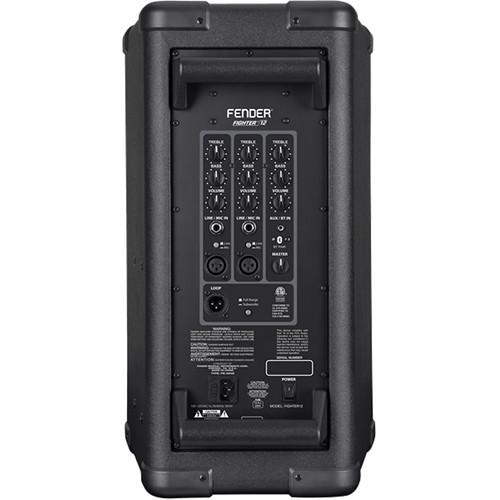

- Controls
-
- Channel treble control allows you to boost/cut high-end frequencies; one for each of the three channels. Control is flat in the center position (no effect on channel sound)
- Channel bass control allows you to boost/cut bass frequencies; one for each of the three channels. Control is flat in the center position (no effect on channel sound)
- Channel volume control adjusts the volume of each channel relative to the volume of other channels
- BT pair switch activates Bluetooth module for pairing with external devices. After a device is paired, the unit will search for the device when power is on
- The master volume control adjusts the overall volume level of all three channels
- The full-range/subwoofer switch in the Out position is for full range frequency response. The In position activates the internal high-pass speaker crossover, limiting lower bass frequencies to the Fighter speaker when using an external subwoofer
- The power indicator light Illuminates when the unit is on
- The power cord connects to a grounded outlet in accordance with the voltage and frequency specifications
- Connections
-
- 1/4” input for connection of line-level input sources to channels one and two
- Line/Mic input switch selects input sensitivity for channels one and two. The Out position is for line-level input sources such as mixers, keyboards, and amplifier line outputs. The In position is for dynamic microphones
- XLR input is the connection for microphones and line-level input sources to channels one and two
- Loop Output is an XLR output for connection to additional Fighter speakers or external subwoofer and provides full-range signal for all three channels
- AUX/BT input provides 3.5mm connection for auxiliary devices such as MP3 players, computers, and other line-level stereo sources. Defeats Bluetooth module when in use
UPC: 885978843855 In the Box Fender FIGHTER 12" 2-Way 1100W Active PA Speaker Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fender FIGHTER 12" 2-Way 1100W Active PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Fender FIGHTER 12" 2-Way 1100W Active PA Speaker can be downloaded in PDF format at the link stated below.
Technical parametersFender Fighter 12" Specs | | | LF Driver Size | 12" Cone Transducer | | HF Driver Size | 1" Titanium Diaphragm Compression Driver | | Material of Construction | Wood Enclosure With Vinyl Covering | | Pole Socket | 1-3/8" / 35 mm | | Handle | Two, Rear Mounted | | | | Channels | 3 Channel / Bluetooth Stereo | | Bluetooth | Stereo, High-Fidelity | | Inputs | 2 x Balanced XLR (Female)
2 x 1/4" (Male)
1 x 3.5 mm (Male) | | Outputs | 1 x Balanced XLR Loop Output | | | | Speaker Type | Powered 2-Way, Full-Range | | Power Amp | 1100 Watt
Class-D | | Maximum Output Level | 130 dB | | Frequency Response | 50 Hz - 20 kHz | | Coverage Pattern | 90 ° (H) x 30° (V) | | Fuse | T4AL 250 V (100 - 120V)
T2AL 250 V (220 - 240V) | | | | Dimension (D x W x H) | 15.1 x 13.5 x 22.5" / 38.4 x 34.3 x 57.2 cm | | Weight | 32 lb / 14.5 kg |
