User Manual for Fender IEM TEN-5 In-Ear Monitoring Headphones Click to enlarge the picture
Contents of the user manual for the Fender IEM TEN-5 In-Ear Monitoring Headphones
- Product category: Earphones Fender
- Brand: Fender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fender Earphones
 |
User manual for the Fender IEM TEN-5 In-Ear Monitoring Headphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fender product will considerably shorten its lifespan!
|

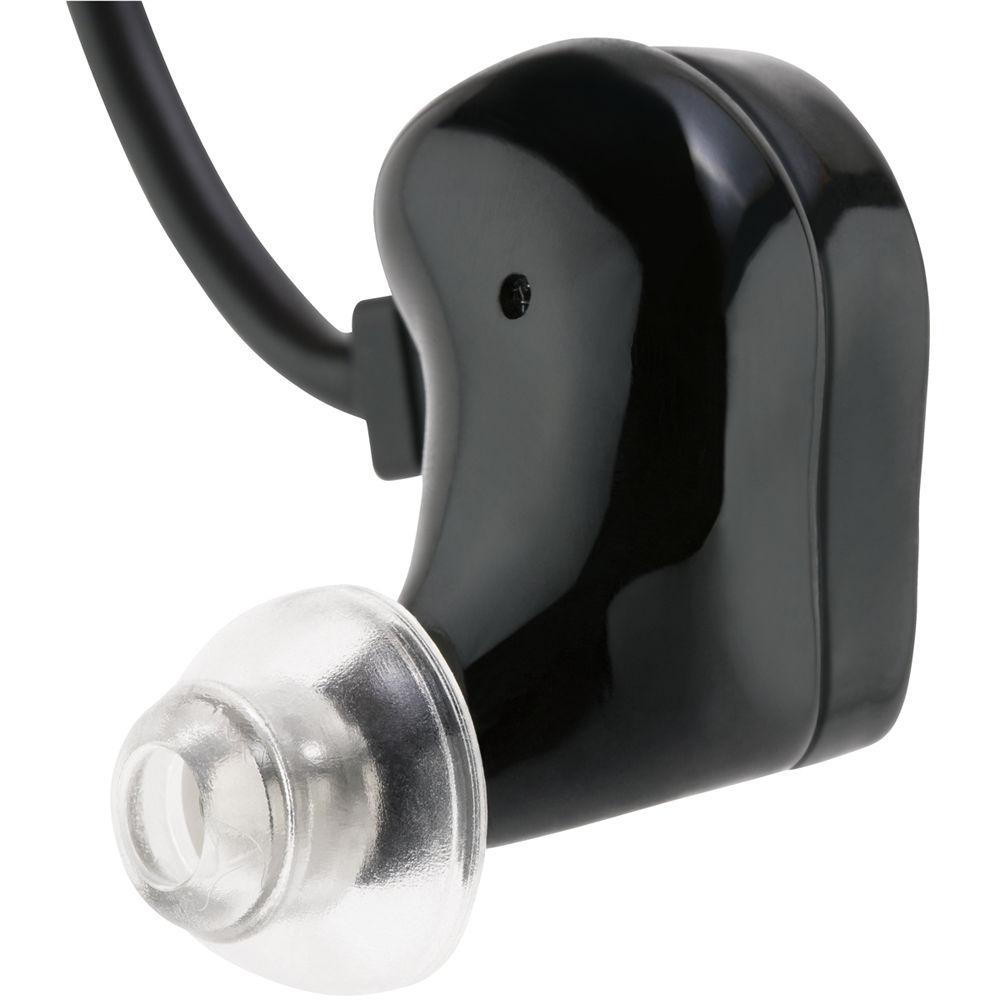

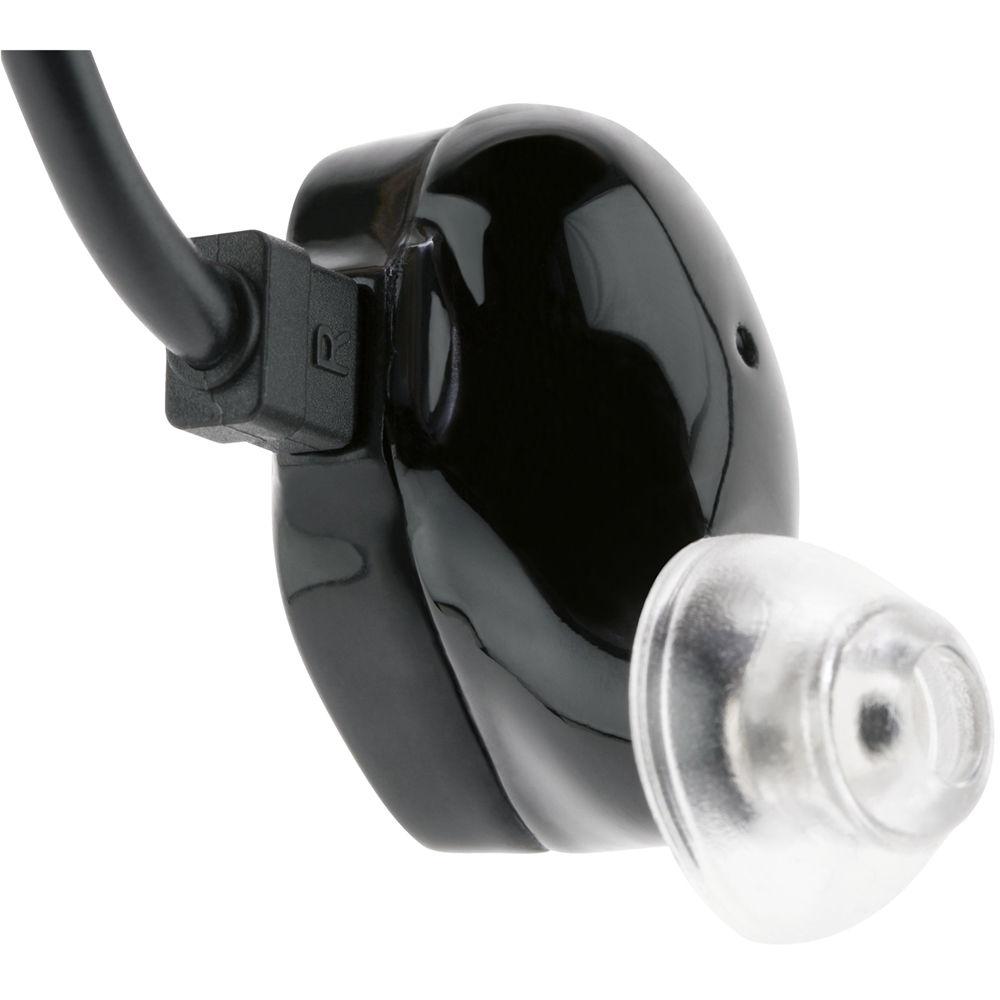

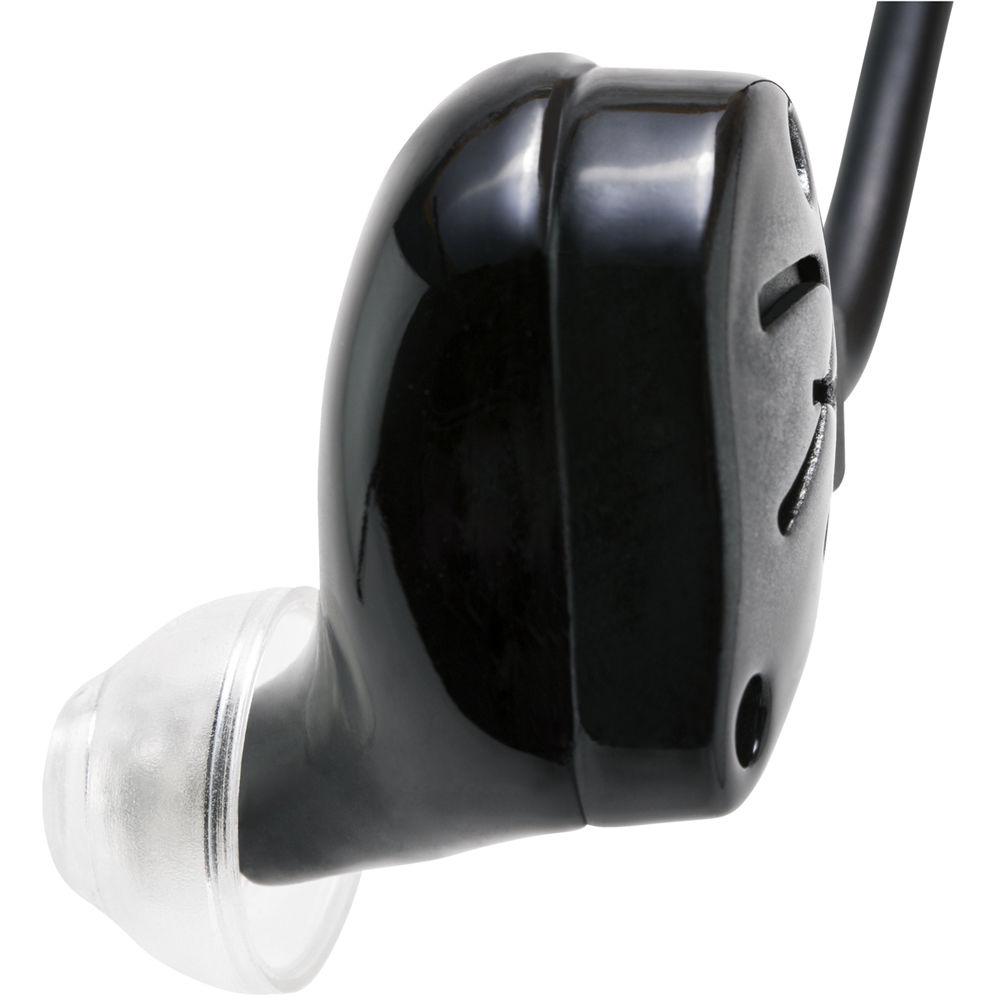

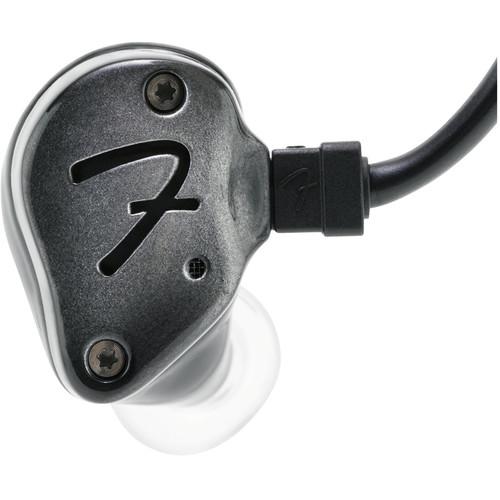

Product description Designed and hand assembled in Nashville, Tennessee, the silverburst Fender IEM TEN-5 are in-ear monitoring headphones offering broadband frequency reproduction and an unobtrusive fit for musicians, vocalists, and audio engineers in clubs, concert venues, and houses of worship. Each earpiece features a 10mm high-density dynamic driver and five hybrid dynamic balanced-armature drivers for a frequency response of 9 Hz to 21 kHz without requiring a dedicated headphone amplifier.The 3D-printed plastic housings are designed to deliver a tight seal and passive noise attenuation. A pressure equalization port in each housing enhances driver efficiency. Swappable memory foam and TPE eartips are included for achieving a secure, personalized fit. The detachable 2-pin Talon headphone cable is terminated with a 3.5mm TRS connector to ensure compatibility with a variety of mobile devices and mixers. The IEM TEN-5 in-ear monitoring headphones are supplied with a cleaning tool, 3.5mm to 1/4" adapter, aluminum airline adapter, and carrying case. - Each earpiece utilizes one 10mm high-density dynamic driver supplemented with five hybrid dynamic balanced-armature drivers—two midrange, two high frequency, and one super-high frequency
- 34-Ohm impedance allows the IEM TEN-5 to be driven by mobile devices, mixers, audio interfaces, or dedicated headphone amplifiers
- Precision 3D-printed plastic housing provides a custom-like fit
- Atmospheric pressure equalization port reduces driver flex and unloads pressure off the driver
- 2-pin Talon cable is reinforced with a woven ballistic composite material
- Recessed tongue-and-groove connection points ensure a secure fit with fail-safe left and right orientation
- Designed and hand assembled in Fender's audio design lab in Nashville, Tennessee
- Includes a 3.5mm to 1/4" adapter and an aluminum airline adapter
- Includes a deluxe carrying case, memory foam and proprietary TPE eartips, and a cleaning tool

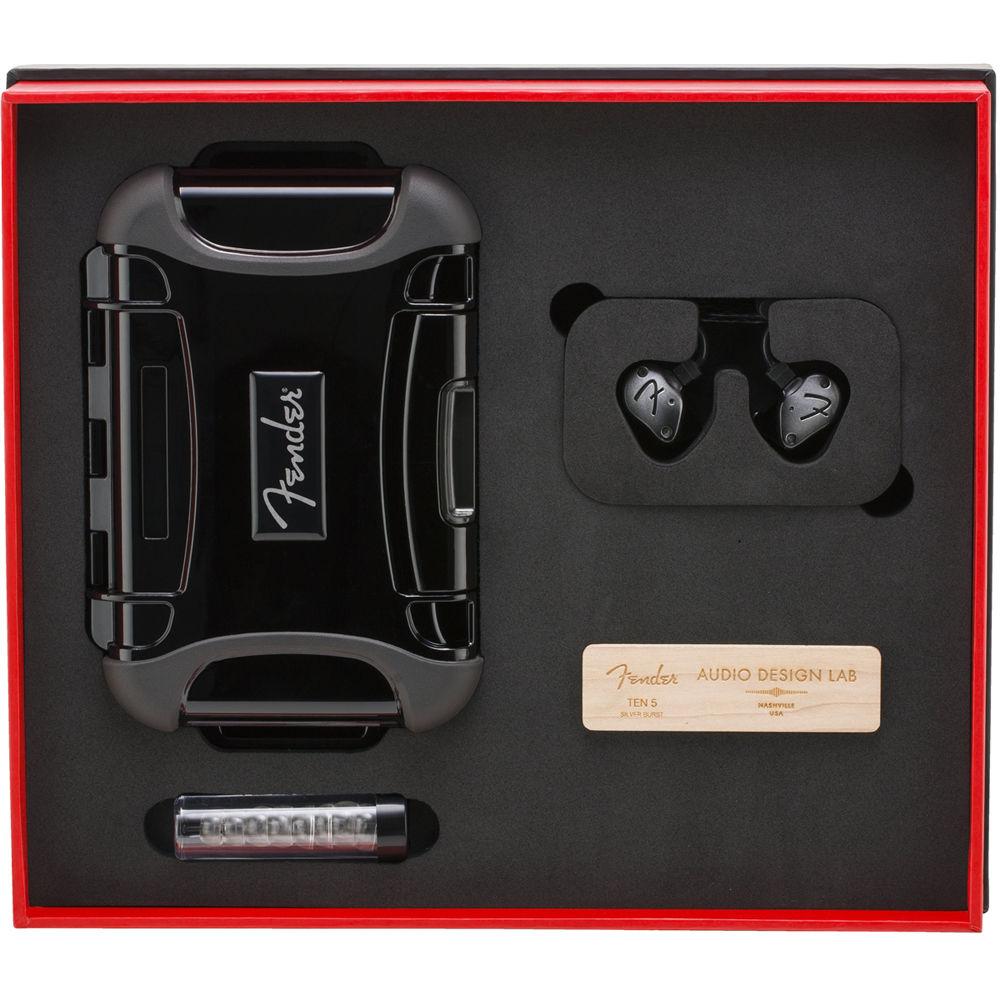

UPC: 885978987658 In the Box Fender IEM TEN-5 In-Ear Monitoring Headphones (Silverburst) Carrying Case 1/4" Adapter Aluminum Airline Adapter 4 x Pairs of TPE Eartips 3 x Pairs of Memory Foam Eartips Cleaning Tool Headphone Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fender IEM TEN-5 In-Ear Monitoring Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFender IEM Ten Specs | | | Design | In-Ear (Intra-Aural) | | Driver Size | 0.39" / 10 mm | | Driver Type | Dynamic, Balanced | | Number of Drivers | 6, per earpiece | | Active Noise Cancellation | No | | | | Frequency Response | 9 Hz to 21 kHz | | Sensitivity | 111 dB at 1 mW | | Impedance | 34 Ohms | | | | Audio Connector | 1/8" (3.5 mm) TRS | | Adapter (Included) | 1/4" (6.3 mm) TRS | | Connector to Earpiece | 2 x 2-Pin | | | | Design | Y-Type | | Detachable | Yes | | In-Line Remote/Microphone | No | | | | IP Rating | None | | Material of Construction | Plastic |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
