User Manual for Fender MXA2 Bundle with FXA2 In-Ear Monitors and PreSonus HP2 Amplifier Click to enlarge the picture
Contents of the user manual for the Fender MXA2 Bundle with FXA2 In-Ear
- Product category: Headphone Amplifiers Fender
- Brand: Fender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fender Headphone Amplifiers
|
User manual for the Fender MXA2 Bundle with FXA2 In-Ear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fender product will considerably shorten its lifespan!
|

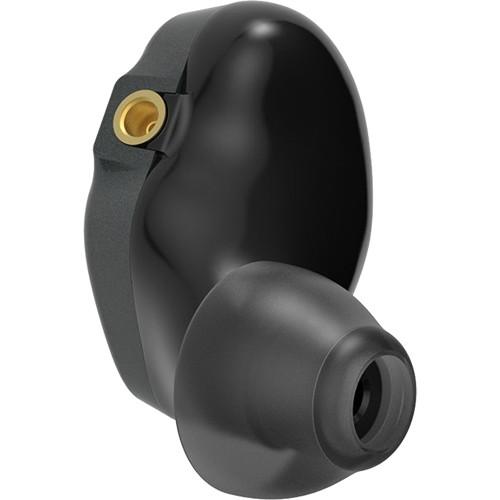

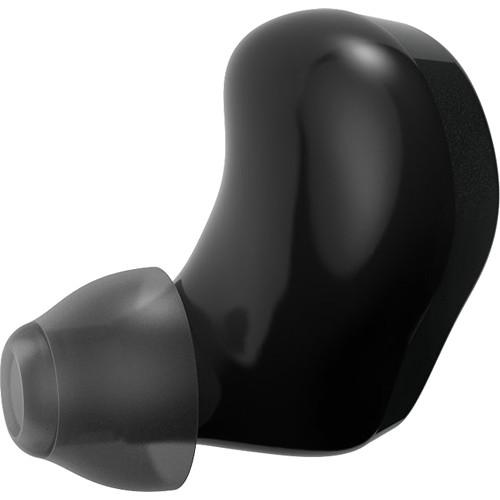

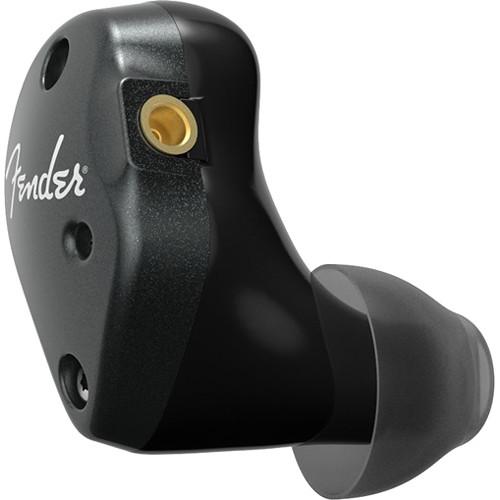

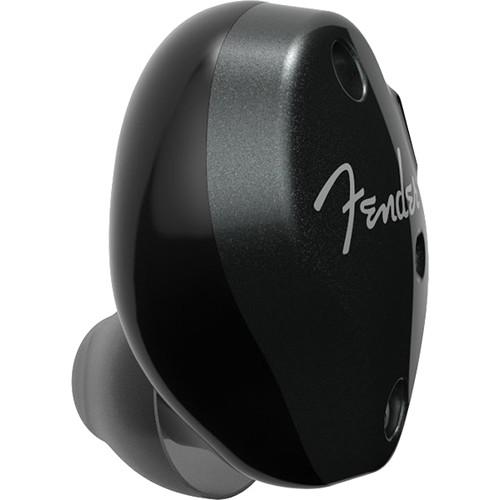

Product description The MXA2 Bundle from Fender includes the Fender FXA-2 in-ear monitor headphones and a PreSonus HP2 headphone amplifier. The accessories provided include a stereo input cable, a power supply, 3/8" to 5/8" microphone stand adapter, a carrying case, secure-fitting ear tips, cleaning tool, and cable. It is designed to provide high audio fidelity in any environment for musicians, voice-over artists, studio professionals, and more. - FXA2 Pro In-Ear Monitors (Metallic Black) The metallic black FXA2 Pro In-Ear Monitors from Fender are low-profile slimline-style monitors designed so you can hear every nuance of your music with lifelike clarity. Hand-assembled in Nashville, these monitors deliver a rich low-end and work especially well for bassists, drummers, or any serious player or audiophile application. Featuring 9.25mm precision rare-earth drivers with Groove-tune ports, the FXA2 monitors have a 6 Hz to 23 kHz frequency response, which can make your monitor mix and music come alive. In addition, a carrying case, secure-fit tips, cleaning tool, and detachable MMCX cable with a 1/8" mini-jack connector are included.
- Custom Rare-Earth Dynamic Drivers
- These dynamic drivers have a clear, sweet sound due to their full-range frequency response. Constructed with rare-earth magnets, which are more powerful than traditional magnet materials, these custom drivers should please fans of rich, punchy low-end, such as bassists and drummers
- Groove-Tuned Port
- Reproducing bass frequencies properly requires more air movement than needed for other frequencies. The Groove-tuned bass port on this model allows more air to reach the driver, enhancing the bass response without adding size or weight to the monitors
- Custom Mold-Like Housing
- The 3D-printed housing provides a custom-molded-like fit derived from scanning literally thousands of ear canals and then compiling the results to create an "ideal" fit that works for 95% of users. This low-profile housing uses 3D printing for a precise fit that seals the ear canal for enhanced bass and reduced ambient interference
- Detachable MMCX Cable
- Constructed from silver-plated low oxygen copper cable, the MMCX cables reduce signal loss, ensuring the maximum amount of audio goes where it belongs-your ears. The square connector is easy to grip, even when exposed to moisture, making cable swapping a snap. The integrated formable wire creates a secure over-the-ear fit
- Full-Range Frequency Response
- This model's frequency response ensures you'll hear all the highs, the lows, and everything in-between, for a completely natural listening experience
- Ambient Noise-Reducing
- With the combination of the 3D-printed housing and patent-pending secure-fit tips these in-ear monitors reduce ambience by up to 22 dB, allowing you to hear what you need the most—your music

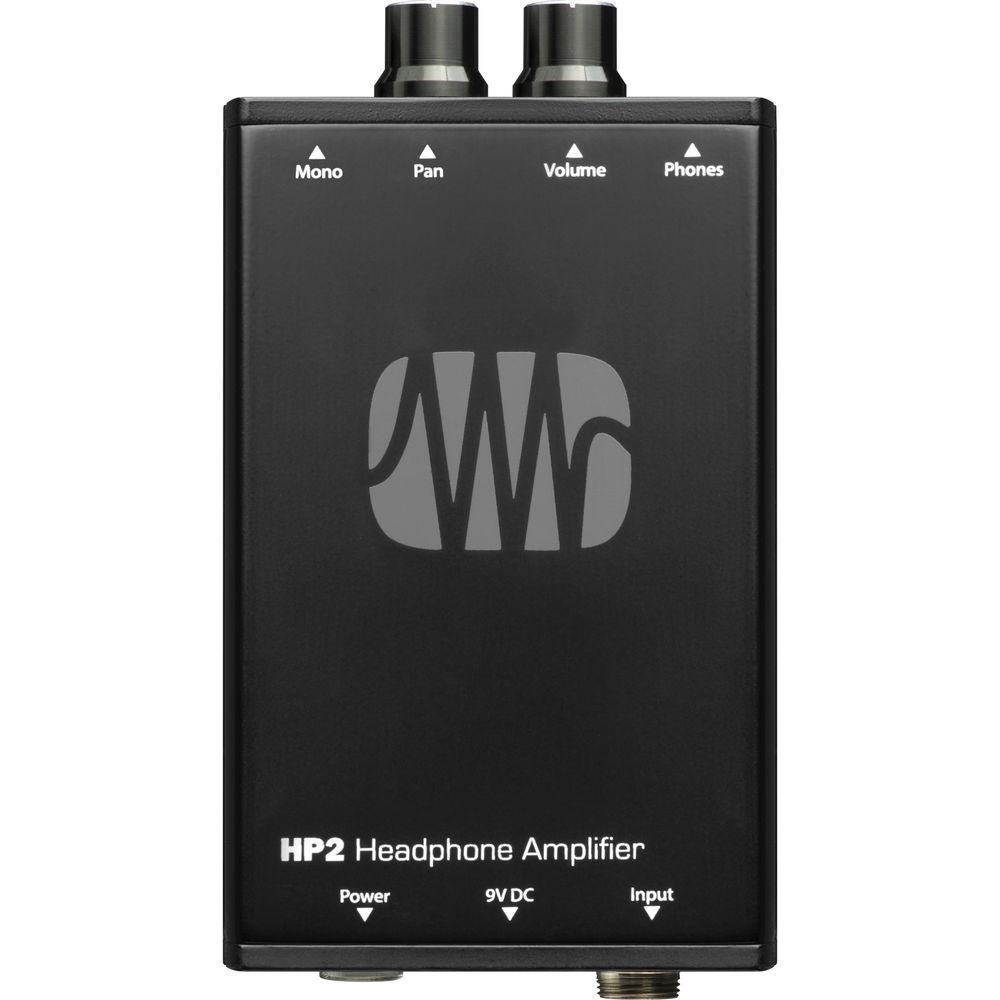

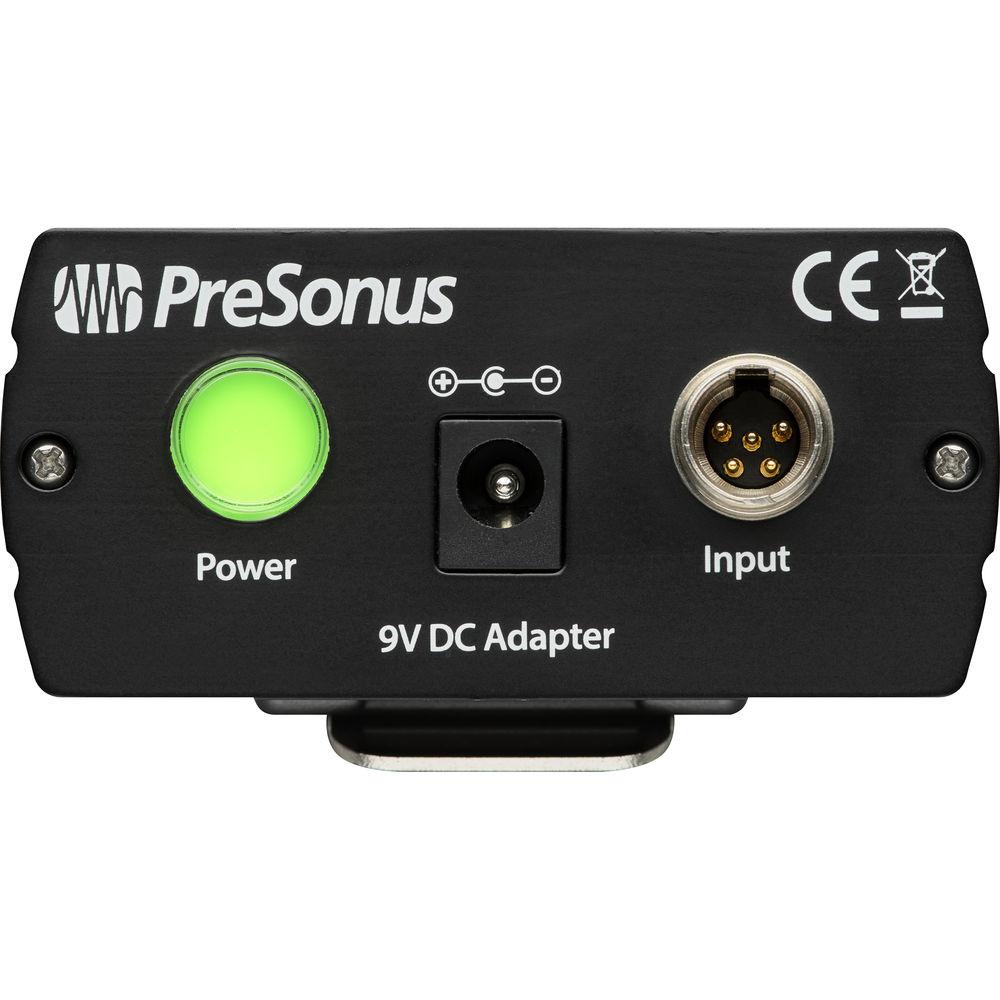

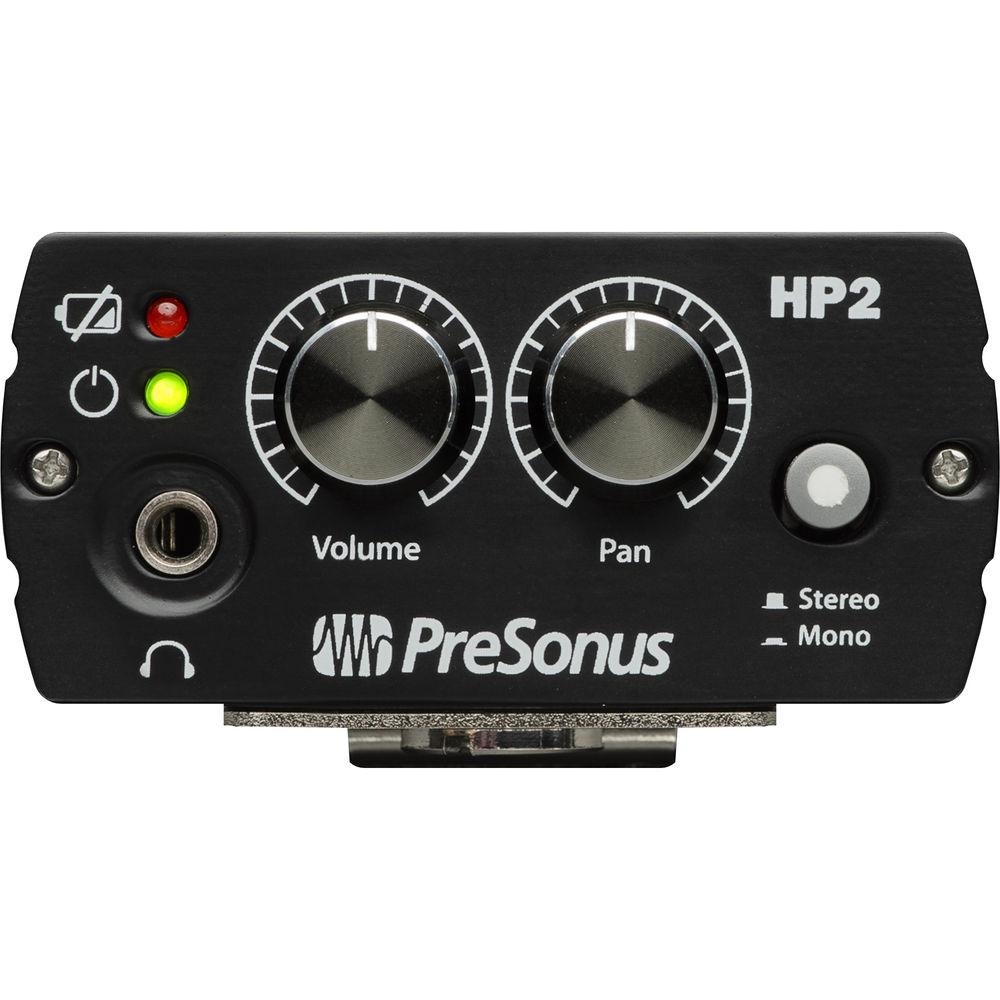

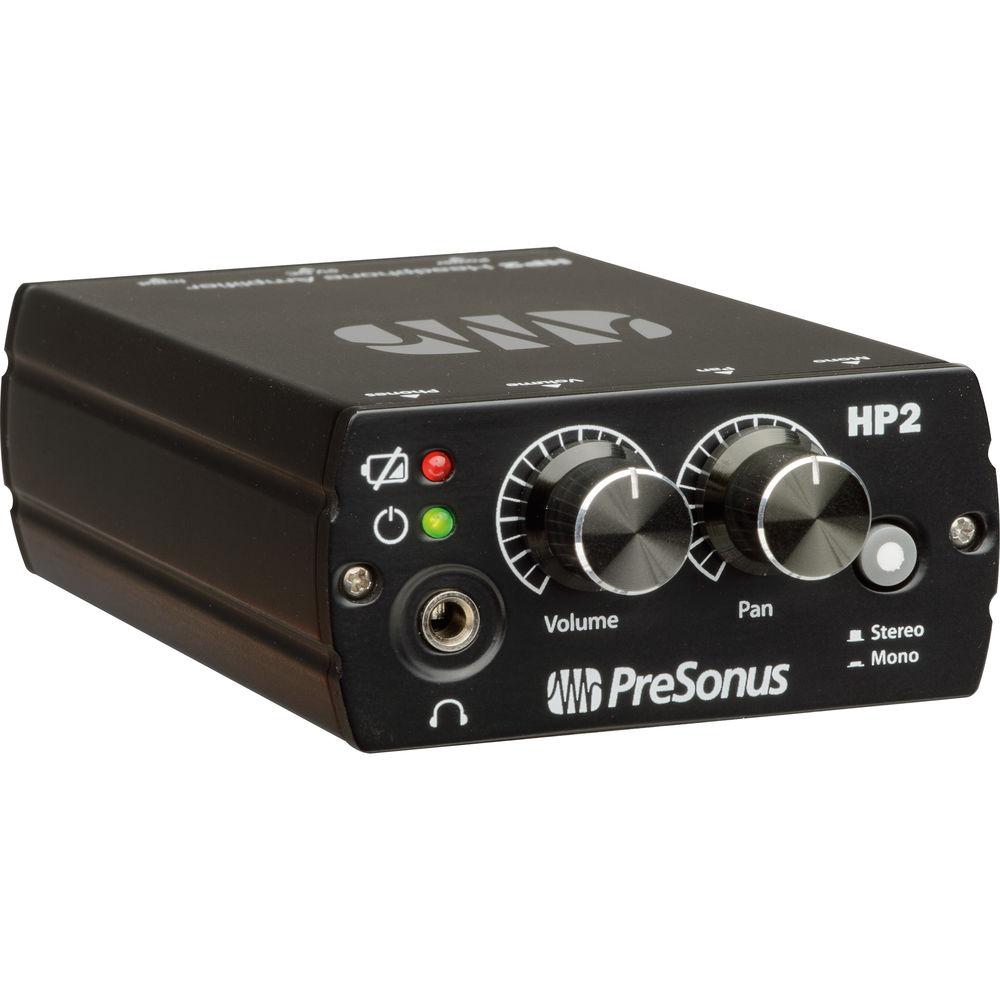

- HP2 Personal Stereo Headphone Amplifier The HP2 from Presonus is a battery-powered personal headphone amplifier with volume and pan control for driving wired in-ear monitors as well as headphones. It can be used by musicians and performers in applications such as live stage, theater, rehearsals, and more. The HP2 features two XLR line-level inputs and one stereo 1/8" headphone output and can be switched from stereo to mono operation. It is built tough to take the rigors of life on the road and will mount on a microphone stand or clip to your belt. In addition, the HP2 has an LED battery indicator and can be powered with an external DC power supply or a 9V battery, which can last more than seven hours. The 6.6' 5-pin mini XLR to two female XLR Y-cables is included along with a 5/8" microphone stand-mount-socket and a belt-clip. UPC: 673454004438
In the Box Bundle Items FXA2 Pro In-Ear Monitors (Metallic Black) sfzruwbxsstqzrbxzvydczvwrdre - Detachable MMCX Cable with 1/8" Mini-Jack Connector
HP2 Personal Stereo Headphone Amplifier - 5/8" Microphone Stand-Mount-Socket
- 6.6' 5-Pin Mini XLR to Two Female XLR Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fender MXA2 Bundle with FXA2 In-Ear Monitors and PreSonus HP2 Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FXA2 Pro In-Ear Monitors (Metallic Black)
Noise Reduction | NRR 22 dB | Input Impedance | 16 Ohms ± 10% at 1 kHz | Cable | 1/8" (3.5 mm) detachable MMCX cable | Dimensions | Not specified by manufacturer | Weight | Not specified by manufacturer | | Box Dimensions (LxWxH) | 7.2 x 4.8 x 2.9" | - HP2 Personal Stereo Headphone Amplifier
| Connector Type | 2x XLR female | Max Input | Level: +4 dBV <0.01% THD+N, unity gain | Input Impedance | 15 kOhms | Limit Input Level | +5 dBm | | Connector | 1/8" TRS female | Max Output Power | 50 mW / channel, <0.01% THD+N, 20 ohms load | Frequency Response | 30 Hz - 20 kHz, ±2 dB | Impedance | Working Range: >12 ohms | | Battery Power | 9 V | AC Adapter | 9 VDC, 40 mA, center pin negative | | Exterior Dimensions (H x D x W) | 1.25 x 2.86 x 5.25 (31.8 x 73.0 x 133.4 mm) | Weight | 1 lb (0.45 kg) | | Box Dimensions (LxWxH) | 9.7 x 4.4 x 2.5" |
