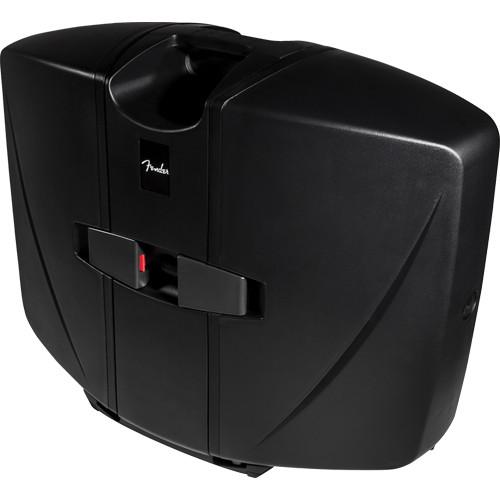

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Passport CONFERENCE from Fender is a self-contained portable audio system that provides everything needed to deliver amplification to a small- to medium-sized audience. The unit's ease of operation is perfect for the layperson who needs quality with simple functionality. The Passport can be transported like a suitcase and with a simple flip of the cabinet latches, the system is ready for set up.

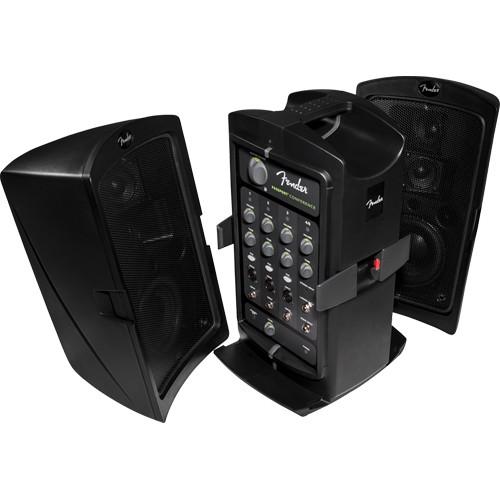

Inside are two full-range speaker cabinets, a powered mixer, and speaker cables. The package is ideal for an array of applications, including education, sporting and worship events, meetings, seminars and presentations, and gigs at parties, small clubs and coffeehouses. - Compact, portable PA system
- 175 watts of output power provides ample coverage for small- to medium-sized audiences
- Five-channel mixer provides easy mixing of lecture panels and small musical ensembles
- XLR and 1/4" microphone/line inputs
- Volume and tone controls on each channel for tailoring a mix
- Stereo 1/8" input for playing recorded material from mobile devices
- Stereo 1/8" output for headphone monitoring and for sending stereo mixes
UPC: 885978416639 In the Box Fender Passport CONFERENCE - Self-Contained Portable Audio System (175W) AC Power Cable 2 x Speaker Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fender Passport CONFERENCE - Self-Contained Portable Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

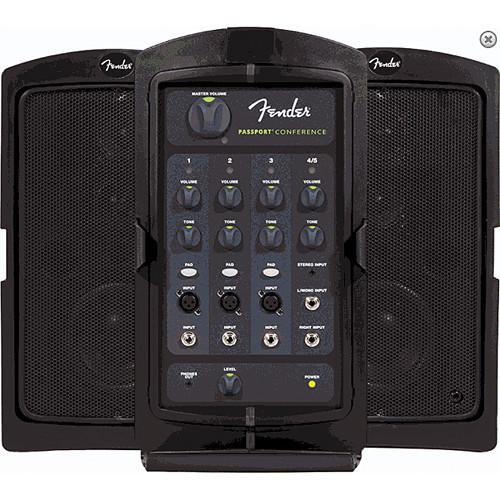

Technical parametersFender PASSPORT CONFERENCE Specs | Power Output | 175 W | | Amplifier Type | Class-D | | Speakers | 2 x 5.25" (133 mm) Woofer
4 x 2.75" (70 mm) Articulated HF tweeters | | Controls | Tone and volume control on each channel
20 db pad on channels 1-3
Master volume | | Connections | 3 x XLR Microphone
5 x 1/4" TS Line In
1 x 1/8" TRS stereo mini In
1 x 1/8" TRS stereo mini Headphone with level control
2 x 1/4" TS Speaker Out | | Cabinet | Molded plastic
Integrated top-mounted handle
High contrast front panel for high visibility in low-light
Soft-Touch radial controls | | Power Requirements | 120V AC, 60 Hz | | Dimensions (WxDxH) | 25 x 10 x 19" (635 x 254 x 485 mm) | | Weight | 30 lb (13.6 kg) | | | | Package Weight | 43.0 lb | | Box Dimensions (LxWxH) | 27.5 x 21.0 x 11.5" |
