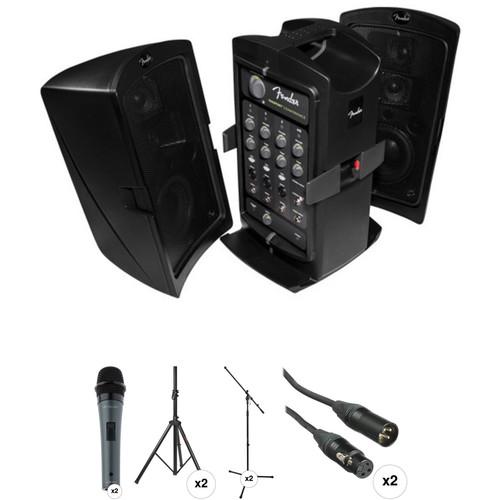

User Manual for Fender Passport Conference Vocal PA System Kit Click to enlarge the picture
Contents of the user manual for the Fender Passport Conference Vocal PA System
- Product category: Portable PA Systems Fender
- Brand: Fender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fender Portable PA Systems
|
User manual for the Fender Passport Conference Vocal PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fender product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More If you need an all-in-one portable vocal PA system, check out this Fender Passport Conference Vocal PA System Kit from . Consisting of a Fender Passport Conference PA system, which includes two handheld microphones and two XLR cables, 2 microphone stands, and a pair of speaker stands, it provides what you need to get heard by small to medium-sized audiences.
The Passport Conference system features 2 detachable speakers with 5.25-inch woofers and a 5-channel powered mixer. When you need to break down and transport the system, the speakers connect directly to the mixer, allowing you to carry it like a suitcase. Both microphones can be used handheld or attached to the included microphone stands, and connect to the Passport's mixer with the included XLR cables. - Fender Passport CONFERENCE - Self-Contained Portable Audio System (175W) The Passport CONFERENCE from Fender is a self-contained portable audio system that provides everything needed to deliver amplification to a small- to medium-sized audience. The unit's ease of operation is perfect for the layperson who needs quality with simple functionality. The Passport can be transported like a suitcase and with a simple flip of the cabinet latches, the system is ready for set up.
Inside are two full-range speaker cabinets, a powered mixer, and speaker cables. The package is ideal for an array of applications, including education, sporting and worship events, meetings, seminars and presentations, and gigs at parties, small clubs and coffeehouses. - Compact, portable PA system
- 175 watts of output power provides ample coverage for small- to medium-sized audiences
- Five-channel mixer provides easy mixing of lecture panels and small musical ensembles
- XLR and 1/4" microphone/line inputs
- Volume and tone controls on each channel for tailoring a mix
- Stereo 1/8" input for playing recorded material from mobile devices
- Stereo 1/8" output for headphone monitoring and for sending stereo mixes
UPC: 885978416639 - 2 x Polsen HDM-16-S Handheld Dynamic Performance Microphone The HDM-16-S Handheld Dynamic Performance Microphone from Polsen is a reliable and rugged handheld microphone with an integrated on/off switch. The supercardioid polar pattern and frequency response is optimized for the human voice and can be used for live stage, vocal presentation, and studio applications. The microphone's polar pattern is designed to eliminate off-axis sound. Additionally, an on/off switch lets you quickly silence the mic when necessary. Built with rugged construction, the Polsen HDM-16-S will withstand the rigors of transport and live performances. A 16.4' XLR cable, carry pouch, and a mic clip are also included.
- Optimized for Vocals
- The HDM-16-S microphone is optimized for live vocal performances. It has a wide frequency response with impressive sensitivity, which makes this microphone capable of capturing singers and presenters with clarity and accuracy.
- Supercardioid Polar Pattern
- The dynamic supercardioid microphone capsule minimizes background noise, making the HDM-16-S ideal for vocals or speech, whether onstage or in the studio.
- On/Off Switch
- Don't let your audience hear what you don't want them to hear. The on/off switch is a convenient feature that lets you quickly mute the microphone between songs or during a pause in your presentation.
- Rugged and Portable
- Take your microphone anywhere. The heavy-duty metal construction will withstand the rigors of transport and onstage use. With the included 16-foot XLR cable, you can plug into any mixing board, sound system, or amplifier with an XLR input jack.
UPC: 847628598447 - 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
- 2 x Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
- 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - Passport CONFERENCE - Self-Contained Portable Audio System (175W) fcstfcrbfvtexrqeuceszbefvrqvzerxc
- AC Power Cable
- 2 x Speaker Cables
- Limited 2-Year Warranty
- 2 x Polsen - HDM-16-S Handheld Dynamic Performance Microphone fcstfcrbfvtexrqeuceszbefvrqvzerxc
- 2 x Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
- 2 x Auray - MS-5230F Tripod Microphone Stand with Fixed Boom
- 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fender Passport Conference Vocal PA System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Fender Passport CONFERENCE - Self-Contained Portable Audio System (175W)
| Power Output | 175 W | | Amplifier Type | Class-D | | Speakers | 2 x 5.25" (133 mm) Woofer
4 x 2.75" (70 mm) Articulated HF tweeters | | Controls | Tone and volume control on each channel
20 db pad on channels 1-3
Master volume | | Connections | 3 x XLR Microphone
5 x 1/4" TS Line In
1 x 1/8" TRS stereo mini In
1 x 1/8" TRS stereo mini Headphone with level control
2 x 1/4" TS Speaker Out | | Cabinet | Molded plastic
Integrated top-mounted handle
High contrast front panel for high visibility in low-light
Soft-Touch radial controls | | Power Requirements | 120V AC, 60 Hz | | Dimensions (WxDxH) | 25 x 10 x 19" (635 x 254 x 485 mm) | | Weight | 30 lb (13.6 kg) | | | | Box Dimensions (LxWxH) | 27.5 x 21.0 x 11.5" | - 2 x Polsen HDM-16-S Handheld Dynamic Performance Microphone
| Transducer | Dynamic | | Polar Pattern | Supercardioid | | Frequency Response | 50 Hz to 16 kHz | | Impedance | 600 Ohms ±30% at 1 kHz | | Sensitivity | -54 dB ±3 dB (0 dB= 1 V/Pa @ 1 kHz) | | Output Connector | 3-pin XLR | | Cable Length | 16.4' (5 m) | | Dimensions (L x Diam) | 7 x 2.1" (17.8 x 5.3 cm) | | Weight | 0.7 lb (317.5 g) | | | | Box Dimensions (LxWxH) | 8.7 x 4.9 x 2.7" | - 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
| Type | Speaker Stand | | Mount Size | 1-3/8" | | Height Adjustment Range | 50 to 75" / 1.27 to 1.9 m | | Material of Construction | Steel | | Base Spread | 54" / 137 cm | | Weight | 6.2 lb / 2.8 kg | | | | Box Dimensions (LxWxH) | 40.0 x 5.0 x 5.0" | - 2 x Auray MS-5230F Tripod Microphone Stand with Fixed Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Material | Steel | | Weight | 4.5 lb / 2 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" | - 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
