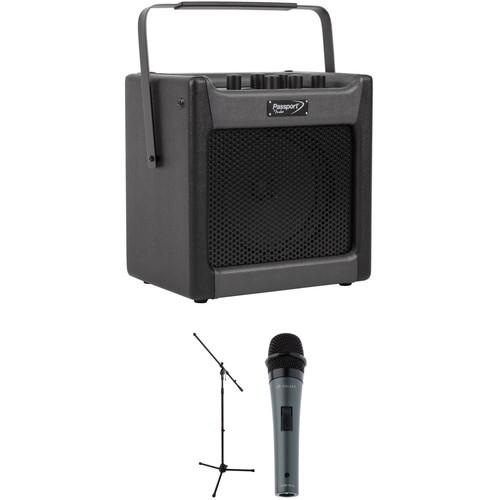

Fender Passport mini and Microphone Kit

User Manual for Fender Passport mini and Microphone Kit

• Product category: Portable PA Systems Fender
• Brand: Fender
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fender Portable PA Systems

Product description

• Fender Passport mini - Portable Amplifier/Speaker Combo for Instrument or Microphone (7W) The Passport mini from Fender offers convenient amplification for any instrument or microphone. It's perfect for performances by street musicians and students, as well as a basic public address system for events and presentations. Thanks to its dual AC or battery powered capabilities, the unit can be used almost anywhere. With USB connectivity, it can even be used as a music media playback system or a computer recording interface.
  • Instrument channel with twenty-four presets, built from eight amp models and optimized for acoustic and electric guitars and other instruments
  • Twelve effects (additional effects available with free Fender FUSE software)
  • Tap Tempo button for adjusting delay time and modulation rate
  • Separate vocal channel with XLR and 1/4"inputs and dedicated volume, tone, and reverb controls
  • Auxiliary input for connecting a media player
  • Digital chromatic tuner
  • Metal handle doubles as a tilt-back stand
  • Stereo headphone output for silent practice or line out
  • USB connection for Fender FUSE application and digital recording output
  • Powered by an included AC power supply or six "C" batteries
  UPC: 885978290512
• Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
• Polsen HDM-16-S Handheld Dynamic Performance Microphone The HDM-16-S Handheld Dynamic Performance Microphone from Polsen is a reliable and rugged handheld microphone with an integrated on/off switch. The supercardioid polar pattern and frequency response is optimized for the human voice and can be used for live stage, vocal presentation, and studio applications. The microphone's polar pattern is designed to eliminate off-axis sound. Additionally, an on/off switch lets you quickly silence the mic when necessary. Built with rugged construction, the Polsen HDM-16-S will withstand the rigors of transport and live performances. A 16.4' XLR cable, carry pouch, and a mic clip are also included.
  Optimized for Vocals
  • The HDM-16-S microphone is optimized for live vocal performances. It has a wide frequency response with impressive sensitivity, which makes this microphone capable of capturing singers and presenters with clarity and accuracy.
  Supercardioid Polar Pattern
  • The dynamic supercardioid microphone capsule minimizes background noise, making the HDM-16-S ideal for vocals or speech, whether onstage or in the studio.
  On/Off Switch
  • Don't let your audience hear what you don't want them to hear. The on/off switch is a convenient feature that lets you quickly mute the microphone between songs or during a pause in your presentation.
  Rugged and Portable
  • Take your microphone anywhere. The heavy-duty metal construction will withstand the rigors of transport and onstage use. With the included 16-foot XLR cable, you can plug into any mixing board, sound system, or amplifier with an XLR input jack.
  UPC: 847628598447

• Passport mini - Portable Amplifier/Speaker Combo for Instrument or Microphone (7W) rbrydryuwbvwrzayqtrftuarf
• External Power Supply
• USB Cable
• Limited 2-Year Warranty

• Auray - MS-5230F Tripod Microphone Stand with Fixed Boom

• Polsen - HDM-16-S Handheld Dynamic Performance Microphone

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fender Passport mini - Portable Amplifier/Speaker Combo for Instrument or Microphone (7W)

  Power Output	7 W
  Speaker	1 x 6.5" (165 mm) full-range speaker, 8 Ω
  Channels	2 (instrument and microphone)
  Controls	Vocal Channel: Volume, tone, reverb level Instrument Channel: Volume, preset, effects, tap tempo button
  Effects	Chorus Flanger Phaser Vibratone Vintage Tremolo Slap-back Echo Small Room Reverb Fender '65 Spring Reverb Stereo Tape Delay Tape Delay+Room Reverb Chorus+Hall Reverb Vibratone+Room Reverb
  Connections	Input 1 x XLR Microphone 1 x 1/4" TS Instrument 1 x 1/4" TS Line 1 x 1/8" TRS stereo mini Auxiliary Output 1 x 1/8" TRS stereo mini Headphone Other 1 x USB Type B Speaker emulated USB and 1/8" headphone jack doubles as speaker emulated line out
  Cabinet	Textured vinyl covering with metal grill Metal handle doubles as a tilt-back stand Grey two-tone front panel
  Power Requirements	120V AC, 60 Hz for included power adapter 6 x C-type batteries not included
  Dimensions (WxDxH)	9.5 x 6.7 x 9.5" (240 x 170 x 240 mm)
  Weight	7.3 lb (3.3 kg)

  Box Dimensions (LxWxH)	14.0 x 11.25 x 9.0"

• Auray MS-5230F Tripod Microphone Stand with Fixed Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	31.5" / 80 cm

  Material	Steel
  Weight	4.5 lb / 2 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• Polsen HDM-16-S Handheld Dynamic Performance Microphone

  Transducer	Dynamic
  Polar Pattern	Supercardioid
  Frequency Response	50 Hz to 16 kHz
  Impedance	600 Ohms ±30% at 1 kHz
  Sensitivity	-54 dB ±3 dB (0 dB= 1 V/Pa @ 1 kHz)
  Output Connector	3-pin XLR
  Cable Length	16.4' (5 m)
  Dimensions (L x Diam)	7 x 2.1" (17.8 x 5.3 cm)
  Weight	0.7 lb (317.5 g)

  Box Dimensions (LxWxH)	8.7 x 4.9 x 2.7"
