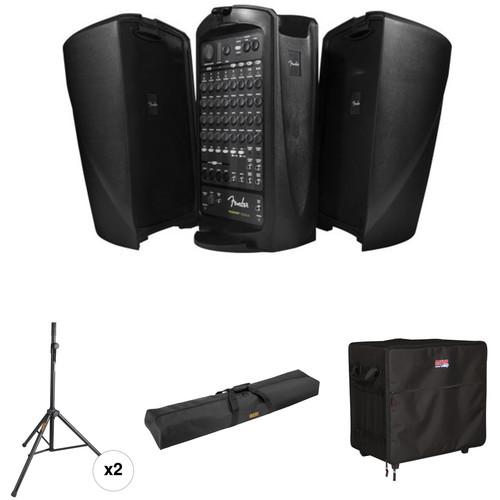

Fender Passport VENUE Kit with Speaker

User Manual for Fender Passport VENUE Kit with Speaker Stands and Carrying Bags

• Product category: Portable PA Systems Fender
• Brand: Fender
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fender Portable PA Systems

Product description

• Fender Passport VENUE - Self-Contained Portable Audio System (600W) The Passport VENUE from Fender is a self-contained portable audio system with USB connectivity that includes everything needed for providing amplification to a larger-sized audience. The Passport can be transported like a suitcase and with a simple flip of the cabinet latches, the system is ready for set up.

  Inside are two full-range speaker cabinets, a powered mixer and all the cables required to get started. The package is ideal for an array of applications, including band and DJ gigs, education, sporting and worship events, meetings, seminars, and presentations. Recording of the event or other audio playback is available via an optional USB flash drive.
  • Compact, portable PA system
  • 600 watts of output power provides ample coverage for larger-sized audiences
  • Ten-channel mixer provides easy mixing of lecture panels, musical ensembles, and more
  • Reverb adds depth to instruments and vocals
  • USB-equipped - record performances to an optional USB flash drive and play CD quality 16-bit/44.1 kHz, MP3 and WAV audio files
  • XLR and 1/4" microphone/line inputs
  • Two Hi-Z 1/4" inputs for guitars
  • Stereo 1/8" input for playing recorded material from mobile devices
  • Stereo 1/8" output for headphone monitoring and for sending out stereo mixes
  • Sub out with automatic high-pass filter for powered subwoofer use
  • Mono out with level control for powered monitor use
  UPC: 885978416417
• 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand The SS-4320 Lightweight Aluminum Speaker Stand from Auray is built to be lightweight, yet stable and durable; a single stand is capable of supporting speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 47 to 78". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages.
  • Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
  • Locking pin fits into any of five predrilled holes to secure desired height setting
  • Center brace connects tripod legs for increased stability
  UPC: 847628015845
• Auray Speaker Stand Bag 51" Interior (Black) The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
  Durable Protection
  • The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
  Reliable and Stylish
  • Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
  Easy Transport
  • Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
  UPC: 847628002432
• Gator Cases G-PA TRANSPORT-LG Case for Larger "Passport" Type PA Systems (Black) The black Case for Larger "Passport" Type PA Systems from Gator is the perfect traveling companion for your Passport 300 or 500 PA system. If you remove its single internal divider, it will also accommodate a Yamaha-style PA instead. The zippered case is manufactured from a lightweight wood with a nylon covering. Outside, is a convenient large zippered storage pocket for accessories like cables, adapters and paperwork. Whether for a band or a DJ, portability is always crucial and this case comes with two wheels and a retractable handle. That is supported by two additional webbed carry handles for short hauls. Gator backs the case with its standard limited lifetime warranty.
  • Fits most portable PA systems like the Passport 300 and 500; removable internal divider for Yamaha-style PA
  • Hybrid lightweight wood and nylon construction
  • Large external pocket
  • Reinforced web handle
  • Wheels and retractable handle
  Carry-On Form Factor
  • FAA and airline carry-on specifications are subject to change without notice, please check with your airline before designating this case as a carry-on item. Most airlines require carry-on items to have an external linear measurement that is equal to or less than 45.0" (114.3 cm). The external dimensions of this case add up to 73.0" (185.4 cm)
  UPC: 716408530314

• Passport VENUE - Self-Contained Portable Audio System (600W) zyzqesdvdefsry
• AC Power Cable
• 2 x Speaker Cables
• Limited 2-Year Warranty

• 2 x Auray - SS-4320 Lightweight Aluminum Speaker Stand

• Auray - Speaker Stand Bag 51" Interior (Black)

• Gator Cases - G-PA TRANSPORT-LG Case for Larger "Passport" Type PA Systems (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fender Passport VENUE - Self-Contained Portable Audio System (600W)

  Power Output	600 W
  Amplifier Type	Class-D
  Speakers	2 x 10" (254 mm) Fender Special Design 2 x 1.2" (30 mm) Horn-loaded tweeter
  Effects	Reverb
  Controls	Volume per channel Treble per channel Bass per channel Reverb level per channel 20 dB pad channels 1-4 Phantom power switch Reverb select Time and tone Hi-Z instrument/line switch USB (record, play/pause, previous track, next track) Master volume Master tone
  Connections	4 x XLR Microphone/Line In 2 x 1/4" TS Instrument/Line In 4 x 1/4" TS Line In 2 x 1/8" TRS stereo mini In 1 x USB Type A 1 x 1/8" TRS stereo mini Line/Headphones Out 1 x 1/4" TS Mono Out 1 x 1/4" TS Sub Out 2 x 1/4" TS Speaker Out
  Cabinet	Molded plastic Integrated top-mounted handle High contrast front panel for high visibility in low-light Soft-touch radial controls
  Power Requirements	120V AC, 60 Hz
  Dimensions (WxDxH)	29 x 11 x 23" (737 x 279 x 584 mm)
  Weight	44 lb (20 kg)

  Box Dimensions (LxWxH)	32.0 x 25.0 x 14.5"

• 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand

  Type	Speaker Stand
  Load Capacity	100 lb / 45.4 kg
  Mount Size	1-3/8" 1-1/2"
  Height Adjustment Range	47 to 78" / 120 to 198 cm
  Material of Construction	Aluminum
  Weight	5 lb / 2.3 kg

  Box Dimensions (LxWxH)	42.0 x 5.3 x 5.0"

• Auray Speaker Stand Bag 51" Interior (Black)

  Material	Nylon
  Type of Closure	Zipper
  Exterior Dimensions (H × W × D)	52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm
  Carrying/Transport Options	Dual carry handles with padded touch-fastener wrap
  Weight	1.2 lb / 0.5 kg

  Box Dimensions (LxWxH)	16.6 x 10.8 x 2.2"

• Gator Cases G-PA TRANSPORT-LG Case for Larger "Passport" Type PA Systems (Black)

  Type	Bag
  Interior Dimensions	13 x 24 x 30" / 33 x 61 x 76.2 cm
  Carrying/Transport Options	Retractable Handle, Side Handle
  Type of Closure	Zipper
  Number of Casters	2
  Material of Construction	Nylon, Wood
  Exterior Dimensions (W x H x D)	14 x 27 x 32" / 35.6 x 68.6 x 81.3 cm
  Weight	38 lb / 17.2 kg

  Box Dimensions (LxWxH)	28.5 x 24.5 x 16.2"
