User Manual for Fender Passport VENUE - Self-Contained Portable Audio System Click to enlarge the picture
Contents of the user manual for the Fender Passport VENUE - Self-Contained Portable
- Product category: Portable PA Systems Fender
- Brand: Fender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fender Portable PA Systems
 |
User manual for the Fender Passport VENUE - Self-Contained Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fender product will considerably shorten its lifespan!
|

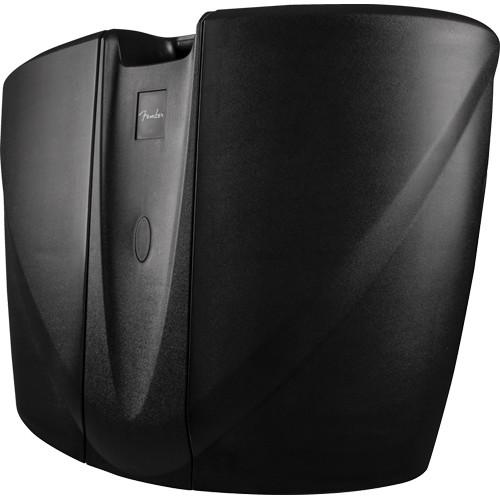

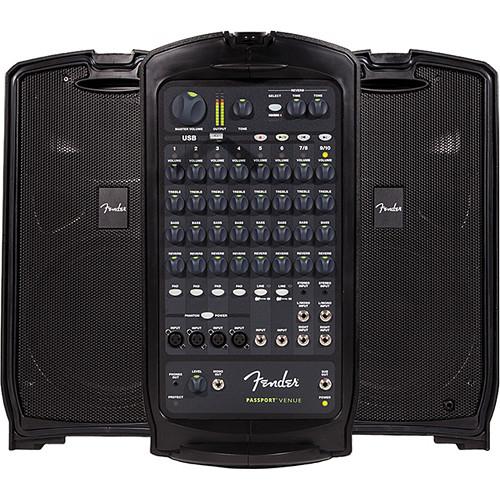

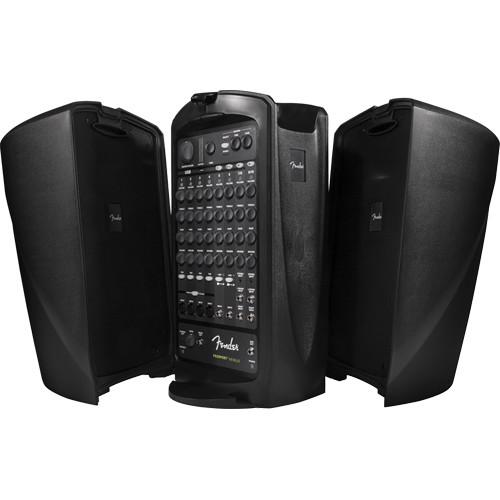

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Passport VENUE from Fender is a self-contained portable audio system with USB connectivity that includes everything needed for providing amplification to a larger-sized audience. The Passport can be transported like a suitcase and with a simple flip of the cabinet latches, the system is ready for set up.
Inside are two full-range speaker cabinets, a powered mixer and all the cables required to get started. The package is ideal for an array of applications, including band and DJ gigs, education, sporting and worship events, meetings, seminars, and presentations. Recording of the event or other audio playback is available via an optional USB flash drive. - Compact, portable PA system
- 600 watts of output power provides ample coverage for larger-sized audiences
- Ten-channel mixer provides easy mixing of lecture panels, musical ensembles, and more
- Reverb adds depth to instruments and vocals
- USB-equipped - record performances to an optional USB flash drive and play CD quality 16-bit/44.1 kHz, MP3 and WAV audio files
- XLR and 1/4" microphone/line inputs
- Two Hi-Z 1/4" inputs for guitars
- Stereo 1/8" input for playing recorded material from mobile devices
- Stereo 1/8" output for headphone monitoring and for sending out stereo mixes
- Sub out with automatic high-pass filter for powered subwoofer use
- Mono out with level control for powered monitor use
UPC: 885978416417 In the Box Fender Passport VENUE - Self-Contained Portable Audio System (600W) AC Power Cable 2 x Speaker Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fender Passport VENUE - Self-Contained Portable Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFender PASSPORT VENUE Specs | Power Output | 600 W | | Amplifier Type | Class-D | | Speakers | 2 x 10" (254 mm) Fender Special Design
2 x 1.2" (30 mm) Horn-loaded tweeter | | Effects | Reverb | | Controls | Volume per channel
Treble per channel
Bass per channel
Reverb level per channel
20 dB pad channels 1-4
Phantom power switch
Reverb select
Time and tone
Hi-Z instrument/line switch
USB (record, play/pause, previous track, next track)
Master volume
Master tone | | Connections | 4 x XLR Microphone/Line In
2 x 1/4" TS Instrument/Line In
4 x 1/4" TS Line In
2 x 1/8" TRS stereo mini In
1 x USB Type A
1 x 1/8" TRS stereo mini Line/Headphones Out
1 x 1/4" TS Mono Out
1 x 1/4" TS Sub Out
2 x 1/4" TS Speaker Out | | Cabinet | Molded plastic
Integrated top-mounted handle
High contrast front panel for high visibility in low-light
Soft-touch radial controls | | Power Requirements | 120V AC, 60 Hz | | Dimensions (WxDxH) | 29 x 11 x 23" (737 x 279 x 584 mm) | | Weight | 44 lb (20 kg) | | | | Package Weight | 59.5 lb | | Box Dimensions (LxWxH) | 32.0 x 25.0 x 14.5" |
