User Manual for Fenix Flashlight 18650 Lithium-Ion Battery with Micro-USB Charging Port Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight 18650 Lithium-Ion Battery with
- Product category: Universal Batteries & Chargers Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Universal Batteries & Chargers
 |
User manual for the Fenix Flashlight 18650 Lithium-Ion Battery with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

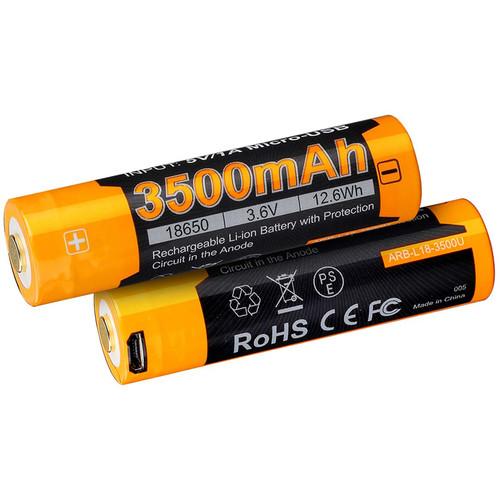

Product description Power various electronics, including flashlights, camping lanterns, and much more, with this 18650 Lithium-Ion Battery with Micro-USB Charging Port from Fenix Flashlight. In addition to the conventional method of insertion into a charger, you can replenish the energy level in this cell by connecting a power cable with a Micro-USB plug. The battery features 3.6V of output power, a 3500mAh capacity, and a 12.6Wh rating.
A circuit with a durable steel shell is built into the anode to protect against overcharging, over-discharging, short-circuiting, and overheating. The last of these is prevented by a three-layer design consisting of a pressure relief valve, a microporous membrane separator, and a PTC cathode block. Additionally, the durable battery is designed to last for up to 500 charge/discharge cycles, and its low self-discharge rate allows it to maintain up to 75% of its capacity after the final cycle. As an added bonus, an LED status indicator light glows in red during charging and turns green when the process is complete. In the Box Fenix Flashlight 18650 Lithium-Ion Battery with Micro-USB Charging Port (3.6V, 3500mAh) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight 18650 Lithium-Ion Battery with Micro-USB Charging Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight ARB-L18 Specs | Type | 18650 | | Chemistry | Lithium-ion | | Capacity | 3500 mAh | | Output Voltage | 3.6 V | | Watt-Hours | 12.6 Wh | | Input Power | Recommended Charging Current: 1.0 A
Max. Charging Current: 2.0 A | | Charging Method | Connect a cord to Micro-USB port
Insert into charger (not included)
Compatible Chargers: Fenix ARE-C1, ARE-C1+, ARE-C2, ARE-C2+, ARE-X1, ARE-X1+, and ARE-X2 | | Max Recharge Cycles | 500 | | Certifications | RoHS, CE, FCC | | | | Package Weight | 0.13 lb | | Box Dimensions (LxWxH) | 3.0 x 1.05 x 0.8" |
