User Manual for Fenix Flashlight BC30R LED Rechargeable Bike Light Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight BC30R LED Rechargeable Bike
- Product category: Bicycle Lights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Bicycle Lights
 |
User manual for the Fenix Flashlight BC30R LED Rechargeable Bike contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description With a remote-controlled 1800-lumen burst mode and an OLED digital display showing remaining battery power, the BC30R LED Rechargeable Bike Light from Fenix Flashlight is an effective lighting system for after-dark outings on the road or on the trail. Two Cree XM-L2 U2 neutral white LEDs provide brightness settings of 50, 150, 400, or 1000 lumens, with the burst mode available via a remote pressure switch when maximum vision is required. An additional flash setting is available for times when it's most critical to be seen. On-light switching consists of an on-off push-button (double-click it for flash mode) and up and down buttons to cycle through settings. The digital display shows how many hours of power are left at any given brightness level, so you can plan accordingly. The built-in 5200mAh / 3.7V rechargeable battery provides runtimes ranging from 2 hours 40 minutes at High power to 36 hours at the 100-lumens Eco setting. Dual Distance Beam System technology affords good close-range and long-distance visibility without causing a glare for oncoming pedestrians, and digitally regulated output assures consistent performance across the battery charge. Rated at IP66, the BC30R can withstand rain. It comes with a quick-release mount, mounting shims, a remote pressure switch for burst mode, and a USB charging cable, and is covered by the Fenix lifetime warranty. - Performance
-
- Two Cree XM-L2 U2 neutral white LEDs
- Five brightness settings from 50 to 1000 lumens and flashing mode
- 1800-lumens burst mode controlled by remote pressure switch for instant access to maximum light
- Runtimes range from 36.0 hours on low to 2 hours 40 minutes on high
- Dual-distance beam puts light in front of wheel and into distance for safer riding
- Digitally regulated output maintains consistent intensity throughout life of battery
- Use and Handling
-

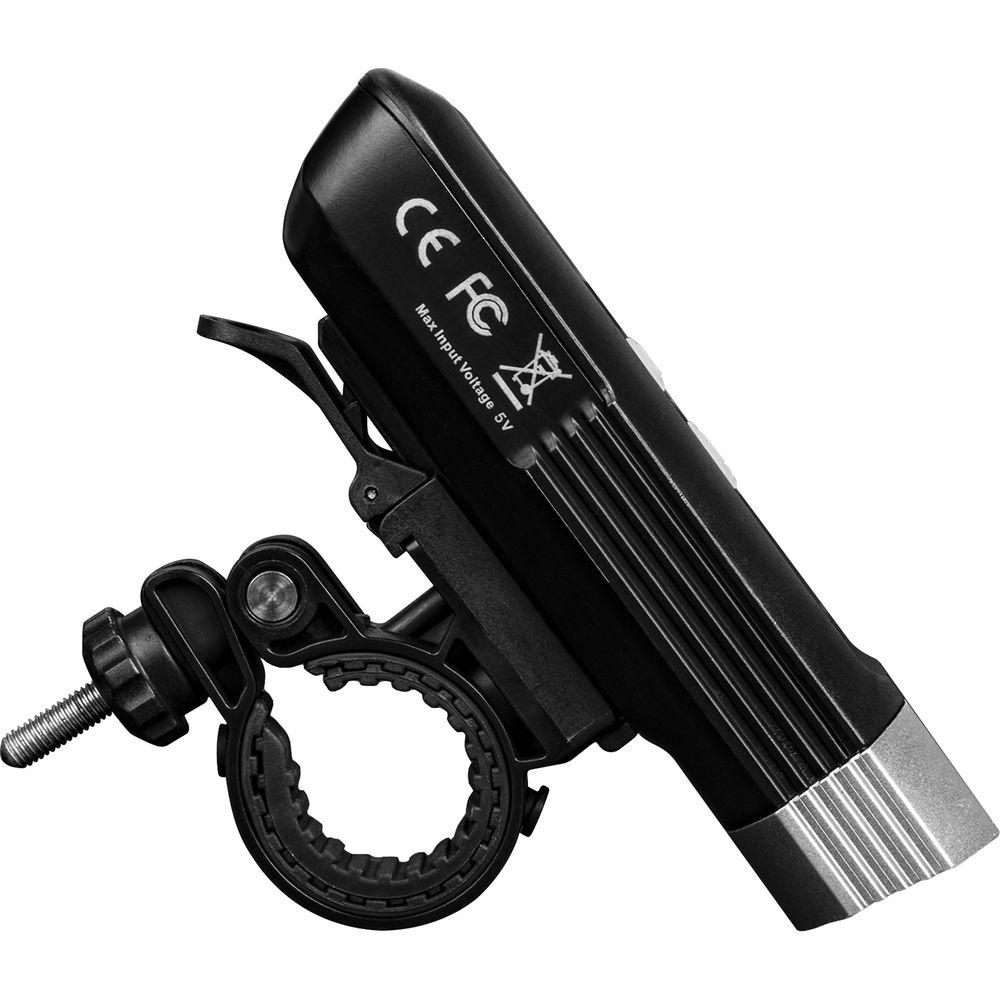

- Quick-release handlebar mount with shims for different diameter bars
- OLED digital display shows remaining runtime at each brightness setting
- Low battery warning
- Intelligent output downshift function when battery gets low

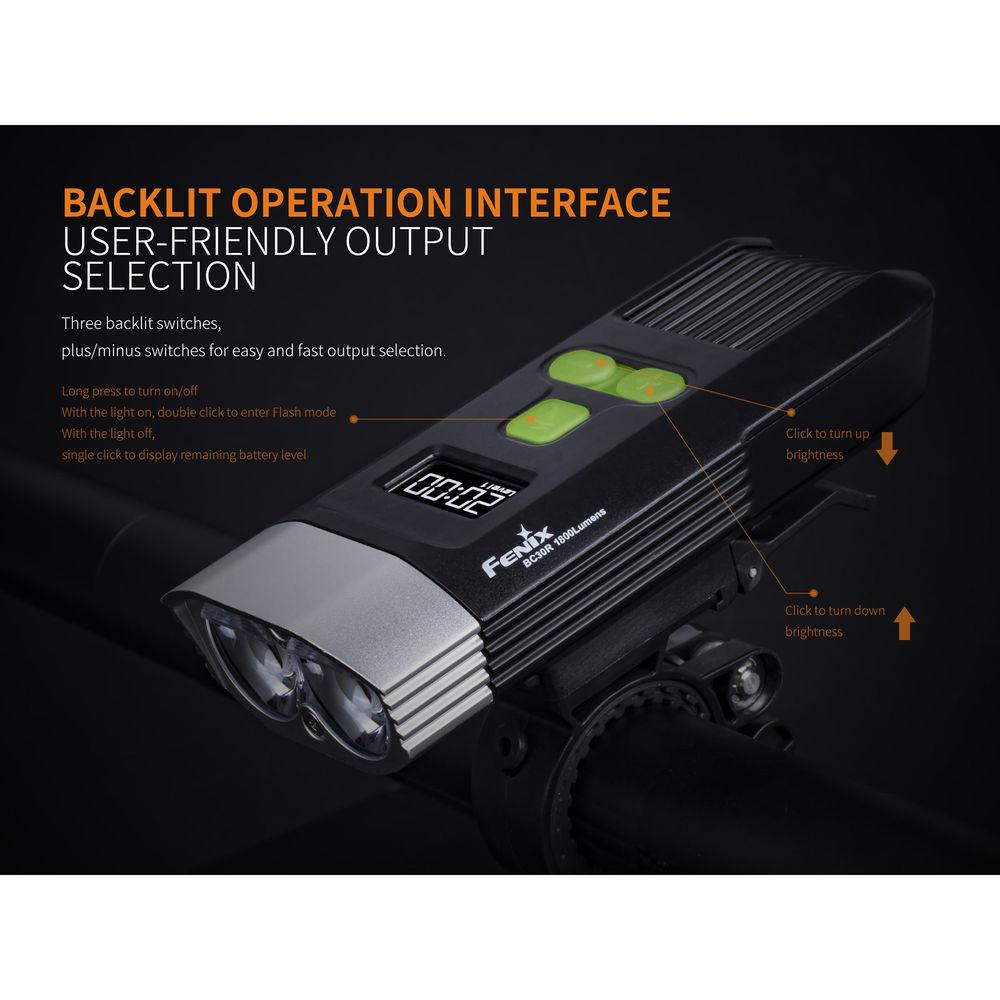

- Pushbutton on/off and up/down switches
- Standard micro-USB charging port
- Built-in over-charge and over-discharge protection
- Construction
-
- Aluminum and impact-resistant plastic
- IP66-rated weather resistant
- Runs on one built-in 5200mAh / 3.7V rechargeable battery
In the Box Fenix Flashlight BC30R LED Rechargeable Bike Light Quick-Release Handlebar Mount 2 x Mount Shim Remote Pressure Switch USB Charging Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight BC30R LED Rechargeable Bike Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

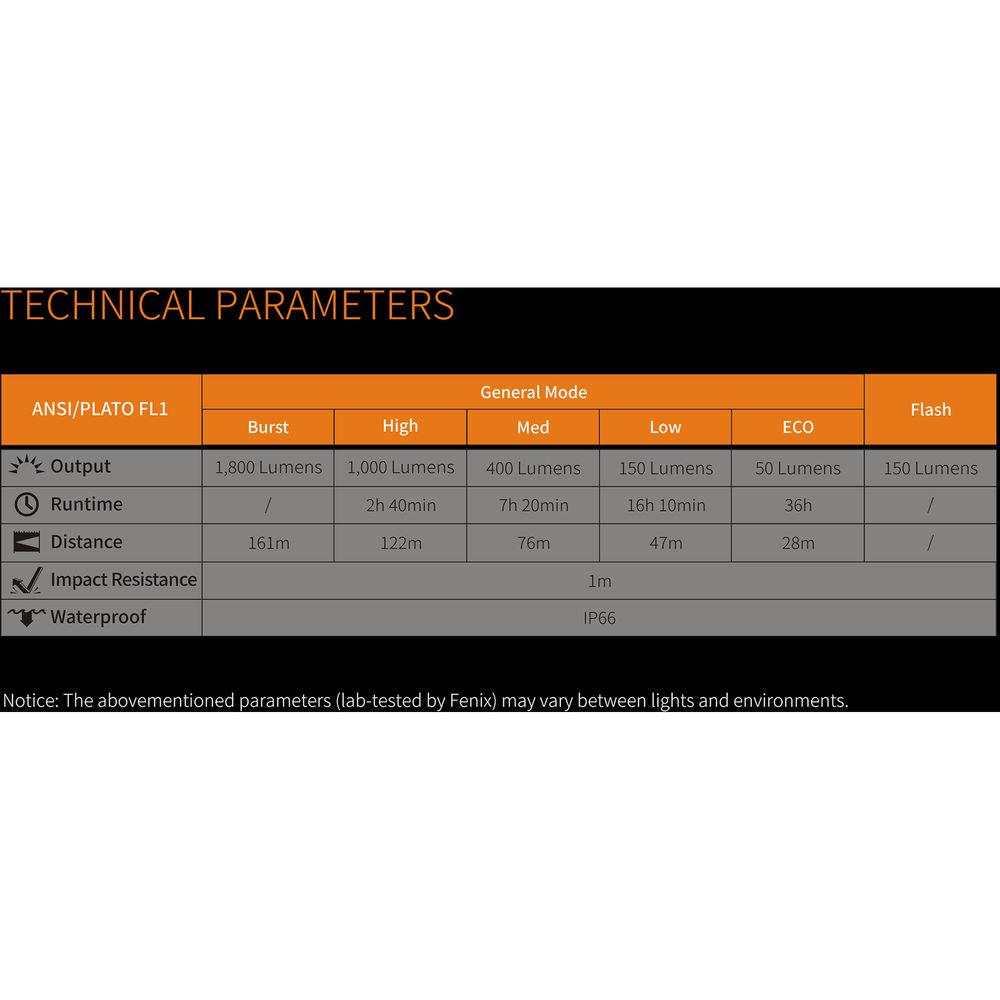

Technical parametersFenix Flashlight BC30R Specs | Illumination Source | 2 x Cree XM-L2 U2 neutral white LED | | Battery | Built-in 5200 mAh / 3.7 V rechargeable battery | | Output Range | Eco: 50 lumens
Low: 150 lumens
Med: 400 lumens
High: 1000 lumens
Burst: 1800 lumens | | Runtime | Eco: 36 h
Low: 16 h 10 min
Med: 7 h 20 min
High: 2 h 40 min | | Maximum Distance | Eco: 92' / 28 m
Low: 154' / 47 m
Med: 249' / 76 m
High: 400' / 122 m
Burst: 528' / 161 m | | Construction | Aluminum alloy and plastic | | Waterproofing | IP66-rated, weatherproof | | Impact Resistance | 3.3' / 1 m | | Dimensions | 4.5 x 2.0 x 1.3" / 11.4 x 5.1 x 3.2 cm | | Weight | 7.8 oz / 221.6 g, excluding handlebar mount | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.45 x 6.2 x 2.0" |
