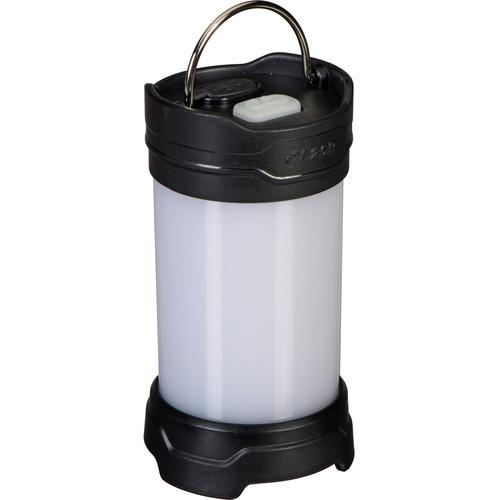

User Manual for Fenix Flashlight CL25R LED Lantern Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight CL25R LED Lantern
- Product category: Lanterns Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Lanterns
|
User manual for the Fenix Flashlight CL25R LED Lantern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description Built to be compact yet powerful, Fenix's black CL25R LED Lantern is an ideal camping companion with both white and red light options. The primary white LEDs produce a maximum output of 350 lumens that illuminates large areas in full 360°, with a minimum output of just 0.8 lumens in Moonlight mode to offer a comforting glow during the darkest parts of the night. Its low-output red LEDs produce just 1.5 lumens for reading or performing basic tasks without affecting night adjusted vision and can be set to a flashing mode to signal in the dark. The lantern is controlled by a single illuminated push-button switch on the top of the housing which also acts as a low-voltage, charging, and charged indicator. It runs on two user-supplied lithium CR123A batteries or a single included 18650 rechargeable li-ion battery. When using the li-ion battery, it can be charged in the light using the micro-USB port.Designed to take up a minimum amount of pack-space, the CL25R measures just 3.9" high and 2" in diameter, and weighs a mere 4.5oz. It features a top hanging loop, a 1/4"-20 tripod mount and a magnetic base to allow you to put it just about anywhere you need it. The light is O-ring sealed to give it an IPX6 rating to be weather-resistant against rain or splashing water. The lantern is also impact-resistant to 5' in case it gets dropped on the trail or while setting up. This all-season lantern uses the heat from the LEDs to maintain the proper operating temperature in the battery compartment, allowing it to be used in temperatures as low as -31°F, while still enabling excess heat to escape and preventing overheating in hot weather. - Performance
-
- White light:
- Low: 0.8 lumen
- Med: 50 lumens
- High: 200 lumens
- Turbo: 350 lumens
- Red:
- White and red LED emitter arrays produce 360° circle of light
- 1.5-lumen flashing red light to signal in emergencies
- Switching
-
- Type: Push button
- Location: Top
- Press and hold to turn on/off
- Click to cycle through outputs
- Double-click to activate Red outputs
- Last-mode-memory returns to previously selected output when turned on
- Illuminated button for easier operation in the dark
- Construction
-
- Compact 3.9 x 2.0" and lightweight 4.5-oz design
- Internal battery compartment regulates battery temperature in cold weather without overheating when it is hot out
- IPX6-rated for weather-resistance
- Impact resistant to 5'
- Lowest operating temperature: -31°F (-35°C)
- Mounting options:
- Top hanging loop
- Magnetic base
- Bottom 1/4"-20 tripod mount
- Electronics
-
- Runs on one included 18650 battery, or two user-supplied CR123A lithium batteries
- Integrated micro-USB port to recharge li-ion batteries
- Low-voltage indicator integrated into switch
- Over-charge and over-discharge protection circuitry
- Over-heat protection automatically steps-down output to prevent damage
- Reverse-polarity protection prevents damage if battery is installed incorrectly
- Colored LEDs charging/charged indicator
- Light will work on min, medium, or red light while charging
In the Box Fenix Flashlight CL25R LED Lantern (Dark Black) Spare O-Ring Micro-USB Cable 18650 Rechargeable Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight CL25R LED Lantern in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight CL25R - B Specs | Illumination Source | White LED emitters
Red LED emitters | | Output Range | White:Low: 0.8 lumenMed: 50.0 lumenHigh: 200.0 lumenTurbo: 350.0 lumenRed:Primary: 1.5 lumenFlashing: 1.5 lumen | | Battery | 1 x 18650 li-ion rechargeable
2 x CR123A lithium disposable | | Runtime | - 18650:
- White:
- Low: 600.0 h
- Med: 23.75 h
- High: 5.0 h
- Turbo: 2.25 h
- Red:
- Primary: 44.0 h
- CR123A:
- White:
- Low: 500.0 h
- Med: 18.8 h
- High: 4.2 h
- Turbo: 2.1 h
- Red:
- Primary: 42.0 h
| | Charge Time | 2.5 h (2300 mAh 18650 battery) | | Waterproofing | IPX6-rated, water resistant | | Impact Resistance | 5.0' / 1.5 m | | Dimensions | 3.9 x 2.0" / 9.9 x 5.2 cm | | Weight | 4.5 oz / 130.0 g, without battery | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.3 x 2.4 x 2.3" |
