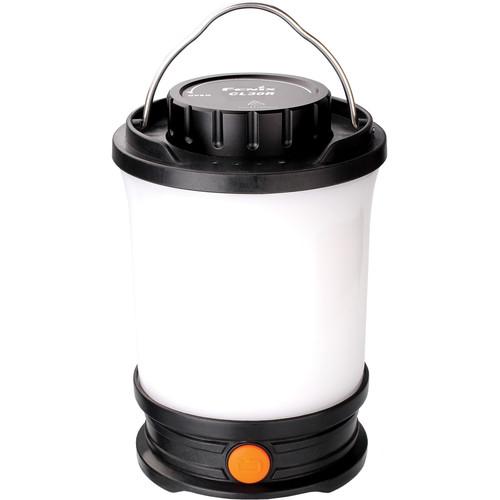

Product description With five brightness settings, the flexibility to run on one, two, or three batteries and the ability to serve as a power pack for other devices, the CL30R Rechargeable Camping Lantern is a versatile piece of gear with many applications for outdoor recreation and emergency preparedness. It is water and cold-resistant, and features a compact form factor. The CL30R offers output levels from 10 to 650 lumens, plus a 100-lumen flash setting. It is fully powered by three 18650 batteries, but can also run on two or even just one. (With fewer than three batteries, brightness levels are unaffected but runtimes are reduced). The lantern can also share its battery power with other devices, acting as a power bank with a micro-USB charging port. An indicator shows how much battery power remains, and the lantern's circuitry is protected from both over-charging and over-discharging. Rated IPX7 for water-resistance, the lantern is submersible to 3.3' for up to 30 minutes, so rain or a brief drop in water won't impair its function. The battery compartment is designed to counter the negative effects of cold weather on the batteries' runtime. Measuring just 5.4 x 3.7", the CL30R doesn't take up much room with your camping gear or bug-out bag. It comes with a hanging hook and a standard 1/4"-20 tripod mount. - Performance
-
- Eco: 10 lumen
- Low: 50 lumen
- Med: 100 lumen
- High: 350 lumen
- Turbo: 650 lumen
- Flash: 100 lumen
- Switching
-
- Type: Pushbutton
- Location: Side
- Press and hold to turn on/off
- Click to cycle through outputs
- Double-click for flash
- Single click to return to previous setting
- Construction
-
- Compact 5.4 x 3.7" design
- Internal battery compartment regulates battery temperature in cold weather without overheating when it is hot out

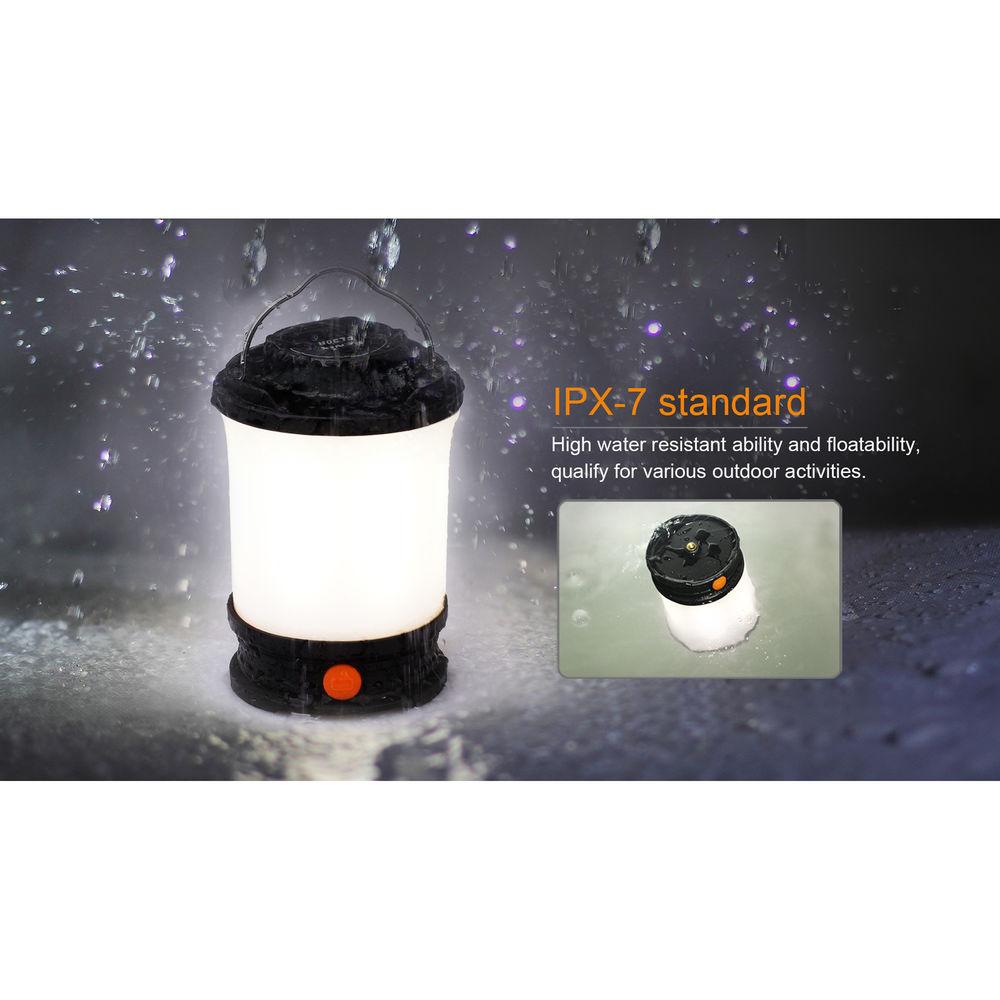

- IPX7-rated for weather-resistance
- Impact-resistant to 3'
- Mounting options:
- Top hanging loop
- Bottom 1/4"-20 tripod mount
- Electronics
-

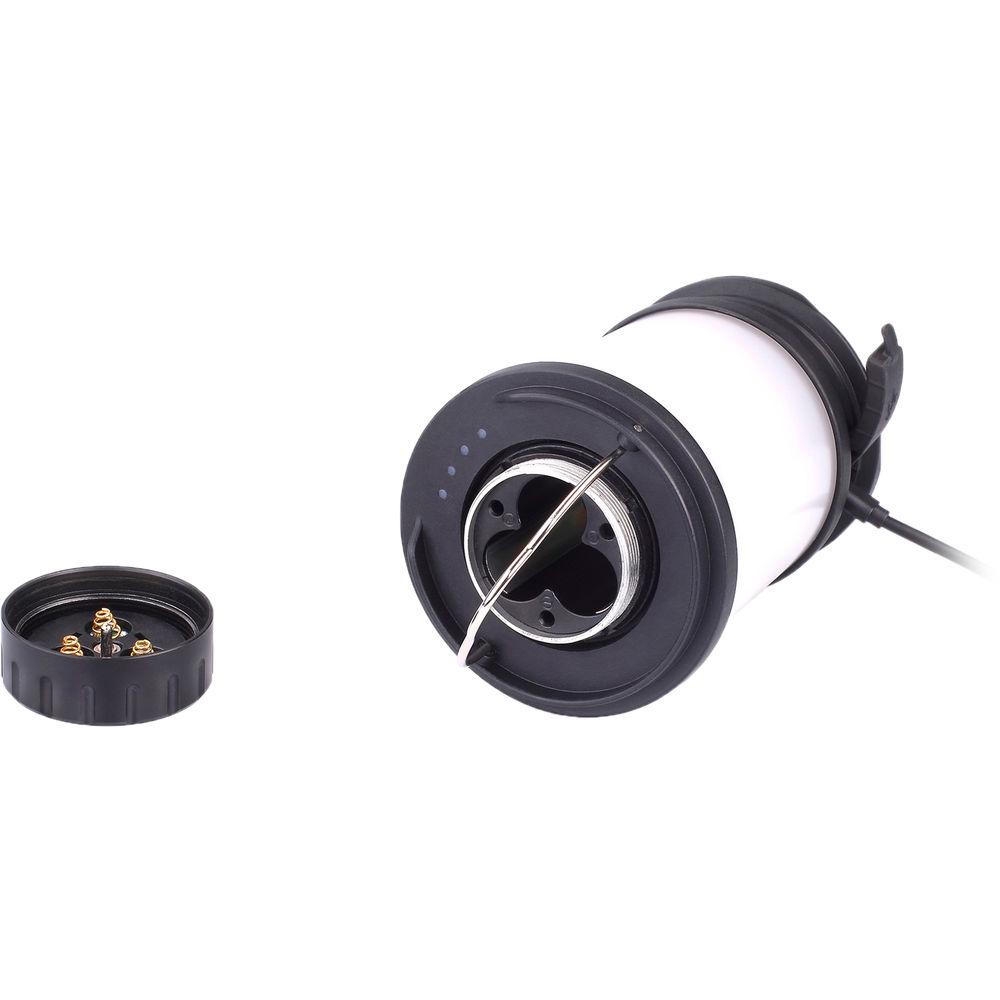

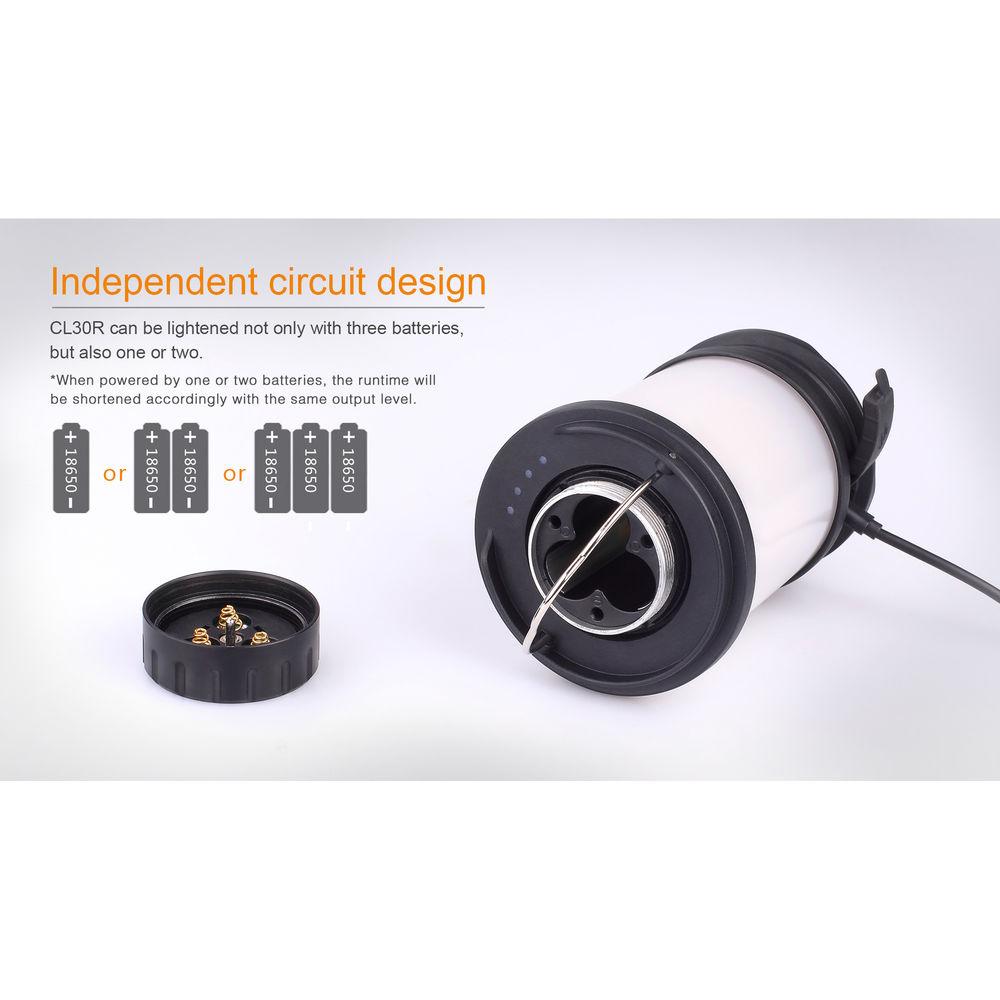

- Runs on one, two, or three 18650 batteries

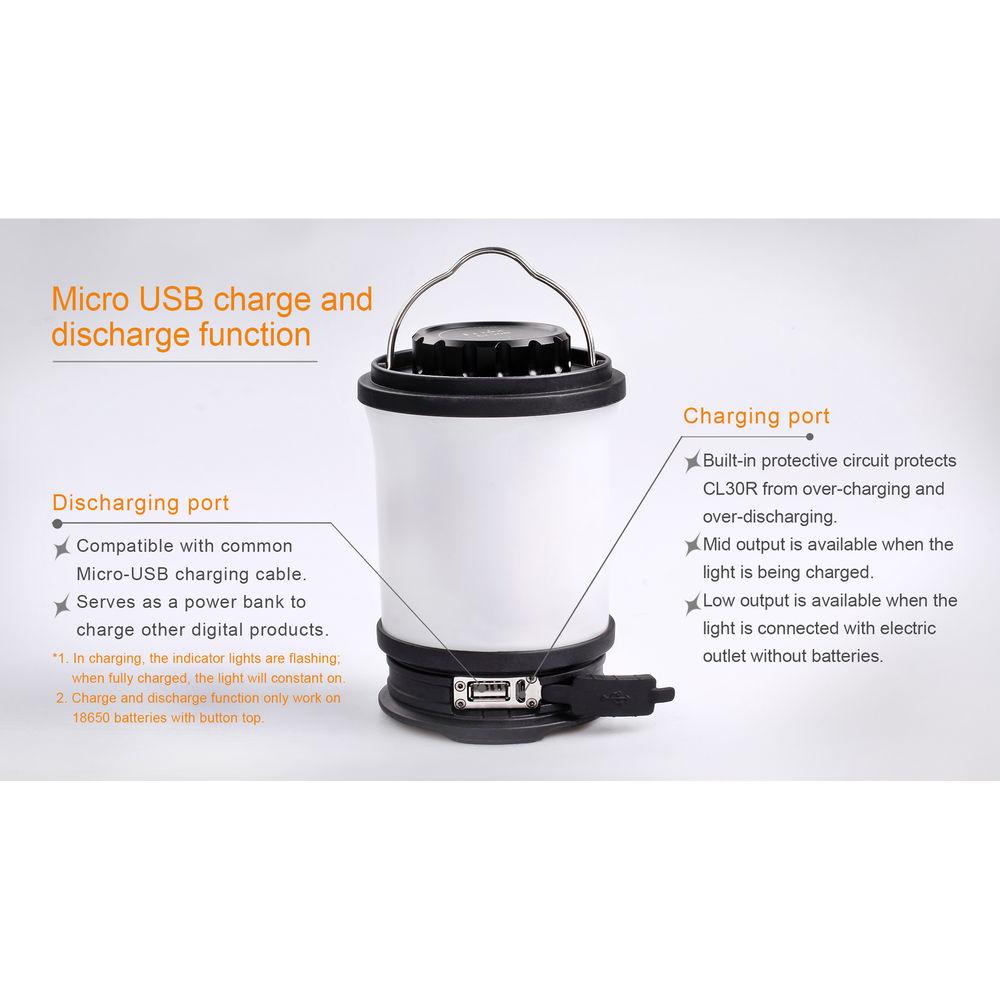

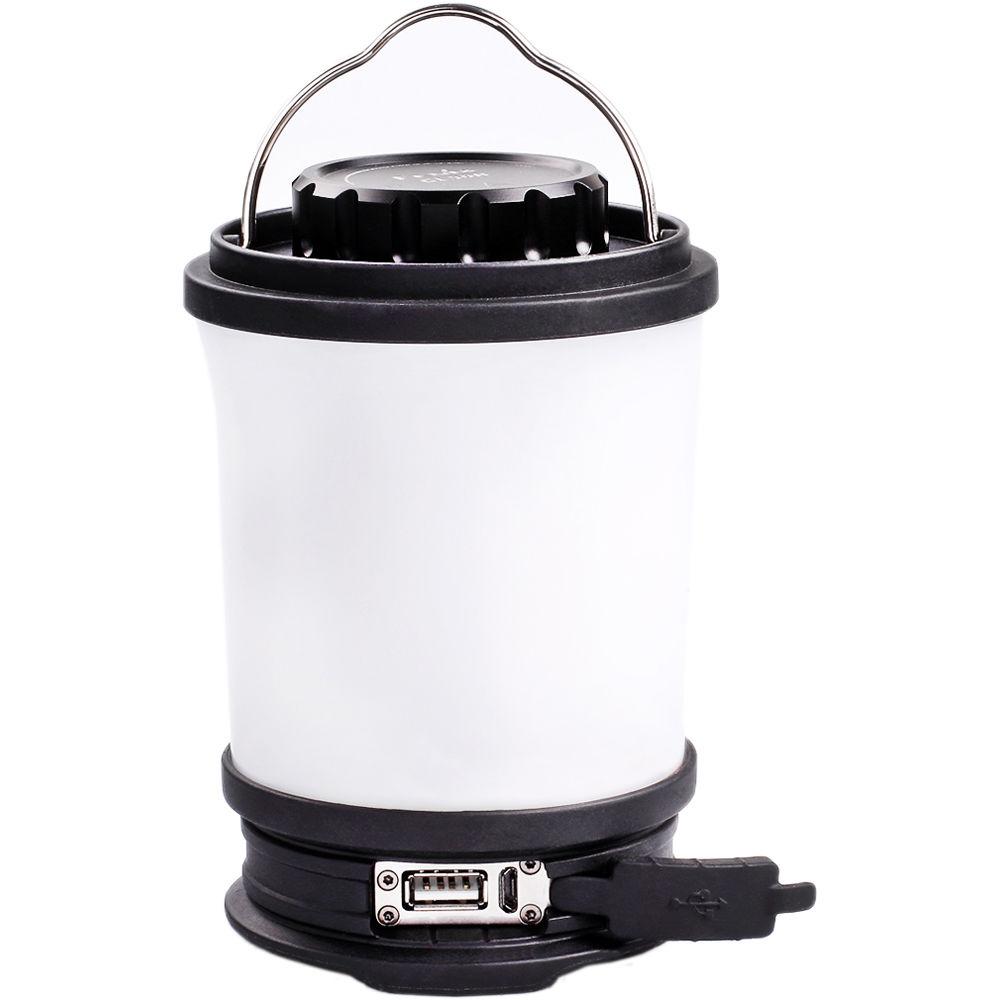

- cane serve as a power pack to charge other devices via micro-USB port

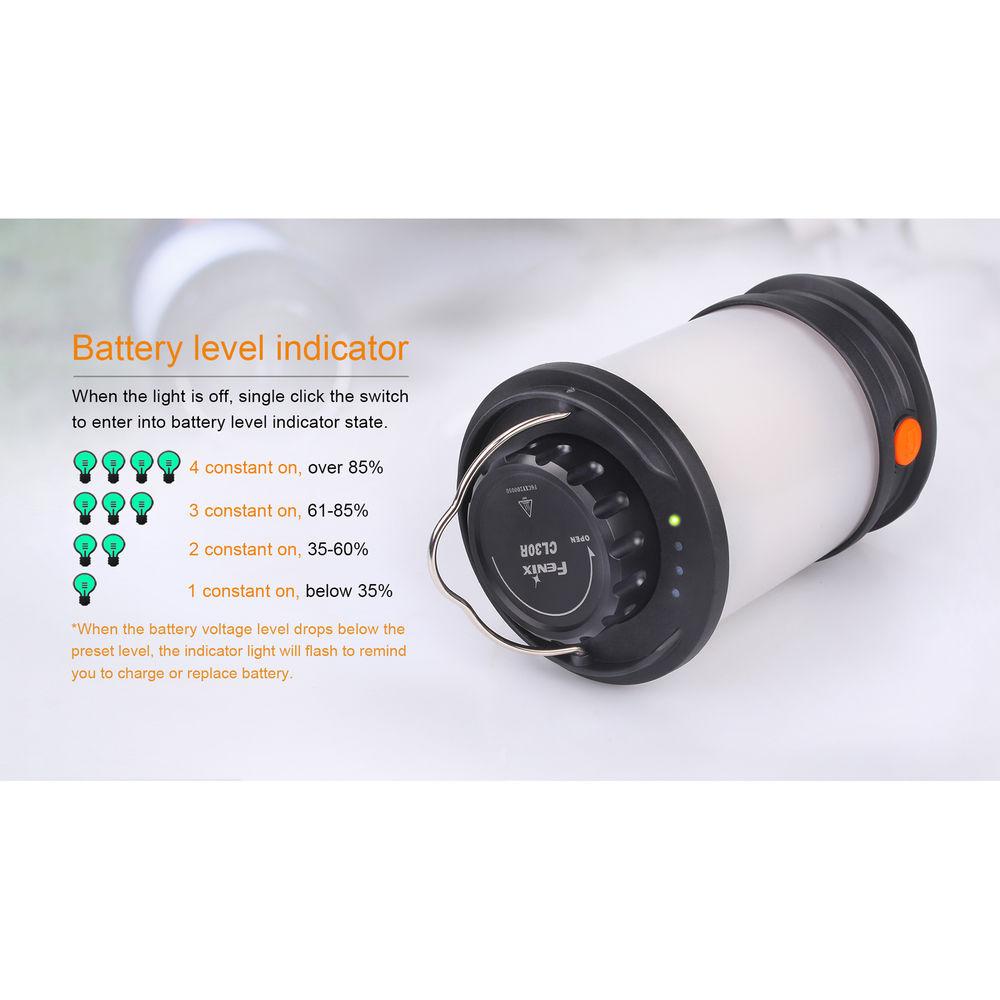

- Low-voltage indicator
- Over-charge and over-discharge protection circuitry
- Reverse-polarity protection prevents damage if battery is installed incorrectly

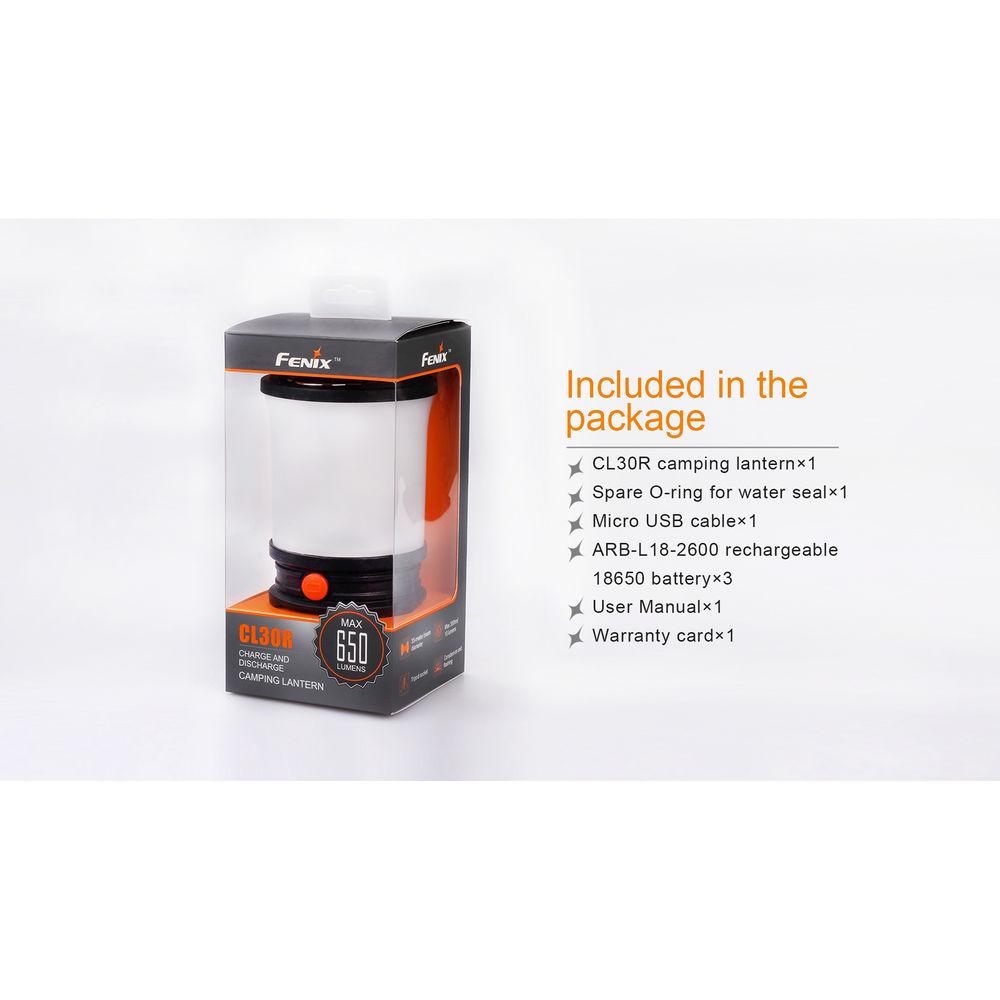

In the Box Fenix Flashlight CL30R Rechargeable Camping Lantern (Black) - 3 x 18650 Rechargeable Batteries
- Spare O-Ring
- Micro-USB Cable
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight CL30R Rechargeable Camping Lantern in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight CL30R Specs | Illumination Source | White LED | | Output Range | Eco: 10 lumen
Low: 50 lumen
Med: 100 lumen
High: 350 lumen
Turbo: 650 lumen
Flash: 100 lumen | | Battery | 1 x, 2 x, or 3 x 18650 lithium-ion rechargeable | | Runtime | 2600 mAh Batteries:
Eco: 300 h
Low: 70 h
Med: 38 h
High: 9 h
Turbo: 4.5 h
3500 mAh Batteries:
Eco: 400 h
Low: 93 h
Med: 51 h
High: 12 h
Turbo: 6 h | | Waterproofing | IPX7-rated, submersible 3.3' / 1 m up to 30 minutes | | Impact Resistance | 3.3' / 1 m | | Dimensions | 5.4 x 3.7" / 13.6 x 9.3 cm | | Weight | 14.5 oz / 412 g, without battery | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.3 x 3.9 x 3.9" |
