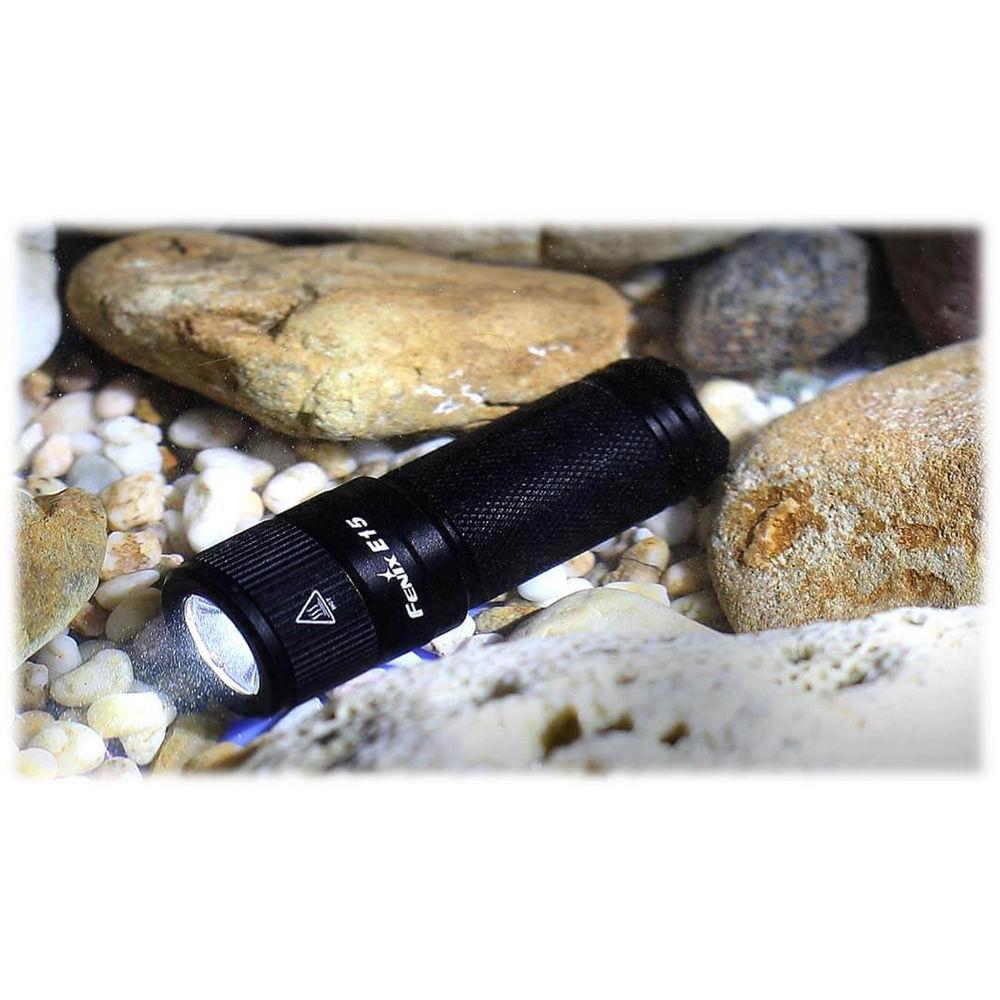

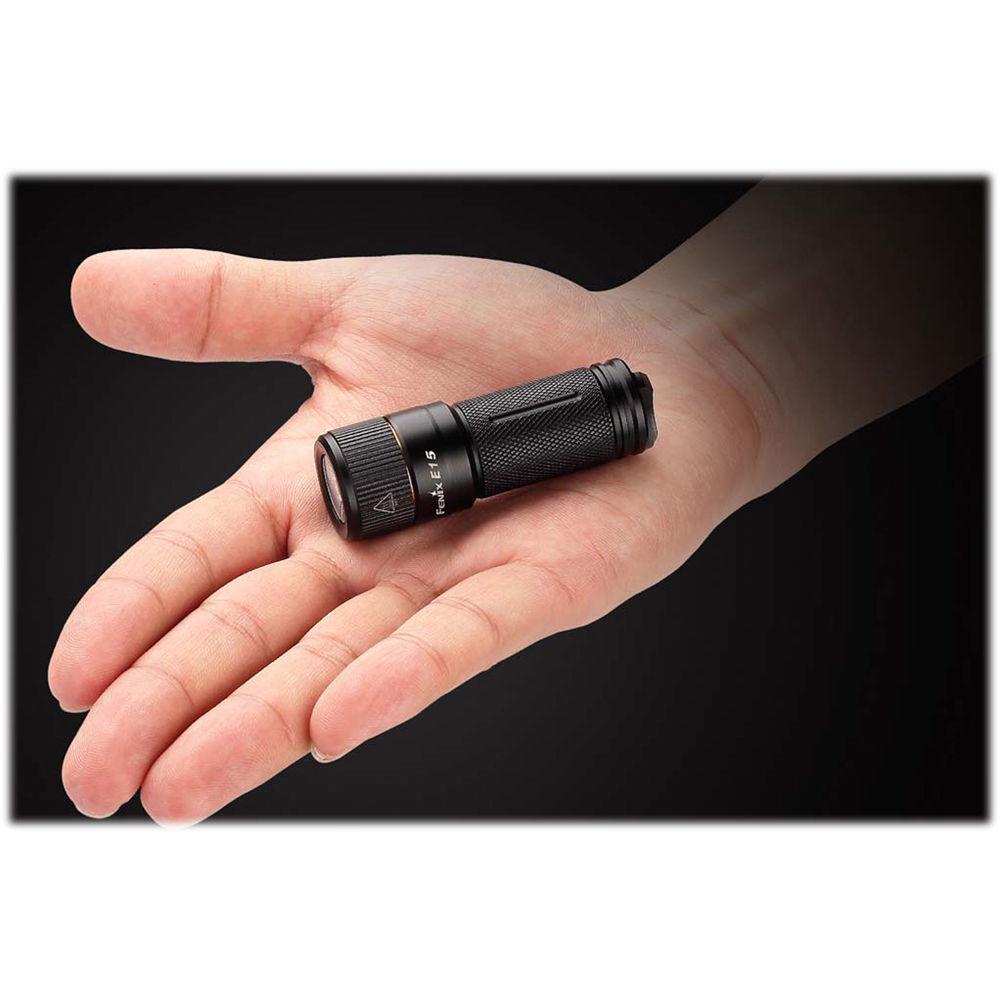

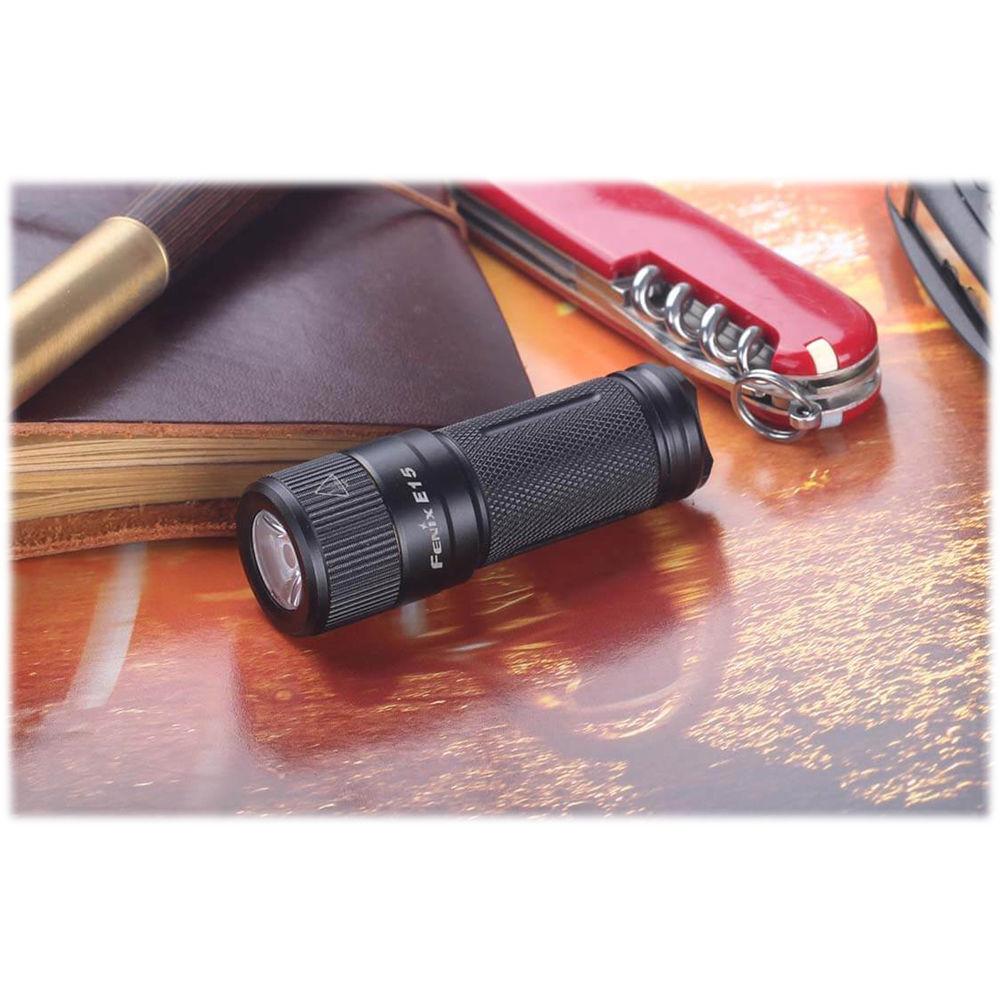

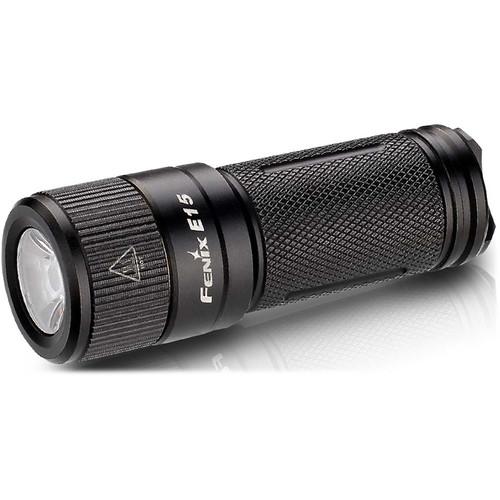

Product description Fenix updated their E15 LED Flashlight for 2016 with increased outputs over the previous version while maintaining the intuitive switching system and compact form factor. It has four outputs with a low of just 8 lumens for reading or performing tasks, and goes up to a blinding 450 lumens on one RCR123 rechargeable battery for searching or lighting large areas. If you use a disposable CR123 lithium battery, all outputs remain the same but with different runtimes, and a lower turbo output of 270 lumens. The light is activated and the outputs change with a simple one-handed turn of the head.Complementing the powerful performance is a lightweight and durable aluminum housing that is finished with a scratch and corrosion-resistant anodized finish. The housing is O-ring sealed to an IPX8 rating making it waterproof and submersible to over 6.5 feet. Multiple safety circuits are in-place to protect the light from damage caused by incorrectly installed batteries or excessive heat. Additional circuitry detects the battery chemistry being used and adjusts the performance accordingly to maximize the battery life while digitally maintaining the output to provide consistent beam intensity throughout the life of the battery charge. - Performance
-
- Low: 8 lumen
- Med: 50 lumen
- High: 110 lumen
- Turbo: 450 lumen (RCR123 rechargeable) or 270 lumen (CR123A lithium)
- One Cree XP-G2 R5 white LED
- Factory-focused lens system produces smooth beam with a bright center point and wide spill without holes or hotspots
- Switching
-
- Location: Head
- Type: Twist
- Constant-on activation only
- Twist head to turn on
- Turn light on/off quickly to change output modes
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant anodized finish
- IPX8-rated, waterproof and submersible to 6.6'
- Impact-resistant to 3.3'
- Tail-stand capable
- Electronics
-
- Low-voltage indicator
- Reverse polarity protection prevents damage if batteries are installed incorrectly
- Intelligent drive circuitry automatically detects battery type installed and adjusts to maximize performance
- Overheat protection automatically steps-down output to prevent damage to circuitry
- Digitally regulated output maintains consistent beam intensity throughout life of battery
- Runs on one CR123 lithium or one RCR123 rechargeable battery

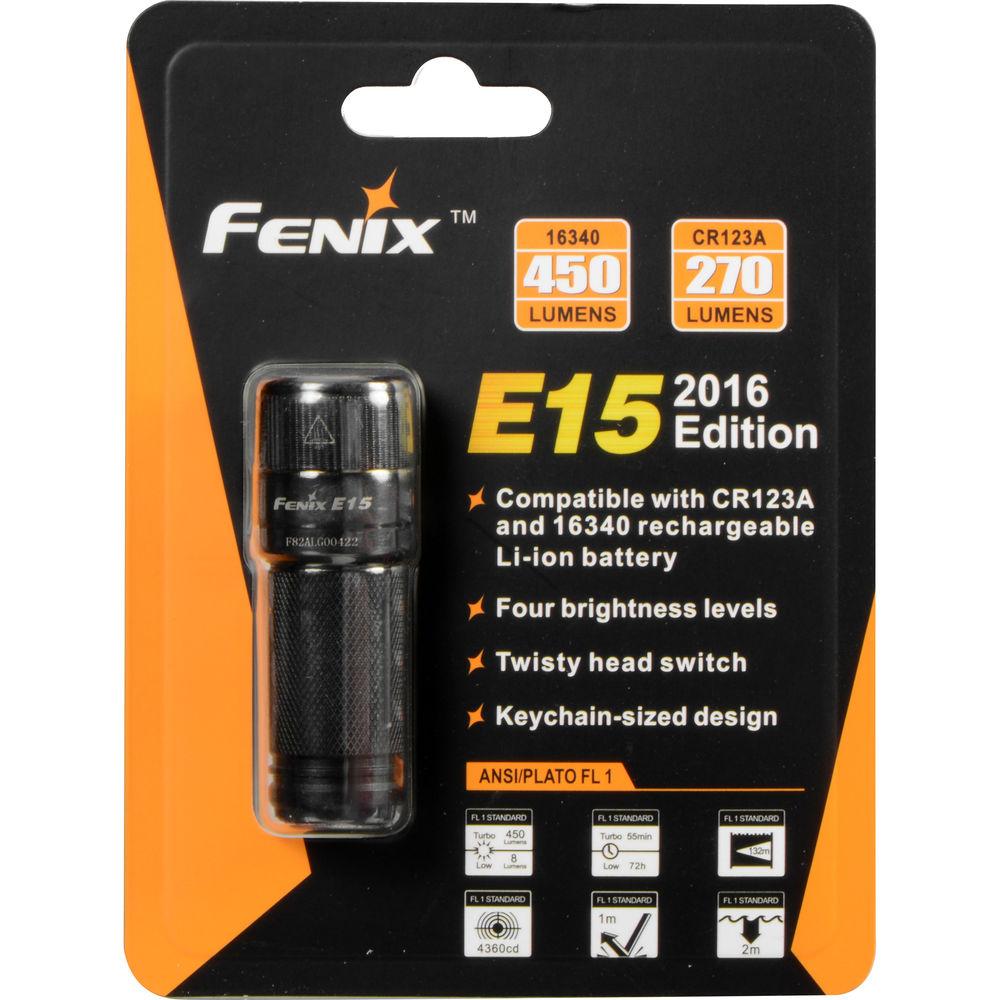

In the Box Fenix Flashlight E15 LED Flashlight (2016 Edition) Key Ring Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight E15 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight E15-2016 Specs | | | Lumen Output | RCR123A:
High: 110 Lumens
Medium: 50 Lumens
Low: 8 Lumens
Turbo: 450 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | CR123A
High: 5.5 Hour
Medium: 12.5 Hours
Low: 72 Hours
Turbo: 1.6 Hours | | Battery Type | 1 x CR123A Lithium or
1 x RCR123A | | | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 0.9" / 22.9 mm | | Dimensions |
