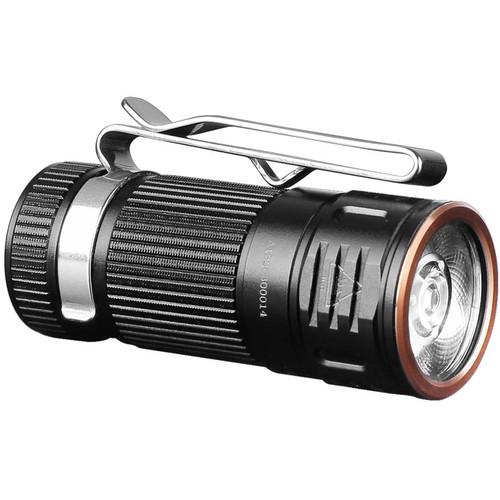

User Manual for Fenix Flashlight E16 EDC Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight E16 EDC Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight E16 EDC Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

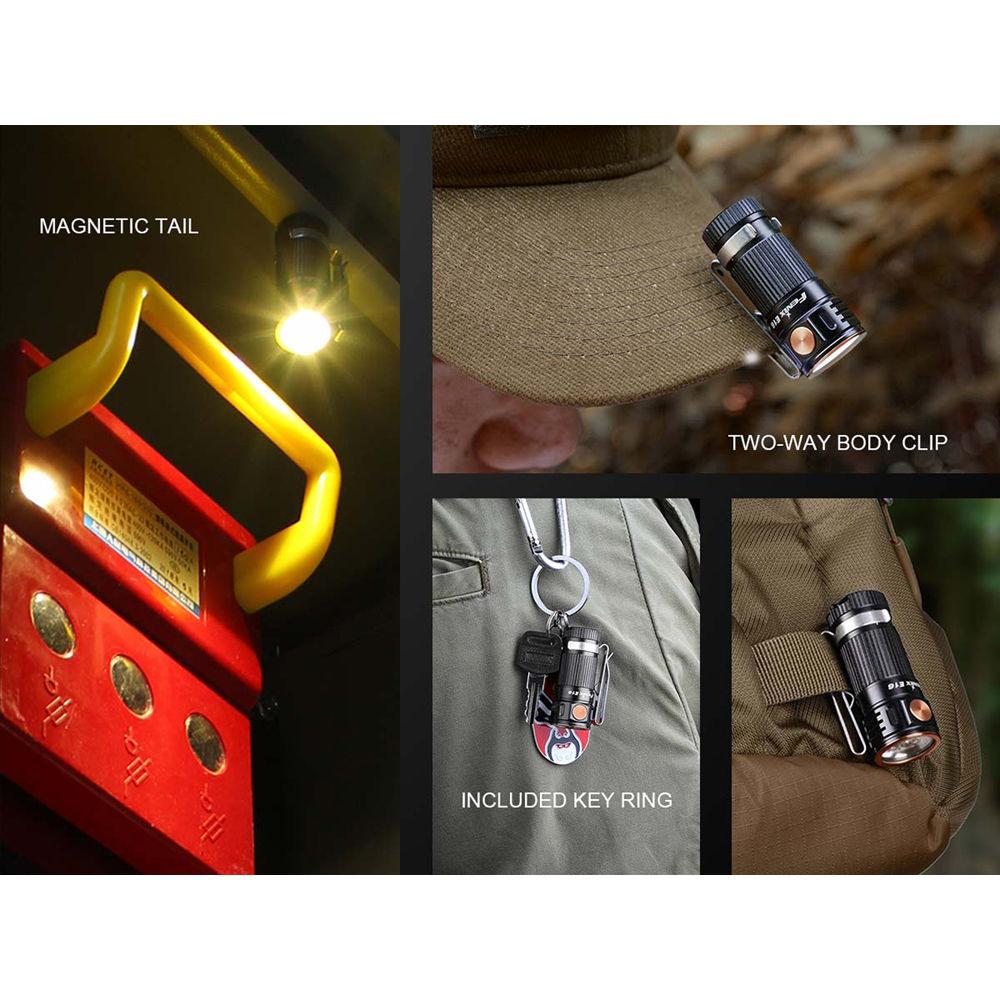

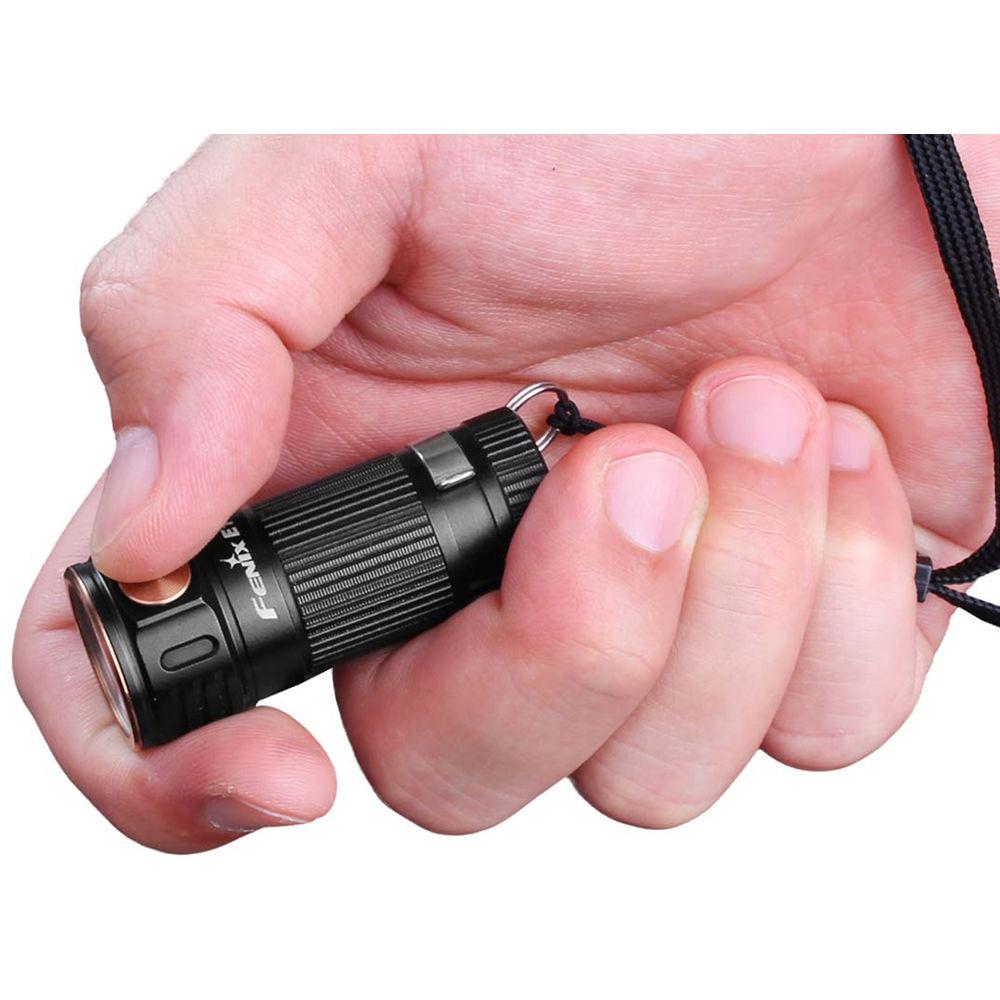

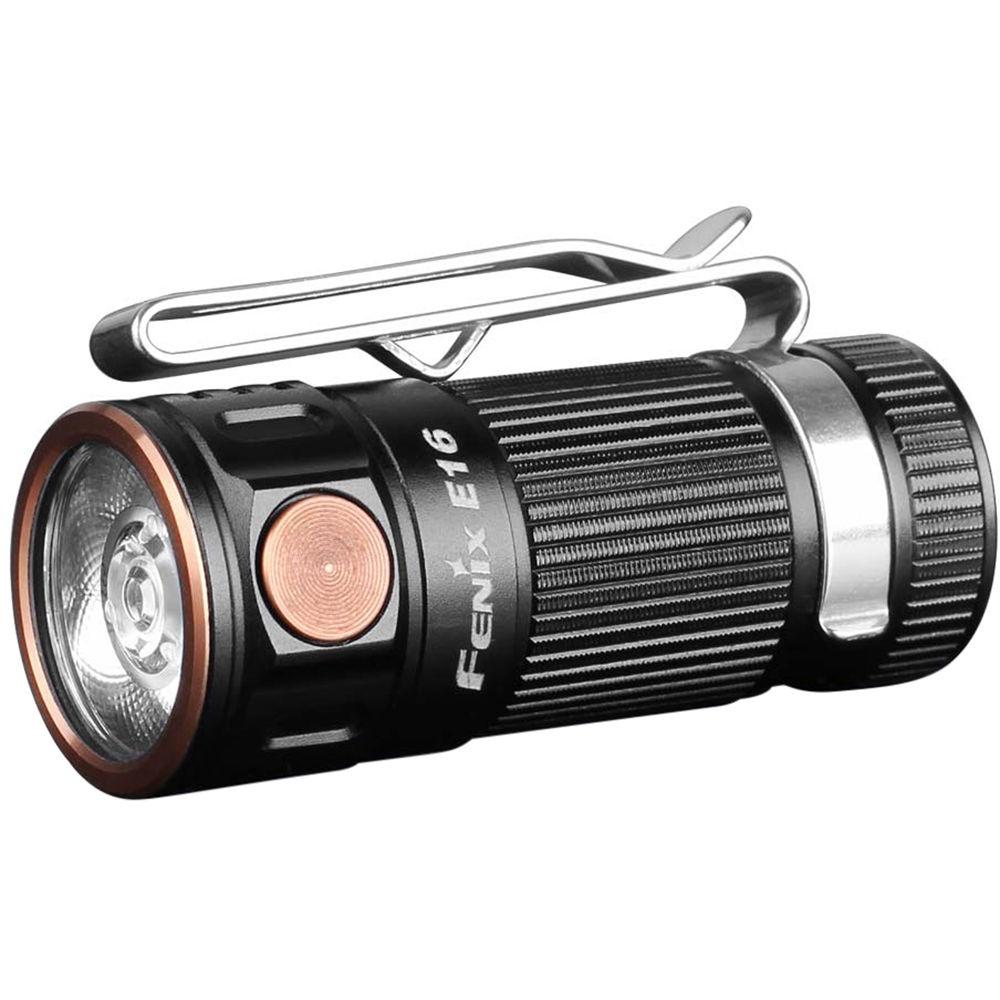

Product description It's barely longer than your thumb, yet the Fenix E16 EDC Flashlight kicks out a remarkably bright 700 lumens of neutral, color-faithful white light. Its two-way clip allows it to be carried in a pocket, on a pack strap, or on a cap brim. It has a magnetic base that grabs any metal surface to serve as a trouble light, and it can stand upright on its base like a candle to light up your deck or campsite picnic table.Powered by one 16340 rechargeable Li-ion battery, the light's Cree XP-L HI Neutral LED offers four brightness levels and a strobe. The E16 can also run on one non-rechargeable CR123A battery, with a lower maximum lumen level (but longer runtimes). Operation is controlled by a stainless steel push-button switch on the side. The Type III anodized aluminum housing is IP68-rated waterproof and dustproof, able to withstand submersion in 6.6' of water for 30 minutes and impact resistant to drops of 3.3'. The light automatically dims a bit if it's running too hot, and heat sink fins on the head help to further dispel heat energy from the powerful LED. It has lockout circuitry to avoid being activated while in transit, and the clip can be rotated over the switch to add another layer of protection against being accidentally turned on. - Performance
-
- Low: 3 lumens
- Medium: 30 lumens
- High: 150 lumens
- Turbo: 700 lumens (16340 rechargeable battery) or 300 lumens (CR123A battery)
- One XP-L Hi neutral white LED

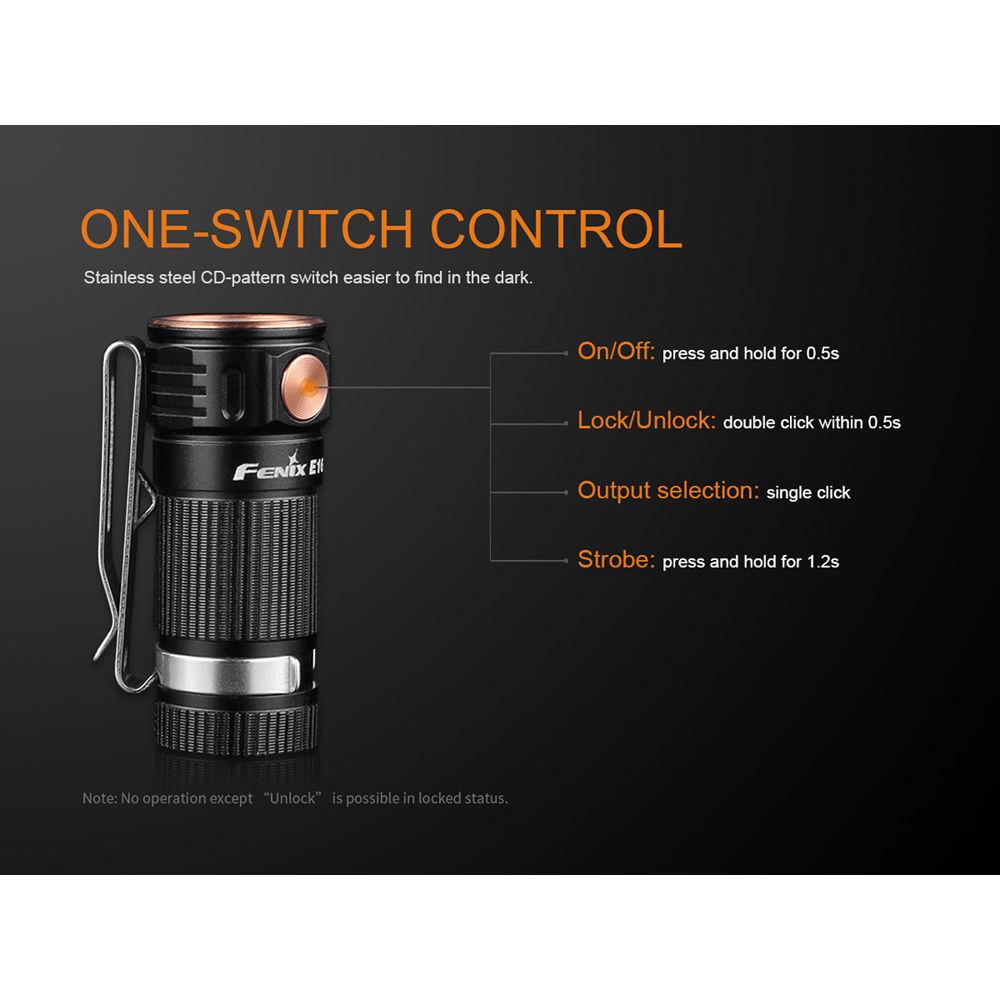

- Switching
-
- Location: Side
- Type: stainless steel push button
- Press for on/off, click for brightness level, press and hold for strobe
- Lockout setting prevents accidental activation
- Construction
-
- Lightweight and durable aluminum-alloy housing
- Scratch- and corrosion-resistant anodized finish

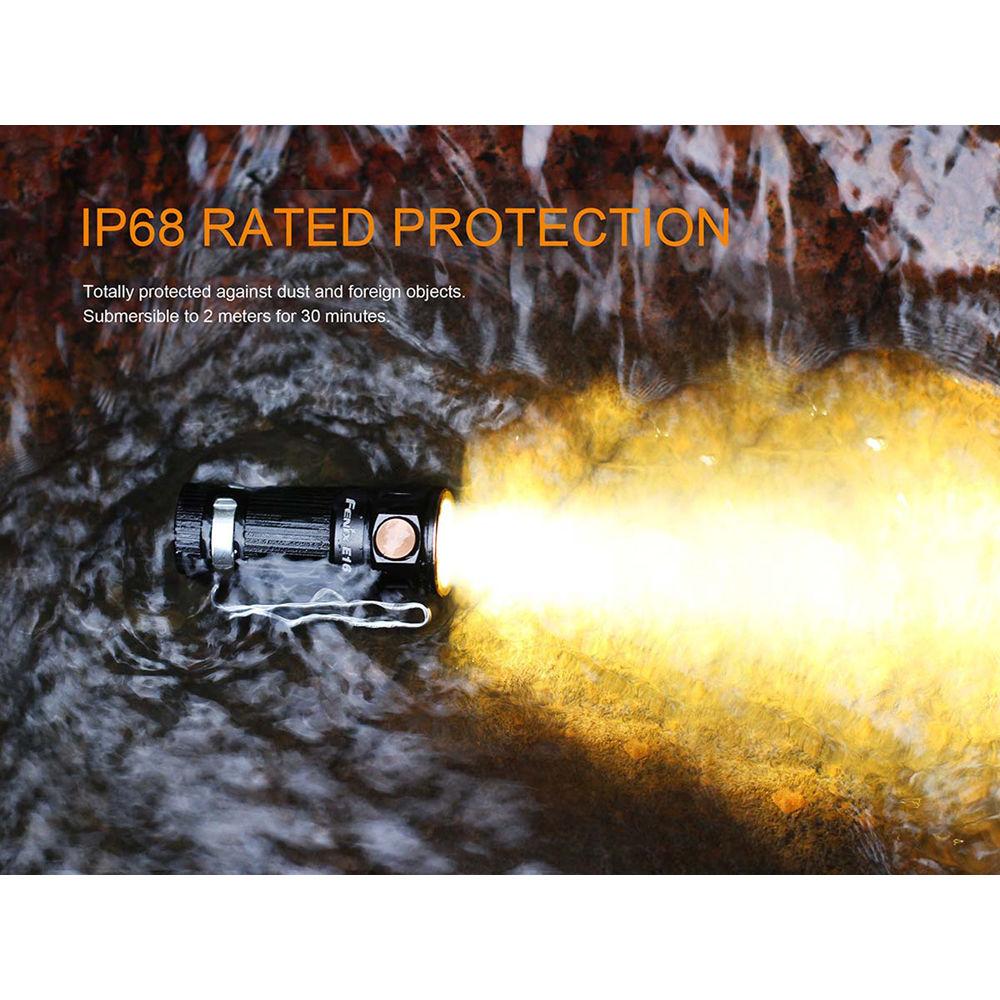

- IP68-rated, waterproof and dustproof, submersible to 6.6'
- Impact resistant to 3.3'
- Magnetic tailcap
- Two-way clip
- Electronics
-
- Low-voltage indicator
- Reverse polarity protection prevents damage if batteries are installed incorrectly
- Overheat protection automatically steps down output to prevent damage to circuitry
- Digitally regulated output maintains consistent beam intensity
- Runs on 16340 rechargeable or one CR123A battery

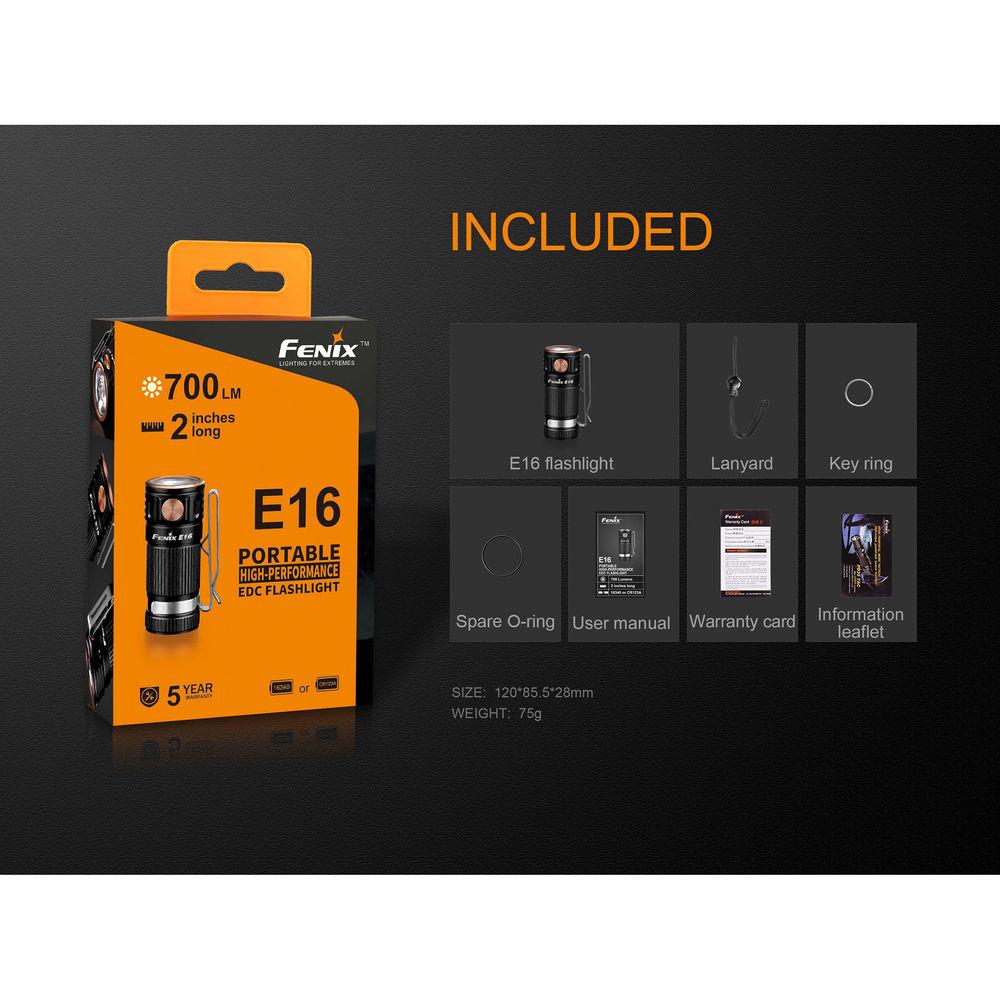

In the Box Fenix Flashlight E16 EDC Flashlight Key Ring Lanyard Spare O-Ring Pocket Clip Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight E16 EDC Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight E16 Specs | | | Lumen Output | Turbo: 700 Lumens
High: 150 Lumens
Medium: 30 Lumens
Low: 3 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Low: 70 Hours
Medium: 11.9 Hours
High: 2 Hours
Turbo: 1.1 Hours | | Battery Type | 1 x 16340 Lithium-Ion or
1 x CR123A Lithium-Ion | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 0.8" / 20.3 mm | | Dimensions | W: 0.7 x L: 2.0" / W: 1.8 x L: 5.1 cm | | Weight | 0.7 oz / 20 g (Without Battery) | | | | Package Weight | 0.17 lb | | Box Dimensions (LxWxH) | 4.7 x 3.3 x 1.2" |
