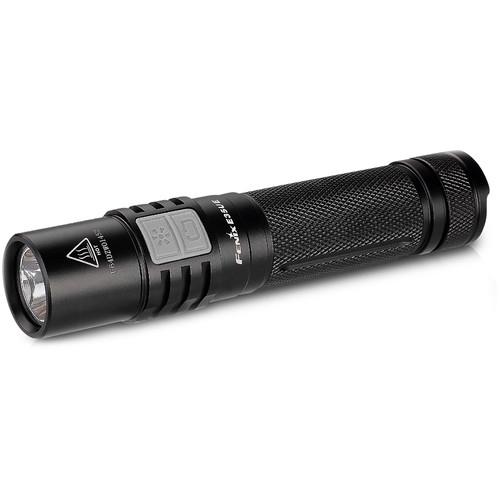

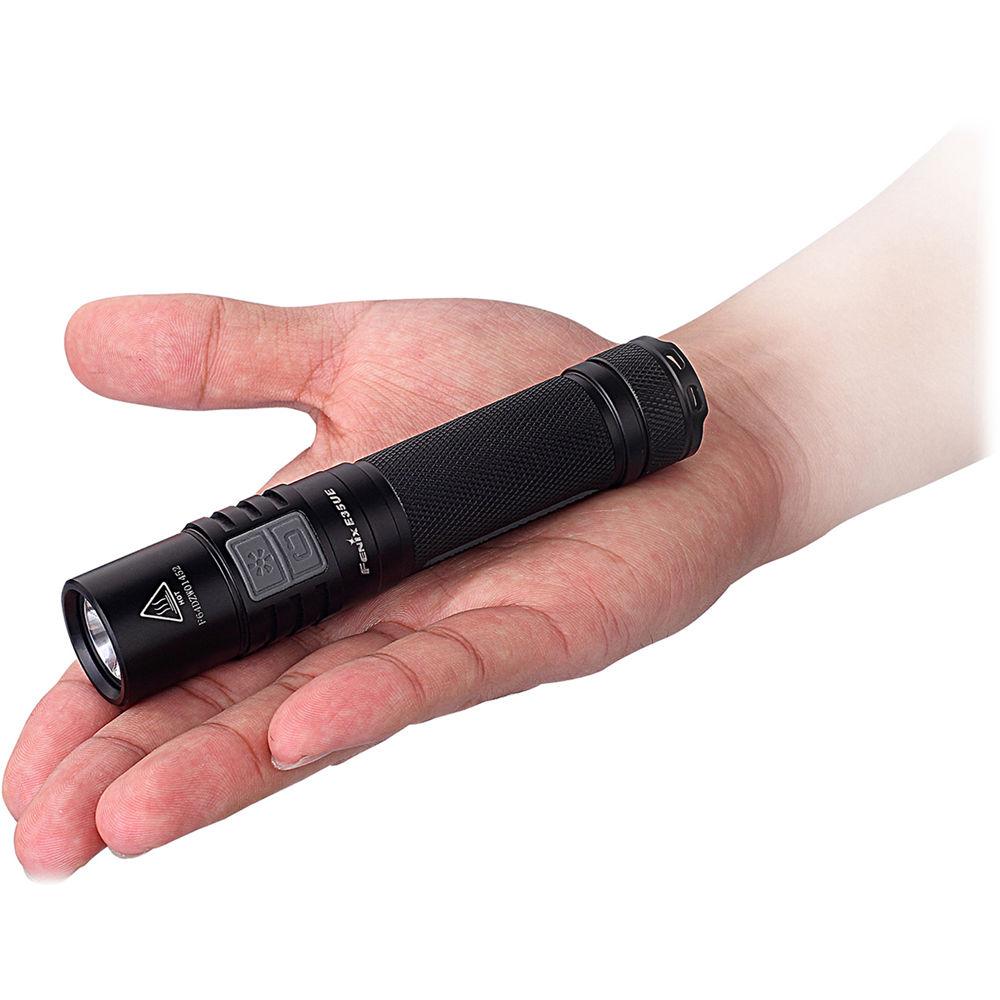

Product description With a maximum output of 1,000 lumens, five brightness levels, and strobe & SOS functions all powered by one battery, the E35UE LED Flashlight (2016) from Fenix is a powerful and versatile light with a highly compact profile. Less than 5" long, it's also waterproof, durable and easy to operate. Running on one 18650 battery (or two CR123s), the E35UE is housed in type III anodized aluminum and is fitted with a toughened glass lens with anti-reflective coating. On/off, mode selection and cycling through brightness settings is accomplished with easy-to-reach dual side switches. The output is digitally regulated to remain consistent over the battery's lifespan, and there's a lockout feature to prevent it from being turned on accidentally. O-ring sealed and IPX8-rated, this light is submersible to 6.6'. It has built-in overhead and reverse polarity protections, and its knurled surface provides a sure grip. It can stand up flat on its tailcap to serve as a candle. - Performance
-
- Eco: 8 lumen
- Low: 50 lumen
- Med: 150 lumen
- High: 450 lumen
- Turbo: 1000 lumen
- One Cree XM-L2 U2 LED
- Emergency SOS mode automatically cycles through Morse code sequence
- Disorientating strobe mode

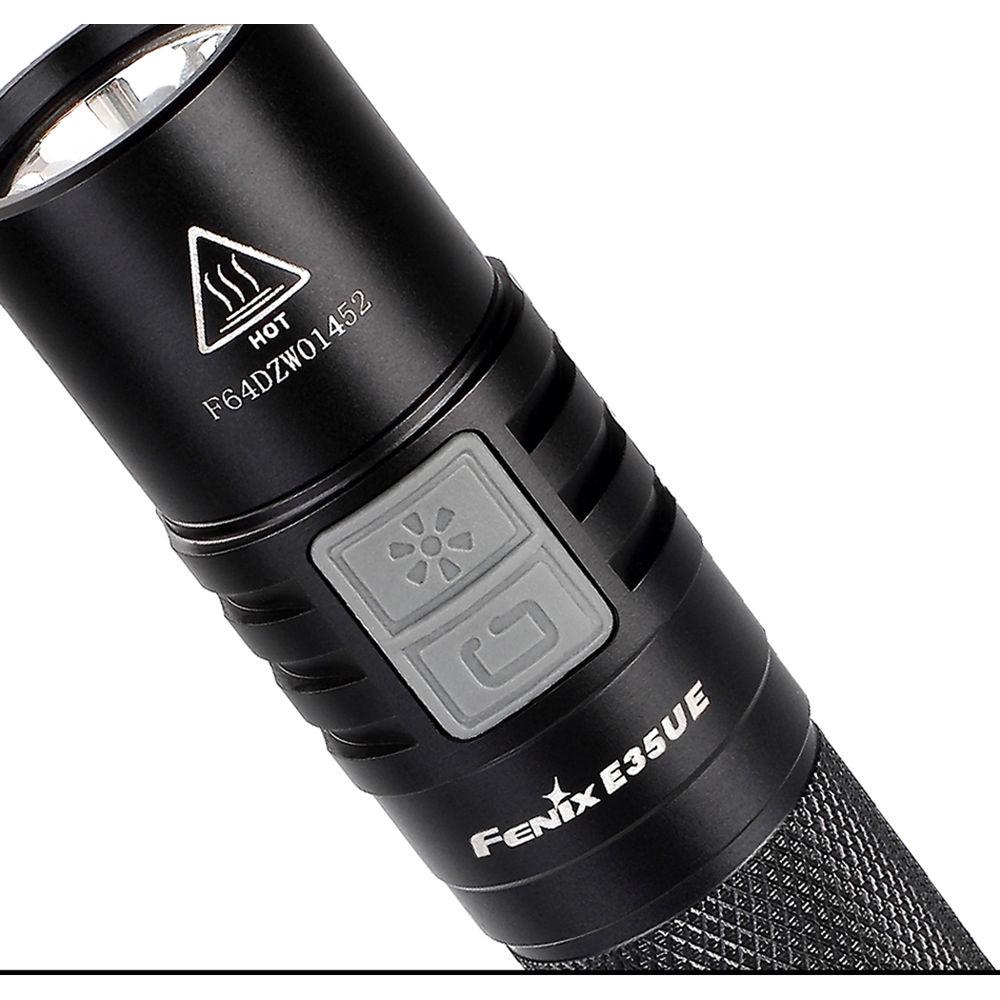

- Switching
-
- Location: Side
- Type: Dual push button
- Switch controls output intensity and mode
- Use mode switch to access output intensity and strobe modes
- Last-output memory switch automatically goes to last output selected
- Construction
-
- 0.9" diameter bezel
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant type-III anodized finish
- Anti-reflection coated impact-resistant tempered glass window
- IPX8-rated, waterproof and submersible to 6.6'
- Textured slip-resistant grip
- Includes spare O-ring and lanyard
- Power and Charging
-
- After 5 minutes on turbo, output is stepped-down to prevent overheating and extend battery charge
- Digitally-regulated output maintains consistent beam intensity throughout battery charge
- Reverse polarity protection prevents damage if battery is installed incorrectly
- Runs on one 18650 rechargeable or two CR123A disposable batteries (not included)
In the Box Fenix Flashlight E35UE LED Flashlight (2016) Lanyard Spare O-Ring Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight E35UE LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight E35UE Specs | | | Lumen Output | Minimum: 8 Lumens
Low: 50 Lumens
Medium: 150 Lumens
High: 450 Lumens
Turbo: 1000 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 4 Hours
Medium: 11.8 Hours
Low: 45.5 Hours
Turbo: 1.8 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 0.9" / 22.9 mm | | Dimensions | L: 4.8" / L: 12.2 cm | | Weight | 2.5 oz / 72.0 g (Without Batteries) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.9 x 3.2 x 0.2" |
