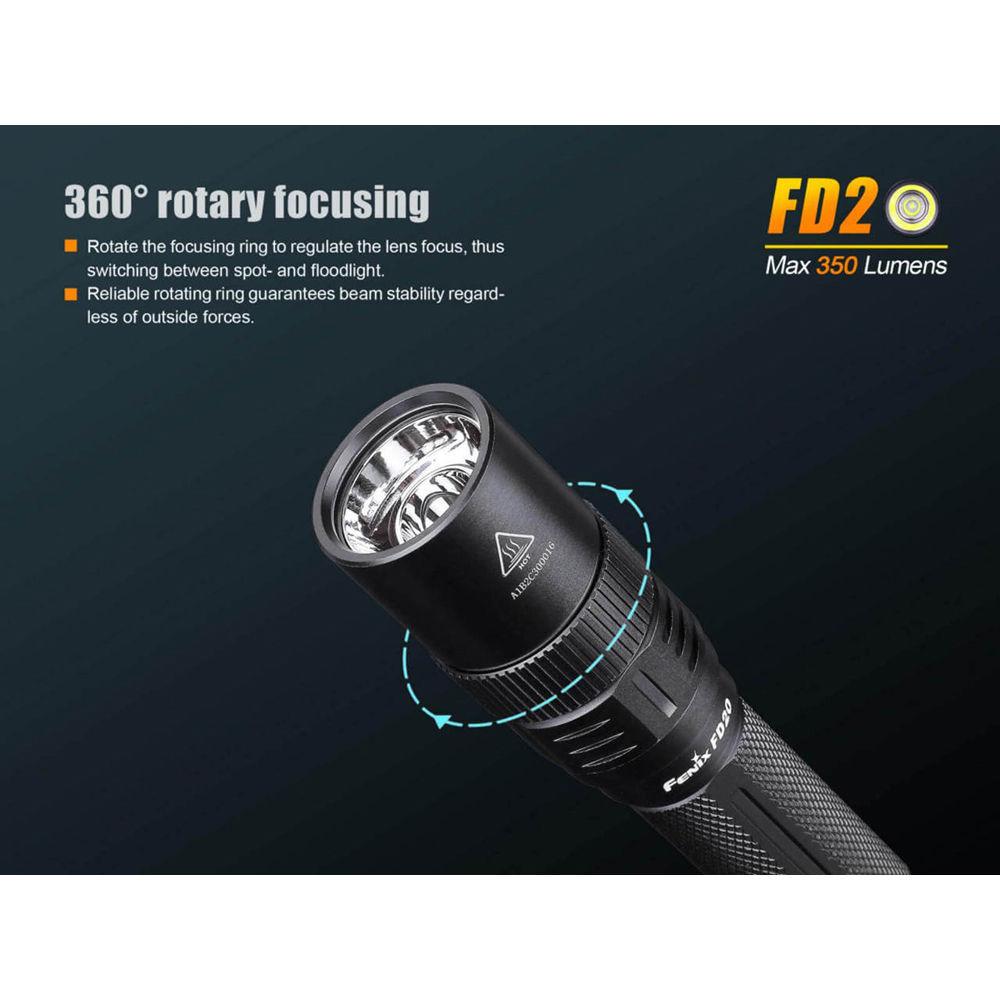

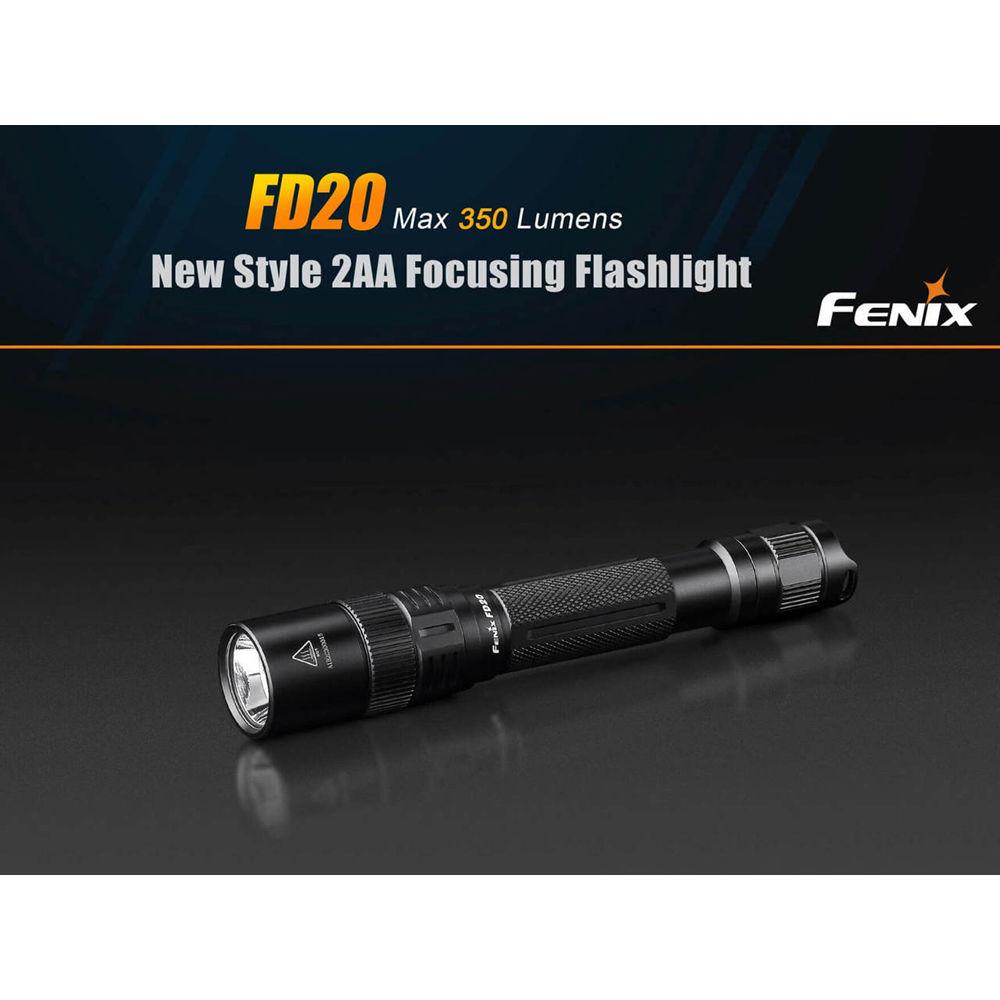

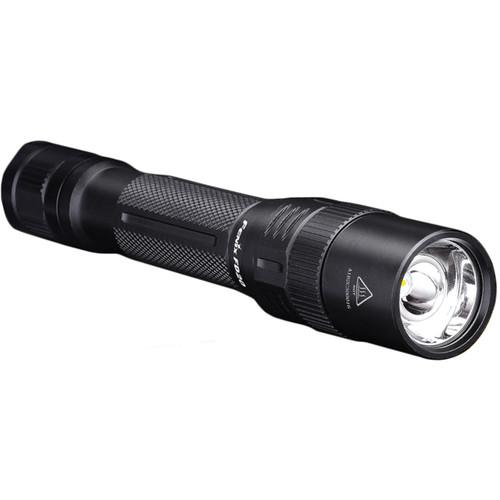

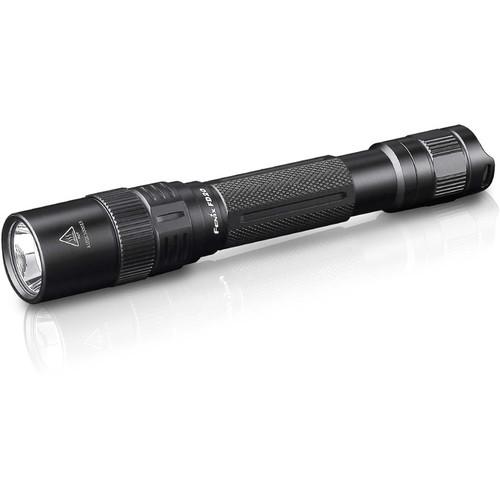

Product description Powered by widely available AA batteries, the Fenix FD20 LED Flashlight converts from a focused spotlight to a broad floodlight with a simple twist of the focus ring. Compact and durable, it's a general-purpose light with four brightness levels and a maximum runtime of 80 hours (at low power with NiMH batteries.) Measuring 6" long with a 0.8" body and 1" head, the FD20 is an everyday carry light that will be right at home in your pocket, bag, desk drawer, or glove box. Power and brightness settings are controlled by a push button tailcap switch. Output levels range from 8 lumens, bright enough for many small tasks, to 350 lumens for searching, lighting a path, campsite activities, or emergency preparedness. Digitally-regulated output ensures a consistent output across the life of the batteries, and the light has reverse polarity protection to guard against damage from improperly installed batteries. The FD20 is made of aluminum with a type III hard-anodized, anti-abrasive finish. It's waterproof (submersible to 6.6') and built to withstand being dropped 3.3'. Knurling on the body affords a good grip and makes the light a pleasure to hold. It comes with batteries, a holster, a lanyard, spare O-ring, and rubber switch boot. - Light Performance
-
- Low: 8 lumens
- Med: 50 lumens
- High: 100 lumens
- Turbo: 350 lumens

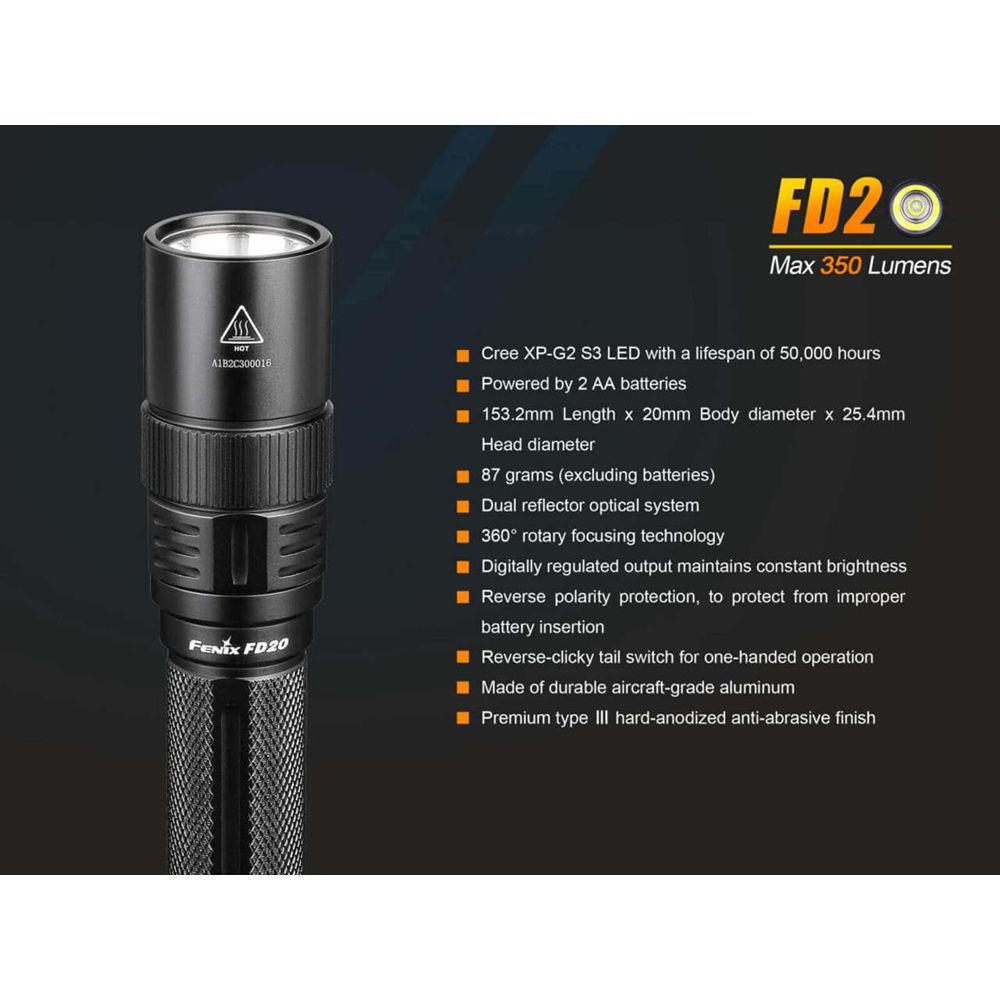

- White Cree XP-G2 S3 LED

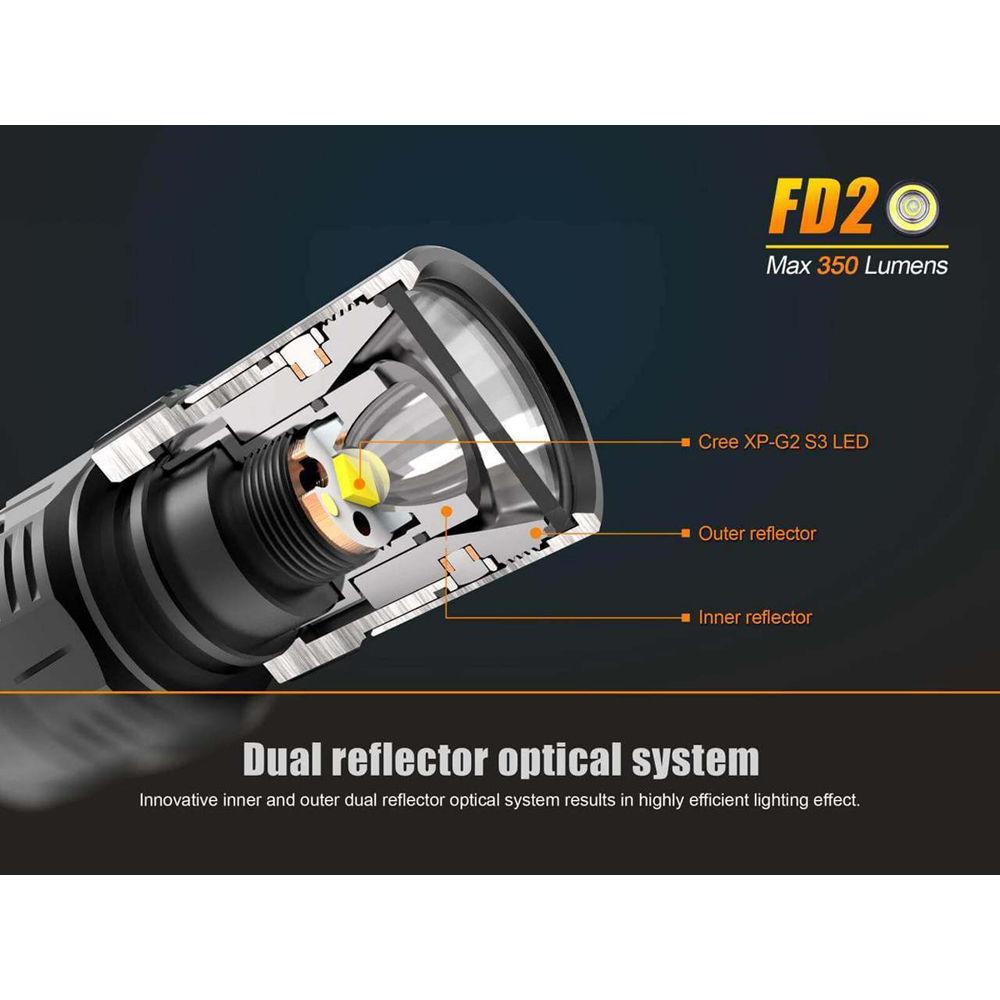

- Dual reflector system for floodlight and spotlight modes
- Digitally-regulated output maintains constant beam intensity throughout charge of battery
- Switching
-

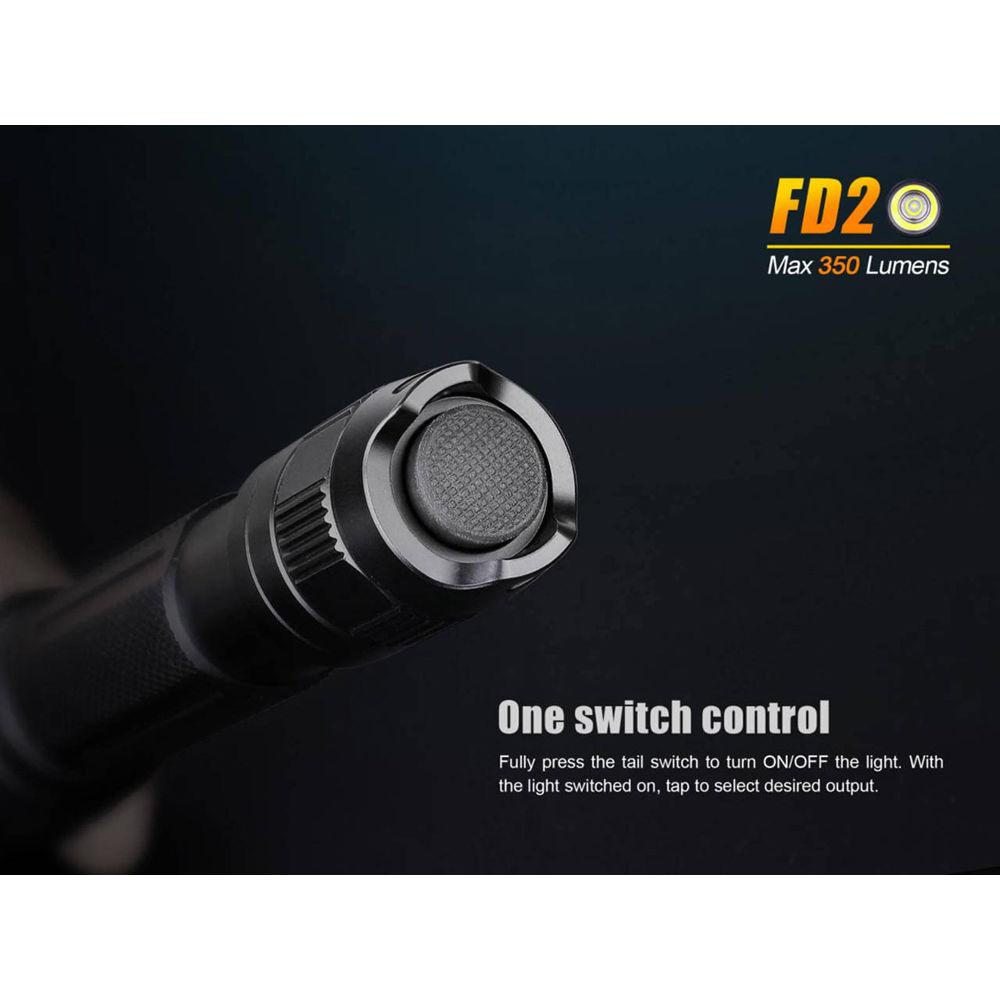

- Tailcap switch for on/off and output levels
- Constant-on operation
- Click for power, tap lightly to cycle through low, medium, high, & turbo settings
- Construction Details
-
- Aluminum alloy housing
- Scratch and corrosion-resistant Type III hard anodized finish

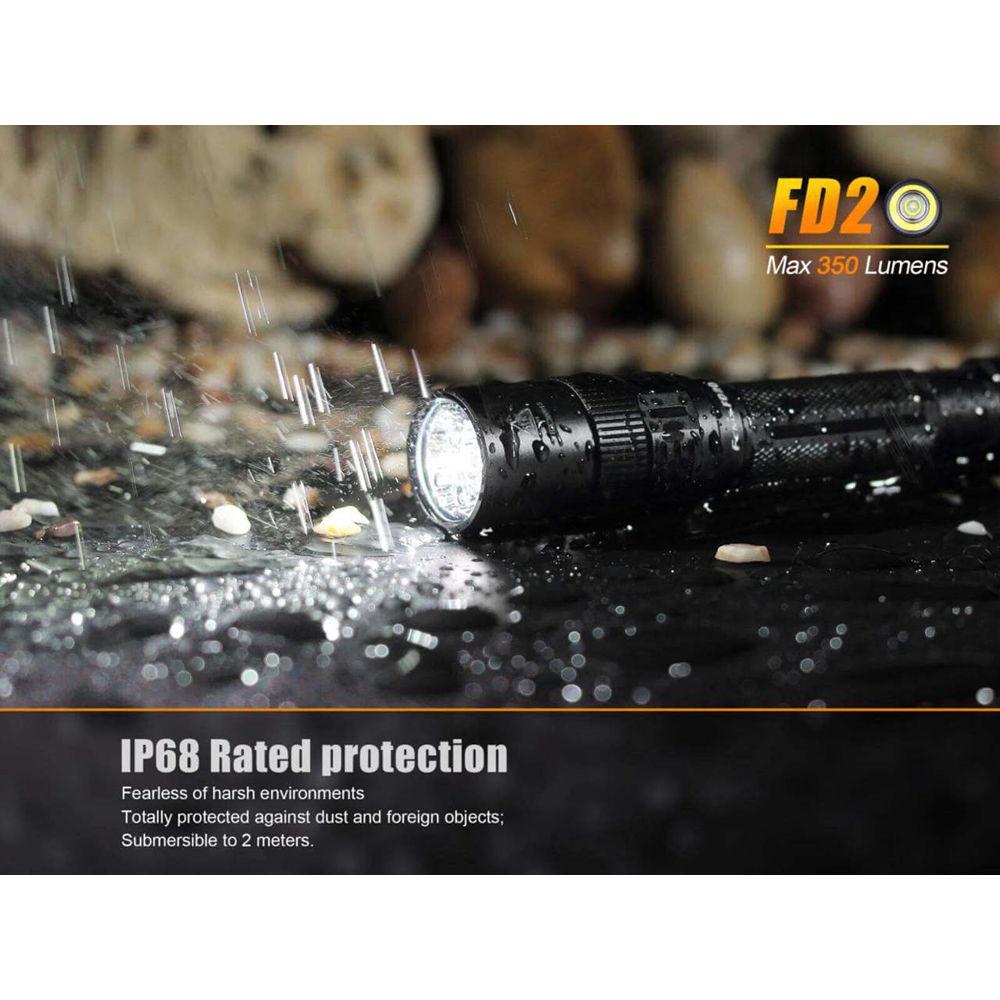

- IP68-rated, submersible to 6.6'
- Impact-resistant to 3.3'
- Reverse polarity protection prevents damage incorrect battery installation

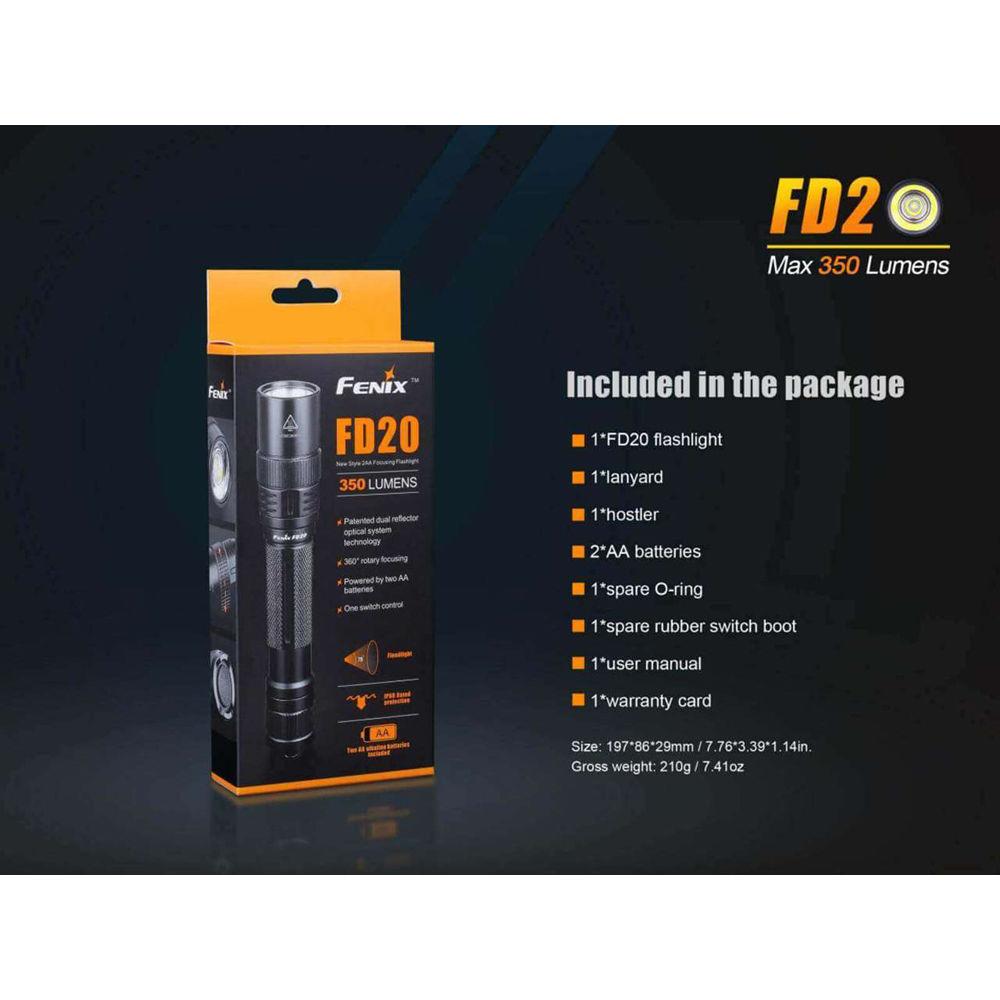

In the Box Fenix Flashlight FD20 LED Flashlight (Black) Lanyard Holster Spare O-Ring Spare Rubber Switch Boot Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight FD20 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight FD20 Specs | | | Lumen Output | High: 100 Lumens
Medium: 50 Lumens
Low: 8 Lumens
Turbo: 350 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | AA NiMH
High: 7.5 Hours
Medium: 16.7 Hours
Low: 80 Hours
Turbo: 2 Hours | | Battery Type | 2 x AA Alkaline, NiMH | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Bezel Diameter | 1.0" / 25.4 mm | | Dimensions |
