Product description With five output settings ranging from 50 to 3800 lumens and floodlight and spotlight options in each setting, the powerful and versatile Fenix FD65 LED Flashlight can cover everything from around-the-house tasks to search-and-rescue operations. It offers instant access to Turbo mode or a disorienting strobe, last-setting memory, digitally regulated output, and intelligent overheat protection, all in a compact form factor – just 6.0 x 2.0". A rotating collar on the head allows you to adjust the beam size from a wide 90° flood to a tight 10° spot. Designed for daily use, the FD65 is outfitted with a lightweight and durable aluminum body with a scratch- and corrosion-resistant anodized finish. The housing is O-ring sealed for an IP68 rating making it waterproof and submersible to 6.6 feet and dustproof. Multiple safety circuitries are in place to protect the light from damage caused by incorrectly installed batteries or excessive heat. Additional circuitry detects the battery being used and adjusts the performance accordingly to maximize the battery life while digitally regulating the output to provide consistent beam intensity throughout the battery charge. The light runs on four user-supplied rechargeable 18650 Li-ion batteries. - Performance
-
- Eco: 50 lumens
- Low: 150 lumens
- Med: 400 lumens
- High: 1200 lumens
- Turbo: 3800 lumens
- Three Cree XHP35 HI white LEDs
- Disorienting strobe mode
- Rotating focusing system allows beam to be focused from a wide flood to tight spotlight
- Wide 90° floodlight beam is designed for maximum coverage
- Tight 10° spotlight is optimized for a long throw

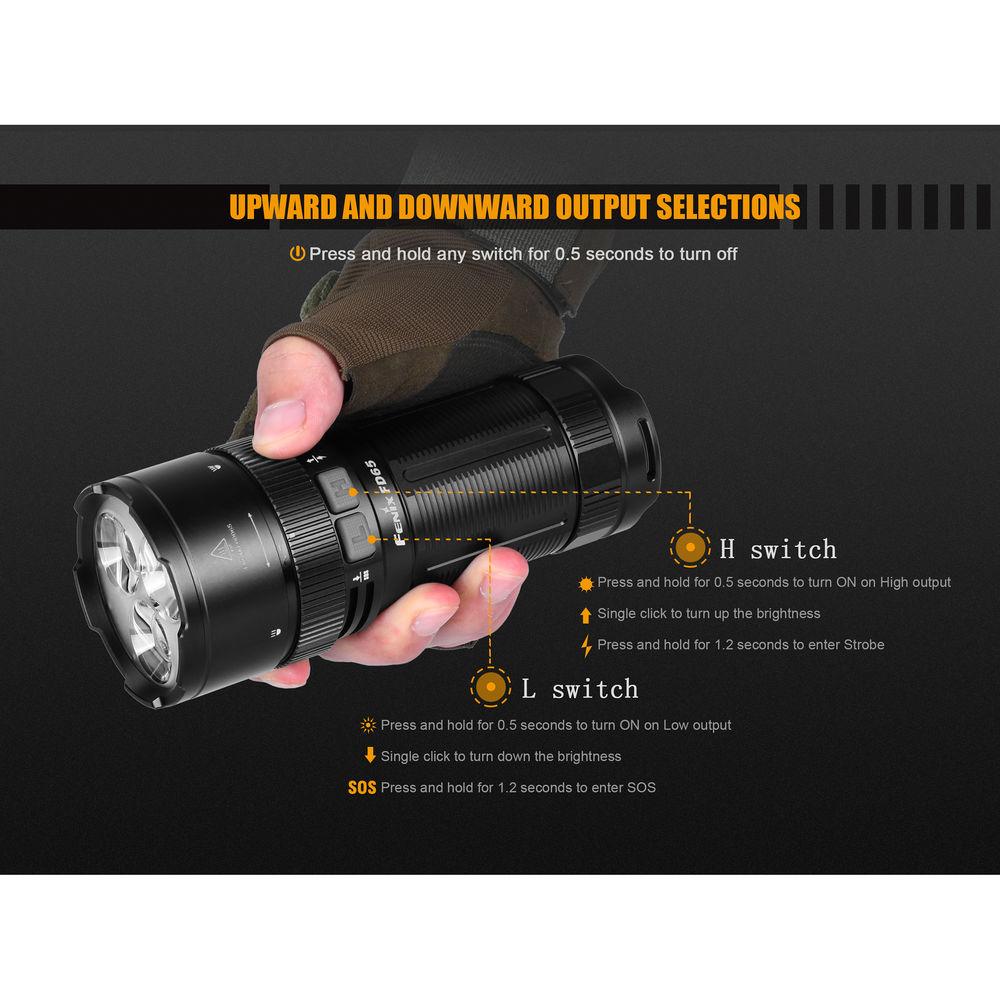

- Switching
-
- Type: Dual push-button
- Location: body
- Low and High switches control output and brightness level selection
- Lockout function prevents accidental activation
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch- and corrosion-resistant anodized finish

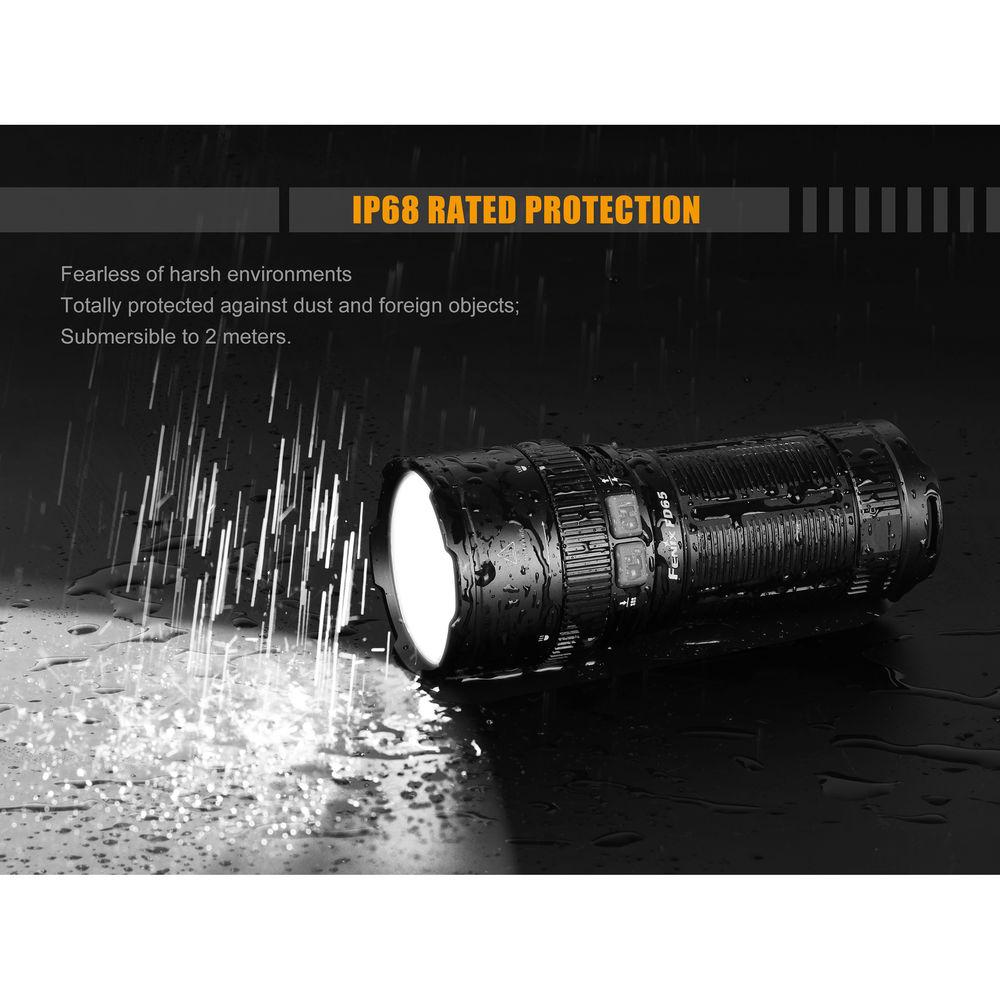

- IP68-rated, waterproof and submersible to 6.6'
- Impact-resistant to 3.3'
- Crenellated strike bezel
- Electronics
-
- Runs on four user-supplied 18650 Li-ion batteries
- Digitally regulated output maintains consistent beam intensity throughout battery life
- Reverse polarity protection prevents damage if batteries are installed incorrectly
- Intelligent overheat protection

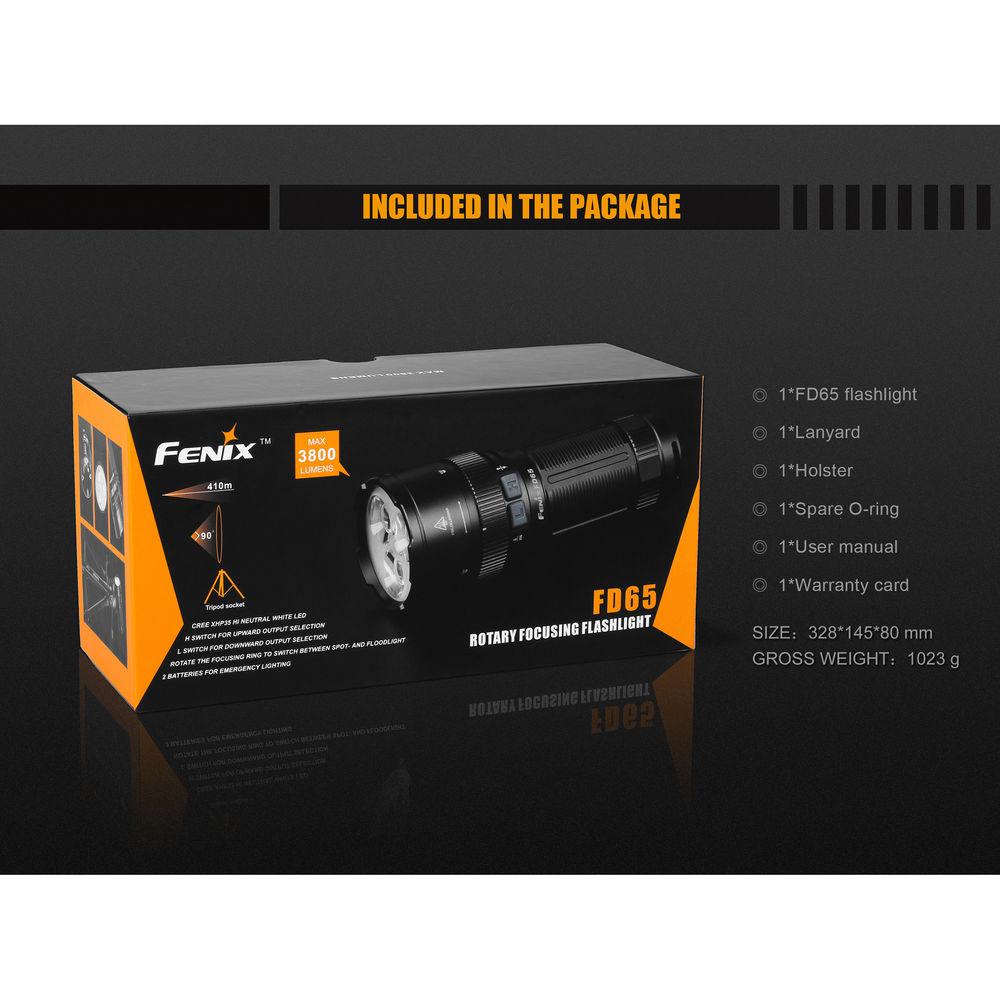

In the Box Fenix Flashlight FD65 LED Flashlight Lanyard Holster Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight FD65 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

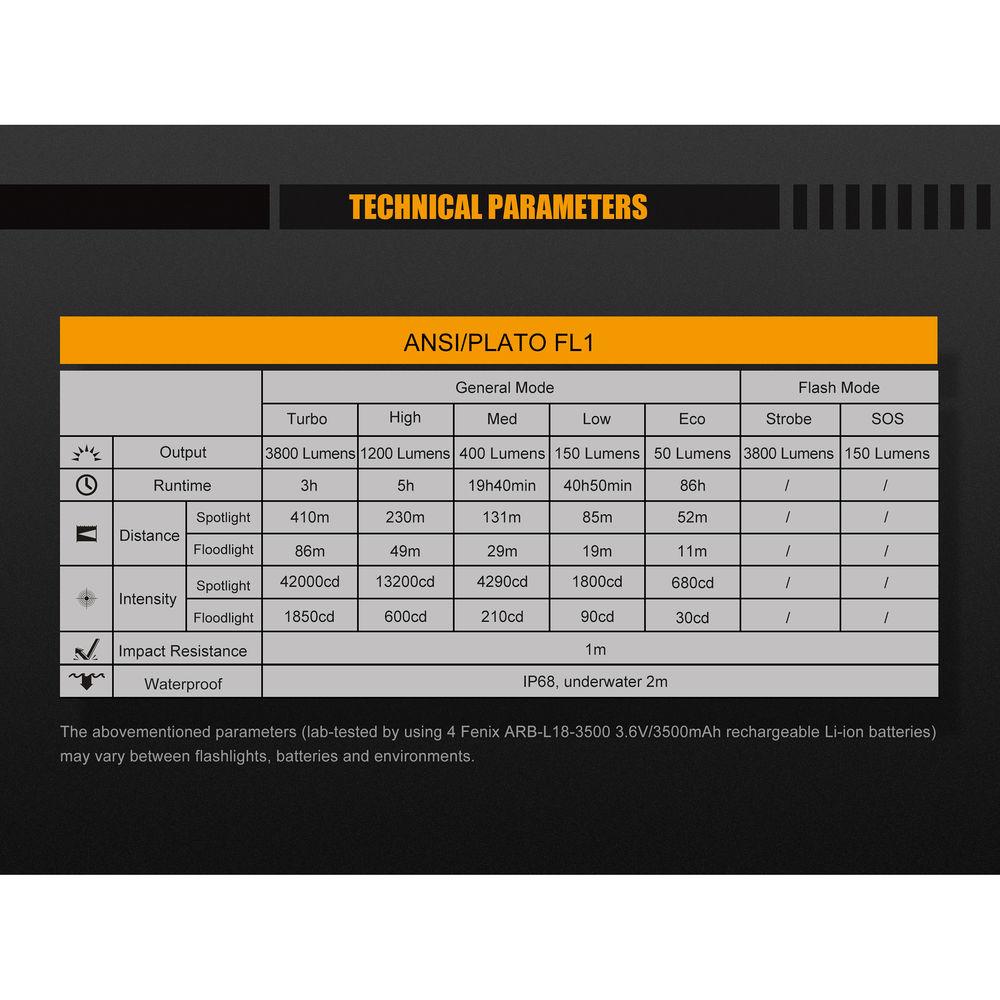

Technical parametersFenix Flashlight FD65 Specs | | | Lumen Output | Minimum: 50 Lumens
Low: 150 Lumens
Medium: 400 Lumens
High: 1200 Lumens
Turbo: 3800 Lumens | | Illumination Source | 3 x LED | | | | Estimated Runtime | High: 5 Hours
Medium: 19.6 Hours
Low: 40.8 Hours
Turbo: 3 Hours
Minimum: 86 Hours | | Battery Type | 4 x 18650 Lithium-Ion | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 2.4" / 6.1 cm | | Dimensions |
