User Manual for Fenix Flashlight HL15 LED Headlamp Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight HL15 LED Headlamp
- Product category: Headlamps Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Headlamps
 |
User manual for the Fenix Flashlight HL15 LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

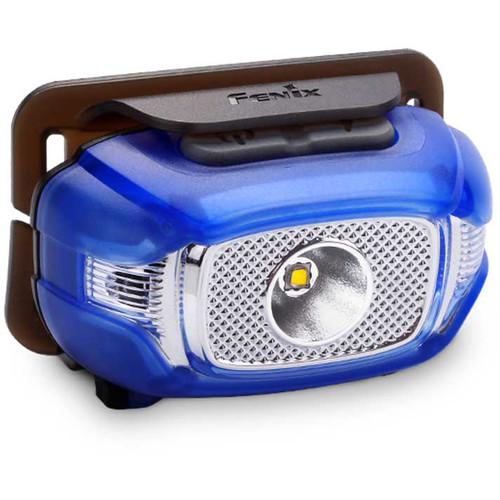

Product description Optimized for running but suited to a wide range of uses, the blue Fenix HL15 LED Headlamp offers bright illumination without feeling heavy on the forehead. It shines white or red light, resists water, runs on widely available AAA batteries – and at just over 2 ounces, it won't weigh you down during a run. One Cree XP-G2 R5 neutral white LED produces four outputs from a low 4 lumens to a high of 200 lumens with accurate color rendering. The red setting uses two Nichia LEDs in constant-on (to preserve night-acclimated vision) or flash (to make you visible) modes. An orange-peel-textured reflector casts a beam 100%deg; wide so you'll see what lies ahead. The light is controlled by an easy-to-reach dual switch on top of the lamp housing. The strap of the HL15 includes reflective surfaces for nighttime safety, and is designed to direct sweat away from your eyes. Rated IP67 for water-resistance, the lamp can withstand submersion down to 3 feet deep for up to 30 minutes, so there's no need to worry if you're caught in the rain. The light comes with two batteries and has reverse-polarity protection, digitally regulated output, and intelligent overheat protection. - Performance
-
- Low: 4 lumen
- Med: 30 lumen
- High: 70 lumen
- High: 200 lumen
- Red: 0.2 lumen
- One Cree XP-G2 R5 neutral white LED
- Two Nichia red LED
- Textured orange-peel reflector produces a 100° beam

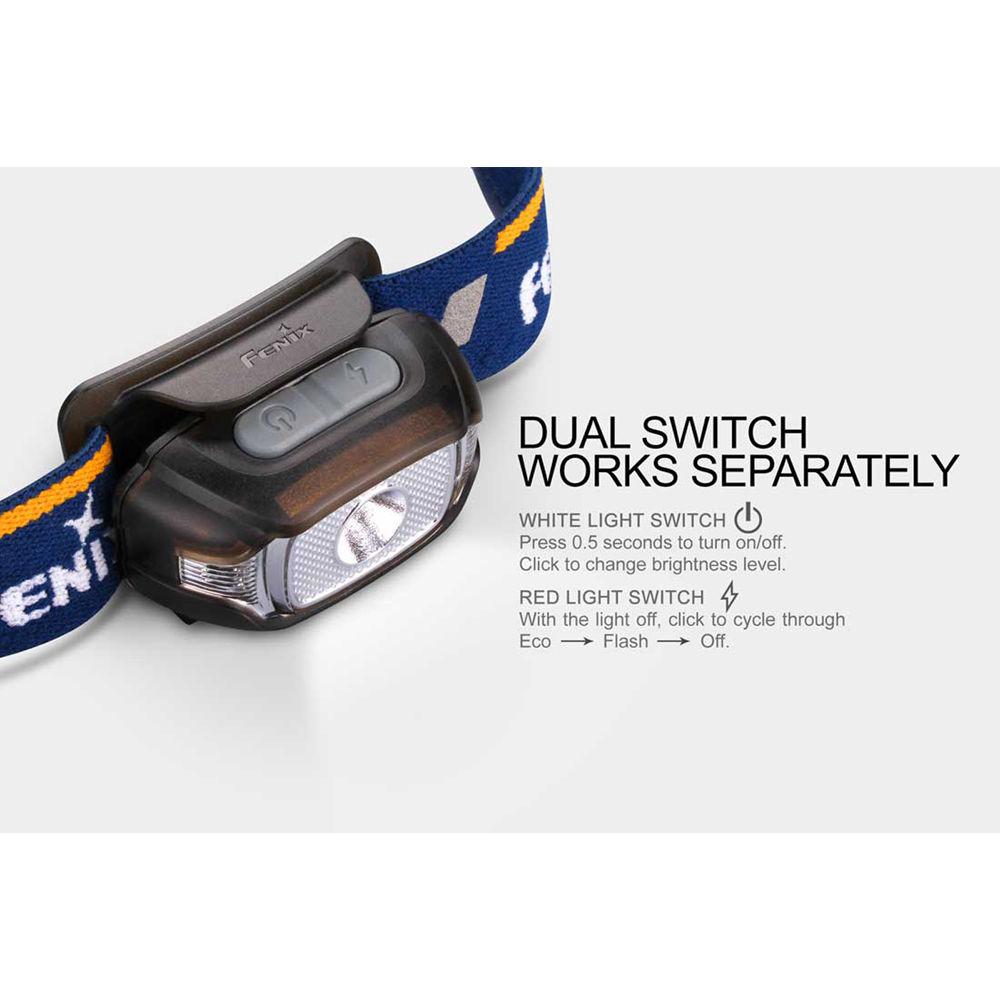

- Switching
-
- Type: Pushbutton
- Location: Top of housing
- Constant-on mode only
- Press and hold button for 0.5 second to activate
- Press and release to cycle through four output levels
- Constant-on and flashing red modes
- Construction
-
- Aluminum alloy housing and impact-resistant plastic mount

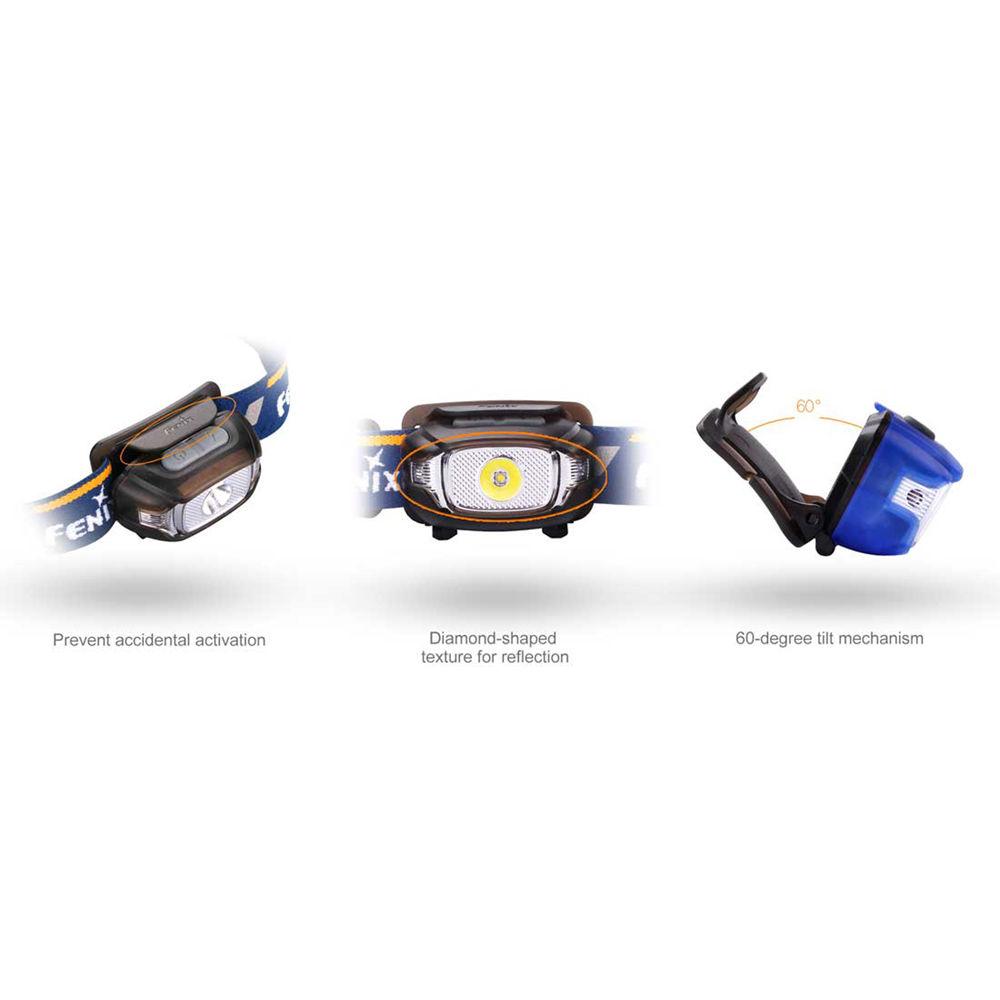

- 60° tilt head for precise beam placement

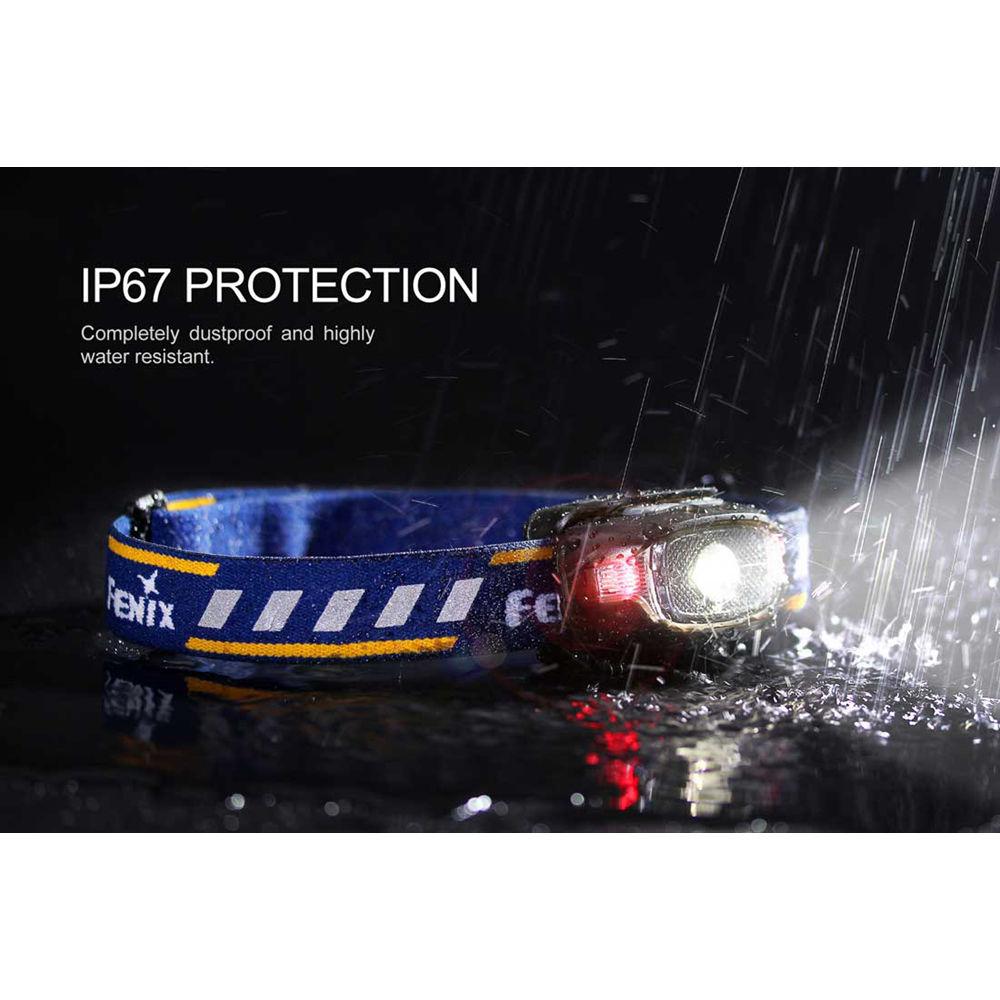

- Impact-resistant to 3.3', IP67-rated submersible to 3.3' for 30 minutes
- Reverse polarity protection prevents damage if battery in installed incorrectly
- Electronics
-
- Runs on two AAA batteries
- Reverse-polarity protection prevents damage from incorrectly installed batteries
- Digitally regulated output assures consistent performance throughout life of battery
- Intelligent overheat protection
In the Box Fenix Flashlight HL15 LED Headlamp (Blue) 2 x AAA Batteries Spare O-Ring Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HL15 LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HL15 Specs | | | Lumen Output | High: 70 Lumens
Medium: 30 Lumens
Low: 4 Lumens
Turbo: 200 Lumens | | Illumination Source | 1 x White LED
2 x Red LED | | Estimated Runtime | AAA Alkaline
High: 4 Hours
Medium: 12.5 Hours
Low: 58 Hours
Turbo: 1.5 Hours | | Battery Type | 2 x AAA | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Waterproof to 3.3' / 1 m, IP67 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 2.5 x H: 1.6 x D: 1.4" / W: 6.3 x H: 4.2 x D: 3.5 cm | | Weight | 2.1 oz / 60 g (Without Batteries) |
