User Manual for Fenix Flashlight HL16 Children's LED Headlamp Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight HL16 Children's LED Headlamp
- Product category: Headlamps Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Headlamps
 |
User manual for the Fenix Flashlight HL16 Children's LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

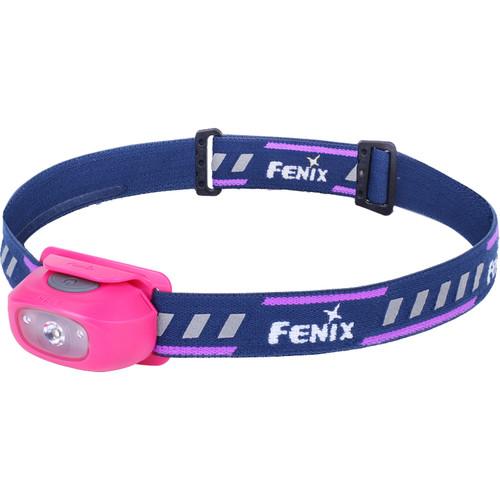

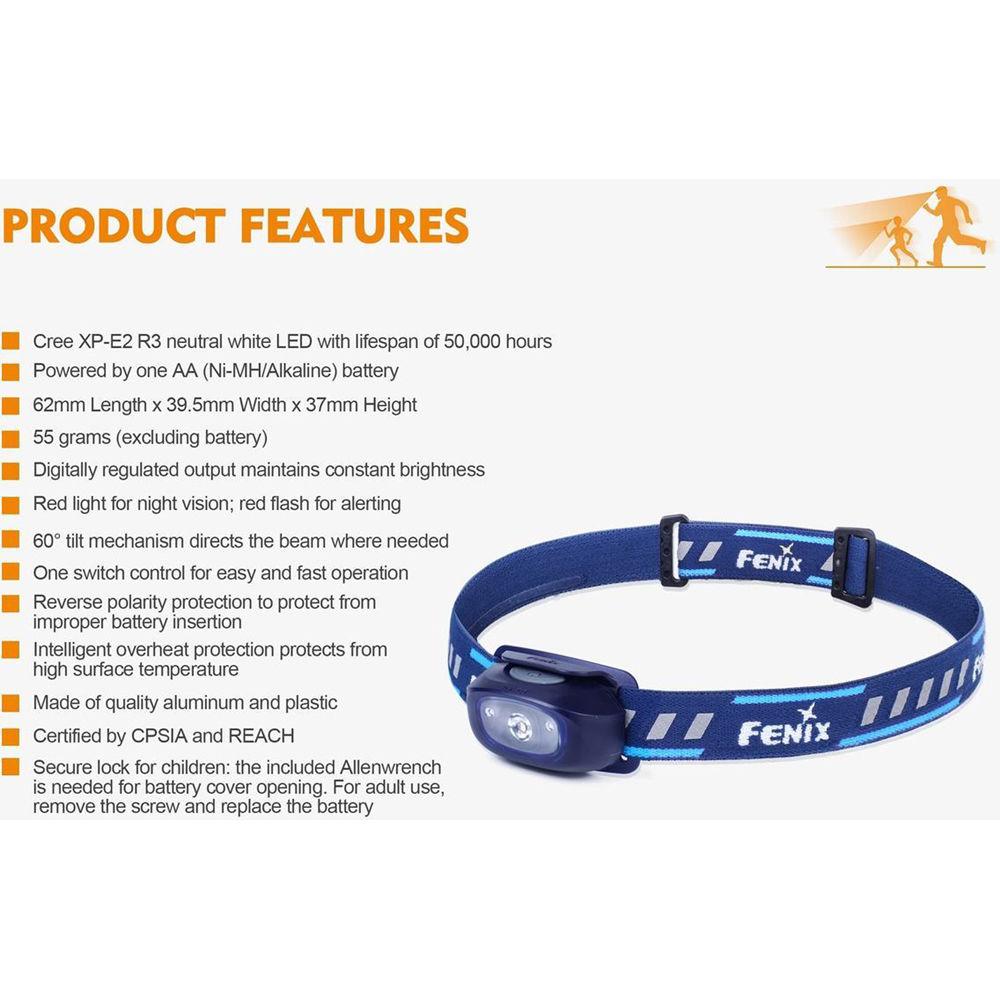

Product description Designed to keep curious youngsters away from a potentially hazardous battery, the purple HL16 Children's LED Headlamp from Fenix provides hands-free lighting for children and peace of mind for their parents. This lightweight, 70-lumen headlamp requires use of an included Allen key to access the battery compartment and meets the standards of the US Consumer Product Safety Improvement Act and European Registration, Evaluation, Authorization, and Restriction of Chemicals regulations.Operated by a simple push button, the HL16 provides three white-light brightness levels, plus steady-on and flashing red light. It runs on one readily available AA battery (included). The elastic headband has reflective markings for further safety and channels perspiration away from the user's face. Runtimes range from three hours on high power to 60 hours on low, and the light weighs under 2 ounces. It may be designed for kids, but adults may also find the HL16 suitable for jogging, dog walking, cycling, hiking and general hands-free light use. - Performance
-
- White low: 4 lumens
- White medium: 30 lumens
- White high: 70 lumens
- Flashing and steady red: 1 lumen
- White light runtimes: 3-60 hours (NiMH battery), 2.5-58 hours (alkaline battery)
- Digitally regulated output maintains constant brightness
- Switching
-
- Single push button atop lamp
- Press and hold for on, click to cycle through brightness levels and colors
- Construction Details
-

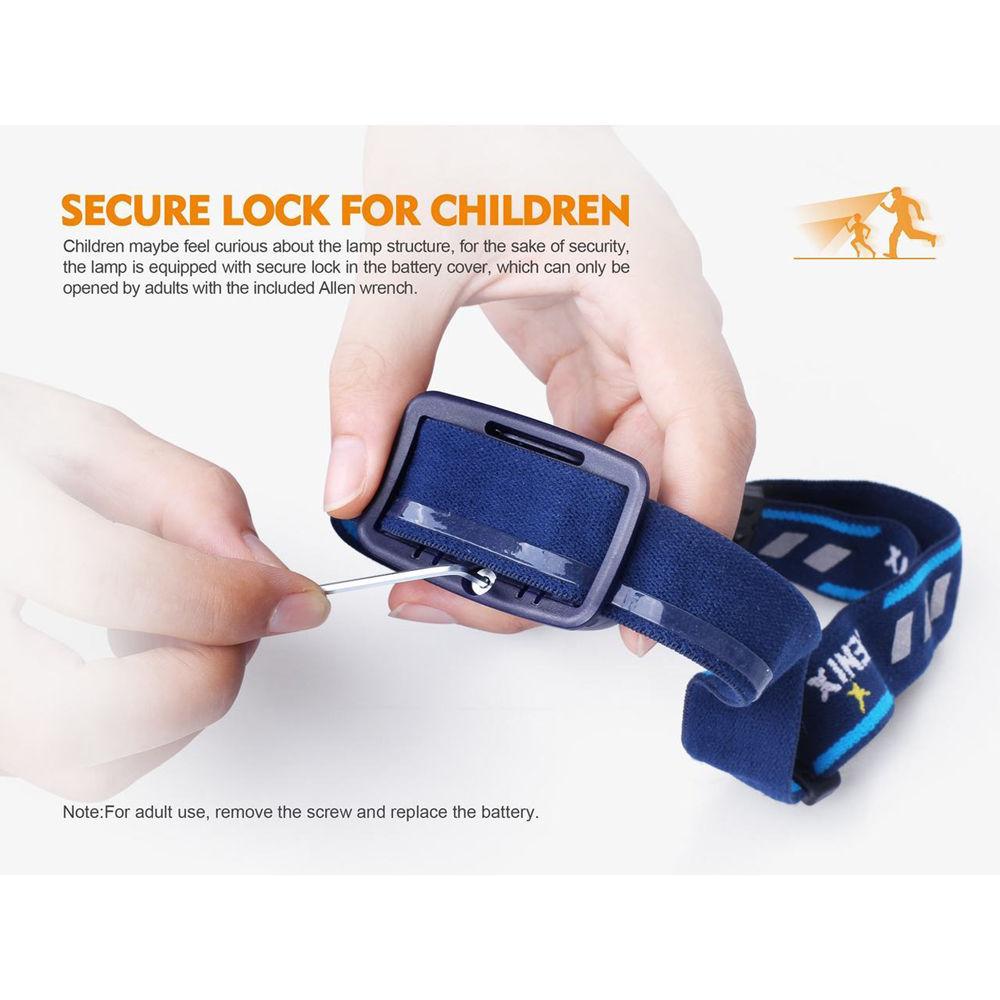

- Battery compartment access requires Allen key for security

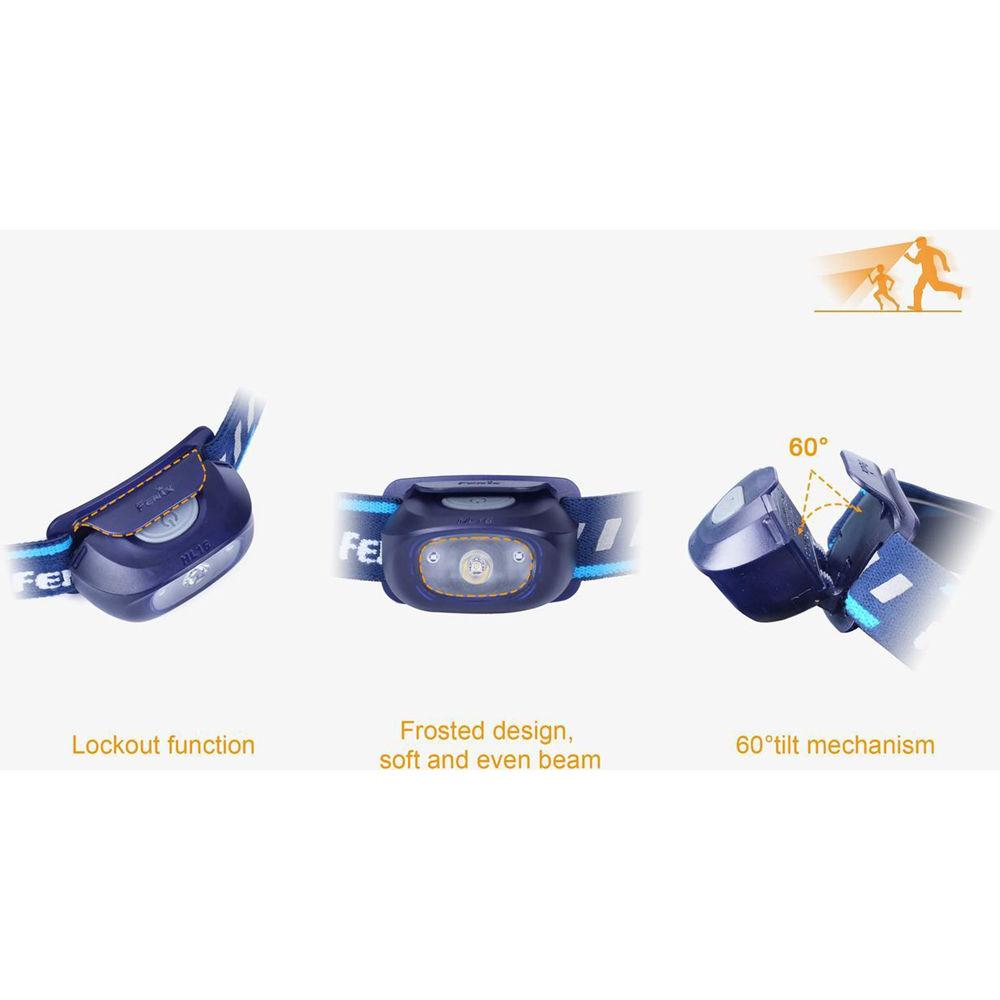

- Lamp tilts 60° for precise beam placement
- Reflective markings on headband
- Headband channels direct perspiration away from face
- Reverse polarity and intelligent overheat protection
- Runs on one readily available alkaline or NiMH AA battery (included)
- IP66-rated water and dust resistant
- Lightweight at 1.9 ounces
In the Box Fenix Flashlight HL16 Children's LED Headlamp (Purple) AA Battery Allen Key Spare O-Ring Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HL16 Children's LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HL16 Specs | | | Lumen Output | High: 70 Lumens
Medium: 30 Lumens
Low: 4 Lumens
Strobe (Red): 1 Lumen | | Illumination Source | 1 x White LED | | Estimated Runtime | AA NiMH
High: 3 Hours
Low: 60 Hours
Red: 75 Hours
Strobe (Red): 150 Hours | | Battery Type | 1 x AA Alkaline, NiMH | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Water Resistant, IP66 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 2.4 x H: 1.6 x D: 1.5" / W: 6.2 x H: 4.0 x D: 3.7 cm | | Weight | 1.9 oz / 55 g (Without Batteries) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
