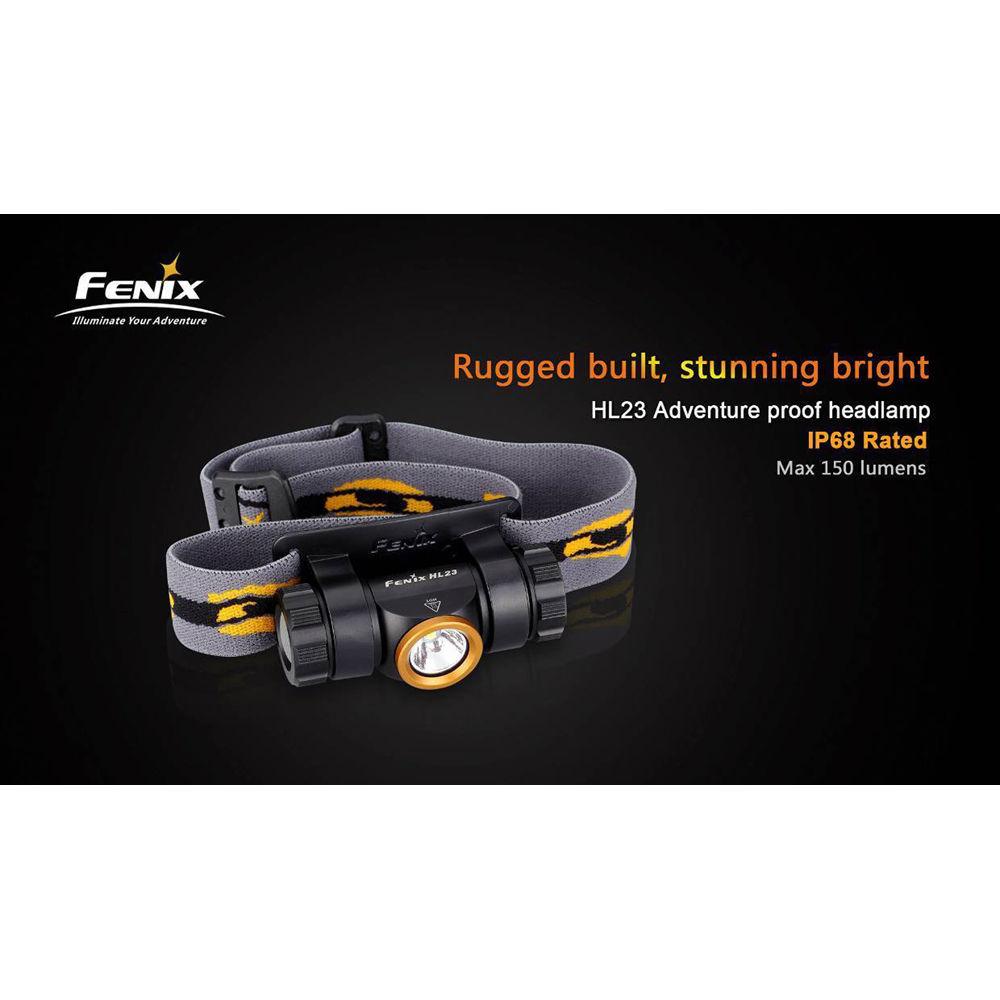

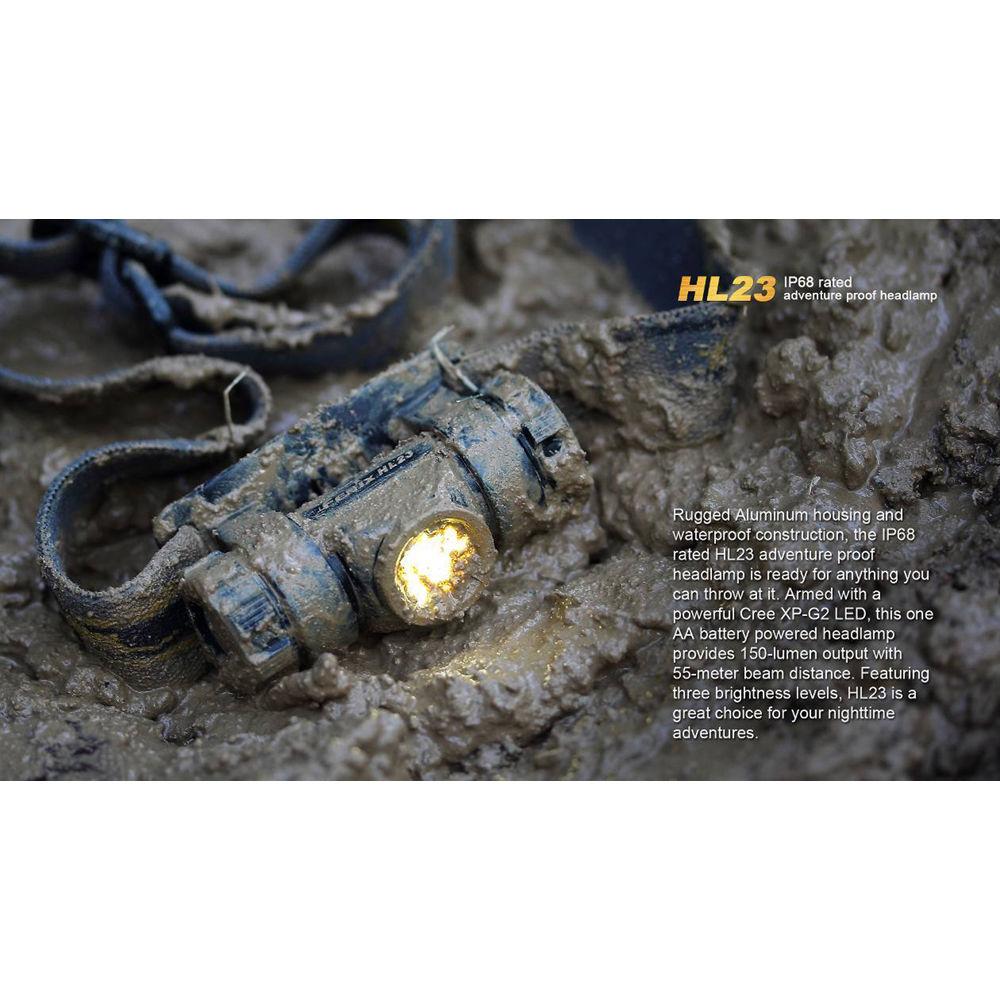

Product description When it's time to roll up your sleeves and get to work, the cadet gray Fenix HL23 R5 LED Headlight gives you as much light as you need while leaving both hands free to handle the task at hand. One Cree XP-G2 R5 LED produces three outputs from a low 3 lumens to a high of 150 lumens while the head tilts from 0 to 60° for precise beam placement. A single pushbutton on the right side of the housing controls the output intensity with a simple press so it's easy to use in all weather and conditions, with or without gloves.Designed for durability, the housing features a scratch and corrosion-resistant Type III hard-anodized finish, with a cadet gray bezel and side knobs, and black body. The housing is impact-resistant to 6.6' and O-ring sealed to give it an IP68-rating, making it dustproof and submersible to 6.6' for up to 30 minutes. The light runs on a single NiMH rechargeable or disposable alkaline AA battery, and has reverse-polarity protection circuitry to prevent damage if the battery is installed incorrectly. - Performance
-
- Low: 3 lumens
- Med: 50 lumens
- High: 150 lumens
- One Cree XP-G2 R5 LED
- Textured orange-peel reflector produces a smooth beam without holes or hotspots
- Digitally-regulated output maintains consistent output throughout life of battery

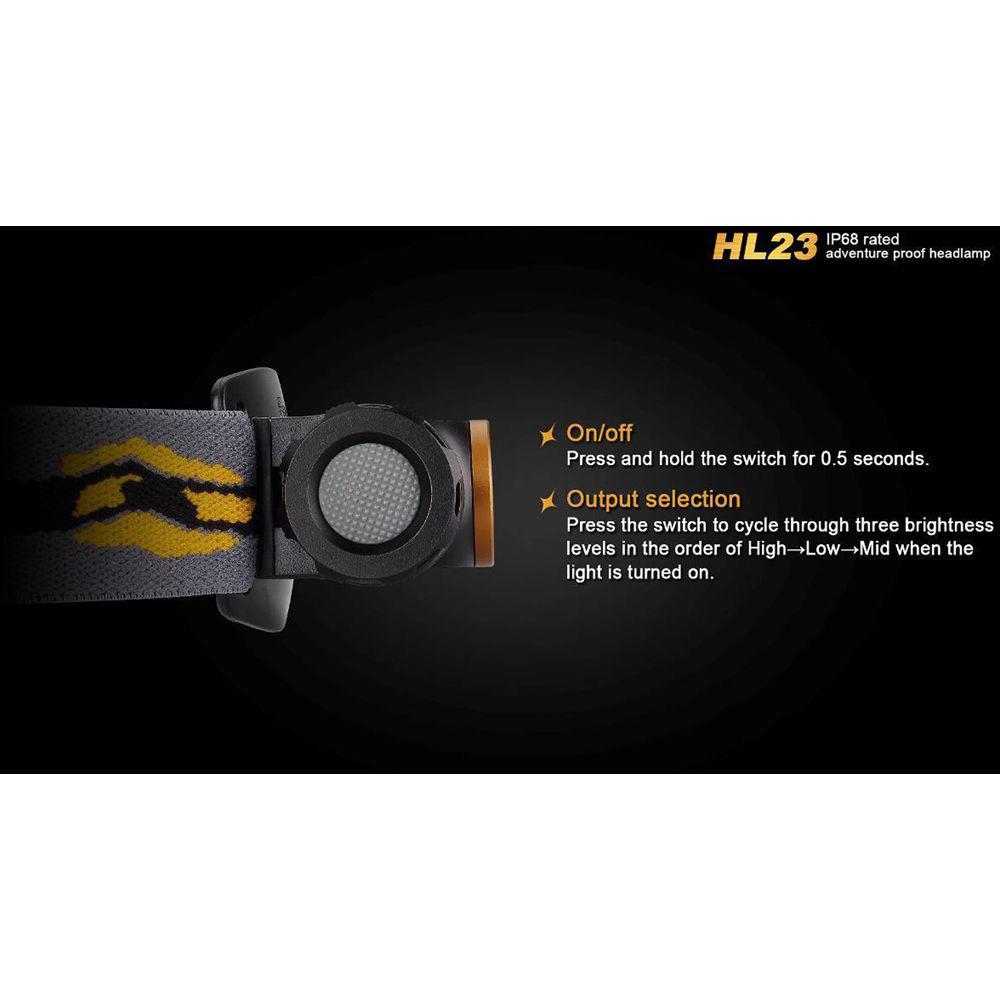

- Switching
-
- Type: Pushbutton
- Location: Right side of housing
- Constant-on mode only
- Press and hold button to activate
- Press and release to cycle through three output levels

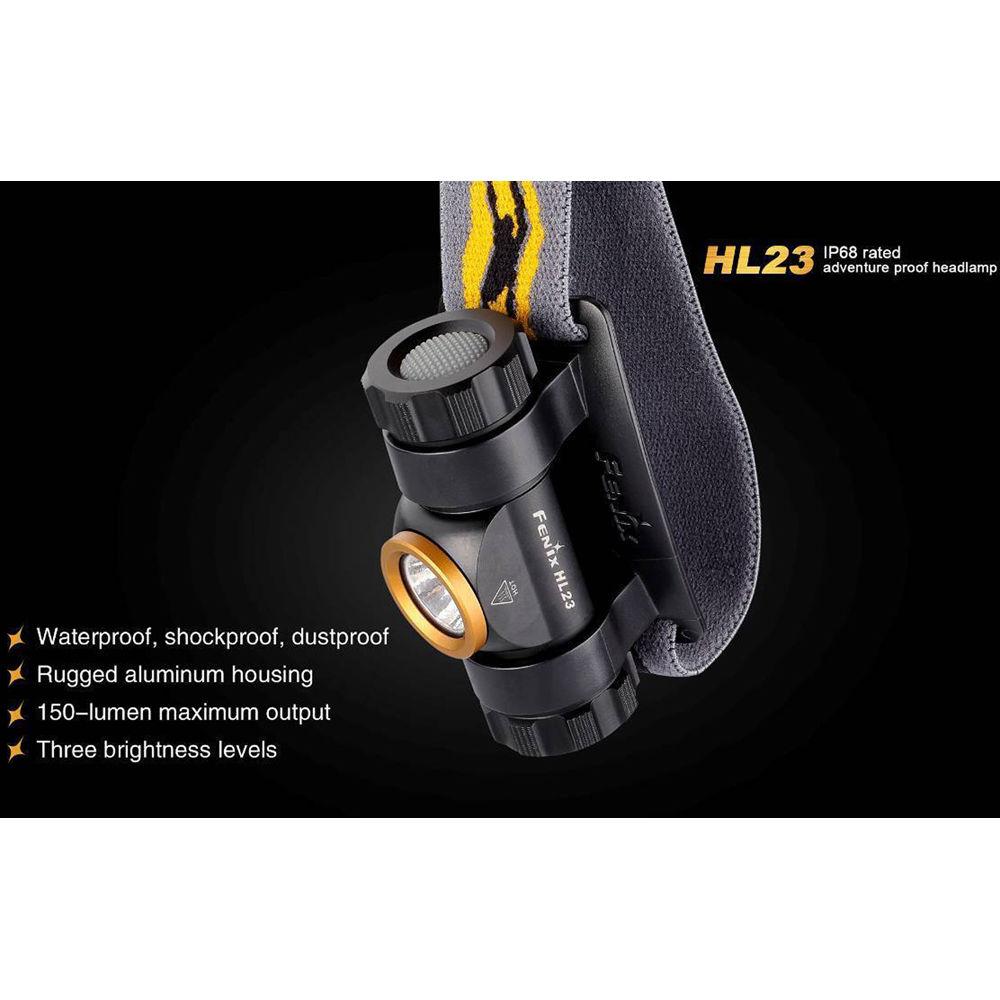

- Construction
-
- Cadet gray bezel and side knobs, with black housing

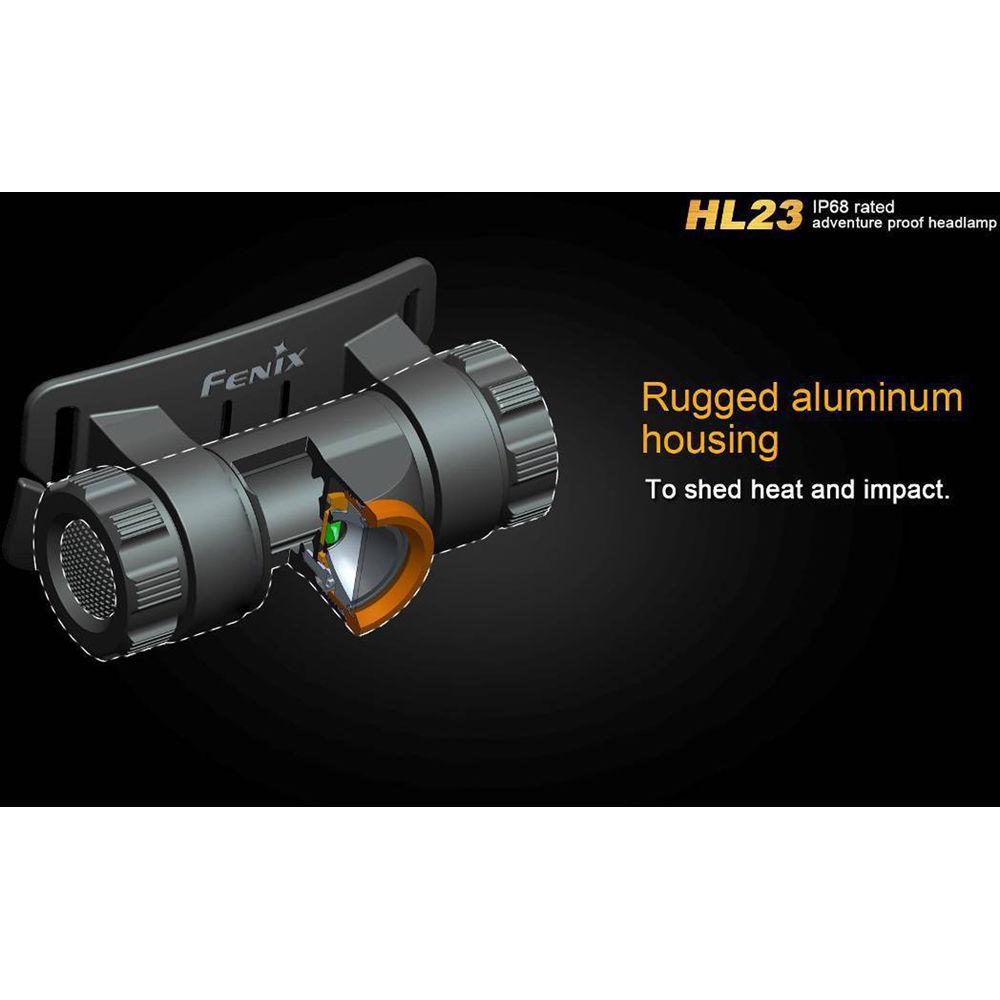

- Aluminum alloy housing and impact-resistant plastic mount
- Scratch and corrosion-resistant Type III anodized finish on aluminum
- 0-60° tilt head for precise beam placement
- Anti-reflection coated, scratch and impact-resistant tempered glass window

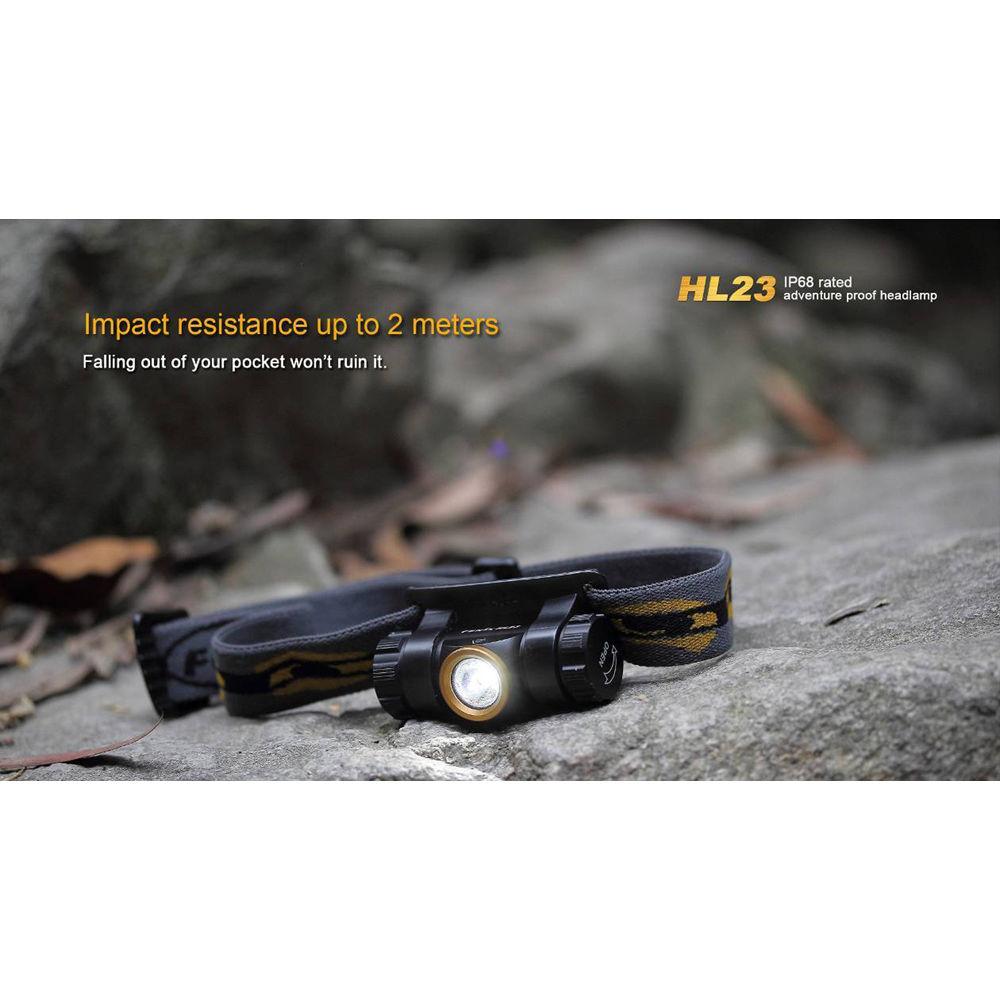

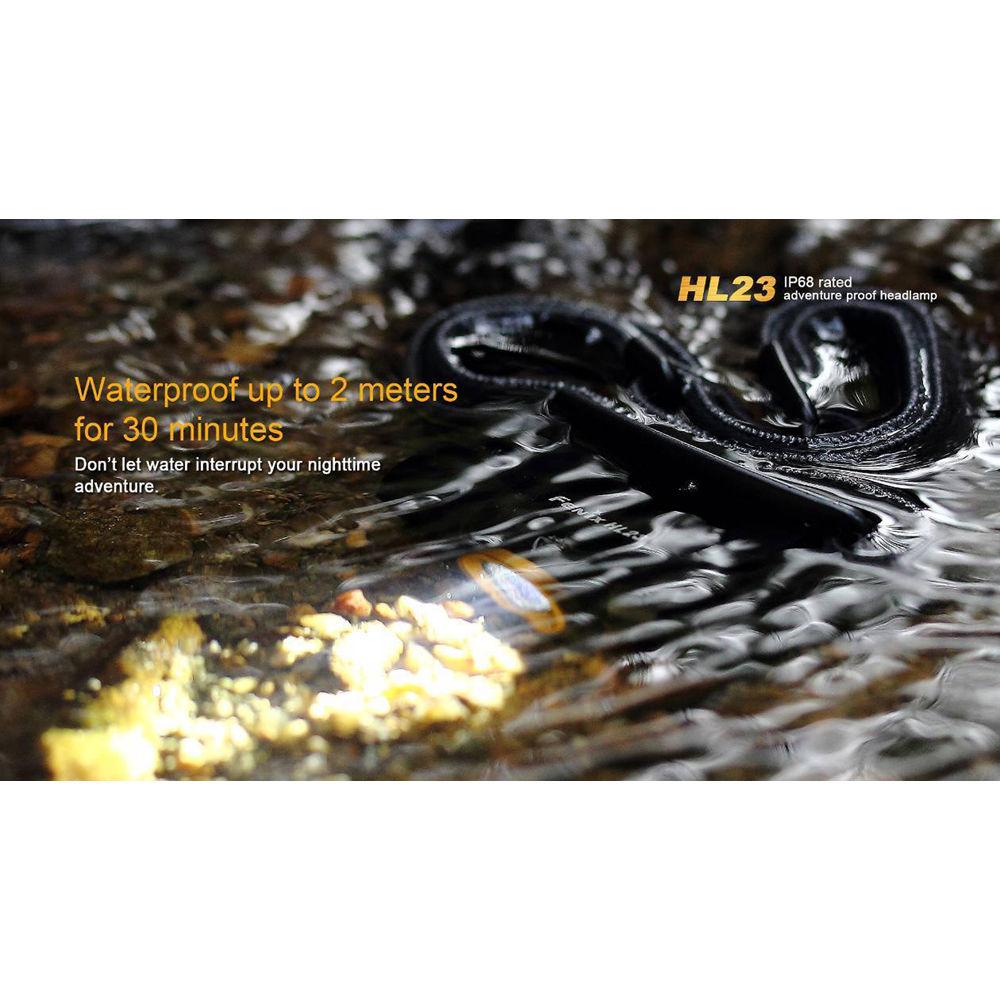

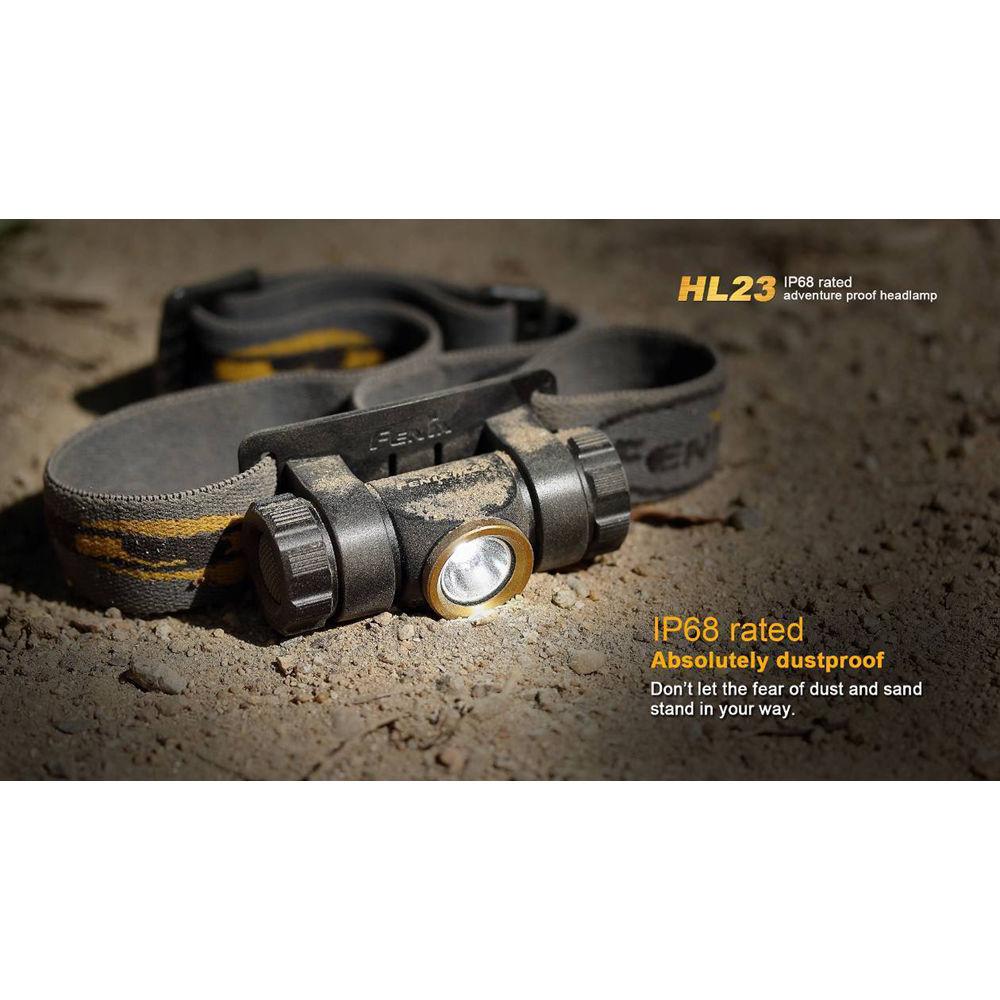

- Impact resistant to 6.6', IP68-rated dustproof and submersible to 6.6' for 30 minutes
- Reverse polarity protection prevents damage if battery in installed incorrectly

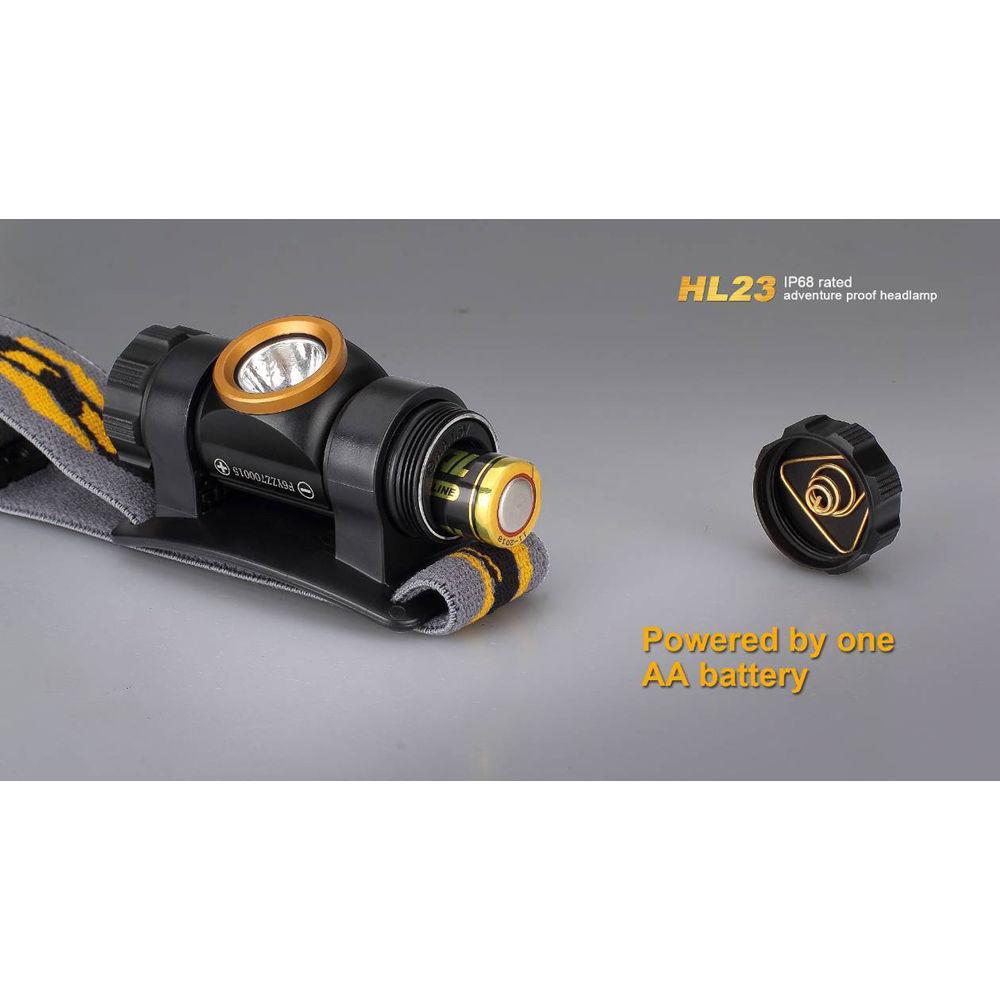

- Runs on one alkaline or NiMH AA battery
In the Box Fenix Flashlight HL23 R5 LED Headlight (Cadet Gray) Spare O-Ring AA Alkaline Battery Adjustable Headband Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HL23 R5 LED Headlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HL23-G2R5 Specs | | | Lumen Output | High: 150 Lumens
Medium: 50 Lumens
Low: 3 Lumens | | Illumination Source | 1 x LED | | Estimated Runtime | AA NiMH
High: 1.3 Hours
Medium: 5.7 Hours
Low: 100 Hours | | Battery Type | 1 x AA Alkaline, NiMH | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Dimensions | W: 2.8 x H: 1.6 x D: 1.5" / W: 7.1 x H: 4.0 x D: 3.9 cm | | Weight | 1.8 oz / 52 g (Without Batteries) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.984 x 3.78 x 1.181" |
