User Manual for Fenix Flashlight HL26R Rechargeable Headlamp Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight HL26R Rechargeable Headlamp
- Product category: Headlamps Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Headlamps
 |
User manual for the Fenix Flashlight HL26R Rechargeable Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

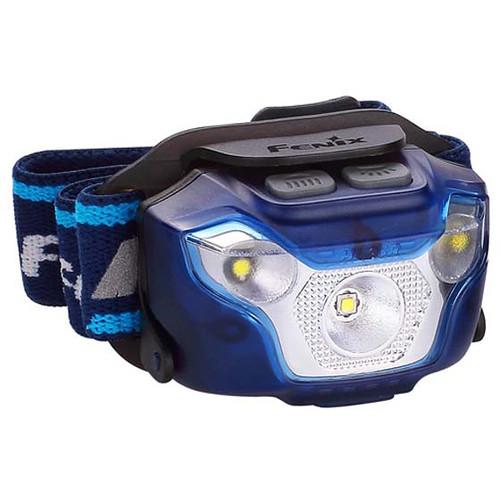

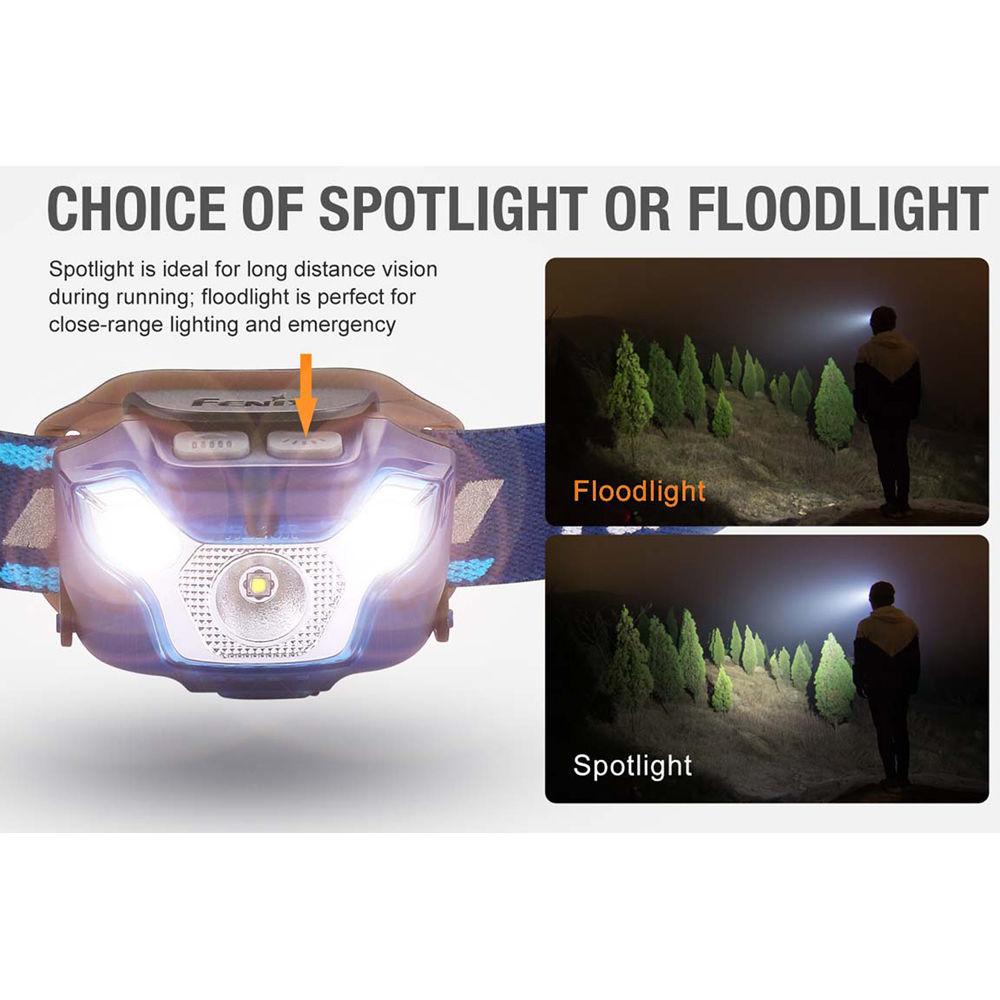

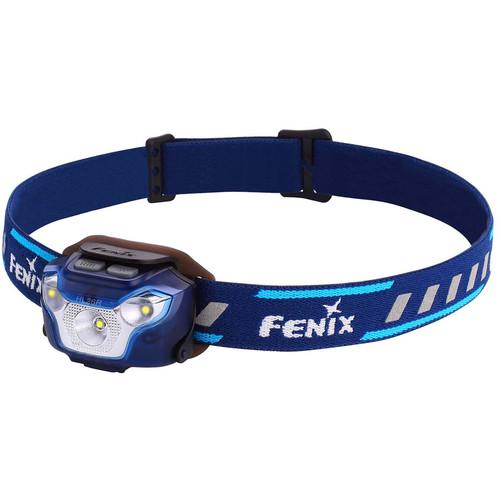

Product description With its lightweight construction and a powerful beam, the blue HL26R Rechargeable Headlamp from Fenix is well-suited to night running or any activity that requires hands-free lighting. It has a maximum output of 450 lumens and a band designed to guide sweat away from your eyes. The HL26R has a spotlight beam with four output levels and a flood beam with two, controlled by one top-mounted button for each beam (a plastic guard prevents accidental activation in your luggage or gym bag). Runtimes range from 100 to 13 hours for the flood beam and 25 to 6 hours for the spot, with a 90-minute "burst" runtime for the 450-lumen maximum output setting. The headlamp recharges via a micro-USB port, and protective circuitry guards against overcharging or over-discharge. Reflective highlights on the elastic band add to your nighttime visibility, and a silicone strip along the front side of the band adds to your comfort by channeling perspiration away from your eyes. A metal heat dissipation sheet built into the lamp prevents forehead discomfort from the powerful Cree and Nichia LEDs. You can tilt the lamp 60° to put the beam exactly where you want it. - Performance
-
- Spot beam with 30, 70, and 130-lumen outputs, plus 450-lumen burst setting
- Flood beam with 4 and 40-lumen output levels
- 40-lumen SOS mode for emergencies

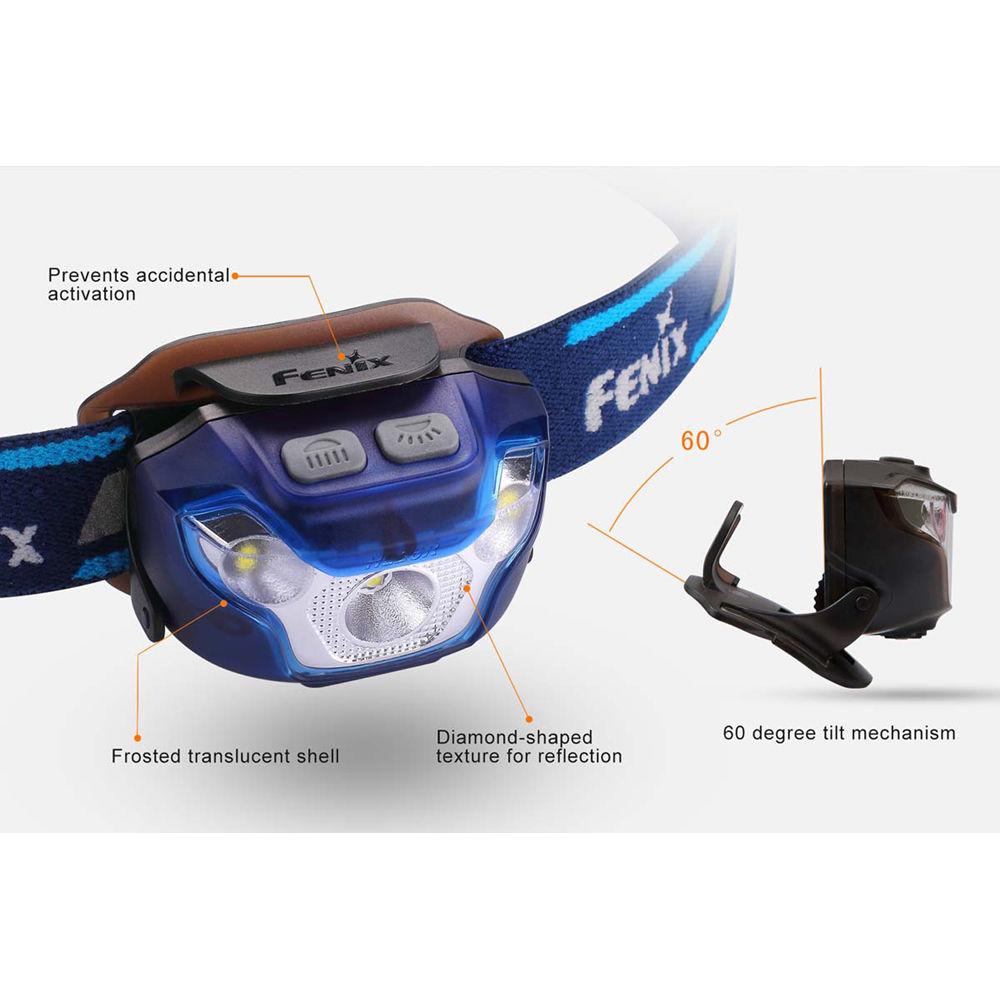

- Tilts up to 60°
- Runtimes: 1.5-25 hours spot, 13-100 hours flood
- Switching & Electronics
-
- Top-mounted, side-by-side buttons for each beam
- Built-in 1600mAh LiPo battery
- Digitally regulated output maintains constant brightness
- Overcharging and over-discharging protection to protect the battery and circuit from damage
- Micro-USB charging port & included cable
- Construction
-
- Lightweight at 3 ounces
- Polycarbonate and aluminum construction

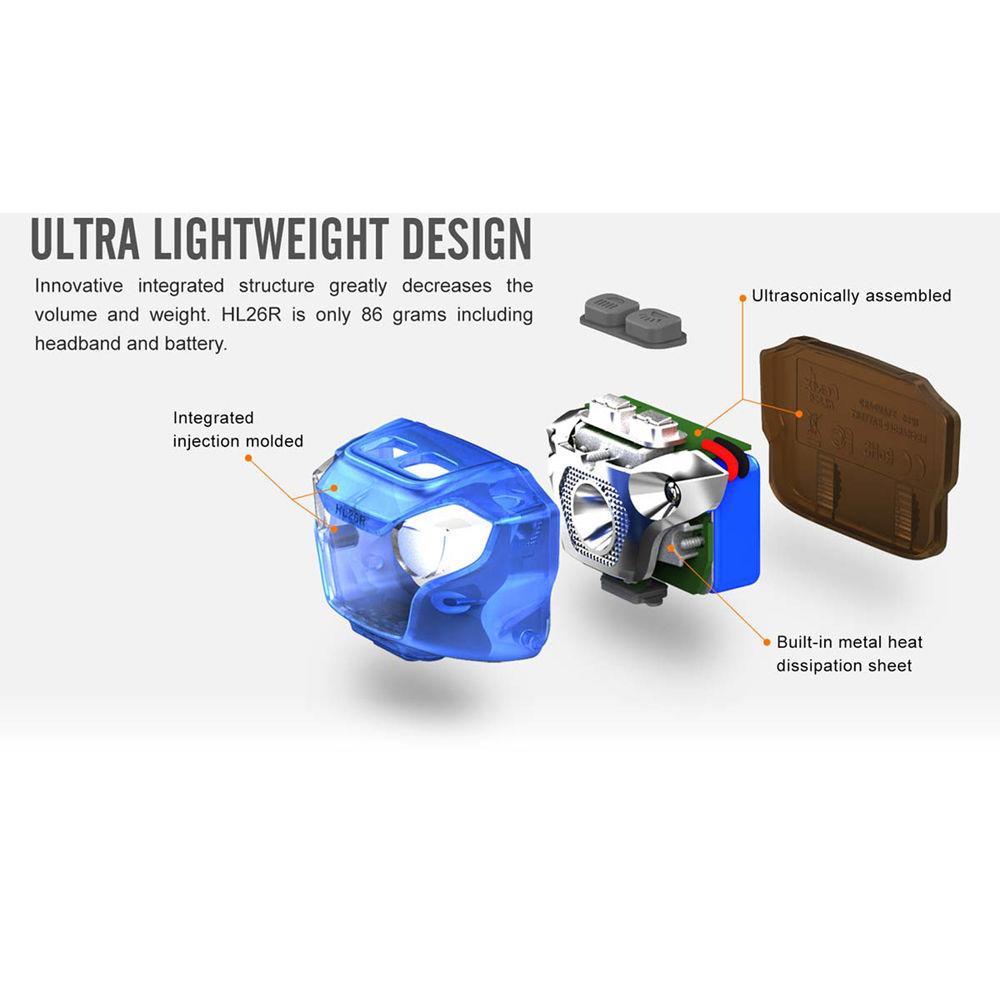

- Metal heat-dissipation plate
- Cree and Nichia LEDs

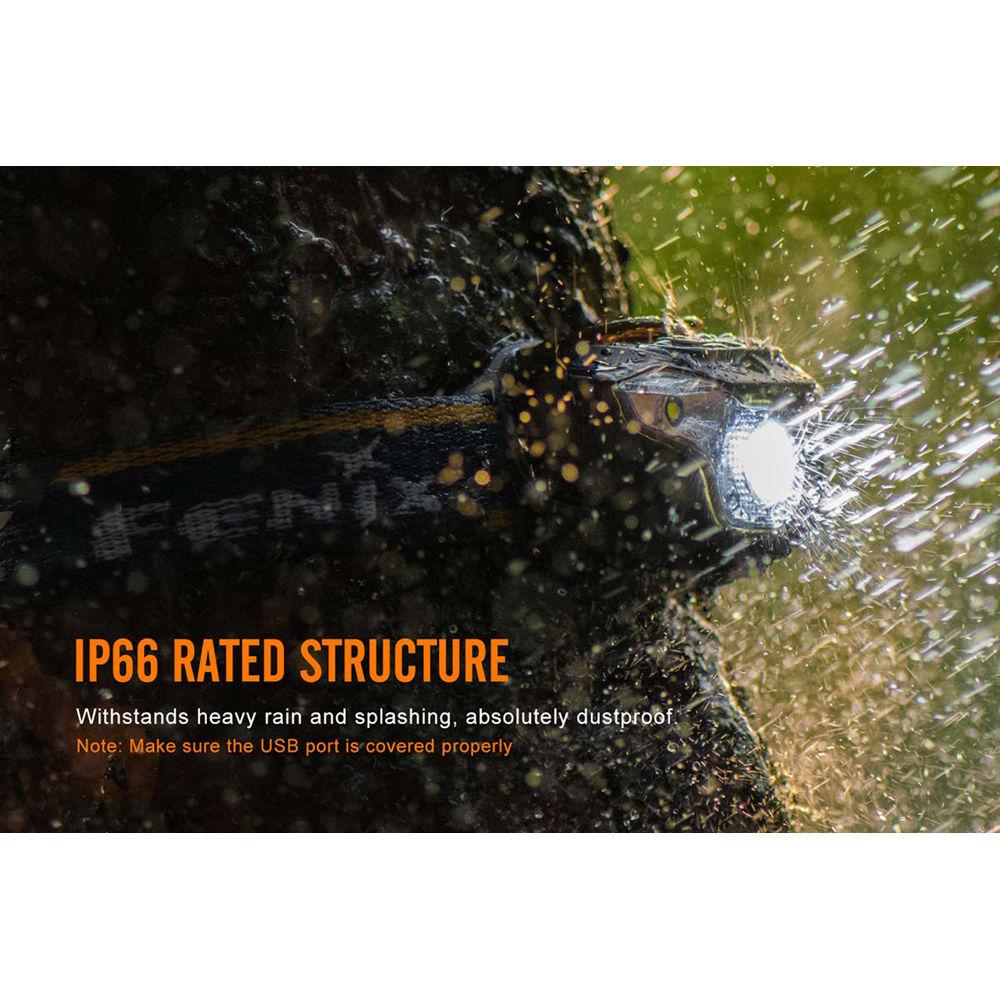

- IP66-rated water resistance
- Impact-resistant to 3.3'
- Adjustable headband with silicone sweat guard and reflective marking
In the Box Fenix Flashlight HL26R Rechargeable Headlamp (Blue) Micro-USB Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HL26R Rechargeable Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HL26R Specs | | | Lumen Output | High: 130 Lumens
Medium: 70 Lumens
Low: 30 Lumens
Turbo: 450 Lumens
High (Flood): 40 Lumens
Low (Flood): 4 Lumens
Strobe: 40 Lumens | | Illumination Source | 1 x LED | | Estimated Runtime | High: 6 Hours
Medium: 12 Hours
Low: 25 Hours
Turbo: 1.5 Hours
Medium (Flood): 13 Hours
Low (Flood): 100 Hours
Strobe: 26 Hours | | Battery Type | 1 x Built-In Lithium-Ion Polymer | | Internal Battery Capacity | 1600 mAh | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Water Resistant, IP66 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 2.6 x H: 1.7 x D: 1.5" / W: 6.6 x H: 4.3 x D: 3.8 mm | | Weight | 3.0 oz / 85 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.8 x 4.1 x 1.9" |
