Fenix Flashlight HL26R Rechargeable Headlamp

Search your instruction manual in PDF to download

User Manual for Fenix Flashlight HL26R Rechargeable Headlamp

Click to enlarge the picture
Fenix Flashlight HL26R Rechargeable Headlamp Contents of the user manual for the Fenix Flashlight HL26R Rechargeable Headlamp
  • Product category: Headlamps Fenix Flashlight
  • Brand: Fenix Flashlight
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Fenix Flashlight Headlamps

Fenix Flashlight HL26R Rechargeable Headlamp Fenix Flashlight HL26R Rechargeable Headlamp Fenix Flashlight HL26R Rechargeable Headlamp Fenix Flashlight HL26R Rechargeable Headlamp Fenix Flashlight HL26R Rechargeable Headlamp Fenix Flashlight HL26R Rechargeable Headlamp Fenix Flashlight HL26R Rechargeable Headlamp
User manual for the Fenix Flashlight HL26R Rechargeable Headlamp contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Fenix Flashlight product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!



Product description

With its lightweight construction and a powerful beam, the black HL26R Rechargeable Headlamp from Fenix is well-suited to night running or any activity that requires hands-free lighting. It has a maximum output of 450 lumens and a band designed to guide sweat away from your eyes. The HL26R has a spotlight beam with four output levels and a flood beam with two, controlled by one top-mounted button for each beam (a plastic guard prevents accidental activation in your luggage or gym bag). Runtimes range from 100 to 13 hours for the flood beam and 25 to 6 hours for the spot, with a 90-minute "burst" runtime for the 450-lumen maximum output setting. The headlamp recharges via a micro-USB port, and protective circuitry guards against overcharging or over-discharge. Reflective highlights on the elastic band add to your nighttime visibility, and a silicone strip along the front side of the band adds to your comfort by channeling perspiration away from your eyes. A metal heat dissipation sheet built into the lamp prevents forehead discomfort from the powerful Cree and Nichia LEDs. You can tilt the lamp 60° to put the beam exactly where you want it.
    Performance

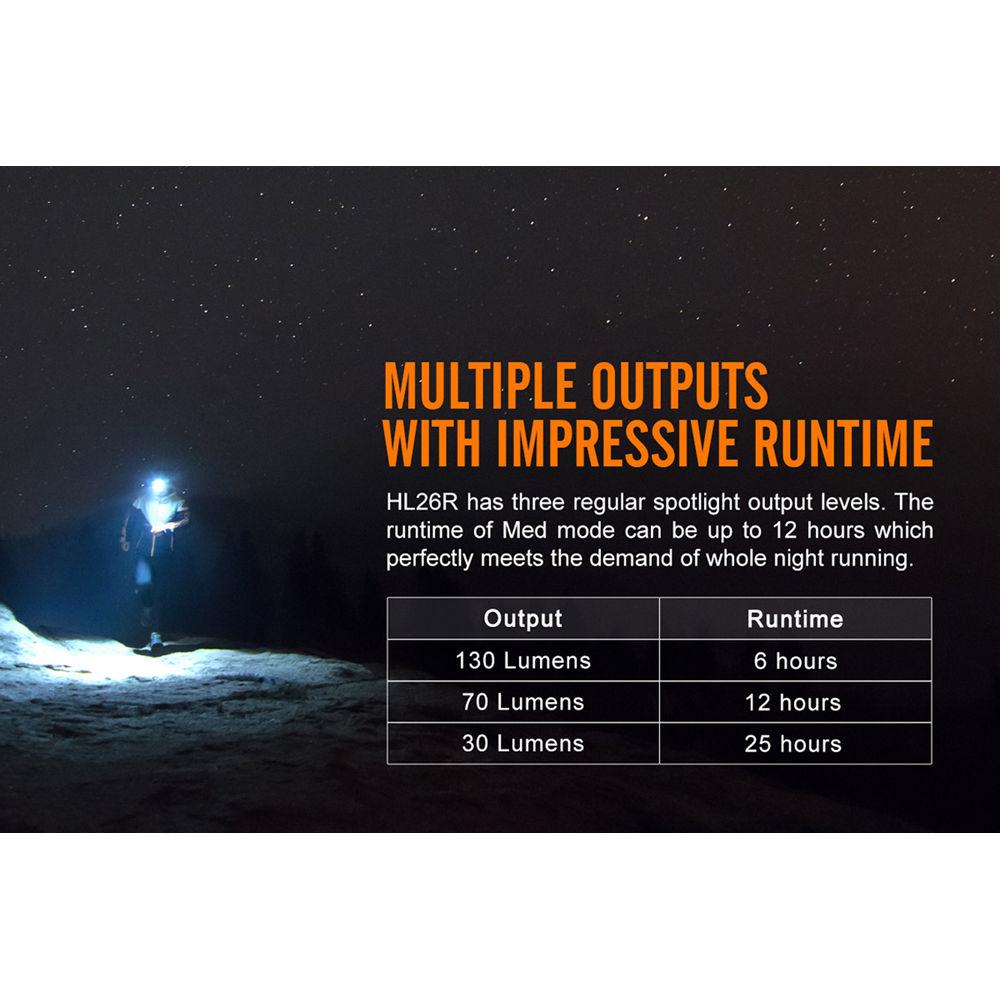

    • Spot beam with 30, 70, and 130-lumen outputs, plus 450-lumen burst setting
    • Flood beam with 4 and 40-lumen output levels
    • 40-lumen SOS mode for emergencies

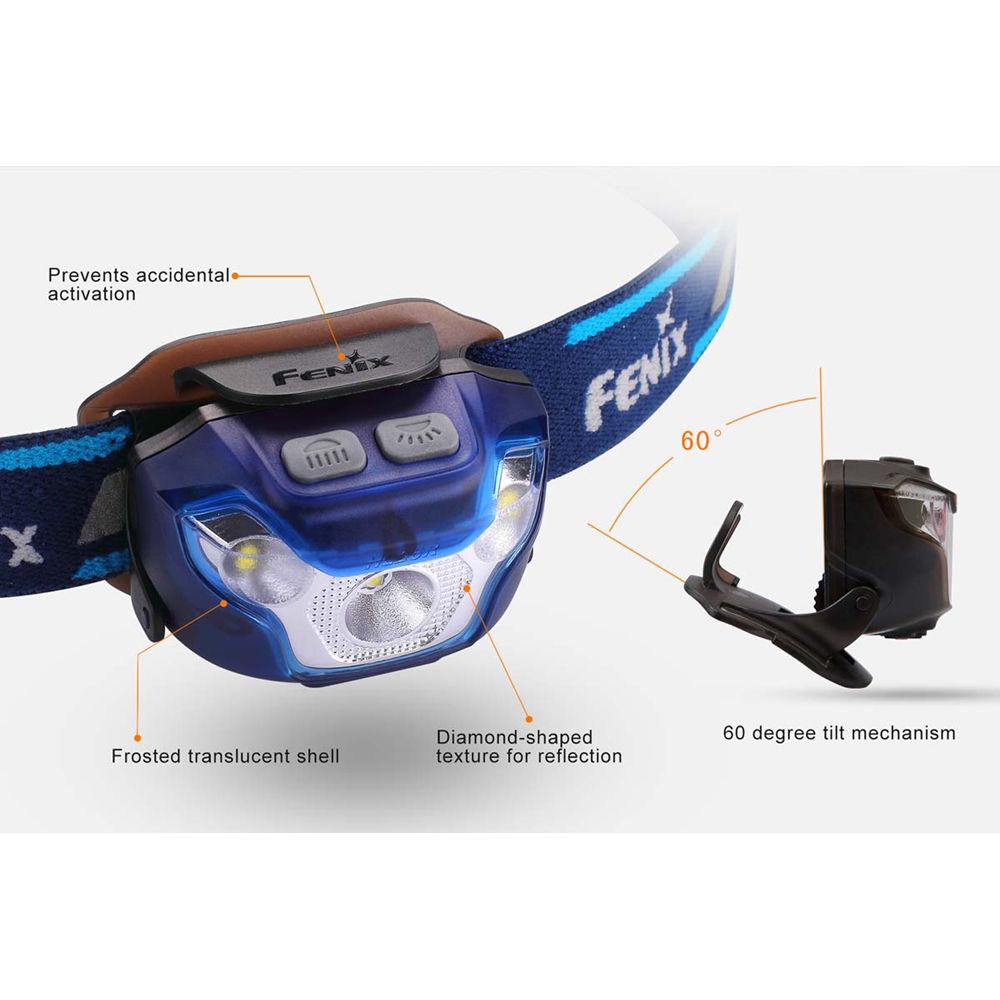

    • Tilts up to 60°
    • Runtimes: 1.5-25 hours spot, 13-100 hours flood
    Switching & Electronics
    • Top-mounted, side-by-side buttons for each beam
    • Built-in 1600mAh LiPo battery
    • Digitally regulated output maintains constant brightness
    • Overcharging and over-discharging protection to protect the battery and circuit from damage
    • Micro-USB charging port & included cable
    Construction

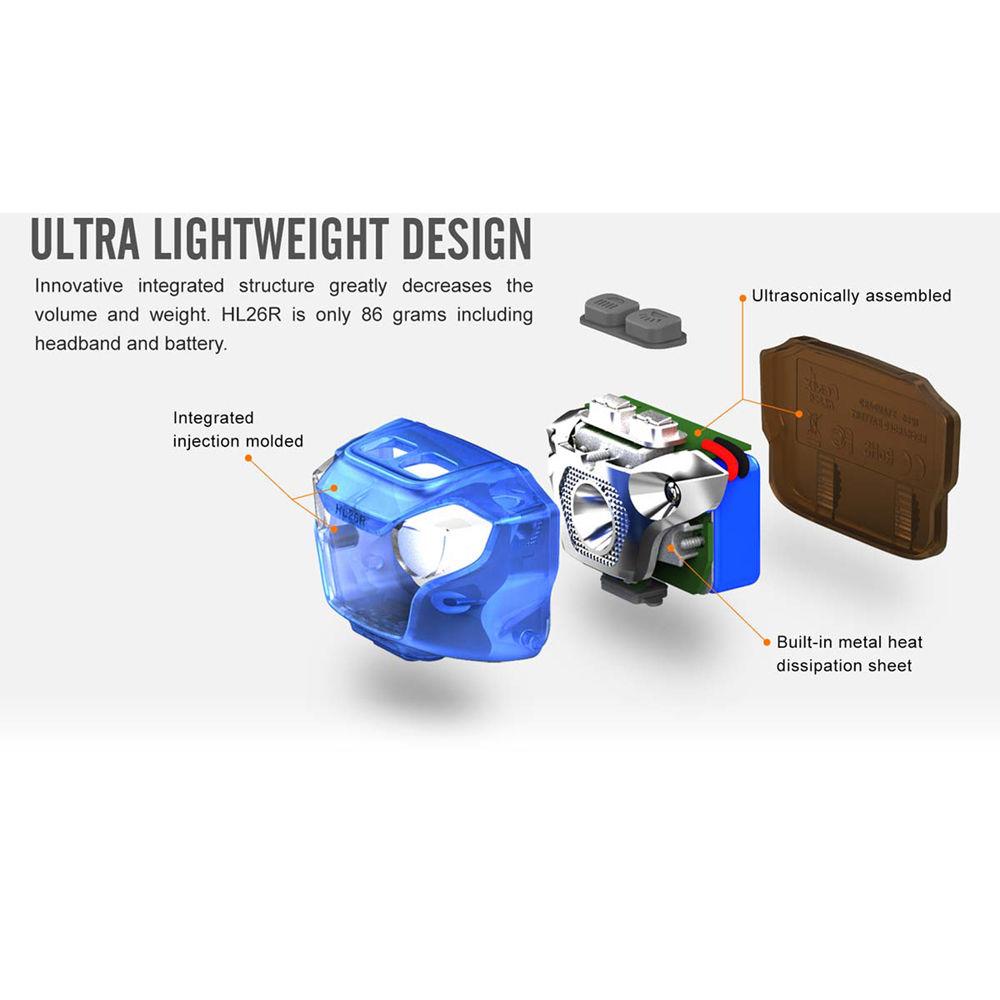

    • Lightweight at 3 ounces
    • Polycarbonate and aluminum construction
    • Metal heat-dissipation plate
    • Cree and Nichia LEDs
    • IP66-rated water resistance
    • Impact-resistant to 3.3'
    • Adjustable headband with silicone sweat guard and reflective marking
In the Box Fenix Flashlight HL26R Rechargeable Headlamp (Black)
  • Micro-USB Cable
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Fenix Flashlight HL26R Rechargeable Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Fenix Flashlight HL26R Specs

    Lumen Output High: 130 Lumens
    Medium: 70 Lumens
    Low: 30 Lumens
    Turbo: 450 Lumens
    High (Flood): 40 Lumens
    Low (Flood): 4 Lumens
    Strobe: 40 Lumens
    Illumination Source 1 x LED
    Estimated Runtime High: 6 Hours
    Medium: 12 Hours
    Low: 25 Hours
    Turbo: 1.5 Hours
    Medium (Flood): 13 Hours
    Low (Flood): 100 Hours
    Strobe: 26 Hours
    Battery Type 1 x Built-In Lithium-Ion Polymer
    Internal Battery Capacity 1600 mAh
    Material of Construction Aluminum, Plastic
    Water Resistance Water Resistant, IP66
    Impact Resistance Yes, 3.3' / 1.0 m
    Dimensions W: 2.6 x H: 1.7 x D: 1.5" / W: 6.6 x H: 4.3 x D: 3.8 mm
    Weight 3.0 oz / 85 g
    Package Weight 0.375 lb
    Box Dimensions (LxWxH) 6.65 x 4.15 x 1.85"
