User Manual for Fenix Flashlight HL30 LED Headlamp Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight HL30 LED Headlamp
- Product category: Headlamps Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Headlamps
 |
User manual for the Fenix Flashlight HL30 LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

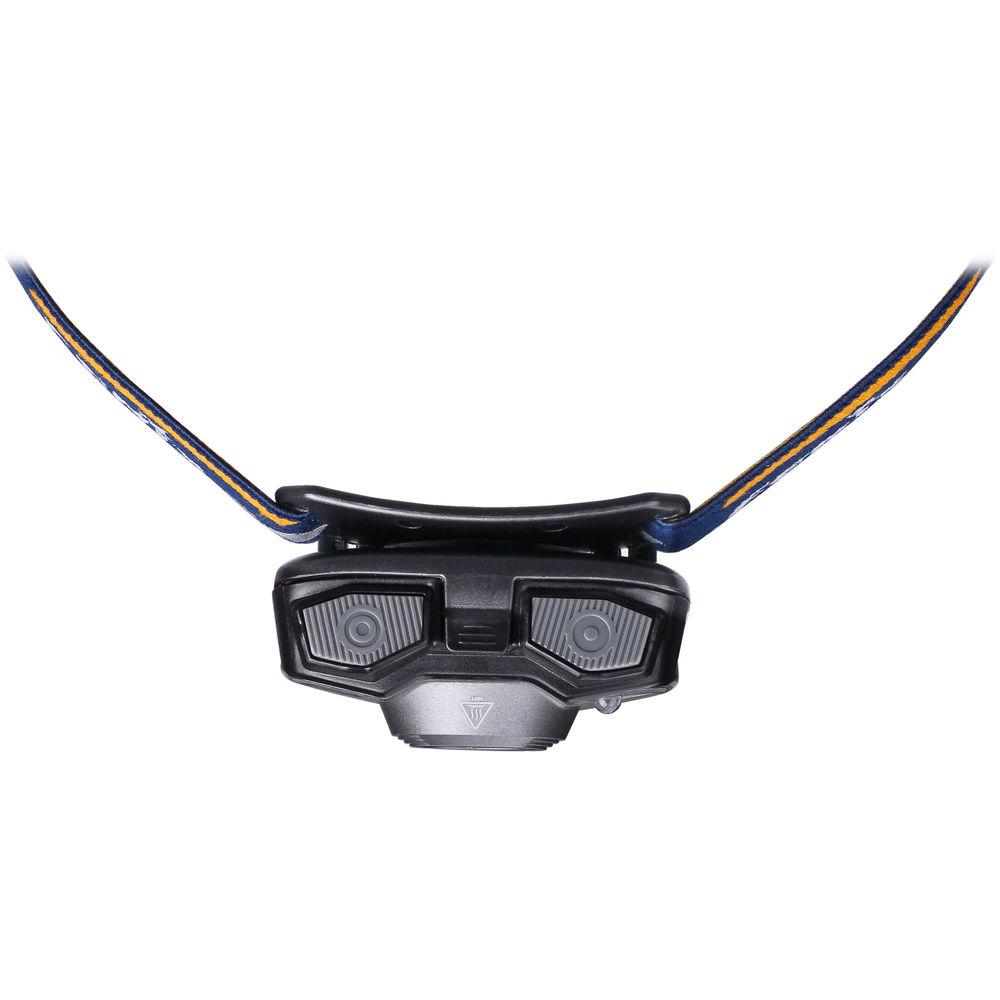

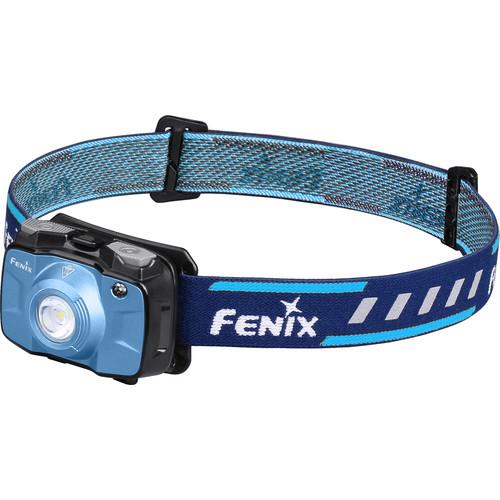

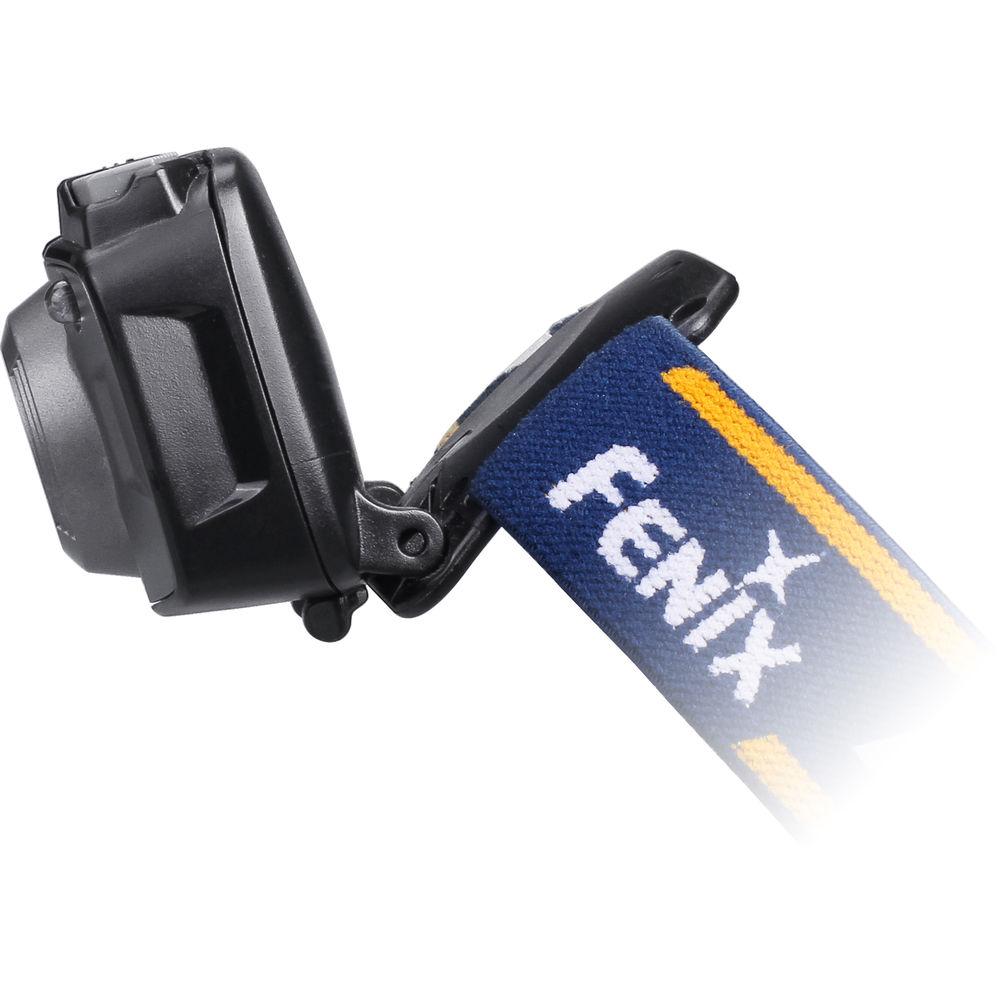

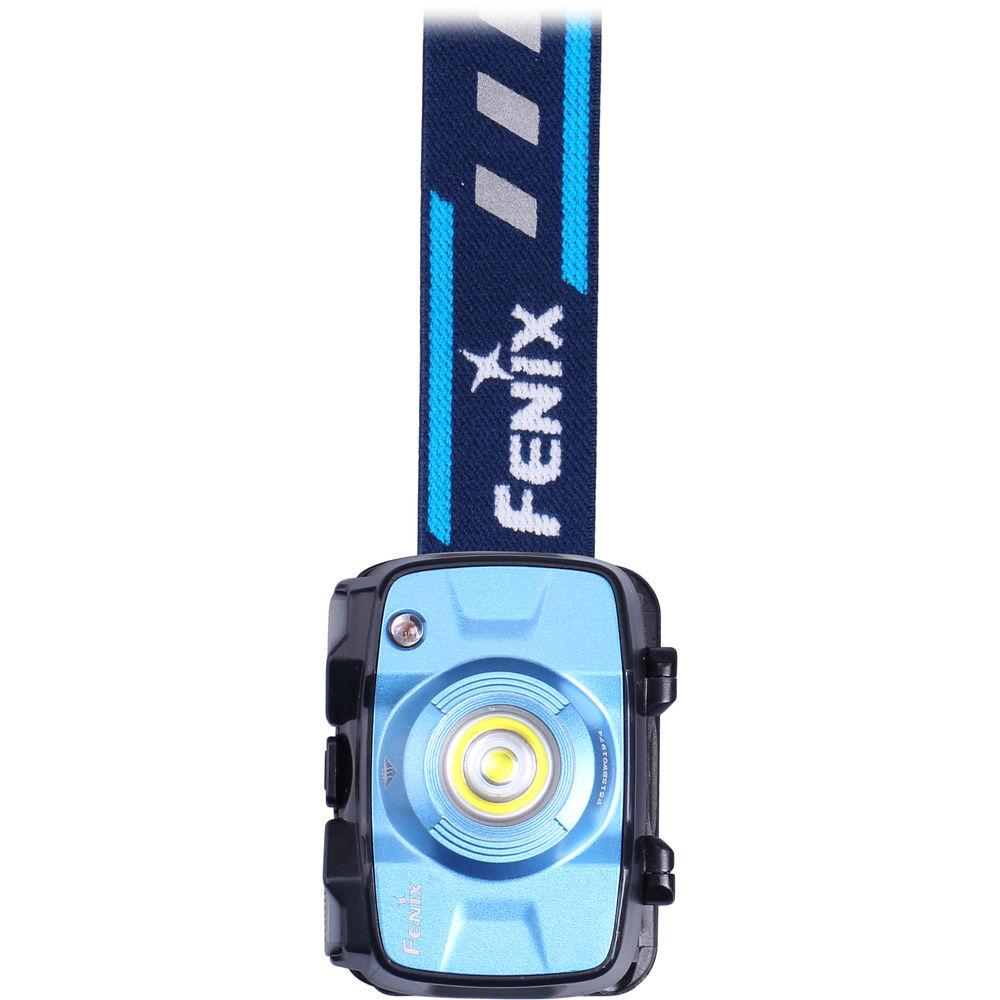

Product description The versatility of six white and two red light settings makes the Fenix HL30 LED Headlamp an all-purpose lighting tool, suited to professional, recreational, and home use. It has a maximum output of 300 lumens and a reflective headband designed to guide sweat away from your eyes.The HL30 is controlled by two push-button switches on top of the unit—one that controls the brightness levels and one for the SOS, red steady, and red flashing modes. An IP67-rating assures the light can withstand dust and wet weather. Runtimes on two AA alkaline batteries range from 4.5 to 200 hours (the light can also run on AA Ni-MH batteries, with slightly different runtimes.) You can tilt the lamp 60° to put the beam exactly where you want it. - Performance
-
- Eco: 4 lumens
- Low: 30 lumens
- Medium: 70 lumens
- High: 130 lumens
- Turbo: 300 lumens
- Red constant and flashing modes
- SOS mode
- Runtimes: 4.5-200 hours
- Cree XP-G3 white and Nichia red LEDs
- Switching
-
- Top-mounted push buttons
- General mode button controls white light brightness settings
- Function mode controls red settings
- Construction
-
- IP67-rated water and dust resistance
- Impact-resistant to 3.3'
- Adjustable headband with sweat channeling and reflective markings
- Lockout function prevents accidental activation
- Reverse polarity protection
In the Box Fenix Flashlight HL30 LED Headlamp (Blue) 2 x AA Alkaline Battery Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HL30 LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HL30 Specs | | | Lumen Output | Turbo (White): 300 Lumens
High (White): 130 Lumens
Medium (White): 70 Lumens
Low (White): 30 Lumens
Minimum (White): 4 Lumens
SOS (White): 30 Lumens
High (Red): 1 Lumen
Strobe (Red): 1 Lumen | | Illumination Source | 1 x White LED
1 x Red LED | | Estimated Runtime | Minimum (White): 200 Hours
Low (White): 71 Hours
Medium (White): 41 Hours
High (White): 9 Hours
Turbo (White): 4.5 Hours
SOS (White): 142 Hours
High (Red): 170 Hours
Strobe (Red): 340 Hours | | Battery Type | 2 x AA Alkaline | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Waterproof to 3.3' / 1 m, IP67 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 2.5 x H: 2.0 x D: 1.5" / W: 6.4 x H: 5.0 x D: 3.8 cm | | Weight | 2.6 oz / 74 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 2.0" |
