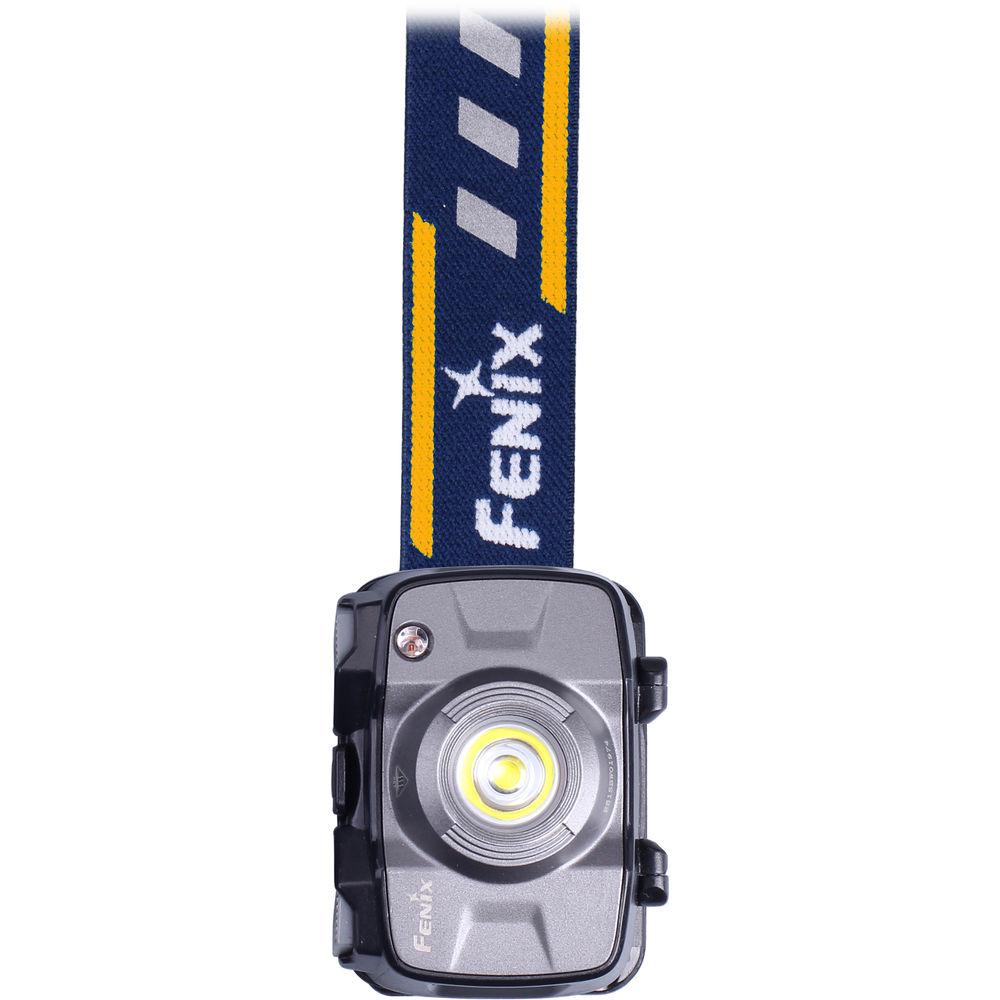

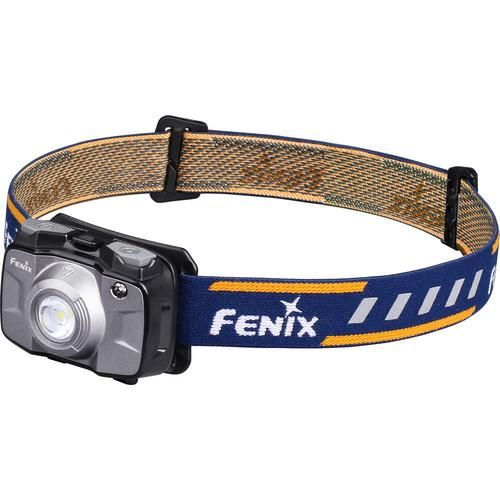

Fenix Flashlight HL30 LED Headlamp

Search your instruction manual in PDF to download

User Manual for Fenix Flashlight HL30 LED Headlamp

Click to enlarge the picture
Fenix Flashlight HL30 LED Headlamp Contents of the user manual for the Fenix Flashlight HL30 LED Headlamp
  • Product category: Headlamps Fenix Flashlight
  • Brand: Fenix Flashlight
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Fenix Flashlight Headlamps

Fenix Flashlight HL30 LED Headlamp Fenix Flashlight HL30 LED Headlamp Fenix Flashlight HL30 LED Headlamp
User manual for the Fenix Flashlight HL30 LED Headlamp contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Fenix Flashlight product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!



Product description

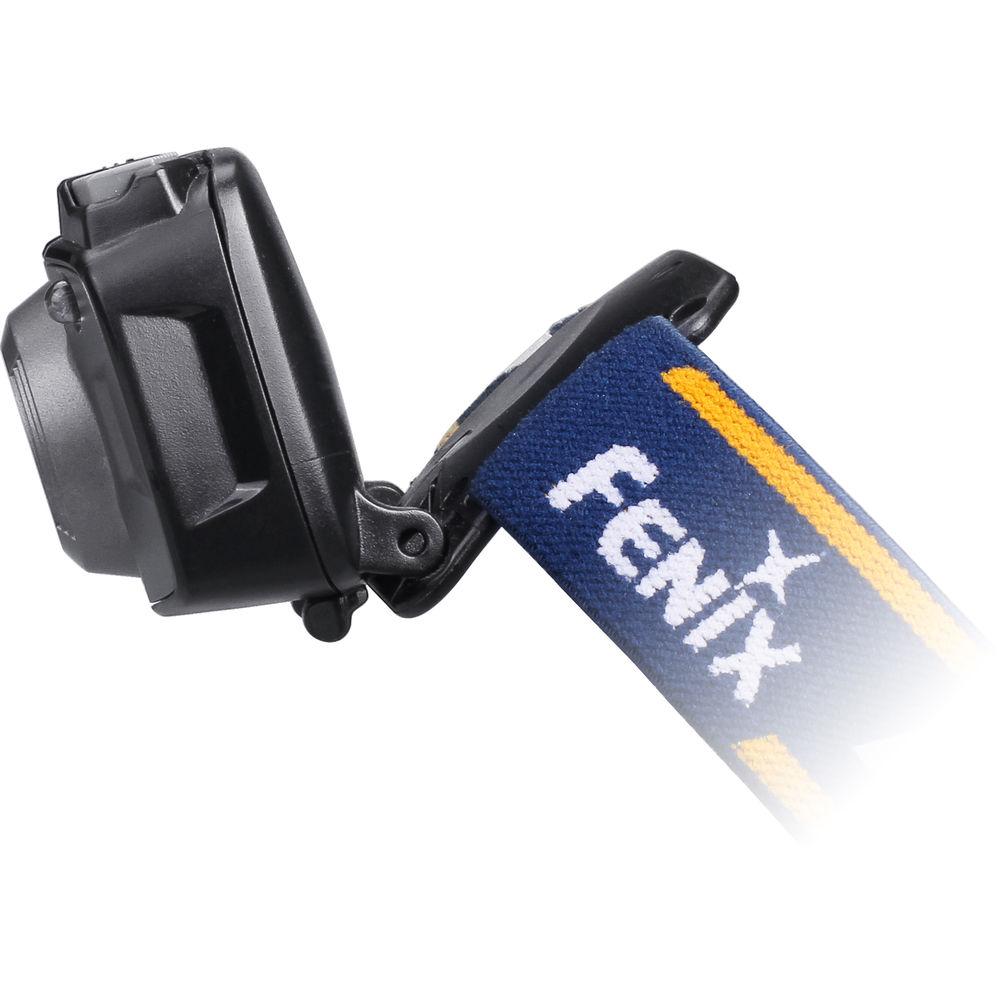

The versatility of six white and two red light settings makes the Fenix HL30 LED Headlamp an all-purpose lighting tool, suited to professional, recreational, and home use. It has a maximum output of 300 lumens and a reflective headband designed to guide sweat away from your eyes.The HL30 is controlled by two push-button switches on top of the unit—one that controls the brightness levels and one for the SOS, red steady, and red flashing modes. An IP67-rating assures the light can withstand dust and wet weather. Runtimes on two AA alkaline batteries range from 4.5 to 200 hours (the light can also run on AA Ni-MH batteries, with slightly different runtimes.) You can tilt the lamp 60° to put the beam exactly where you want it.
    Performance
    • Eco: 4 lumens
    • Low: 30 lumens
    • Medium: 70 lumens
    • High: 130 lumens
    • Turbo: 300 lumens
    • Red constant and flashing modes
    • SOS mode
    • Runtimes: 4.5-200 hours
    • Cree XP-G3 white and Nichia red LEDs
    Switching

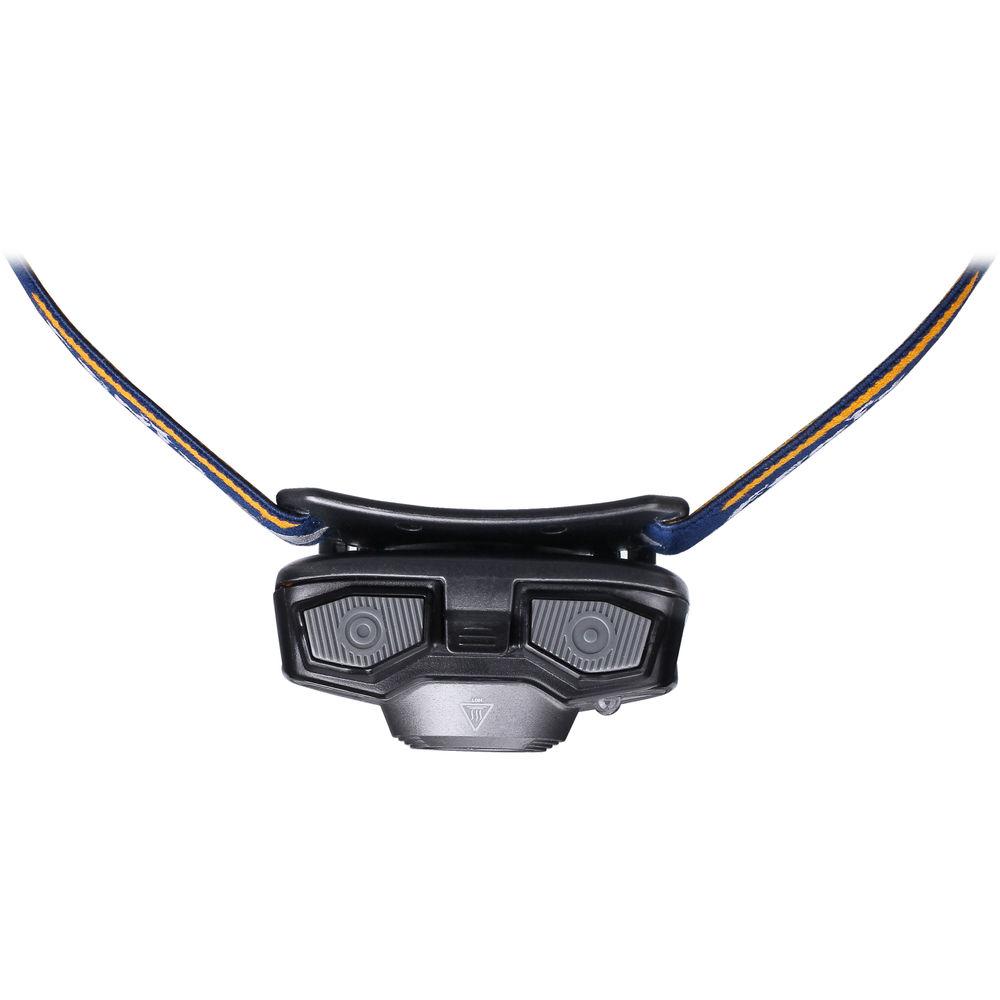

    • Top-mounted push buttons
    • General mode button controls white light brightness settings
    • Function mode controls red settings
    Construction
    • IP67-rated water and dust resistance
    • Impact-resistant to 3.3'
    • Adjustable headband with sweat channeling and reflective markings
    • Lockout function prevents accidental activation
    • Reverse polarity protection
In the Box Fenix Flashlight HL30 LED Headlamp (Gray)
  • 2 x AA Alkaline Battery
  • Spare O-Ring
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Fenix Flashlight HL30 LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Fenix Flashlight HL30 Specs

    Lumen Output Turbo (White): 300 Lumens
    High (White): 130 Lumens
    Medium (White): 70 Lumens
    Low (White): 30 Lumens
    Minimum (White): 4 Lumens
    SOS (White): 30 Lumens
    High (Red): 1 Lumen
    Strobe (Red): 1 Lumen
    Illumination Source 1 x White LED
    1 x Red LED
    Estimated Runtime Minimum (White): 200 Hours
    Low (White): 71 Hours
    Medium (White): 41 Hours
    High (White): 9 Hours
    Turbo (White): 4.5 Hours
    SOS (White): 142 Hours
    High (Red): 170 Hours
    Strobe (Red): 340 Hours
    Battery Type 2 x AA Alkaline
    Material of Construction Aluminum, Plastic
    Water Resistance Waterproof to 3.3' / 1 m, IP67
    Impact Resistance Yes, 3.3' / 1.0 m
    Dimensions W: 2.5 x H: 2.0 x D: 1.5" / W: 6.4 x H: 5.0 x D: 3.8 cm
    Weight 2.6 oz / 74 g
