User Manual for Fenix Flashlight HL40 Rechargeable Headlamp Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight HL40 Rechargeable Headlamp
- Product category: Headlamps Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Headlamps
|
User manual for the Fenix Flashlight HL40 Rechargeable Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

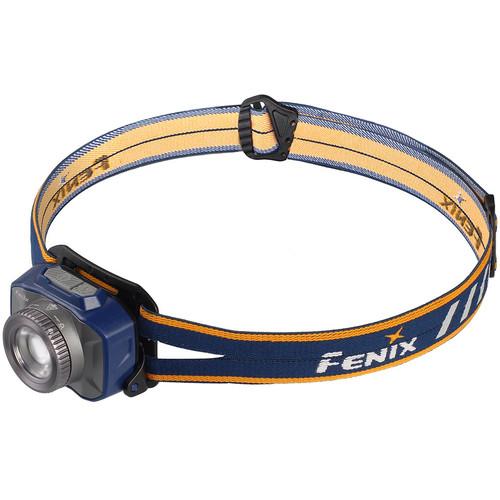

Product description Twist the bezel of the blue Fenix HL40 Rechargeable Headlamp to adjust its beam from a wide-angle flood to a focused spot, as your needs dictate. This versatile lamp offers five brightness levels plus a 600-lumen burst for short-term, high-output illumination. There's no need to dispose of and replace dead batteries—the HL40R is equipped with a built-in 2000 mAh battery that charges via micro-USB, and a four-stage indicator lets you know exactly how much power is left before it's time to recharge. Runtimes range from 200 hours on the 4-lumen reading setting to 4.5 hours on high, with up to 1.3 hours of burst available. The lamp is controlled by two push-button switches, a general mode switch with access to burst mode, and a function switch for when you only need a choice of brightness levels. A lockout option prevents unintentional activation, and the lamp features intelligent overheat protection and digitally regulated output circuitry.You can tilt the lamp to put the beam exactly where you want it. The rear part of the headband consists of dual straps for comfortable support. - Performance
-
- Reading: 4 lumens
- Eco: 30 lumens
- Low: 70 lumens
- Medium: 130 lumens
- High: 300 lumens
- Burst: 600 lumens
- Runtimes: 1.3-200 hours
- Twist lens bezel to adjust from flood beam to spot
- Lamp tilts for precise beam placement
- Switching and Electronics
-
- Top-mounted, side-by-side buttons
- Built-in 2000mAh LiPo battery
- Digitally regulated output maintains constant brightness
- Intelligent overheat protection
- Four-stage battery level indicator
- Micro-USB charging port and included cable
- Construction
-
- Plastic and aluminum construction
- Cree XP-L HI V2 white LED with lifespan of 50,000 hours
- IP66-rated water resistance
- Impact resistant to 3.3'
- Adjustable headband with dual rear straps
In the Box Fenix Flashlight HL40 Rechargeable Headlamp (Blue) Micro-USB Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HL40 Rechargeable Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HL40R Specs | | | Lumen Output | High: 300 Lumens
Medium: 130 Lumens
Low: 70 Lumens
Turbo: 600 Lumens
Minimum: 4 Lumens | | Illumination Source | 1 x White LED | | Estimated Runtime | High: 4.5 Hours
Medium: 11 Hours
Low: 22 Hours
Turbo: 1.3 Hours
Minimum: 200 Hours | | Battery Type | 1 x Built-In Lithium-Ion Polymer | | Internal Battery Capacity | 2000 mAh | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Water Resistant, IP66 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 2.7 x H: 2.1 x D: 1.7" / W: 6.8 x H: 5.4 x D: 4.2 cm | | Weight | 4.7 oz / 130 g |
