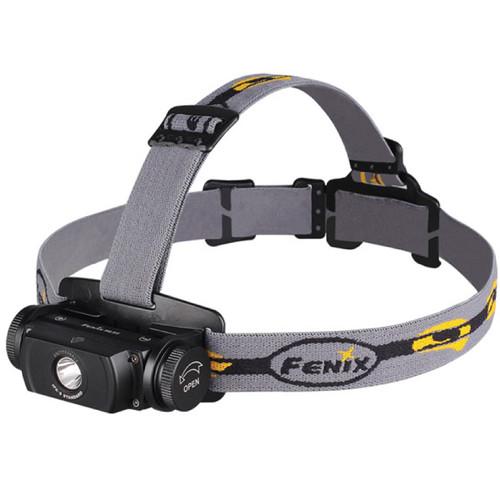

User Manual for Fenix Flashlight HL55 LED Headlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight HL55 LED Headlight
- Product category: Headlamps Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Headlamps
|
User manual for the Fenix Flashlight HL55 LED Headlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description From plumbing to spelunking, walking the dog or setting up your campsite, the Fenix HL55 LED Headlight gives you as much light as you need while leaving both hands free to handle the task at hand. One Cree XM-L2 T6 neutral white LED produces four outputs from a low 10 lumens to a high of 420 lumens without changing the appearance of colors and maximizing beam throw in humid conditions. The head rotates 160° for precise beam placement above your head, at your feet, and anywhere in between. If you need to throw the beam further or just need maximum illumination, there is an instantly-accessible 900 lumen Burst mode available, even if the light is off. A single pushbutton on the right side of the housing controls the output intensity with a simple press so it's easy to use in all weather and conditions, with or without gloves.Designed for durability, the housing features a scratch and corrosion-resistant Type III hard-anodized finish and the adjustable headband not only wraps around the head, it also features a crown band for maximum comfort. The housing is impact-resistant to 3.3' and O-ring sealed to give it an IPX8-rating, making it submersible to 6.6' for up to 30 minutes. The light runs on one 18650 or two CR123A batteries, and has reverse-polarity protection circuitry to prevent damage if the batteries are installed incorrectly. - Performance
-
- Eco: 10 lumen
- Low: 55 lumen
- Med: 165 lumen
- High: 420 lumen
- One Cree XM-L2 T6 neutral white LED
- 900 lumen Burst mode for extreme illumination
- Textured orange-peel reflector produces a smooth beam without holes or hotspots
- Digitally-regulated output maintains consistent output throughout life of battery
- Switching
-
- Type: Pushbutton
- Location: Right side of housing
- Constant-on mode only
- Press and hold button for 0.5 second to activate
- Press and release to cycle through three output levels
- Instant access Burst mode, even if light is off
- Intelligent last-mode memory switch
- Construction
-
- Aluminum alloy housing and impact-resistant plastic mount
- Scratch and corrosion-resistant Type III anodized finish on aluminum
- Two-piece adjustable headband wraps around head and over crown for maximum support
- 160° tilt head for precise beam placement
- Anti-reflection coated, scratch and impact-resistant tempered glass window
- Impact resistant to 3.3', IPX8-rated submersible to 6.6' for 30 minutes
- Reverse polarity protection prevents damage if battery in installed incorrectly
- Runs on one user-supplied 18650 or two CR123A batteries
In the Box Fenix Flashlight HL55 LED Headlight (Black) Spare O-Ring Adjustable Headband Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HL55 LED Headlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HL55 Specs | | | Lumen Output | High: 420 Lumens
Medium: 165 Lumens
Low: 55 Lumens
Turbo: 900 Lumens
Minimum: 10 Lumens | | Illumination Source | 1 x White LED | | Estimated Runtime | High: 3.8 Hours
Medium: 10 Hours
Low: 30 Hours
Minimum: 150 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 3.3 x H: 1.9 x D: 1.8" / W: 8.4 x H: 4.8 x D: 4.6 cm | | Weight | 4.1 oz / 115 g (Without Batteries) | | | | Package Weight | 0.41 lb | | Box Dimensions (LxWxH) | 7.8 x 5.3 x 2.4" |
