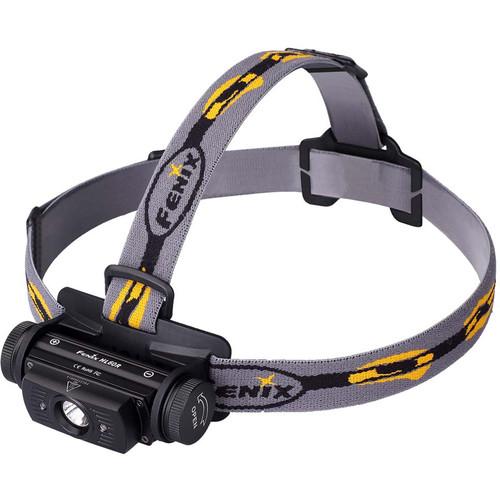

User Manual for Fenix Flashlight HL60R Rechargeable Headlamp Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight HL60R Rechargeable Headlamp
- Product category: Headlamps Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Headlamps
 |
User manual for the Fenix Flashlight HL60R Rechargeable Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description A versatile light that leaves your hands free, the black HL60R Headlamp from Fenix is characterized by its bright white light output, dual low-power red lights, and a compact, durable form factor. The primary Cree XM-L2 T6 LED offers a maximum brightness of 950 lumens, as well as four lower brightness settings down to 5 lumens. Two red LEDs provide a comfortable 1 lumen output and are suitable for preserving night-adjusted vision or preventing eye strain when viewing nearby objects. The light is delivered with an adjustable head strap, and its housing is constructed from anodized aluminum alloy and features an IPX8-rated, impact-resistant design for use in trying conditions. Additionally, it runs on either two CR123A lithium batteries or one 18650 rechargeable lithium-ion battery, which can be charged in-light via the micro-USB port. - Performance
-
- Eco: 5 lumens
- Low: 50 lumens
- Medium: 150 lumens
- High: 400 lumens
- Turbo: 950 lumens
- One primary neutral white Cree XM-L2 T6 LED

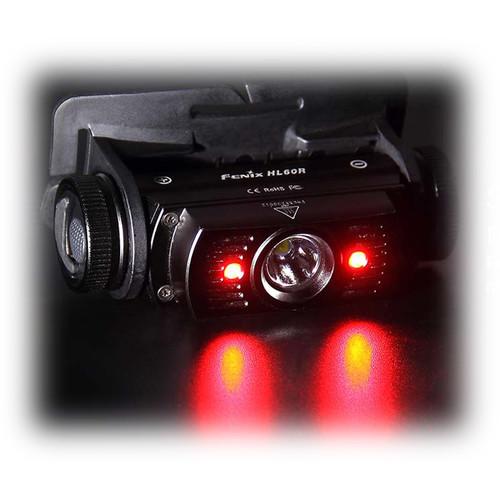

- Dual secondary red LEDs offer 1 lumen output to preserve night-adjusted vision
- Digitally regulated output for consistent brightness
- Switching
-
- Single pushbutton switch on side of housing
- Press and hold for constant on/off, single tap for mode switching
- Construction
-
- Material: Lightweight and sturdy aluminum alloy
- Finish: Type III hard anodized finish
- Emitter window: Toughened clear glass lens with anti-reflective coating

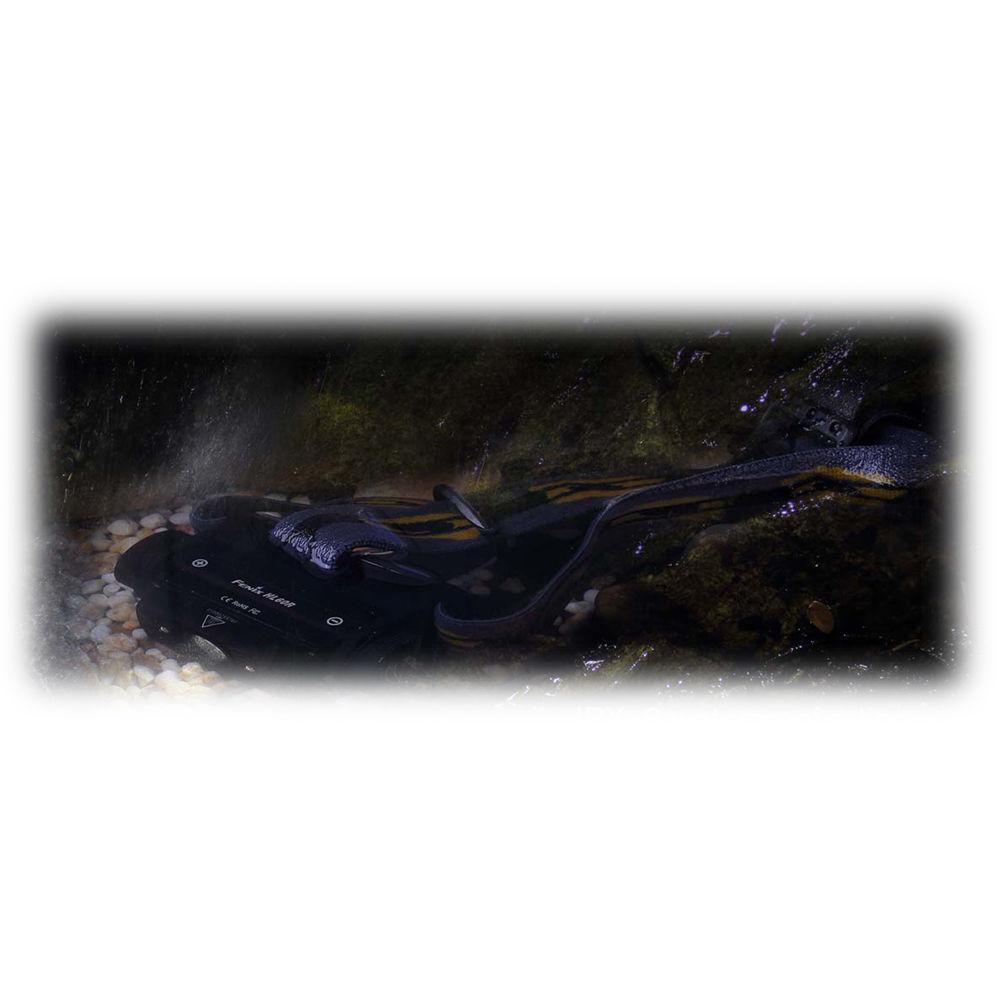

- Waterproofing: IPX8-rated, dust- and water-resistant
- Impact-resistant

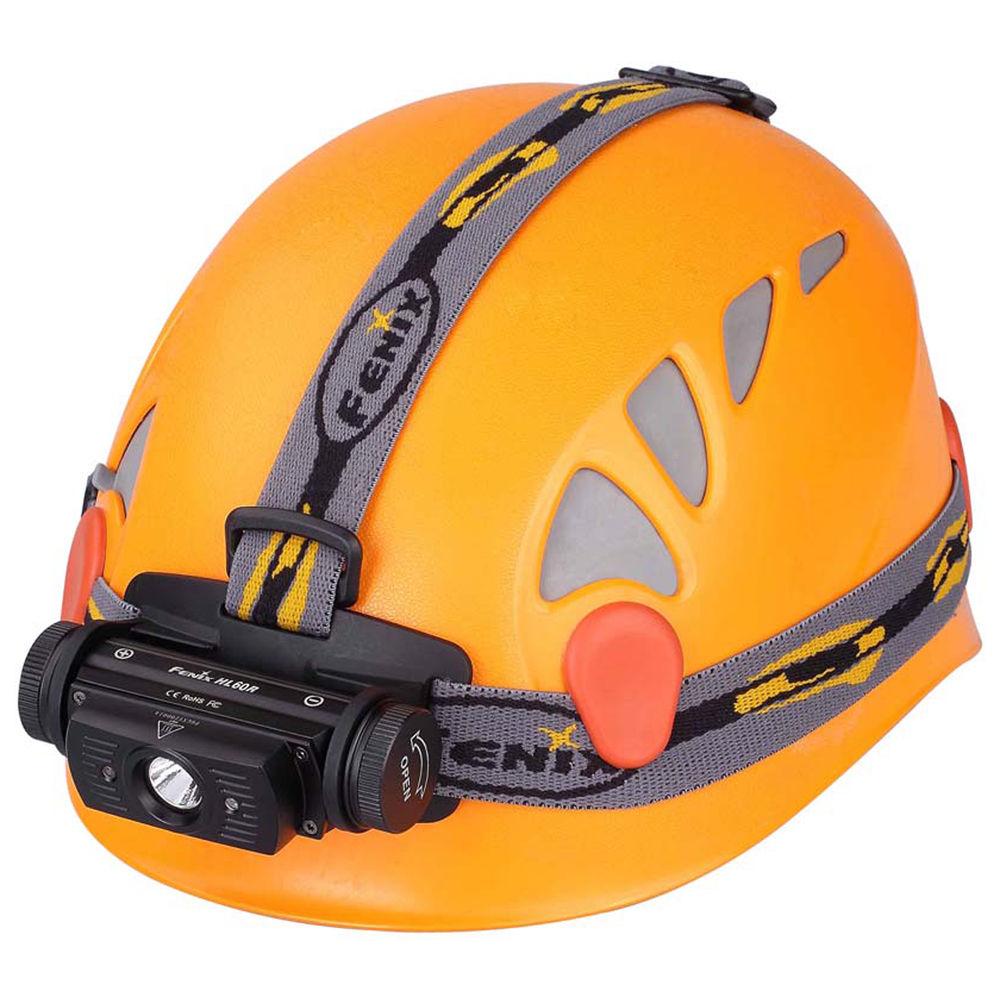

- Adjustable matching head strap
- Runs on one 18650 rechargeable lithium-ion battery or two CR123A lithium batteries
- Reverse polarity protection to prevent improper battery installation
- In-light charging of 18650 battery via micro-USB charging port
- Red LEDs flash during charge cycle and remain constant-on once charging is finished
In the Box Fenix Flashlight HL60R Rechargeable Headlamp (Black) Headlamp Strap O-ring 18650 Lithium-Ion Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HL60R Rechargeable Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HL60R Specs | | | Lumen Output | High: 400 Lumens
Medium: 150 Lumens
Low: 50 Lumens
Turbo: 950 Lumens
Minimum: 5 Lumens | | Illumination Source | 1 x LED
2 x Red LED | | Estimated Runtime | High: 3 Hours
Medium: 10 Hours
Low: 29 Hours
Turbo: 0.75 Hour
Minimum (Red): 100 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A Lithium | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Dimensions | W: 3.4 x H: 1.8 x D: 2.0" / W: 87.0 x H: 46.0 x D: 51.0 mm | | Weight | 4.3 oz / 121 g | | | | Package Weight | 0.575 lb | | Box Dimensions (LxWxH) | 7.65 x 5.2 x 2.05" |
