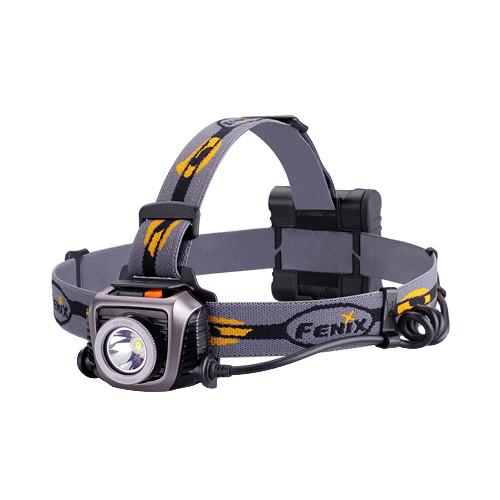

Product description When setting up camp, cooking after dark, or just when you need to light a large area while keeping both hands free, the "ultimate edition" HP15 UE LED Headlight from Fenix is the illumination tool for you. It features a primary white Cree XM-L2 (U2) LED that produces five outputs from a minimum of 10 lumens to a blinding 30-second 900 lumen burst. In emergency situations the light can be set to repeat the Morse code SOS sequence at 50 lumens - which conserves battery power while still highly visible from long distances.The head tilts up to 60° with click-stop positions for precise beam placement where you need it. This lightweight tool has an anodized aluminum alloy chassis with a gray impact-resistant plastic cover. The housing is weatherproof to withstand driving rain and snow, and impact resistant to 3.3'. An adjustable headband is included with a removable top band. The light runs on four readily available AA Ni-MH or alkaline batteries, and Fenix provides four alkaline batteries to light your way out of the package. A separate battery compartment worn on the back of the headband not only redistributes the weight evenly to help prevent neck strain, but also allows for more batteries to be used, which boosts the output and runtimes versus lower-capacity compartments on models with an integrated battery compartment located within the light housing. - Performance
-
- Min: 10 lumens
- Low: 50 lumens
- Med: 150 lumens
- High: 400 lumens
- Burst: 900 lumens
- White Cree XM-L2 (U2) LED emitter
- 30 second minute Burst mode, automatically returns to previous output
- Emergency SOS signal automatically repeats the Morse code sequence
- Digitally-regulated output maintains consistent beam intensity throughout battery life
- Overheat protection circuitry automatically steps down output to prevent damage
- Switching
-
- Type: Dual pushbutton
- Location: Top of chassis
- Right button controls on/off
- Left button control beam intensity and SOS mode
- Intelligent last-mode memory automatically enters the last brightness level used when turned on
- Instant access to 900 lumen burst mode
- Construction
-
- Fold-down switch cover prevents accidental activation
- Lightweight and durable aluminum alloy chassis with corrosion-resistant anodized finish
- Gray corrosion and impact-resistant plastic cover
- Tempered and anti-reflection coated emitter window
- Head tilts up to 60° for precise beam placement
- IPX6-rated weatherproof against driving rain
- Impact-resistant to 3.3'
- Adjustable headband
- Powered by four AA Ni-MH or alkaline batteries
- Reverse-polarity protection prevents damage if batteries are installed improperly
- Separate battery compartment redistributes weight to help prevent neck strain
In the Box Fenix Flashlight HP15 UE LED Headlight (Gray) Battery Case 4 x AA Alkaline Batteries 2 x Power Cable Clips Removable Top Headband Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HP15 UE LED Headlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HP15UE Specs | | | Lumen Output | High: 400 Lumens
Medium: 150 Lumens
Low: 50 Lumens
Turbo: 900 Lumens
Minimum: 10 Lumens
Strobe: 50 Lumens | | Illumination Source | 1 x LED | | Estimated Runtime | AA NiMH
High: 3.5 Hours
Medium: 10 Hours
Low: 40 Hours
Minimum: 160 Hours | | Battery Type | 4 x AA Alkaline, NiMH | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Water Resistant, IPX6 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 2.7 x H: 2.2 x D: 1.4" / W: 6.9 x H: 5.6 x D: 3.6 cm
W: 3.5 x H: 2.9 x D: 1.0" / W: 8.9 x H: 7.4 x D: 2.5 cm (Battery Pack) | | Weight | 5.4 oz / 153.1 g (Without Batteries) | | | | Package Weight | 0.78 lb | | Box Dimensions (LxWxH) | 9.65 x 5.3 x 2.3" |
