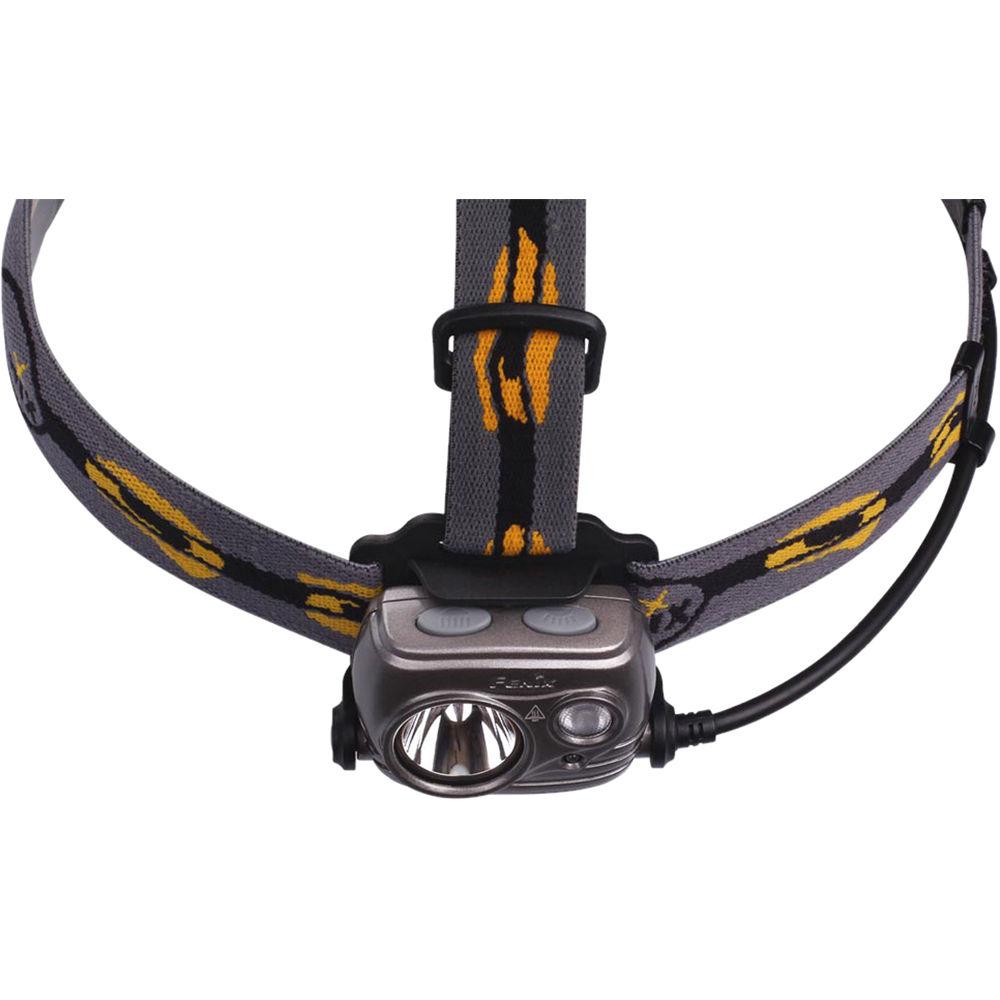

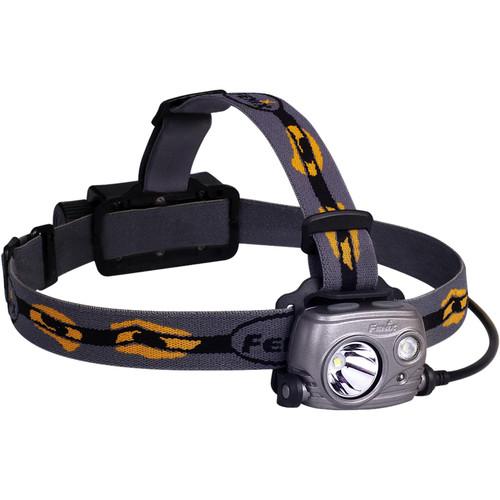

Product description With a choice of spotlight, floodlight or red light modes and outputs from a power-saving 4 lumens to a brilliant 1,000, the HP25R Rechargeable Headlamp from Fenix is a versatile tool for emergency preparedness and outdoor recreation. The spotlight has output levels of 30, 130, 350, and 1,000 lumens. The floodlight puts out 4, 30, 130, and 350 lumens. For emergency signaling or to preserve your night-acclimated vision, choose the red light, which runs as a low-power flood or a flash. The HP25R employs two Cree LEDs – an XM-L2 U2 LED for the spotlight and an XP-G2 R5 for the floodlight, both with 50,000-hour lifespans. Pushbutton switches atop the forward-facing light fixture control on/off and cycle through settings. The micro-USB rechargeable 18650 battery pack sits at the back of the head. - Performance
- Spotlight
- White Cree XM-L2 U2 LED
- Low: 30 lumens
- Med: 130 lumens
- High: 350 lumens
- Turbo: 1000 lumens
Floodlight
- XP-G2 R5 LED
- Eco: 4 lumens
- Low: 30 lumens
- Med: 130 lumens
- High: 350 lumens
- Red light in constant-on or flash modes
- Digitally-regulated output maintains consistent beam intensity throughout battery life
- Overheat protection circuitry automatically steps down output to prevent damage
- Switching
-
- Type: Dual pushbutton
- Location: Top of chassis
- Intelligent last-mode memory automatically enters the last brightness level used when turned on
- Construction
-
- Lightweight and durable aluminum alloy chassis

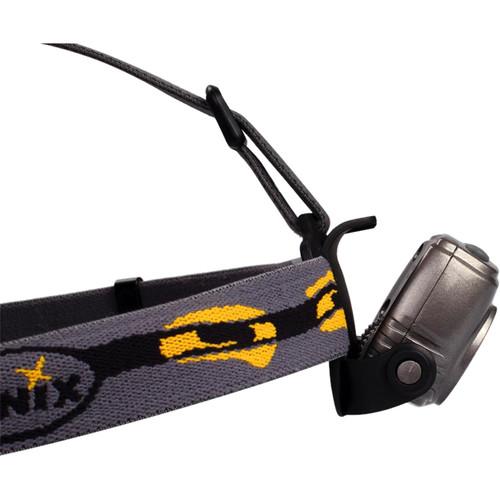

- Head tilts up to 60° for precise beam placement
- IPX6-rated weatherproof against driving rain
- Impact-resistant to 3.3'
- Adjustable headband
- Powered by one 18650 li-ion or two CR123A batteries
- Reverse-polarity protection prevents damage if batteries are installed improperly

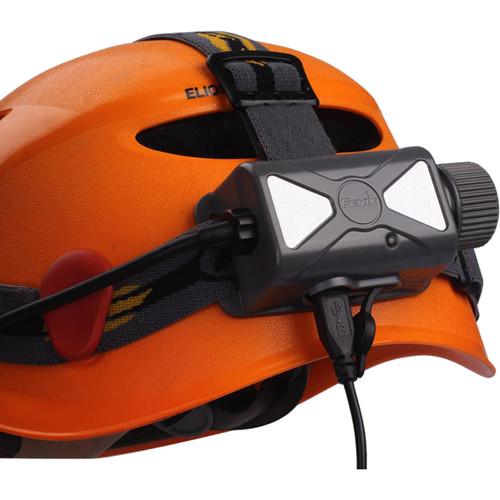

- Separate battery compartment redistributes weight to help prevent neck strain
In the Box Fenix Flashlight HP25R Rechargeable Headlamp 18650 Rechargeable Battery Micro-USB Cable Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HP25R Rechargeable Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HP25R Specs | | | Lumen Output | High: 350 Lumens
Medium: 130 Lumens
Low: 30 Lumens
Turbo: 1000 Lumens
High (Flood): 350 Lumens
Medium (Flood): 130 Lumens
Low (Flood): 30 Lumens
Minimum (Flood): 4 Lumens | | Illumination Source | 1 x White LED
1 x Red LED | | Estimated Runtime | High: 4.5 Hours
Medium: 12 Hours
Low: 42 Hours
Turbo: 1.5 Hours
High (Flood): 2.5 Hours
Medium (Flood): 9 Hours
Low (Flood): 40 Hours
Minimum (Flood): 150 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A | | | | Water Resistance | Water Resistant, IPX6 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 2.4 x H: 2.1 x D: 1.3" / W: 6.1 x H: 5.3 x D: 3.3 cm
W: 3.2 x H: 2.0 x D: 1.4" / W: 8.1 x H: 5.0 x D: 3.5 cm (Battery Pack) | | Weight | 6.5 oz / 184 g (Without Batteries) | | | | Package Weight | 0.69 lb | | Box Dimensions (LxWxH) | 7.6 x 5.2 x 2.25" |
