User Manual for Fenix Flashlight HP30R Rechargeable Headlamp Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight HP30R Rechargeable Headlamp
- Product category: Headlamps Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Headlamps
 |
User manual for the Fenix Flashlight HP30R Rechargeable Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

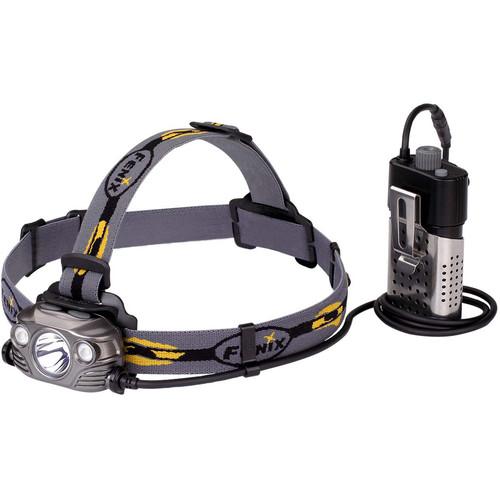

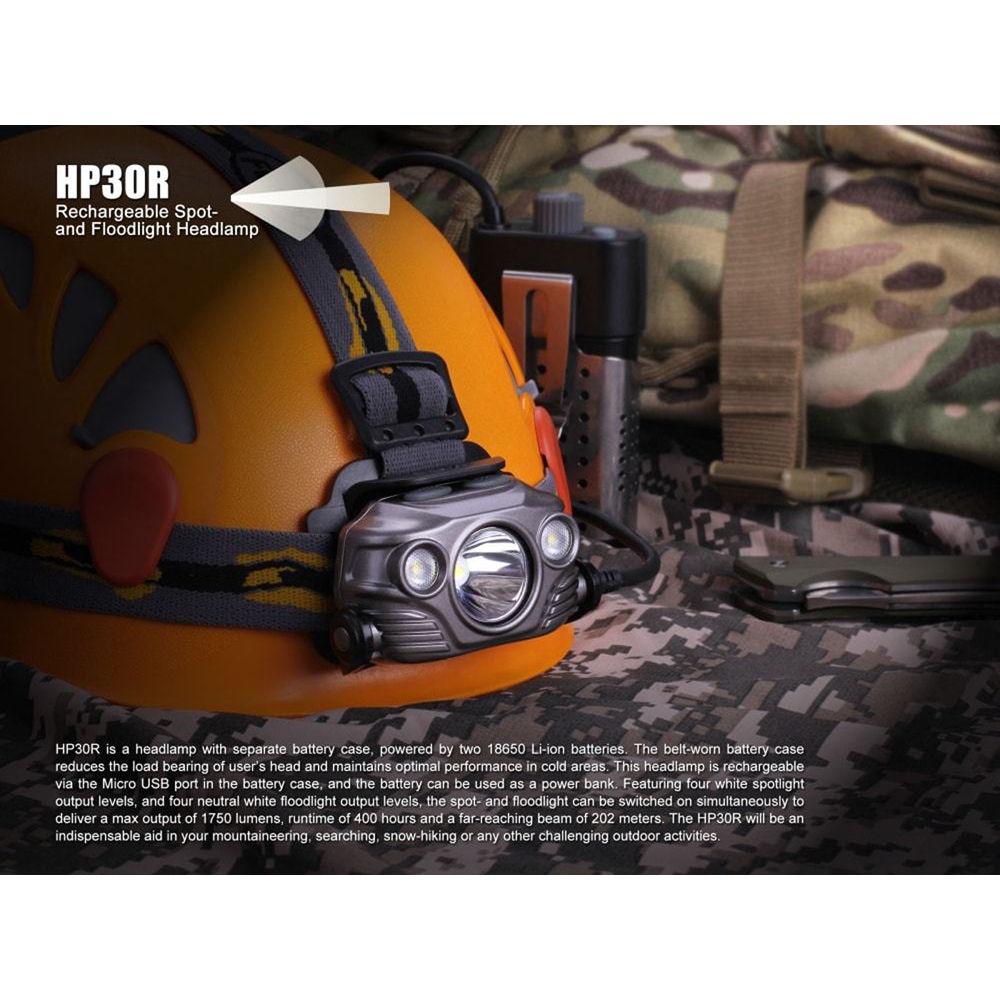

Product description Don't leave for camping without the Fenix HP30R Rechargeable Headlamp. This illumination tool can prove to be very useful in a variety of scenarios thanks to many beam brightness modes and flood-to-spot options. The lamp offers three Cree LEDs, a powerful center XM-L2 LED for creating concentrated spot beams and two lateral XP-G2 LEDs for generating spread-out flood beams. You can control the output of light (from 5 to 1000 lumens), as well as beam shape (flood or spot), by using two control push buttons located on the top of the lamp. To provide more versatility in pointing the beam in the right direction, the headlamp attaches to the adjustable headband and can tilt 60° up and down. Another feature of this device is its external (belt-worn) battery pack. The pack accepts two 18650 (rechargeable) or four CR123A batteries and powers the lamp via a dedicated cable. If you use rechargeable batteries, the pack provides an option to recharge your batteries without taking them out through a built-in micro-USB port. You can also use the micro-USB port on the battery pack as power bank to power or recharge small gadgets. The device also offers a lock function to prevent accidental battery drain, and reverse polarity protection to protect damage to electronics. - Light Performance
-
- Low Flood: 5 lumens
- Low Spot: 30 lumens
- Medium Flood: 130 lumens
- Medium Spot: 130 lumens
- High Spot: 400 lumens
- High Flood: 400 lumens
- Turbo Spot: 1000 lumens
- Turbo Flood: 750 lumens

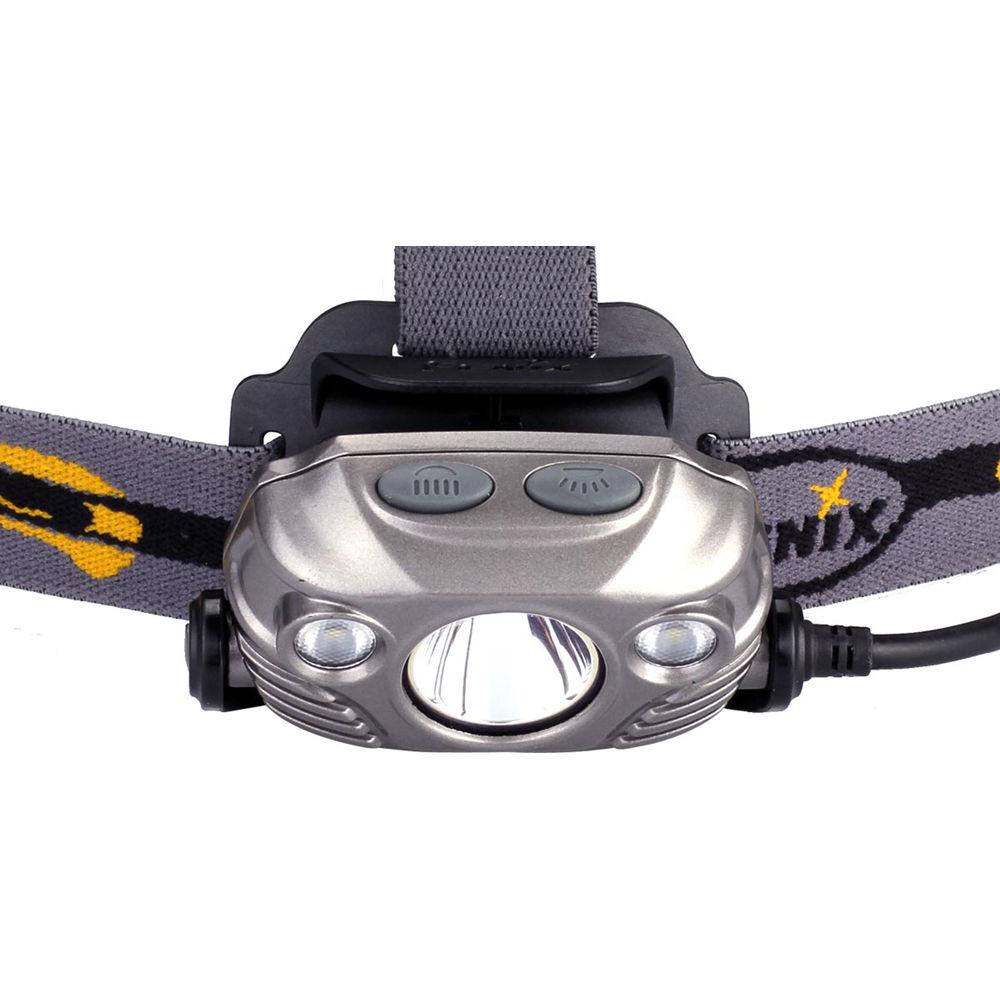

- One Cree XM-L2 LEDs in the center for spot beams
- Two Cree XP-G2 R5 LEDs flank the center bulb for flood beams

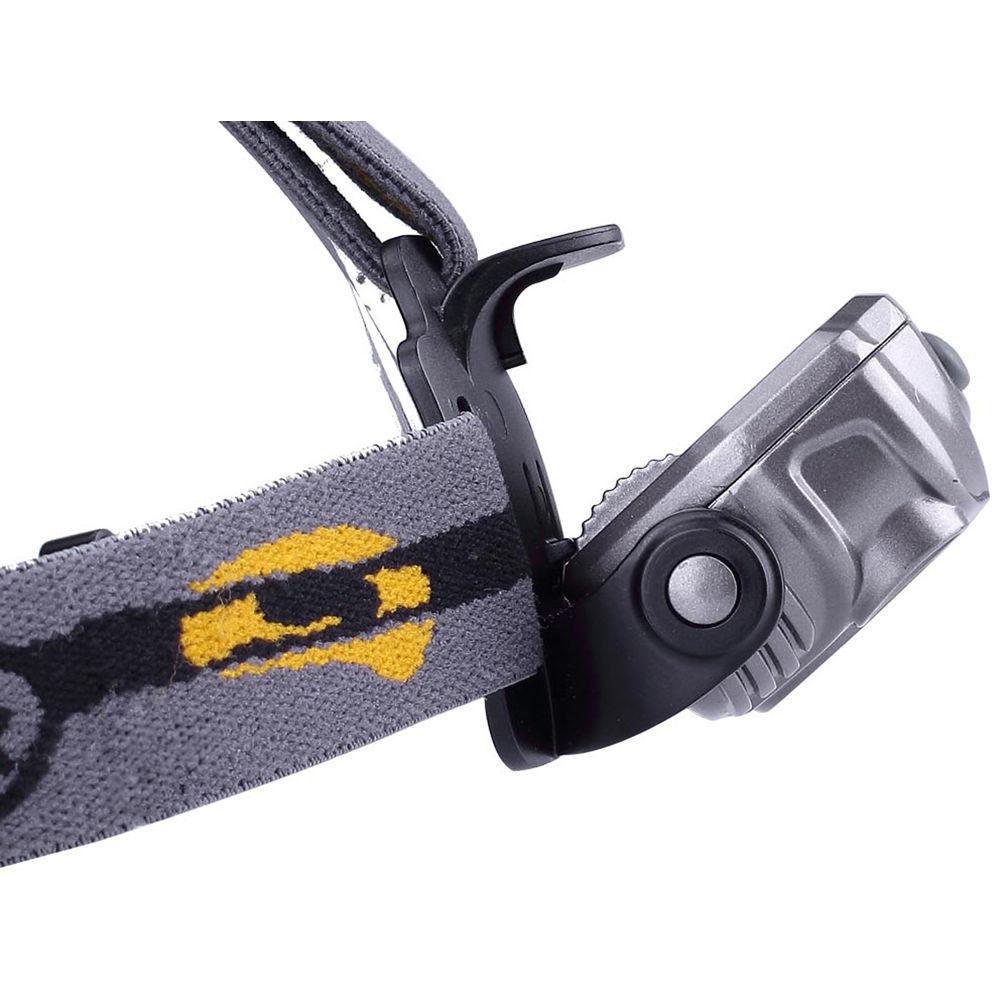

- 60° up-down beam tilting via a movable mount

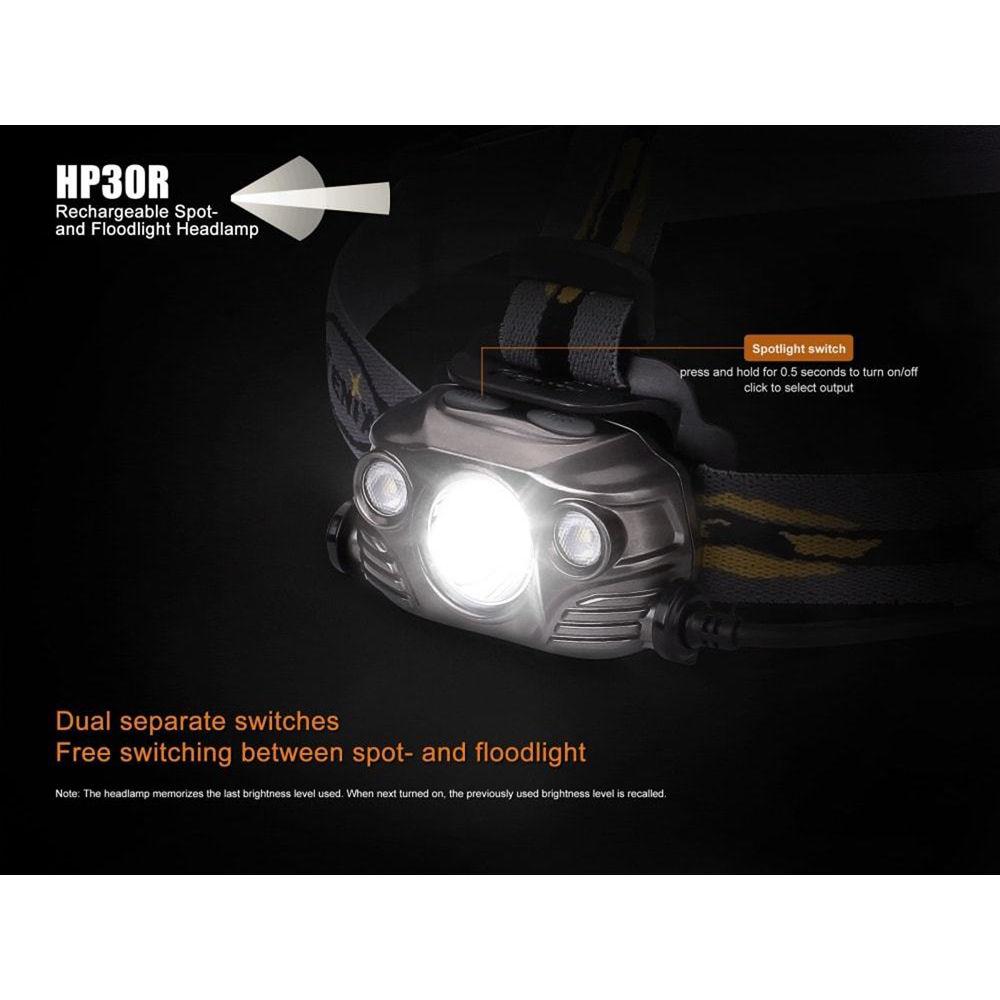

- Switching
-
- Type: two push buttons
- Location: headlamp top
- Activation: constant on
- Use and Handling
-

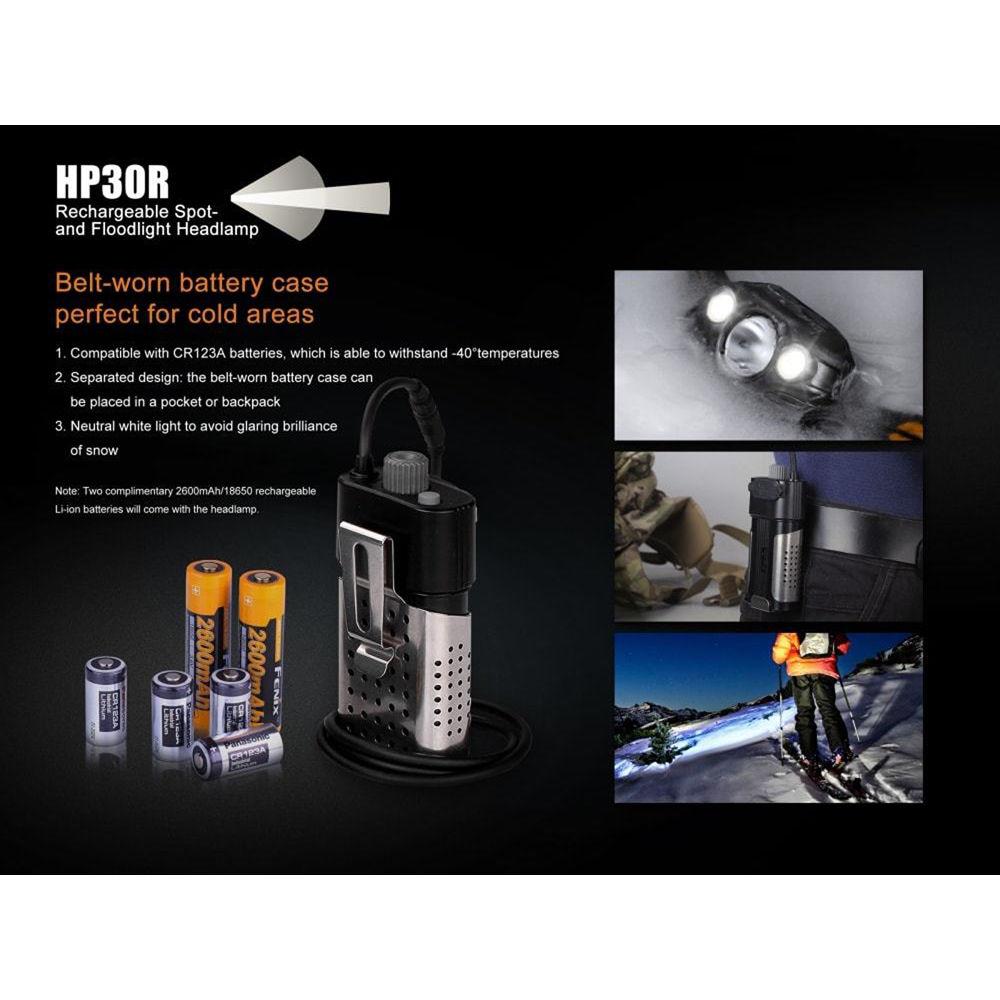

- External battery pack
- Dedicated attached cable for powering the lamp

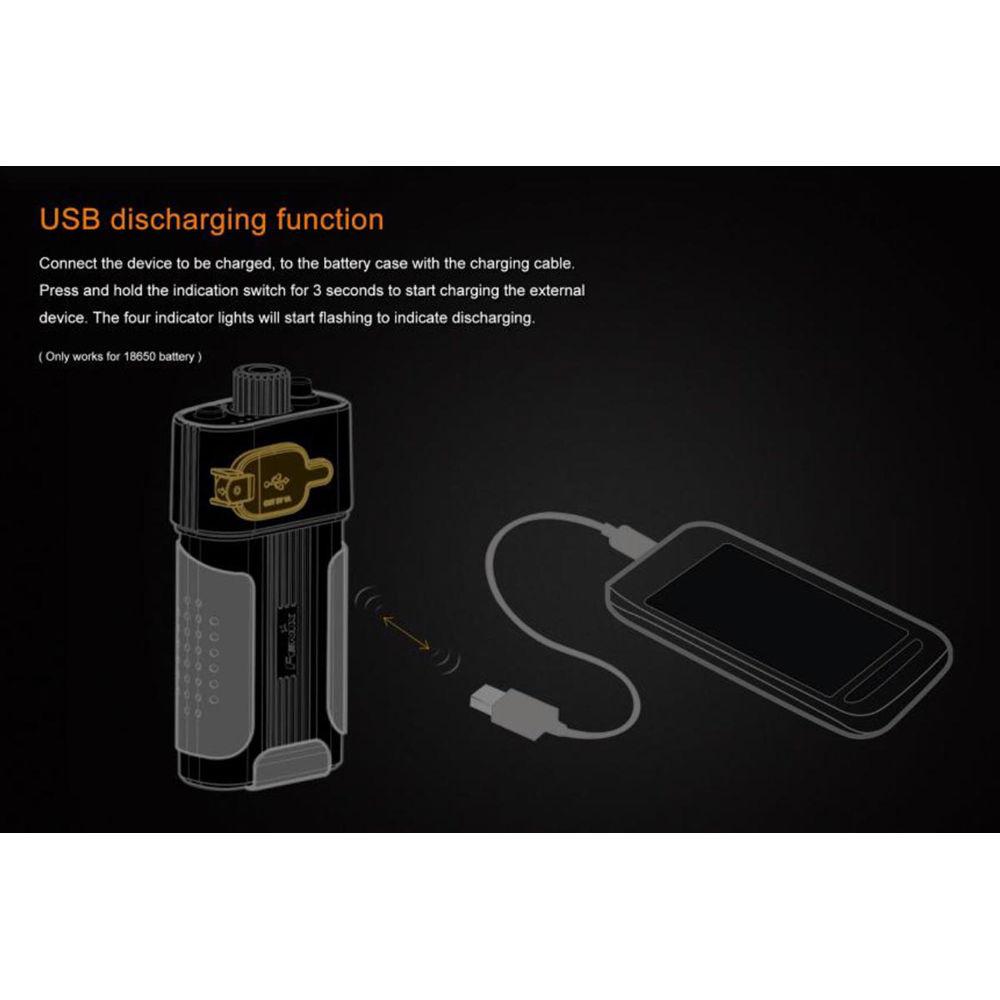

- Built-in micro-USB port for recharging batteries and charging gadgets
- Adjustable elastic headband included
- Construction
-

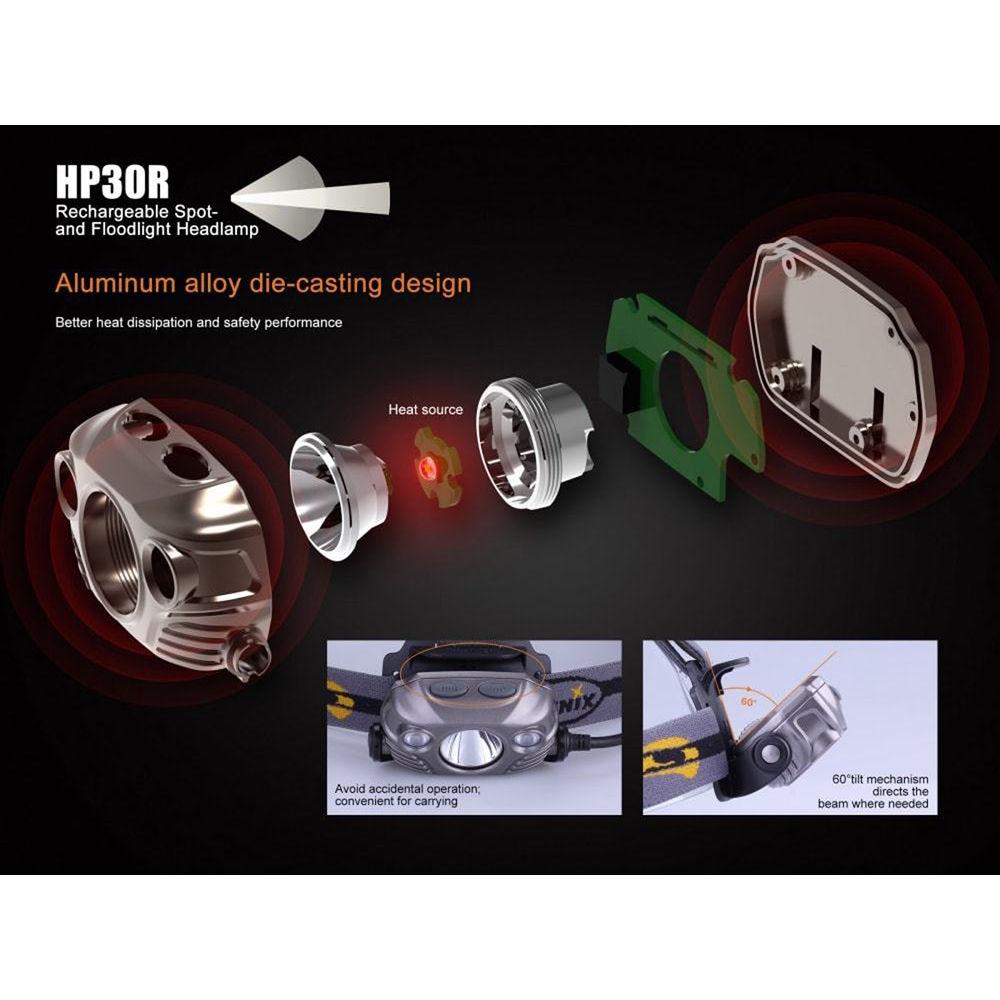

- Aluminum die-cast head lamp housing
- Provides better heat dissipation
- Tempered AR-coated front window
- Fully adjustable headband

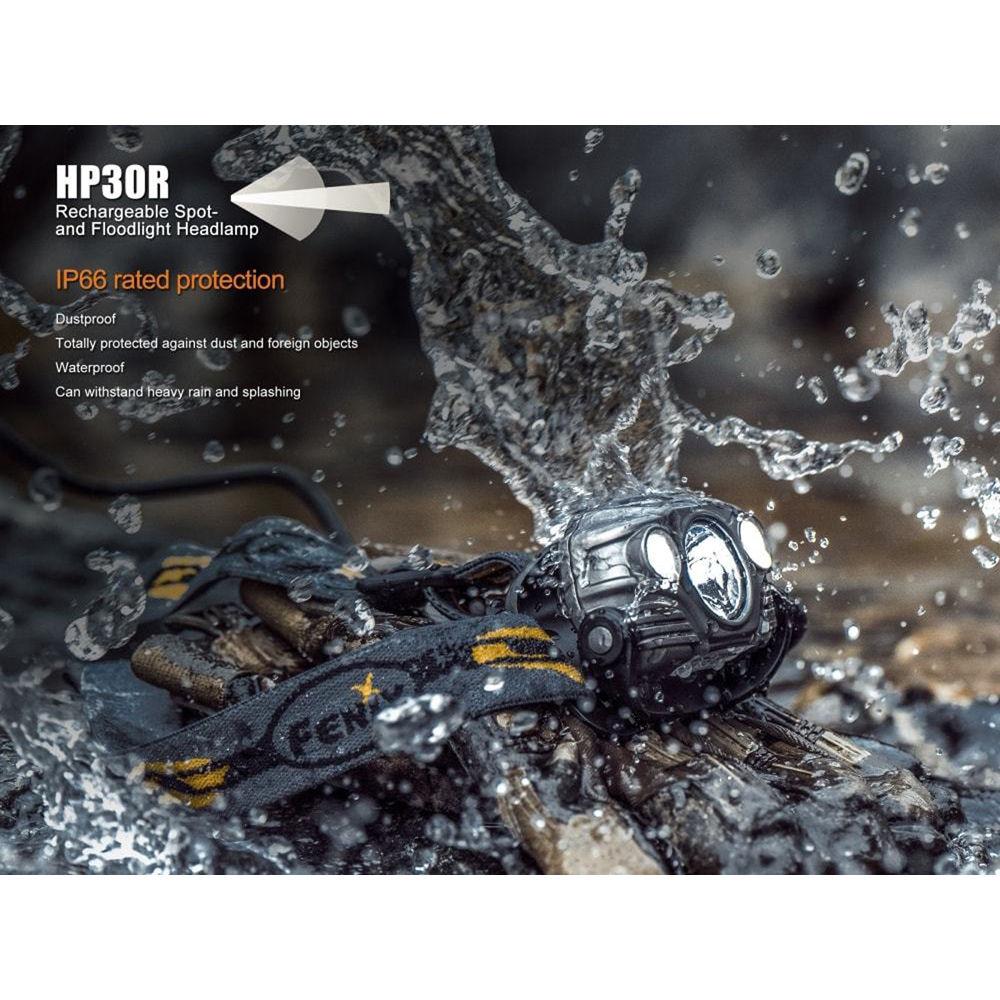

- Water-resistant, rated IP66
- Impact-resistant to 3.3'
- O-ring sealed and dustproof
- Runs on two rechargeable 18650 or four CR123A batteries
- Lock function prevents accidental battery drain
- Reverse polarity protection
In the Box Fenix Flashlight HP30R Rechargeable Headlamp (Gray) - 2 x ARB-L18-2600 Rechargeable Batteries
- USB Charging Cable
- Battery Pack
- Cable Clip
- Belt Clip
- Headband Mount
- Spare O-Ring
- 2 x Cable Buckles
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight HP30R Rechargeable Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight HP30R Specs | | | Lumen Output | High (Spot): 400 Lumens
Medium (Spot): 130 Lumens
Low (Spot): 30 Lumens
Turbo (Spot): 1000 Lumens
High (Flood): 400 Lumens
Medium (Flood): 130 Lumens
Low (Flood): 5 Lumens
Turbo (Flood): 750 Lumens
Low (Spot): 30 Lumens
Low (Flood): 5 Lumens
Medium (Spot): 130 Lumens
Medium (Flood): 130 Lumens
High (Spot): 400 Lumens
High (Flood): 400 Lumens
Turbo (Spot): 1000 Lumens
Turbo (Flood): 750 Lumens | | Illumination Source | 3 x LED | | Estimated Runtime | Low (Spot): 83 Hours
Low (Flood): 400 Hours
Medium (Spot): 21 Hours
Medium (Flood): 21 Hours
High (Spot): 6.5 Hours
High (Flood): 6.5 Hours
Turbo (Spot): 4 Hours
Turbo (Flood): 4 Hours | | Battery Type | 2 x 18650 or
4 x CR123A | | Internal Battery Capacity | 2600 mAh | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Water Resistant, IP66 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 3.0 x H: 2.0 x D: 1.3" / W: 77.0 x H: 52.0 x D: 34.0 mm
W: 4.5 x H: 2.2 x D: 1.2" / W: 115.0 x H: 56.0 x D: 30.0 mm (Battery Pack) | | Weight | 10.5 oz / 285 g | | | | Package Weight | 1.395 lb | | Box Dimensions (LxWxH) | 8.65 x 6.45 x 2.4" |
