User Manual for Fenix Flashlight LD12 LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight LD12 LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight LD12 LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

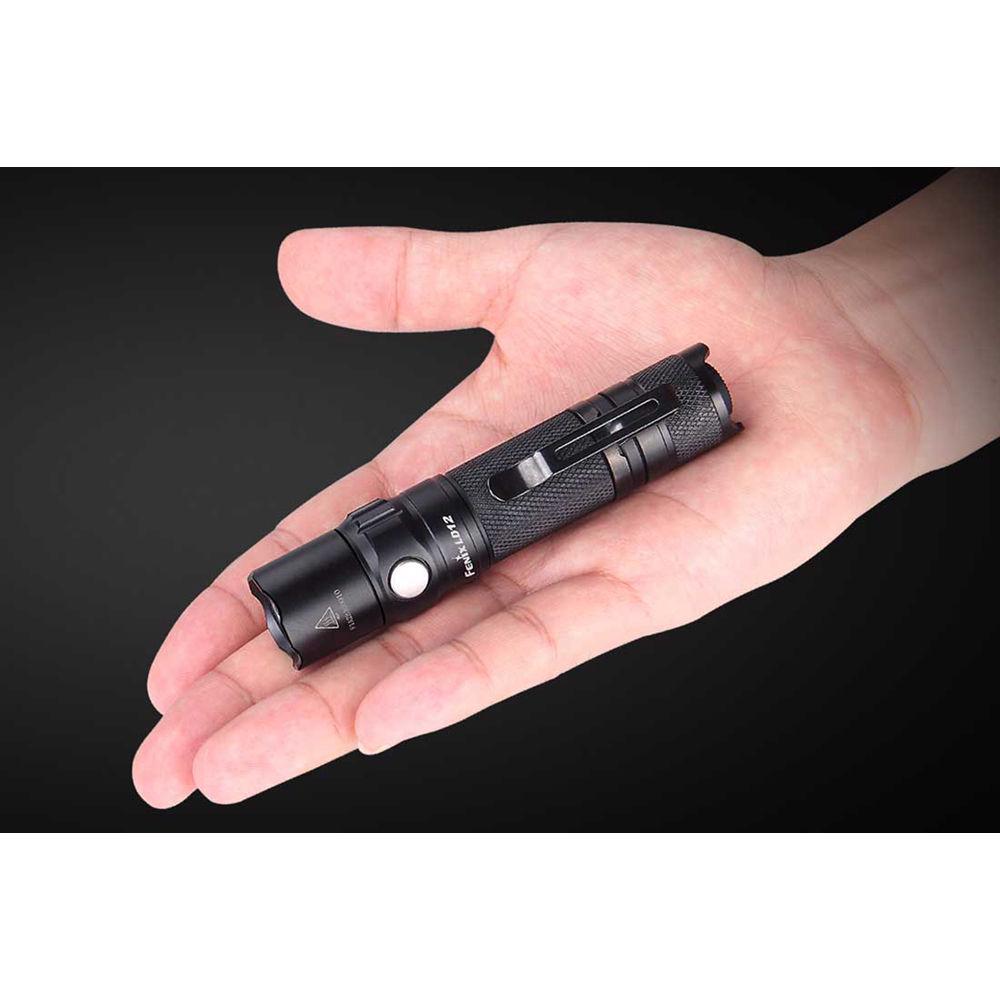

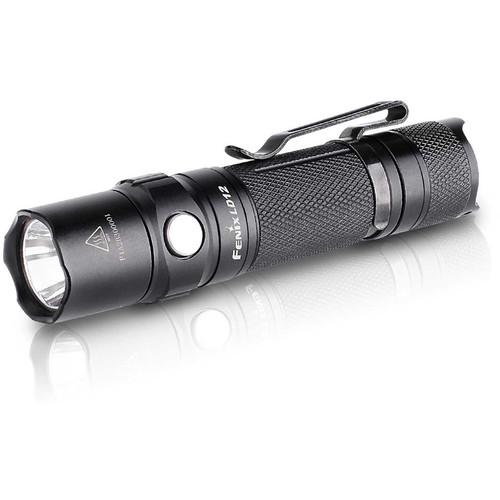

Product description Fenix's LD12 LED Flashlight has been redesigned for 2017 with updated outputs, and is still small enough for backup light but powerful enough to be used as your EDC. Its low, 5-lumen output is ideal for performing tasks such as reading or checking IDs, but when the job requires more power, the intensity can be stepped up to an impressive 320-lumens running on a single 14500 rechargeable battery. A bright strobe mode can be quickly activated for signaling or to disorient.Designed for daily use, the LD12 is outfitted with a lightweight and durable aluminum body with a scratch and corrosion-resistant anodized finish. The housing is O-ring sealed for an IP68 rating making it waterproof and submersible to over 6.5 feet and dustproof. Specialized circuitry monitors the available charge in the battery and digitally regulates the output for a consistent beam intensity, will automatically step down the output to prevent damage from excessive heat, and will notify you when the battery is low. - Output Range
-
14500 Rechargeable battery:- Low: 5 lumen
- Med: 30 lumen
- High: 70 lumen
- Turbo: 320 lumen
AA Alkaline battery:- Low: 5 lumen
- Med: 30 lumen
- High: 70 lumen
- Turbo: 150 lumen
- Performance
-
- One CREE XP-G2 R5 neutral white LED
- Neutral light is close to natural sunlight without a blue or red tint, revealing natural color appearance
- Disorientating strobe mode
- Switching
-
- Type: Dual pushbuttons
- Location: Tailcap and body

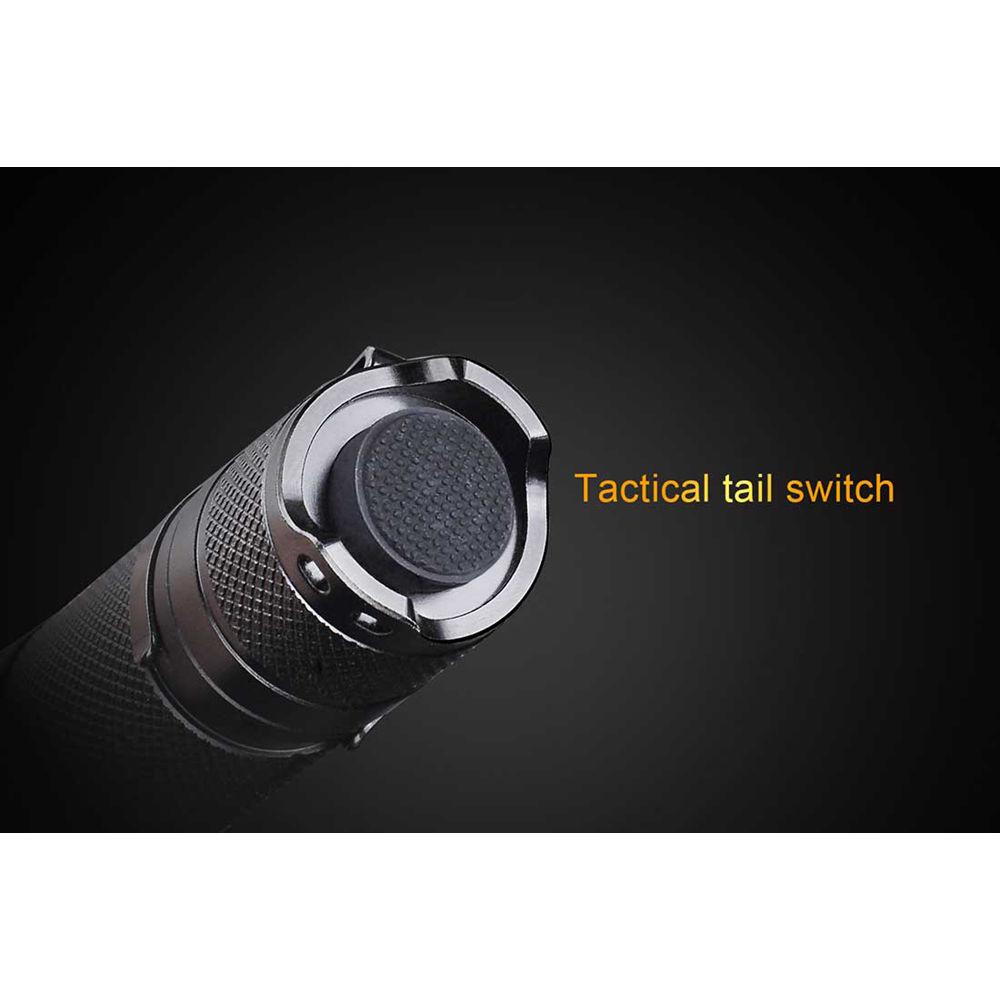

- Momentary and constant-on activation via two-stage tailcap switch

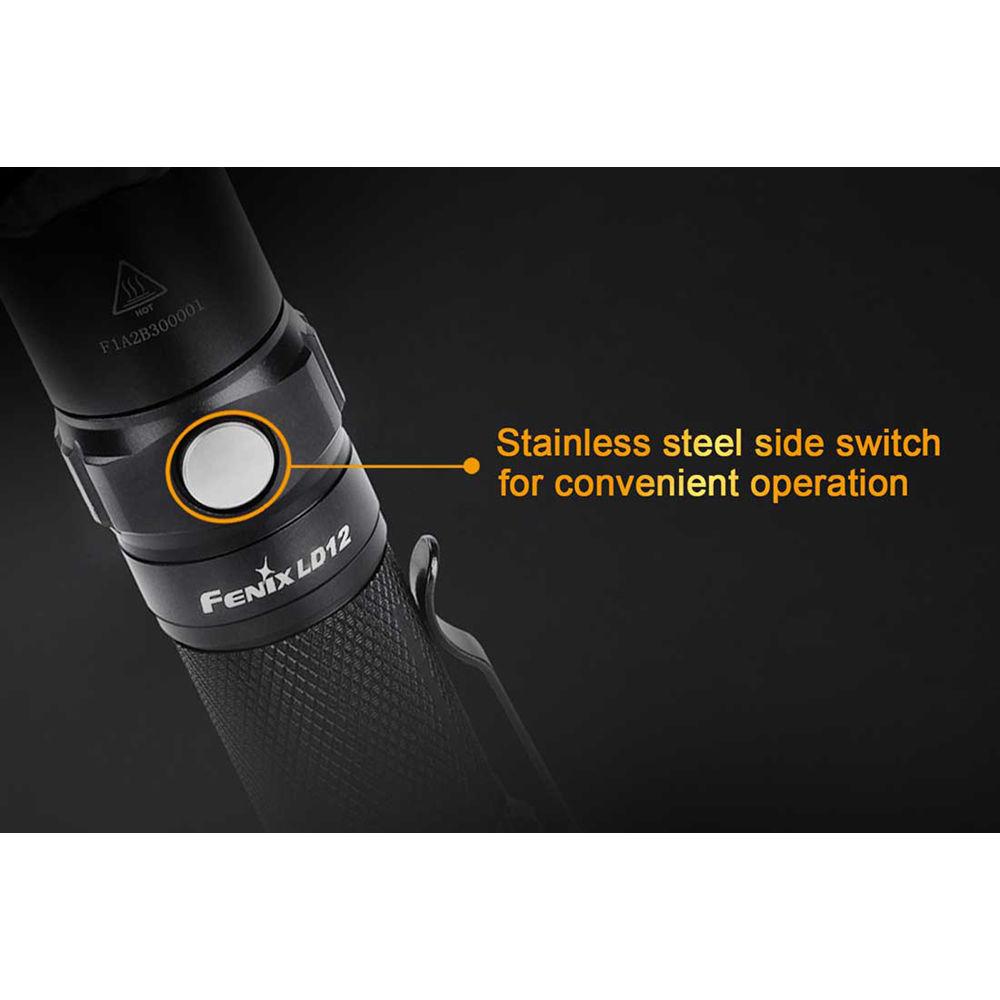

- Stainless steel body switch controls output and mode selection
- Partially-shrouded tailcap helps to prevent accidental activation
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant anodized finish
- IP6X rated, dust-proof
- IPX8-rated, waterproof and submersible to 6.6'
- Impact-resistant to 3.3'
- Weight: 2-ounces, without battery
- Electronics
-
- Runs on one AA battery or user-supplied 14500 rechargeable
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Low voltage warning lets users know when charge is running out
- Overheat protection automatically steps down output to prevent damage due to excessive heat
In the Box Fenix Flashlight LD12 LED Flashlight (2017 Edition) AA Battery Lanyard Pocket Clip Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight LD12 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight LD12 Specs | | | Lumen Output | 14500:
High: 70 Lumens
Medium: 30 Lumens
Low: 5 Lumens
Turbo: 320 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | 14500
High: 3.5 Hours
Medium: 11 Hours
Low: 50 Hours
Turbo: 1 Hour | | Battery Type | 1 x 14500 Lithium-Ion or
1 x AA Alkaline | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions |
