User Manual for Fenix Flashlight LD75C Multi-Spectrum LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight LD75C Multi-Spectrum LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
|
User manual for the Fenix Flashlight LD75C Multi-Spectrum LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

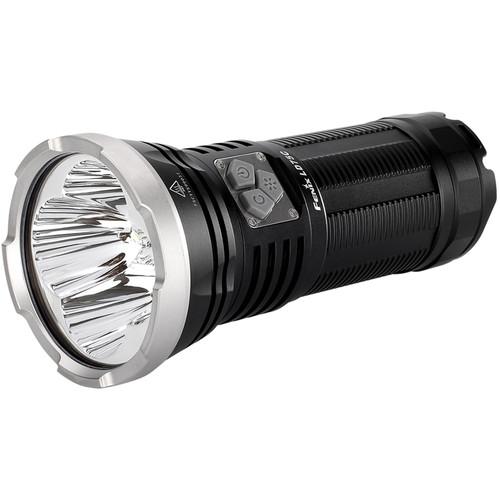

Product description Fenix's powerful and versatile LD75C Multi-Spectrum LED Flashlight is loaded with features and is ideally suited for law enforcement, military and search & rescue professionals or outdoor enthusiasts. This illuminator uses four white Cree XM-L2 U2 LEDs to produce five outputs from a task-orientated 40 lumen economy output to a darkness-obliterating 4200-lumen turbo mode. In addition to the white emitters, there is a secondary LED that emits blue, red, and green light to perform tasks without interfering with night-adjusted vision, plus a secondary 200-lumen white output. Adding to the LD75C's versatility is a 4200 lumen disorientating strobe, and two colored flashing modes that can be used for signaling. The light's switching system enables users to combine the white and colored lights to customize the light signature for easier identification.Multiple safety and power features protect the light and optimize the power output based on the battery charge and conditions. The output is digitally regulated to maintain consistent beam intensity throughout the battery charge to prevent dimming. Thermal control circuitry optimizes the output based on temperature fluctuation to further maintain a consistent beam. Specialized circuitry monitors the internal temperature and automatically steps the output down to prevent damage due to excessive heat, while reverse polarity protection prevents damage to the light if the batteries are installed incorrectly. For full functionality, the light runs on four 18650 or eight CR123 batteries, but in a pinch it can operate with two 18650 or four CR123 batteries but with reduced outputs and runtimes depending on the light color and mode selected.Complementing the multiple light outputs is a housing that is built to withstand years of use. Its aluminum alloy body has a scratch and corrosion-resistant type III hard anodized finish, with a scratch-resistant tempered reflector window that has a anti-reflection coating to maximize light transmission. A sturdy and strong stainless steel bezel ring protects the head and lens from damage due to drops and impacts. The light is impact resistant to 6.6' and IPX8-rated making it fully submersible to 6.6' for up to 30 minutes. A ribbed handle provides a slip-resistant grip when using the light with gloves or in cold and wet conditions. - Primary White Light
-
- Eco: 40 lumen
- Low: 200 lumen
- Med: 600 lumen
- High: 1800 lumen
- Turbo: 4200 lumen
- Four primary white Cree XM-L2 U2 LEDs
- Disorientating/signal white 4200-lumen strobe
- Secondary Colored Lights
-
- Blue: 45 lumen
- Red: 140 lumen
- Green: 190 lumen
- Cree XM-L RGB colored LED
- Red light used for reading and tasks without affecting night adjusted vision
- Green is easier to see than red light, and is invisible to many game species
- Blue light shows fluid/blood trails for tracking
- Secondary LED also provides 200 lumens of white light
- Flashing modes: Flashing red signal, alternating flashing red and blue warning signal
- Switching
-
- Location: Body
- Type: Three pushbuttons
- Momentary and constant-on modes
- Front-right button controls primary output on/off and output intensities
- Front-left button controls secondary light on/off, color, and modes
- Rear button provides instant access to white strobe and momentary activation
- Simultaneous white and colored light activation for custom signal or identification
- Intelligent last-mode memory switch
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant Type III hard anodized finish
- Anti-reflection coated scratch-resistant tempered glass window
- IPX8-rated submersible, impact resistant to 6.6' for up to 30 min
- Impact-resistant to 3.3'
- Ribbed handle provides slip-resistant grip
- Heat dissipating fins machined into head
- Strong and durable stainless steel bezel ring protects against drops and impacts
- Power level indicator
- Electronics
-
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Thermal control circuitry optimizes output based on temperature fulgurations
- Overheat protection circuitry automatically steps power output down to avoid damage to the light
- Reverse-polarity protection prevents damage to light if batteries are installed incorrectly
- Power
-
- Runs on four 18650 li-ion rechargeable batteries
- Capable of running on eight CR123 lithium batteries, but with reduced output and rutimes
- Flexible power options
- Can operate on two 18650 or four CR123
- With half the batteries, the corresponding primary LEDs will operate with same runtime but output is reduced by 50%
- Secondary LEDs maintain output intensity but runtime is reduced by 50%
In the Box Fenix Flashlight LD75C Multi-Spectrum LED Flashlight (White, Blue, Red, Green) Lanyard Spare O-Ring Nylon Holster Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight LD75C Multi-Spectrum LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight LD75C Specs | | | Lumen Output | High: 1800 Lumens
Medium: 600 Lumens
Low: 200 Lumens
Turbo: 4200 Lumens
Minimum: 40 Lumens
Strobe: 4200 Lumens | | Illumination Source | 4 x White LED
1 x Multi-Color LED | | | | Estimated Runtime | High (White): 3 Hours
Medium (White): 11 Hours
Low (White): 35 Hours
Turbo (White): 1.5 Hours
Minimum (White): 175 Hours
Red: 14 Hours
Blue: 11 Hours
Green: 11 Hours | | Battery Type | 4 x 18650 Lithium-Ion or
8 x CR123A Lithium | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 2.9" / 7.4 cm | | Dimensions |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
