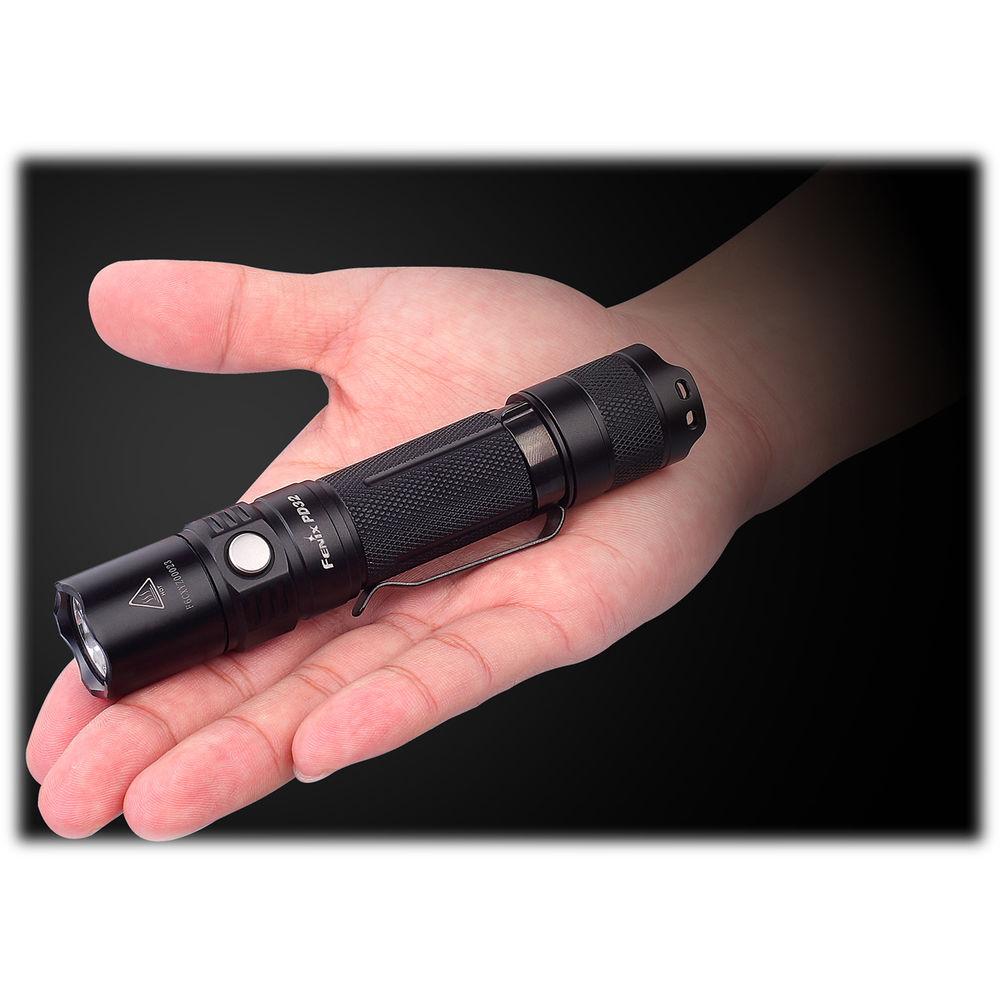

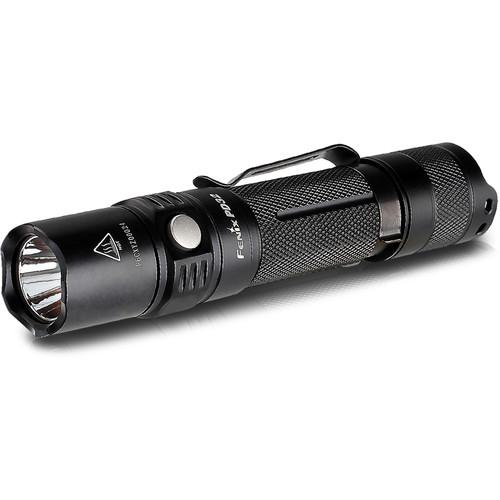

Product description The PD32-G2 LED Flashlight from Fenix is a 900-lumen multi-purpose light with a waterproof housing as well as five selectable brightness levels and two flashing-output modes. This compact illuminator is 5.1" long and has a range of features including automatic overheat protection, a digitally regulated power supply, reverse polarity protection, and a last-used memory circuit. Complementing the advanced circuitry and variety of output modes, the PD32 has a rugged aerospace aluminum alloy housing with knurled grips and a Type III anodized hard coat. The lightweight yet durable construction and thumb-accessible mode selector switch on the lamp assembly equip the PD32 with the reliability and functionality needed for almost any recreational lighting task. For additional flexibility, this light can be powered by either one 18650 rechargeable battery or two CR123A batteries. For emergencies, the 900-lumen strobe and 50-lumen SOS signal are quickly engaged by holding the mode selector switch. - Light Performance
-
- Eco: 5 lumen
- Low: 50 lumen
- Med: 150 lumen
- High: 400 lumen
- Turbo: 900 lumen
- Cree XP-L HI white LED
- 900-lumen strobe mode: Use to disorientate or to signal in emergencies
- Switching
-
- Type: Push button
- Location: Tailcap and body
- Momentary and constant-On modes

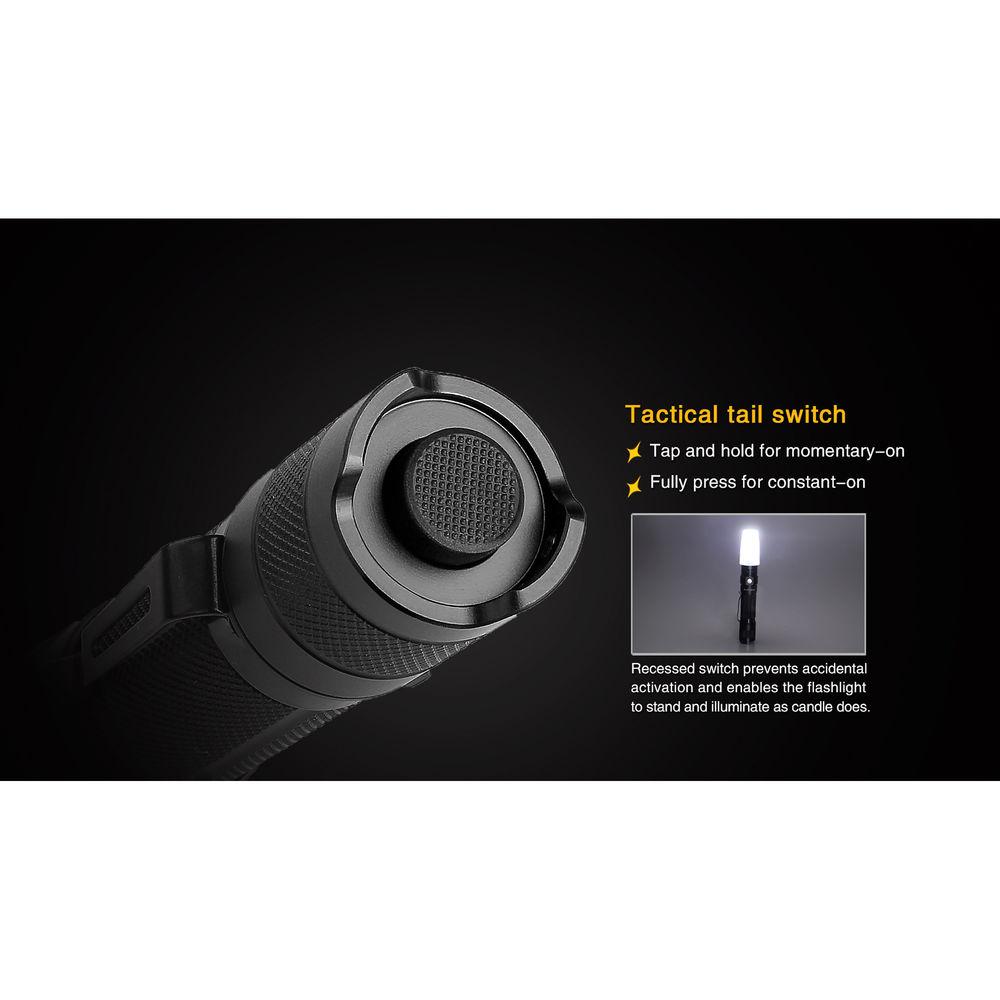

- Tactical tailcap switch for on/off. Press for momentary activation, click for constant-on

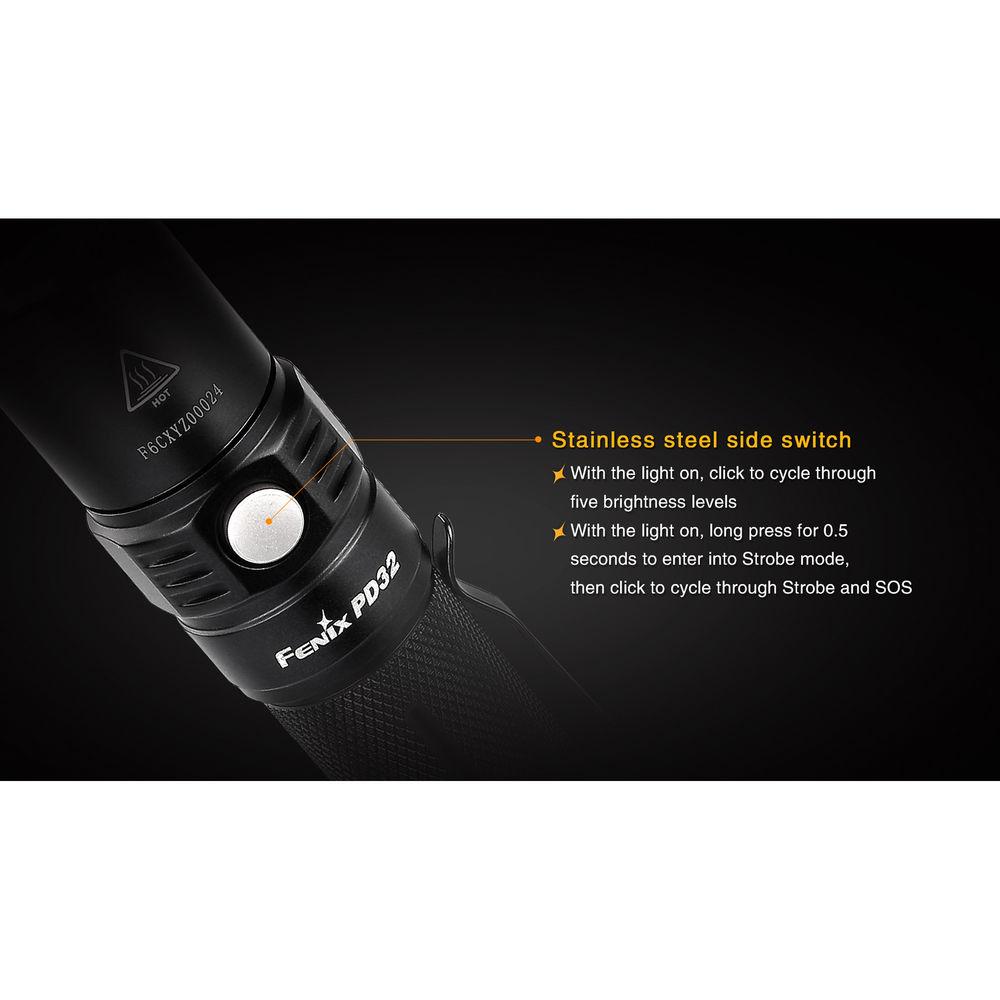

- Body switch controls output and mode selection
- Intelligent last-mode memory switch
- Output Modes
-
- Selectable Outdoor and Tactical modes
- Each mode has different output and switch functionality availability
- Tactical:
- Simplified switching for high-stress situations
- Press or click tailcap for momentary or constant-on modes
- Three available outputs: Turbo - Strobe - Low
- Defaults to Turbo mode as first output
- Output selection via tailcap switch only
- Last-mode-memory does not work in Tactical mode
- Outdoor:
- Press or click tailcap for momentary or constant-on modes
- With light on, cycle through outputs using body switch
- Access strobe via body switch
- Last-mode-memory function works in this mode
- Construction Details
-
- Lightweight and durable aluminum alloy body
- Scratch and corrosion-resistant type III black anodized finish
- Anti-reflection coated tempered glass emitter window
- Anti-roll and slip-resistant body design
- IPX8-rated, submersible to 6.6'
- Impact resistance tested to 3.3'
- Head tip has five-point crenellations allowing light to shine through when placed head down
- Heat-dissipating fins on head help to prevent overheating
- Electronics
-
- Runs on one user-supplied 18650 rechargeable or two CR123A lithium batteries
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Over-heat protection circuitry automatically steps-down the output to prevent damage due to excessive heat
- Reverse polarity protection prevents damage to light if batteries are installed incorrectly
- Low-voltage protection automatically steps down output when battery is low
In the Box Fenix Flashlight PD32 Flashlight (Black, 2016 Edition) - Removable Pocket Clip
- Holster
- Lanyard
- Spare O-Ring
- Spare Tail Switch Cover
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight PD32 Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight PD32 Specs | | | Lumen Output | Minimum: 5 Lumens
Low: 50 Lumens
Medium: 150 Lumens
High: 400 Lumens
Turbo: 900 Lumens
Strobe: 900 Lumens
SOS: 50 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | High: 4 Hours
Medium: 10.4 Hours
Low: 37 Hours
Turbo: 1.9 Hours
Minimum: 260 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions |
