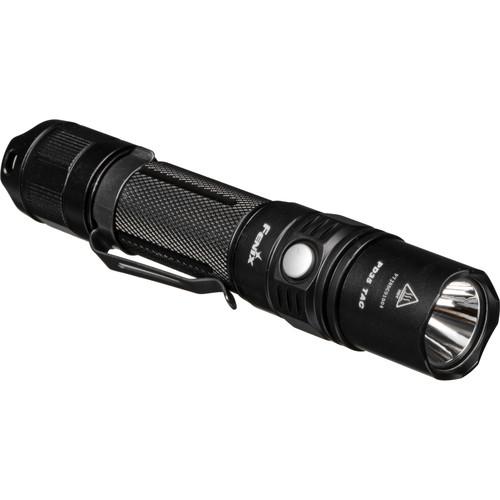

User Manual for Fenix Flashlight PD35-TAC LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight PD35-TAC LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
|
User manual for the Fenix Flashlight PD35-TAC LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description This version of Fenix's PD35, thePD35-TAC LED Flashlight, features two selectable operation modes for general purpose and tactical uses. In the Outdoor mode, the tailcap switch controls basic on/off with the five output intensities and strobe being selectable via the side body switch. When the light is set to Tactical mode, the switching and available outputs change for easier use. This easier switching and tactical-minded outputs makes operating the light and choosing outputs more intuitive which is critical in high-stress situations. In Tactical mode, switching and output selection is done using the tailcap pushbutton, with access to just the turbo, strobe, and low outputs for simplicity.Utilizing a Cree XP-L (V5) LED, this versatile light produces an output range from a low task-orientated 8-lumens up to a powerful 1000 lumen turbo mode that is ideal for searching or lighting large areas and rooms. Its 1000 lumen strobe mode can be used to disorientate or signal in emergency situations. The light runs on a single user-supplied 18650 or two CR123 batteries, and features active and passive over-heat protection, digitally regulated output, and reverse-polarity protection.Complementing the light's performance is a lightweight and durable aluminum allow body with a protective corrosion and scratch-resistant type III hard anodized finish. The light is impact-resistant tested to 3.3' drops, and IPX8-rated to be submersible to a depth of up to 6.6'. A textured body profile provides a sure grip in cold and wet conditions, and anti-roll areas are machined into the bezel and tailcap. The belt clip is removable for carrying the light in a holster or pocket without getting caught or snagged. - Light Performance
-
- Min: 8 lumen
- Low: 60 lumen
- Med: 200 lumen
- High: 500 lumen
- Turbo: 1000 lumen
- Cree XP-L (V5) white LED
- 1000-lumen strobe mode: Use to disorientate or to signal in emergencies
- Switching
-
- Type: Pushbutton
- Location: Tailcap and body
- Momentary and constant-On modes
- Tactical tailcap switch for on/off. Press for momentary activation, click for constant-on
- Body switch controls output and mode selection
- Intelligent last-mode memory switch
- Output Modes
-
- Selectable Outdoor and Tactical modes
- Each mode has different output and switch functionality availability
- Tactical:
- Simplified switching for high-stress situations
- Press or click tailcap for momentary or constant-on modes
- Three available outputs: Turbo - Strobe - Low
- Defaults to Turbo mode as first output
- Output selection via tailcap switch only
- Last-mode-memory does not work in Tactical mode
- Outdoor:
- Press or click tailcap for momentary or constant-on modes
- With light on, cycle through outputs using body switch
- Access strobe via body switch
- Last-mode-memory function works in this mode
- Construction Details
-
- Lightweight and durable aluminum alloy body
- Scratch and corrosion-resistant type III black anodized finish
- Anti-reflection coated tempered glass emitter window
- Anti-roll and slip-resistant body design
- IPX8-rated, submersible to 6.6'
- Impact resistance tested to 3.3'
- Head tip has five-point crenellations allowing light to shine through when placed head down
- Heat-dissipating fins on head help to prevent overheating
- Removable belt clip
- Electronics
-
- Runs on one user-supplied 18650 rechargeable or two CR123A lithium batteries
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Over-heat protection circuitry automatically steps-down the output to prevent damage due to excessive heat
- Reverse polarity protection prevents damage to light if batteries are installed incorrectly
- Low-voltage indicator when using rechargeable batteries
In the Box Fenix Flashlight PD35-TAC LED Flashlight (Tactical Edition) - Lanyard
- Holster
- Pocket Clip
- 2 x Spare O-Ring
- Spare Tailcap Switch Boot
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight PD35-TAC LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight PD35-TAC Specs | | | Lumen Output | High: 500 Lumens
Medium: 200 Lumens
Low: 60 Lumens
Turbo: 1000 Lumens
Strobe: 1000 Lumens
Minimum: 8 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | Minimum: 140 Hours
Low: 29.25 Hours
Medium: 8.5 Hours
High: 2.9 Hours
Turbo: 1.2 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions |
