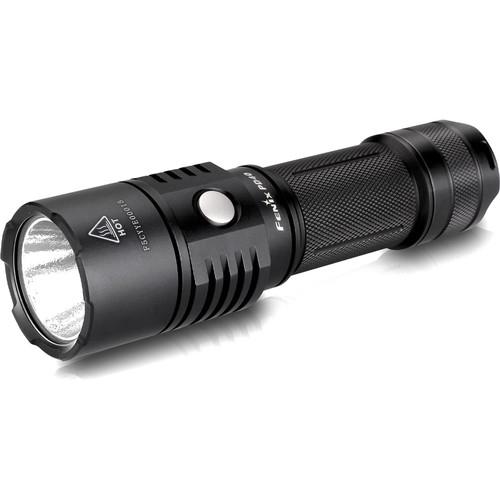

User Manual for Fenix Flashlight PD40 Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight PD40 Rechargeable LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
|
User manual for the Fenix Flashlight PD40 Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description With two hours of 1000-lumen runtime, a 3000-lumen burst mode, and on-board charging: the Fenix PD40 Rechargeable LED Flashlight packs a lot of functionality into a 5.5", 4.5-ounce package. The light offers four brightness levels, plus the turbo boost, disorienting strobe and SOS. Its 26650 battery charges right in the light, and its micro-USB charging port is waterproof (the torch is IPX8-rated and can withstand submersion to 6.6'.) Dual side push-buttons control the functions – a master switch to cycle through the settings and an auxiliary that operates the flashing modes. External heat sink and intelligent temperature control protect against overheating.Engineered to handle the rigors of daily use, the housing is made of a lightweight and durable aluminum alloy with a Type III hard-anodized finish. A tempered glass emitter window is scratch/impact resistant and has anti-reflection coatings to maximize light transmission. - Performance
-
- Eco: 20 lumens
- Low: 100 lumens
- Med: 350 lumens
- High: 1000 lumens
- Burst: 3000 lumens
- Cree XHP 70 LED, rated for 50,000 hours
- Digitally regulated output maintains constant brightness
- Runtimes: 55 hours on Eco to 2 hours on High
- Switching
-
- Type: Dual push-button
- Location: Body
- Master switch cycles through output levels
- Auxiliary switch controls strobe and SOS flash
- Construction
-
- On-board charging via waterproof micro-USB port
- Lightweight aluminum alloy housing
- Scratch and corrosion-resistant Type III hard-anodized finish
- Anti-reflection coated impact and scratch resistant tempered glass window
- Impact resistant to 3.3', IPX8-rated submersible to 6.6'
- Reverse polarity protection prevents damage to light if battery is installed wrong
- Heat sink and intelligent temperature control
In the Box Fenix Flashlight PD40 Rechargeable LED Flashlight Lanyard ARB-L26-4500P Battery USB Charging Cable Nylon Holster Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight PD40 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight PD40R Specs | | | Lumen Output | Minimum: 20 Lumens
Low: 100 Lumens
Medium: 350 Lumens
High: 1000 Lumens
Turbo: 3000 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 2 Hours
Medium: 7.4 Hours
Low: 21.3 Hours
Turbo: 1.5 Minutes
Minimum: 55 Hours | | Battery Type | 1 x 26650 Lithium-Ion | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions |
