User Manual for Fenix Flashlight RC05 Rechargeable Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight RC05 Rechargeable Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight RC05 Rechargeable Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description A palm-sized light with big performance and innovative design features, the Fenix RC05 Rechargeable Flashlight is suited to essentials-kit and everyday carry use. It can hang upside down from its magnetic tailcap, the magnetic port makes attaching the charge cable easy, and there are no dead alkaline batteries to dispose of. Featuring four output levels from a low of 5 lumen to a maximum 300 lumen, the RC05 is also equipped with a disorientating strobe setting. A single switch on the body gives you access to all the output intensities and specialty strobe modes. The housing is made of light and durable aluminum with a Type III hard anodized finish. It is impact-resistant to 3.3' and IPX8-rated to be submersible to 6.6'. The tailcap is magnetized, offering countless options for positioning the light for hands-free use. You can carry the light bezel-up or bezel-down, thanks to the two-way clip. The USB charge cable snaps into the magnetic port on the neck of the light to recharge the included 14500 lithium-ion battery. (As a backup, you can use a standard AA battery at reduced performance.) Lockout mode assures the light won't be turned on accidentally in your pocket or pack, and there's a low-voltage indicator to warn you when it's time to recharge. Reverse-polarity protection guards against damage from an improperly installed battery. - Performance
-
- Output settings: 5 / 50 / 150 / 300 lumens, plus strobe function
- Cree XP-G2 R5 LED emitter

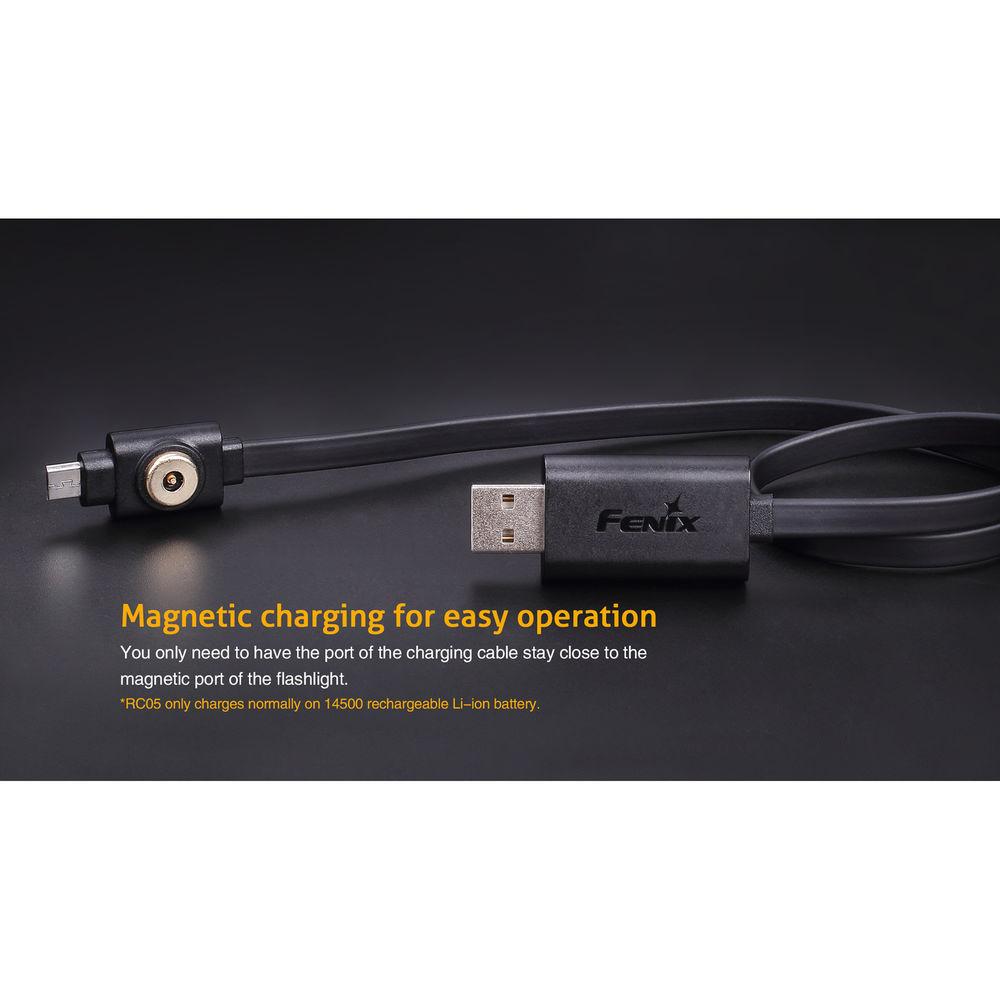

- Magnetic port for USB charging cable

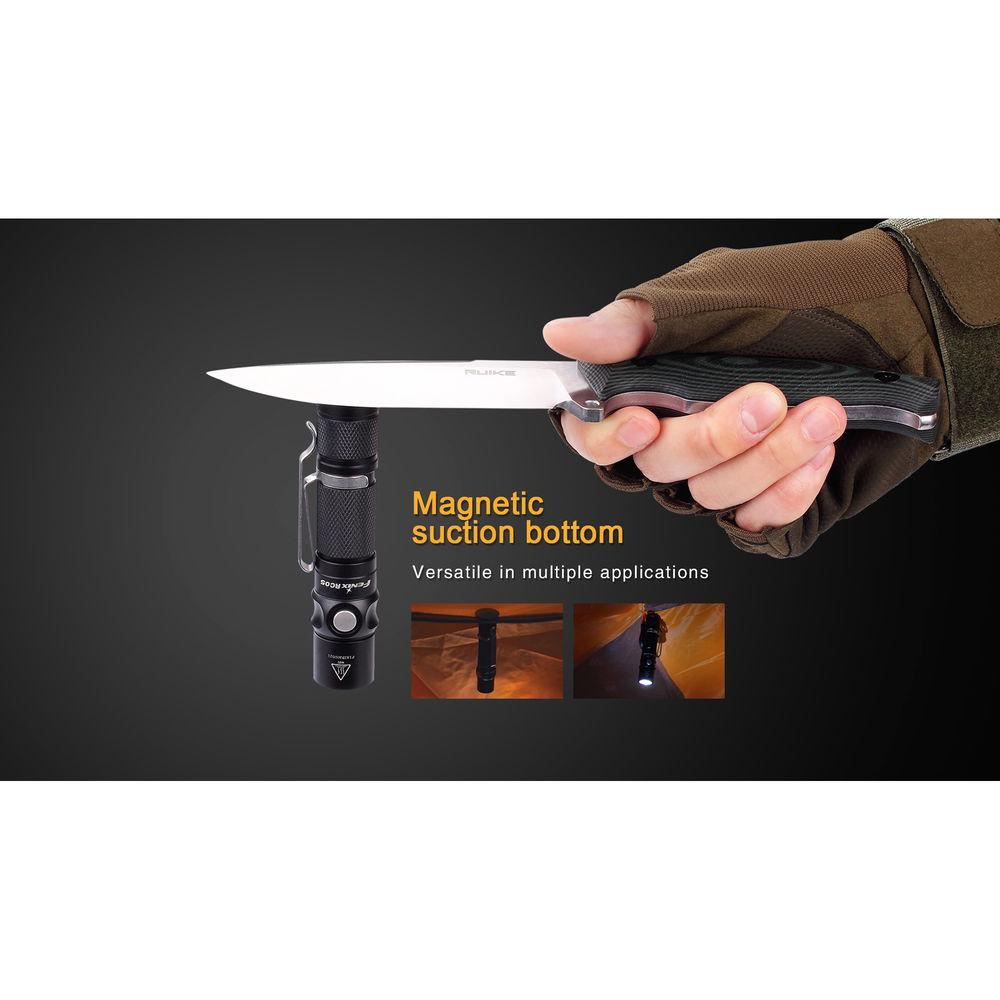

- Magnetized tailcap allows positioning for hands-free use
- One-button side switch for simple control
- Two-position clip
- Digitally regulated output maintains consistent beam intensity throughout life of battery
- Lock-out function avoids accidental operation
- Low-voltage warning when battery needs recharging

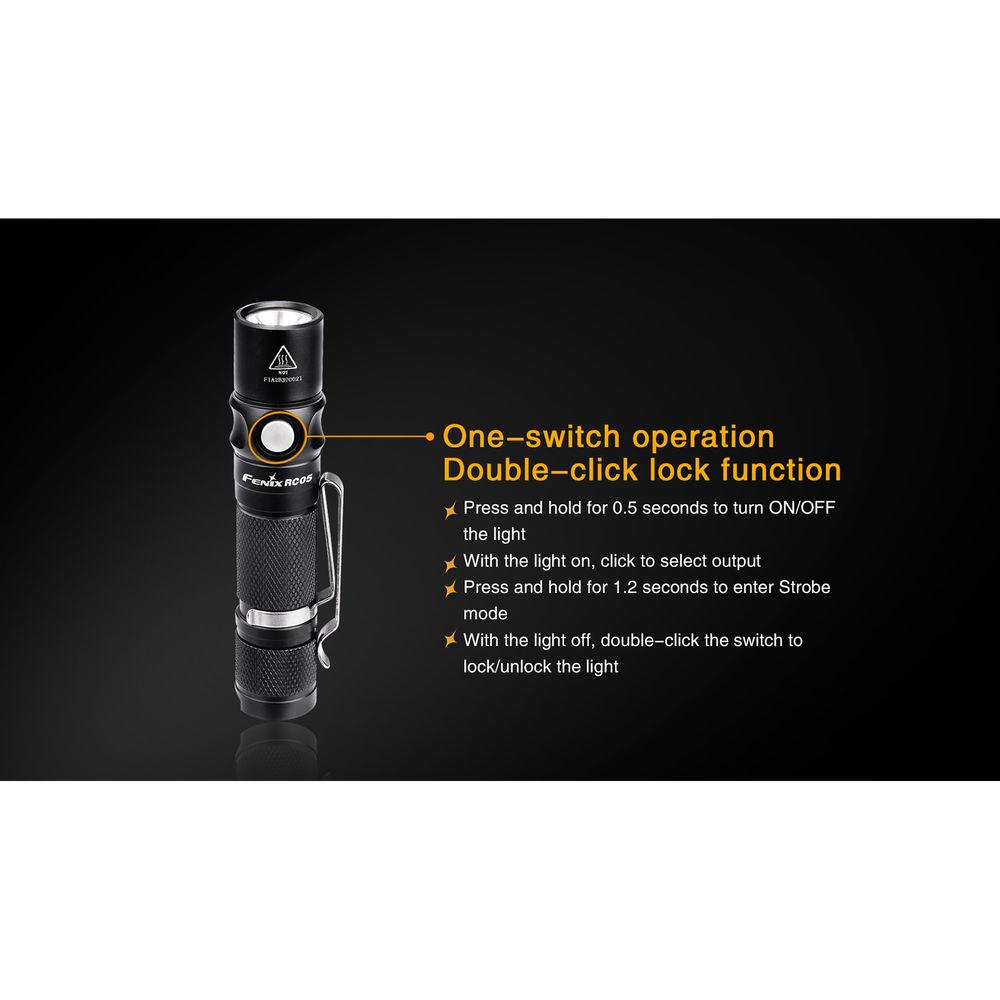

- Switching
-
- Location: Body
- Type: Pushbutton
- Hold for 0.5 second to turn on light
- Click to cycle through settings
- Press & hold 1.2 second for strobe mode
- With light off, double-click for lock/unlock
- Construction
-
- Lightweight aluminum alloy housing
- Corrosion and scratch-resistant black anodized finish
- Anti-reflection coated tempered emitter window

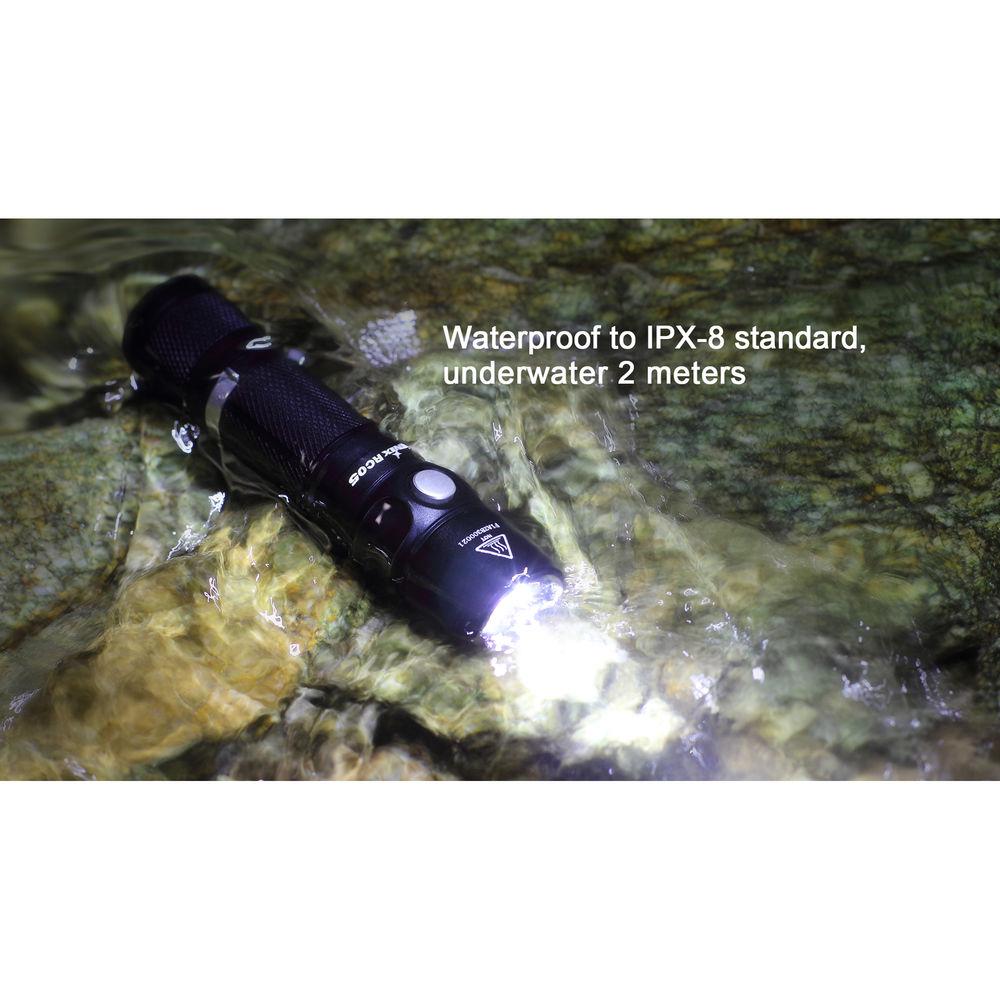

- Impact-resistant to 3.3', and IPX8-rated submersible to 6.6'
- Textured handle provides a slip-resistant grip
- Reverse polarity protection
- Runs on one 14500 rechargeable li-ion
- Batteries charge in light – no dock needed

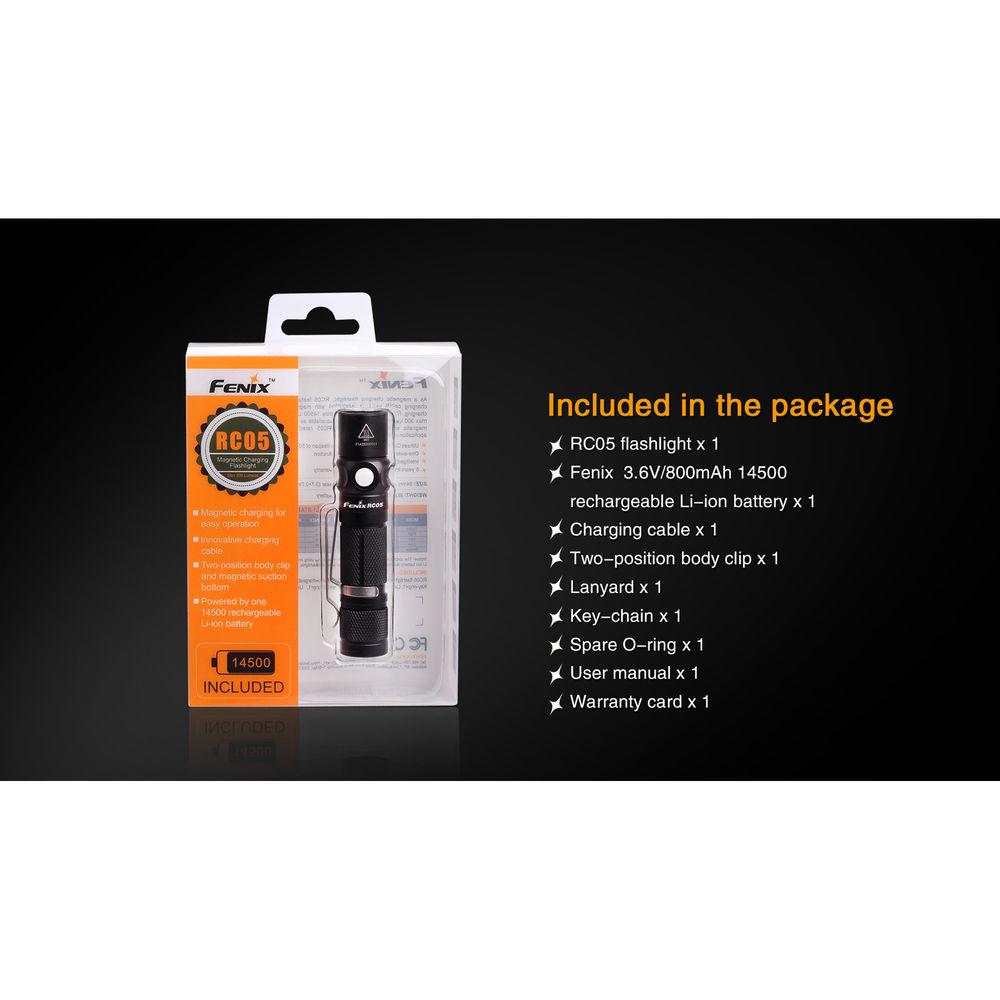

In the Box Fenix Flashlight RC05 Rechargeable Flashlight Keyring Lanyard Two-Way Clip Spare O-Ring Charging Cable 14500 Li-Ion Rechargeable Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight RC05 Rechargeable Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

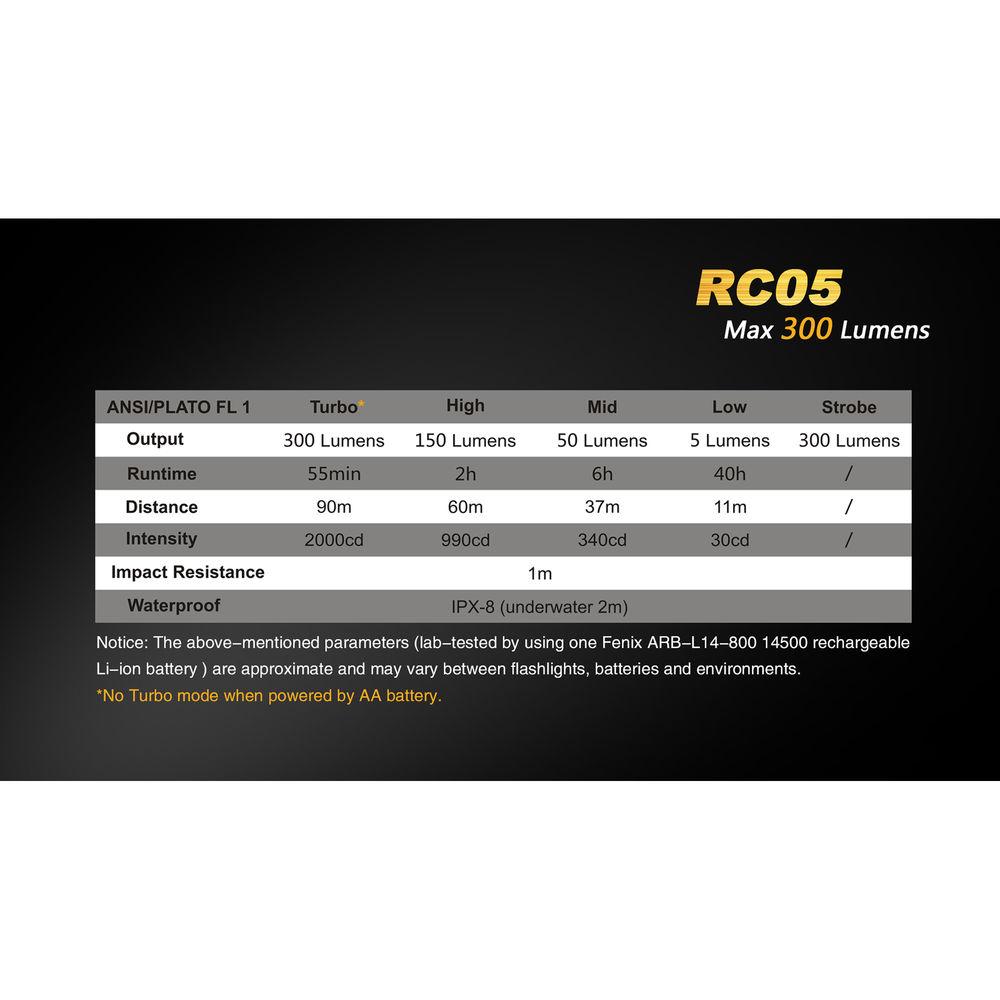

Technical parametersFenix Flashlight RC05 Specs | | | Lumen Output | High: 300 Lumens
Medium: 150 Lumens
Low: 50 Lumens
Minimum: 5 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 2 Hours
Medium: 6 Hours
Low: 40 Hours
Turbo: 1 Hour | | Battery Type | 1 x 14500 Lithium-Ion | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions |
