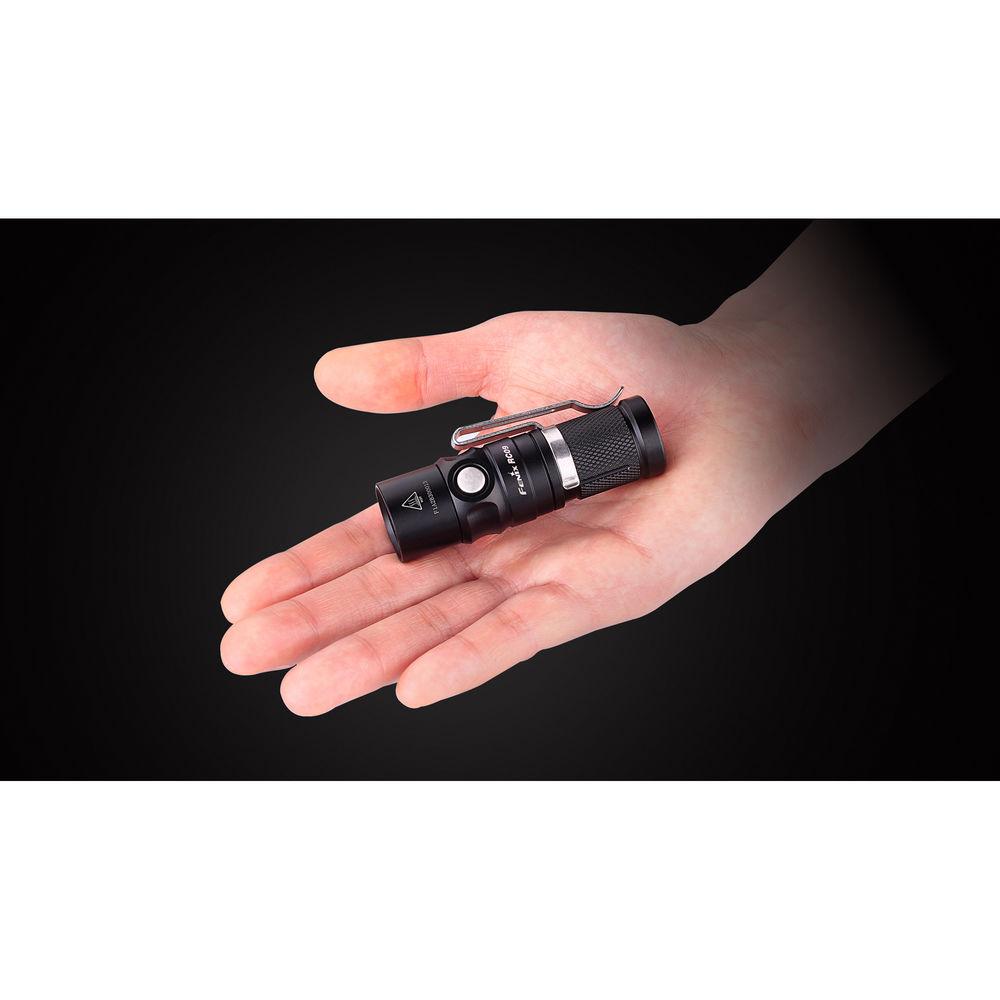

Product description A palm-sized light with big performance and innovative design features, the Fenix RC09 Rechargeable Flashlight is suited to essentials-kit and everyday carry use. It can hang upside down from its magnetic tailcap, the magnetic port makes attaching the charge cable easy, and there are no dead alkaline batteries to dispose of. Featuring four output levels from a low of 5 lumen to a maximum 550 lumen, the RC09 is also equipped with a disorientating strobe setting. A single switch on the body gives you access to all the output intensities and specialty strobe modes. The housing is made of light and durable aluminum with a Type III hard anodized finish. It is impact-resistant to 3.3' and IPX8-rated to be submersible to 6.6'. The tailcap is magnetized, offering countless options for positioning the light for hands-free use. You can carry the light bezel-up or bezel-down, thanks to the two-way clip. The USB charge cable snaps into the magnetic port on the neck of the light to recharge the included 16340 lithium-ion battery. Lockout mode assures the light won't be turned on accidentally in your pocket or pack, and there's a low-voltage indicator to warn you when it's time to recharge. Reverse-polarity protection guards against damage from an improperly installed battery. - Performance
-
- Output settings: 5 / 50 / 150 / 550 lumens, plus strobe function
- Cree XM-L2 U2 LED emitter

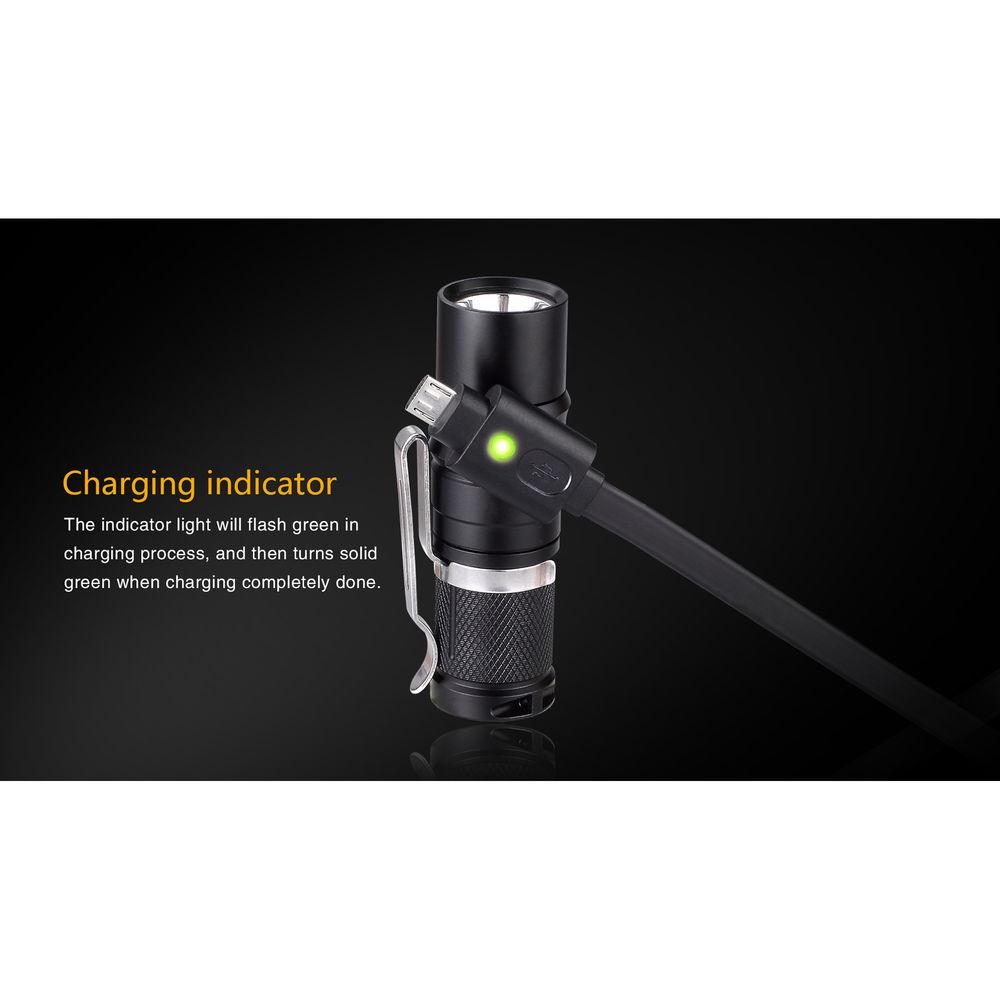

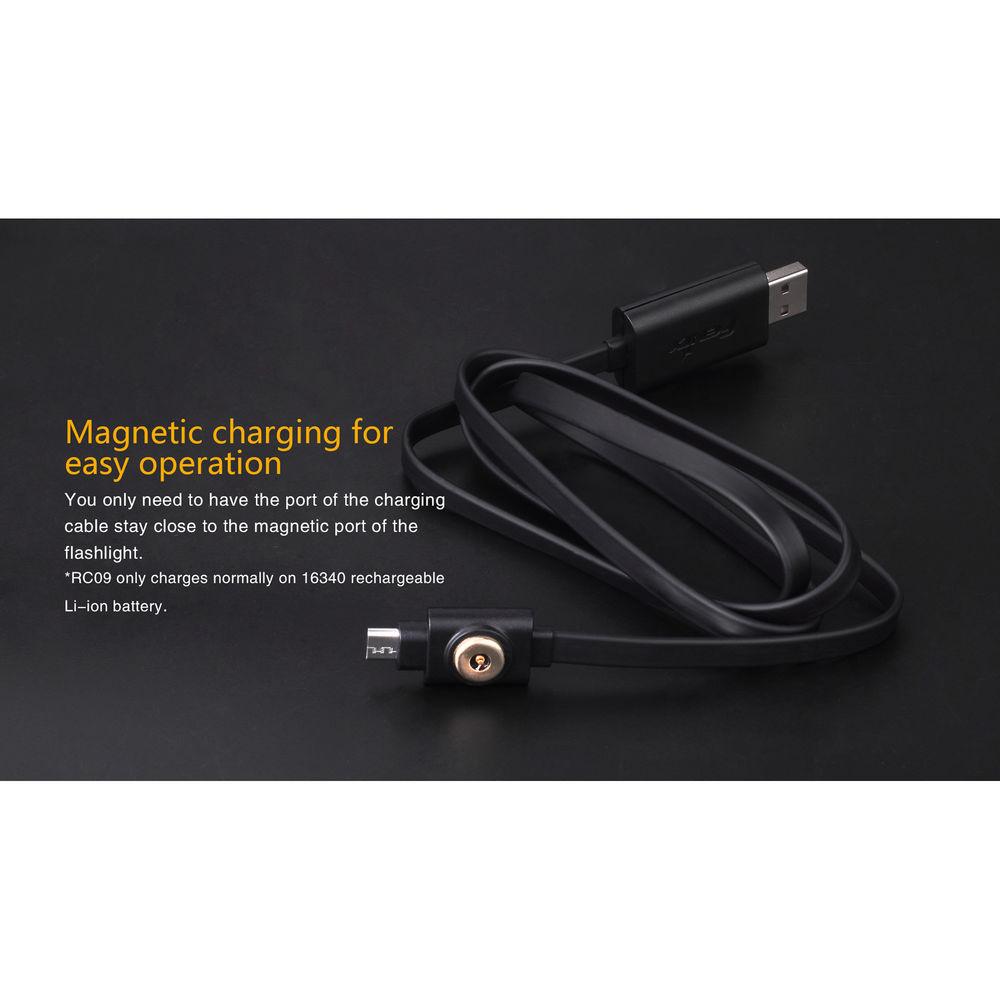

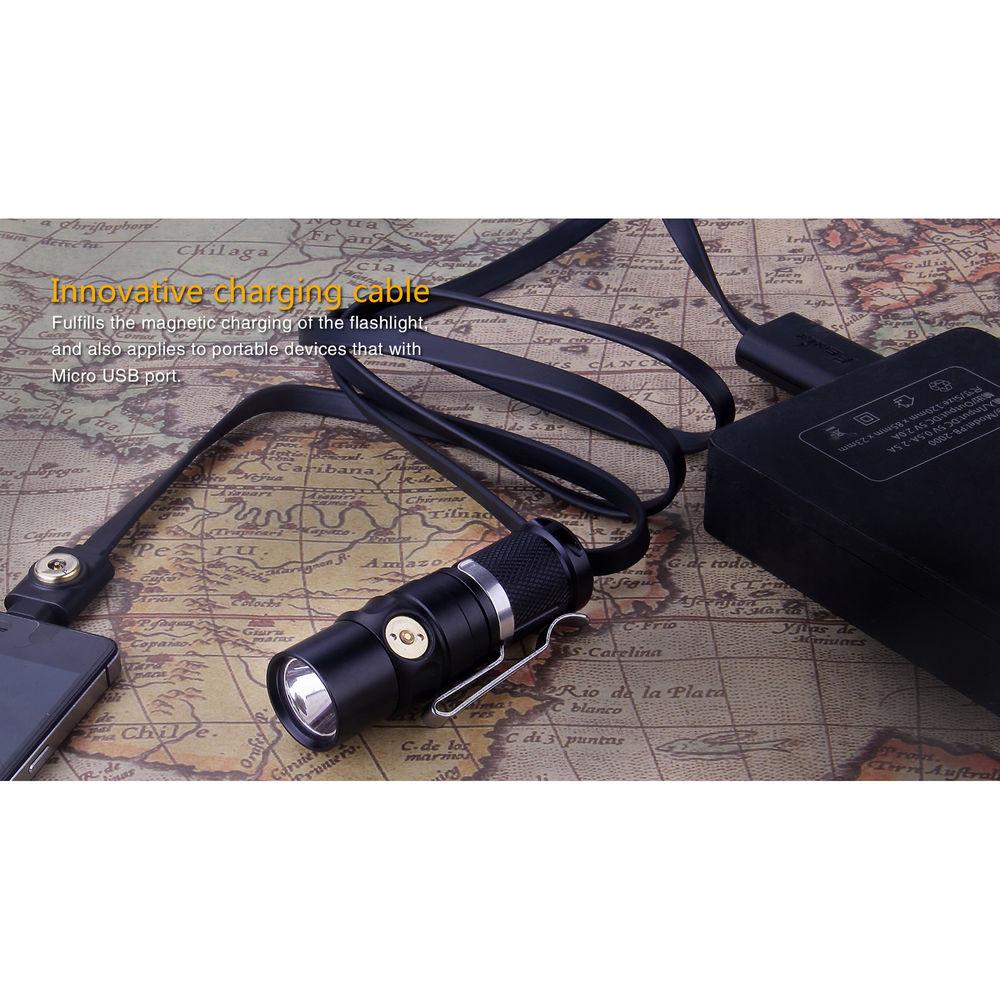

- Magnetic port for USB charging cable

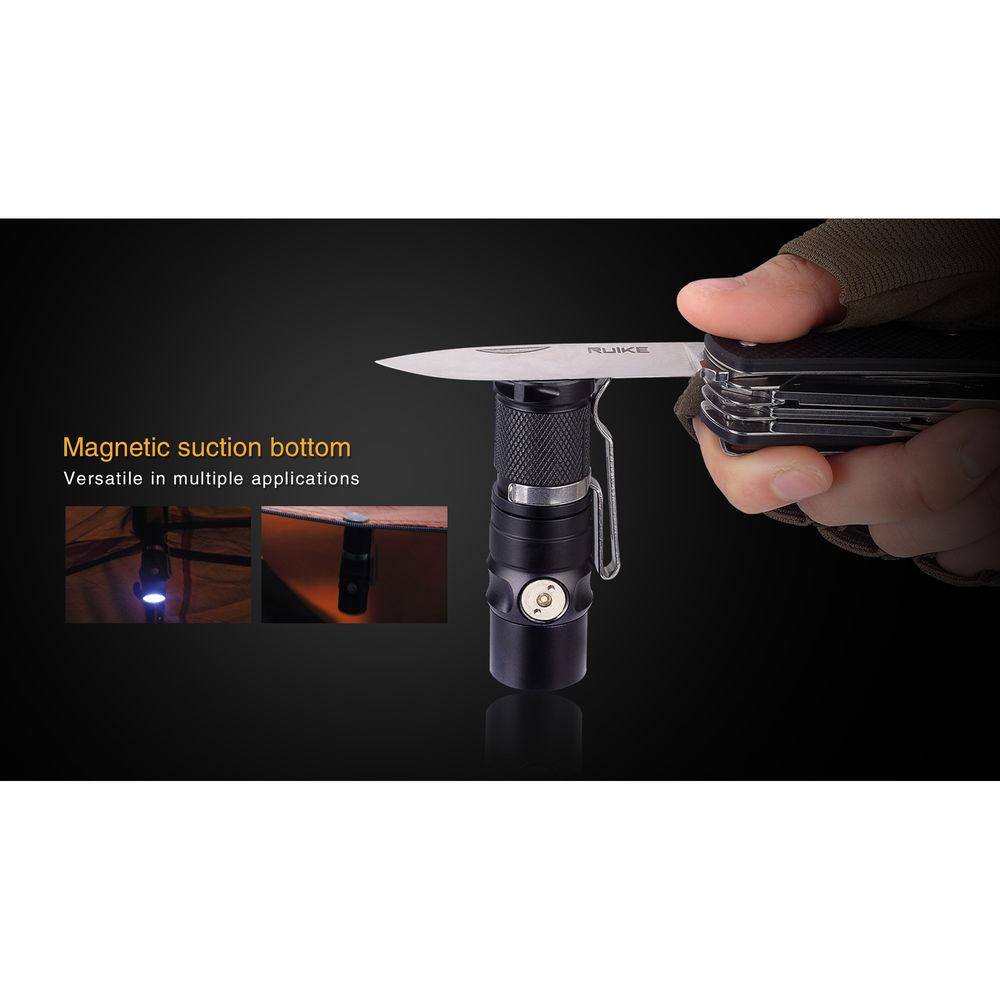

- Magnetized tailcap allows positioning for hands-free use
- One-button side switch for simple control
- Two-position clip
- Digitally regulated output maintains consistent beam intensity throughout life of battery
- Lock-out function avoids accidental operation
- Low-voltage warning when battery needs recharging

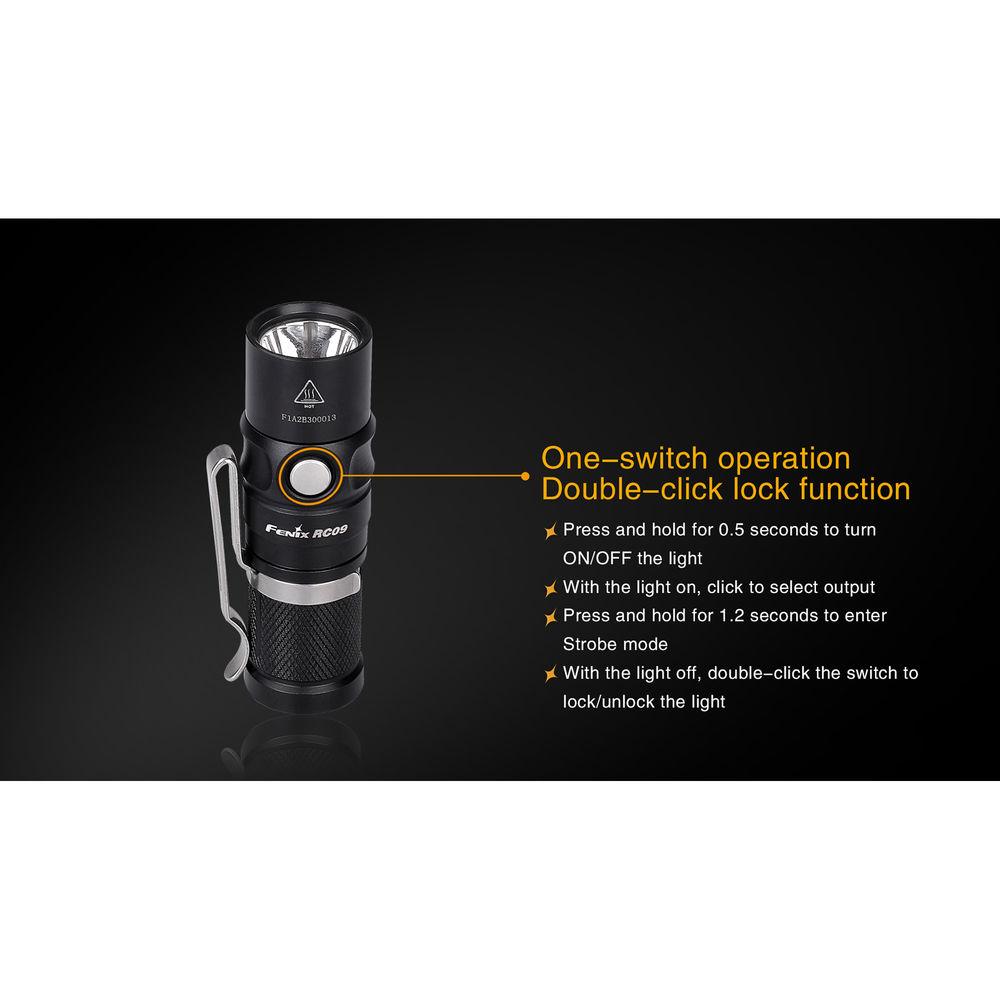

- Switching
-
- Location: Body
- Type: Pushbutton
- Hold for 0.5 second to turn on light
- Click to cycle through settings
- Press & hold 1.2 second for strobe mode
- With light off, double-click for lock/unlock
- Construction
-
- Lightweight aluminum alloy housing
- Corrosion and scratch-resistant black anodized finish
- Anti-reflection coated tempered emitter window
- Impact-resistant to 3.3', and IPX8-rated submersible to 6.6'
- Textured handle provides a slip-resistant grip
- Reverse polarity protection
- Runs on one 16340 rechargeable li-ion
- Batteries charge in light – no dock needed

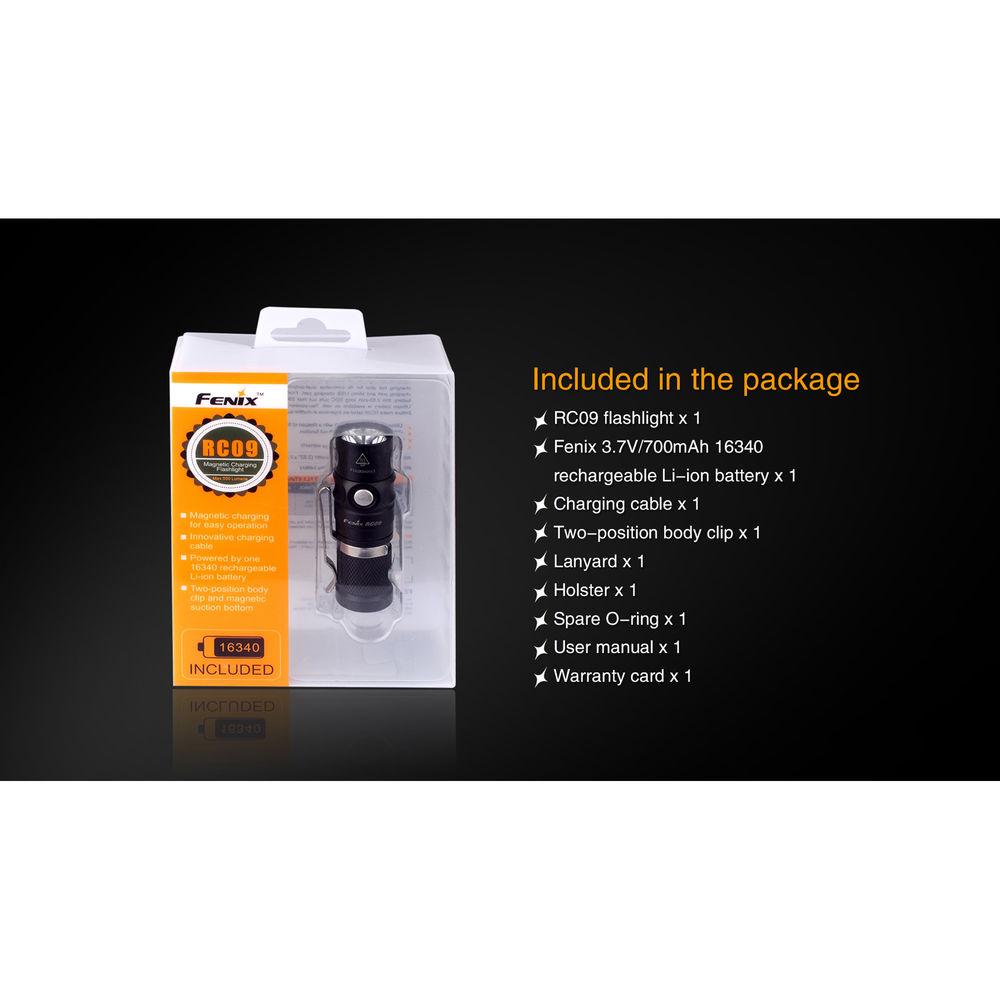

In the Box Fenix Flashlight RC09 Rechargeable Flashlight Holster Lanyard Two-Way Clip Spare O-Ring Charging Cable 16340 Li-Ion Rechargeable Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight RC09 Rechargeable Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

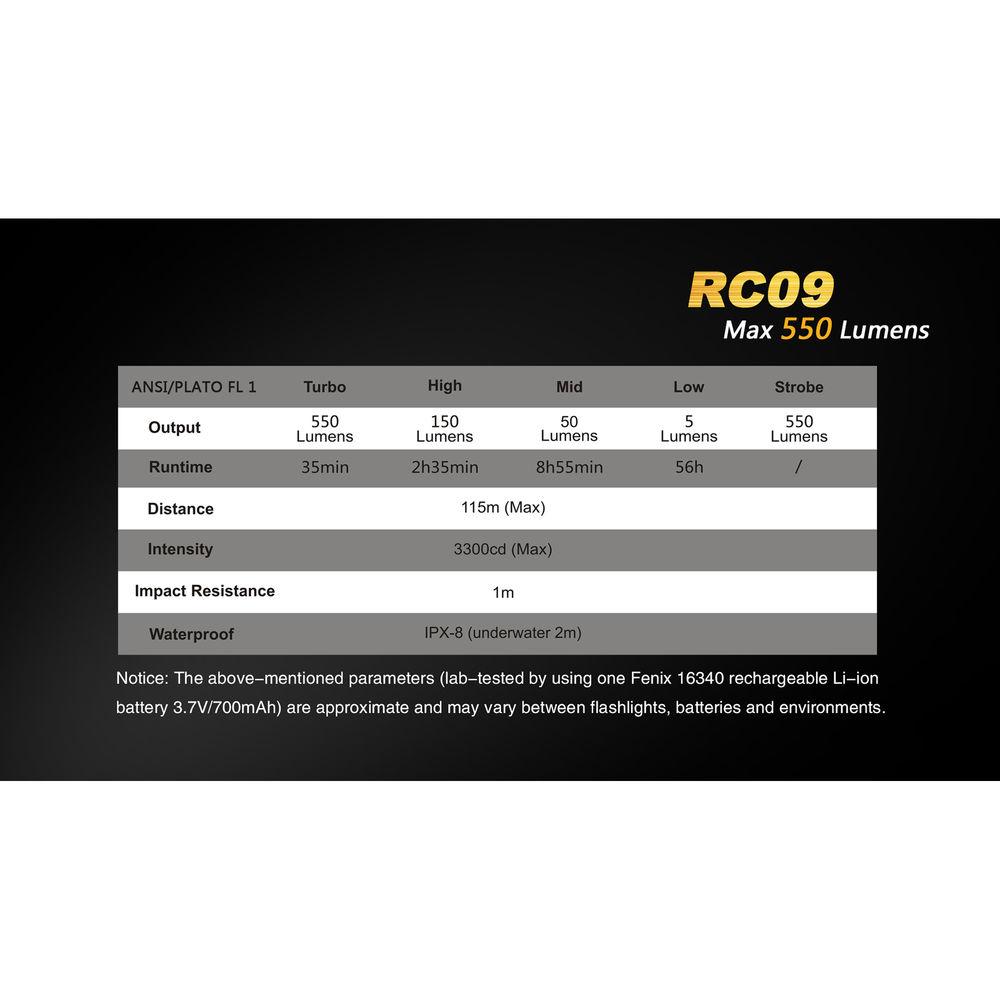

Technical parametersFenix Flashlight RC09 Specs | Lumen Output | High: 550 Lumens Medium: 150 Lumens Low: 50 Lumens Minimum: 5 Lumens | Illumination Source | 1 x LED | | Estimated Runtime | High: 2.4 Hours Medium: 8.9 Hours Low: 56 Hours Turbo: 0.6 Hours | Battery Type | 1 x 16340 Lithium-Ion | | Material of Construction | Aluminum | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | Impact Resistance | Yes, 3.3' / 1.0 m | Dimensions |
