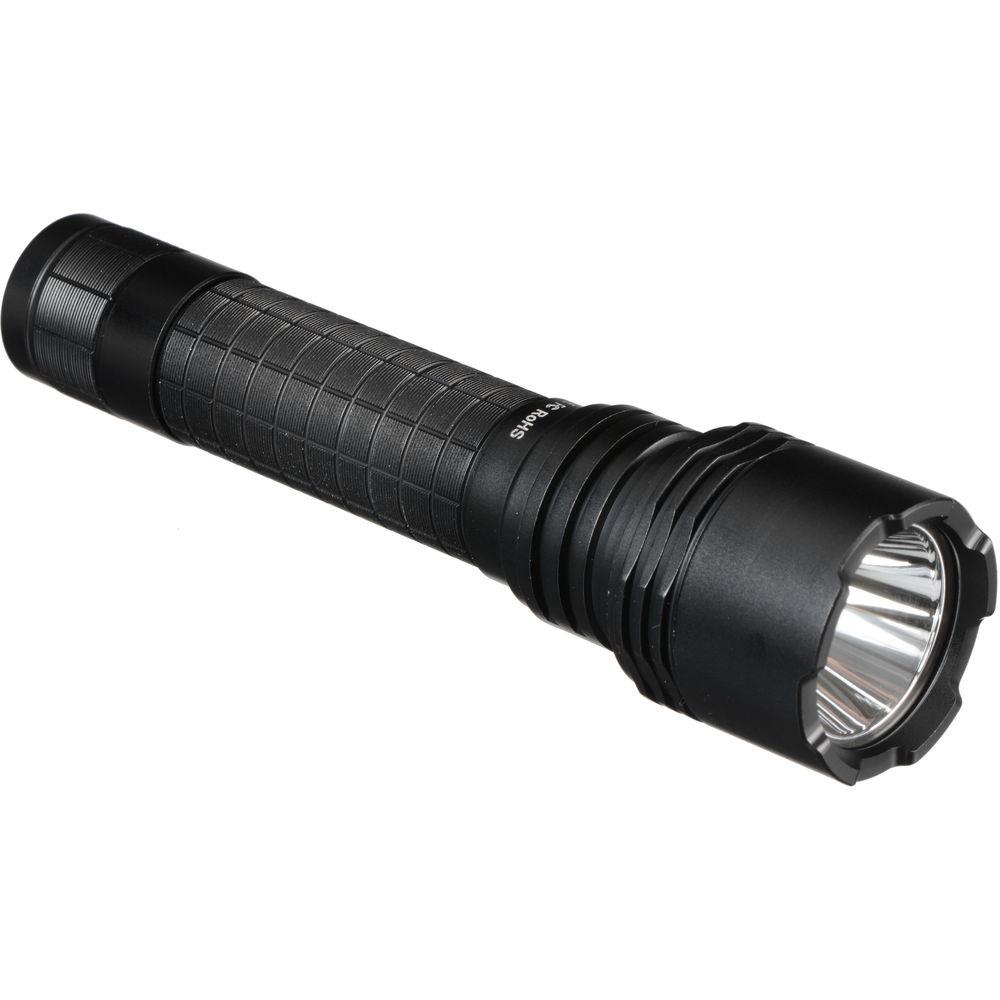

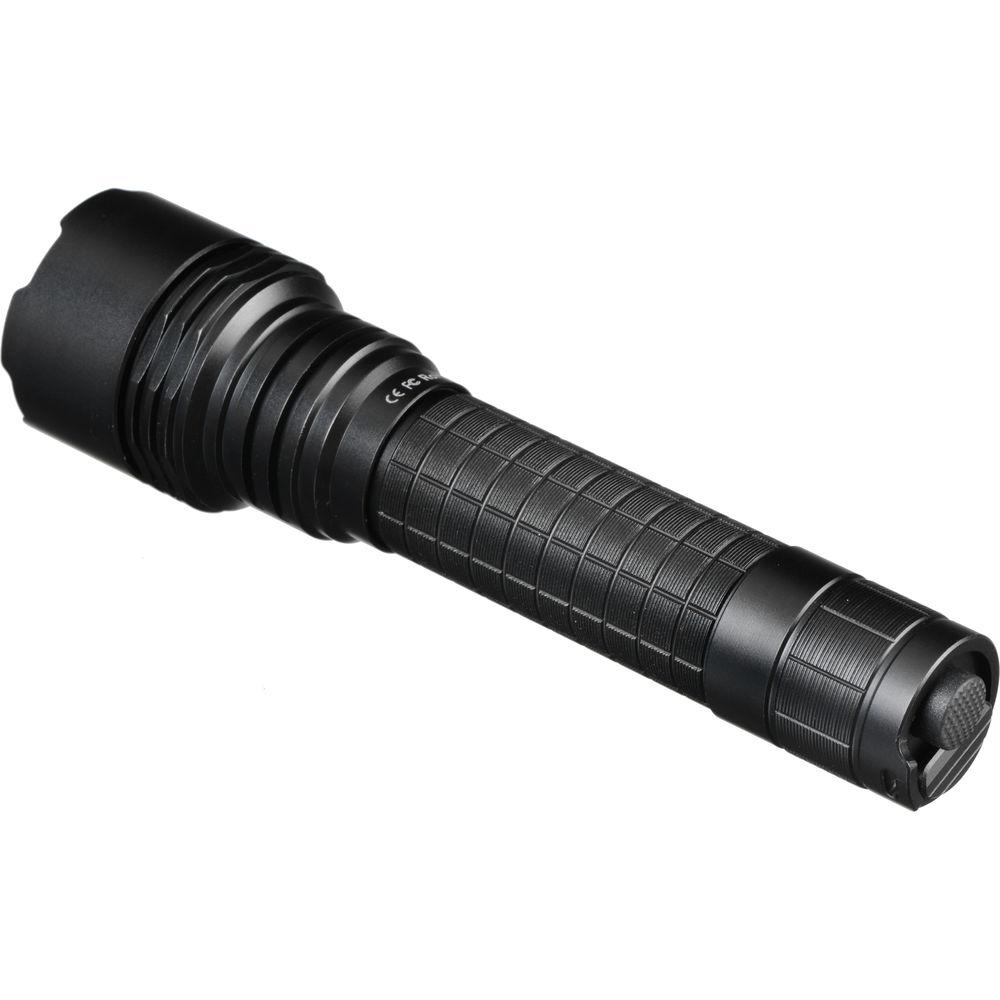

User Manual for Fenix Flashlight RC20 Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight RC20 Rechargeable LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight RC20 Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description Designed for first responders, law enforcement & tactical professionals, or search & rescue personnel, the Fenix RC20 Rechargeable LED Flashlight is a powerful and versatile illumination tool that is ideal for use as an EDC light. The light's abilities start with four output levels from a task-orientated 10 lumens to a darkness-piercing 1000-lumen turbo mode. For emergency situations there is a 1000-lumen strobe mode that is instantly accessible to use as a signal or for disorientating. The light's output capabilities are able to be customized to have access to all four outputs and the strobe for general use, or a simplified mode which only has the 150 and 1000-lumen outputs available plus the strobe. This simplified mode reduces a user's available options so that the chance of confusion is reduced in high-stress situations.Complementing the light's performance are construction and electronic systems that increase the durability and longevity of the light. Its lightweight and durable aluminum alloy housing has a Type III anodized finish that is scratch and corrosion-resistant and deep grenade grip provides slip-resistant handling in cold and wet conditions. The housing is O-ring sealed to give it an IPX8 rating making it waterproof and submersible to 6.6' for up to 30 minutes. A battery level indicator gives you feedback on the state of the battery charge while short circuit, overcharge, and discharge protection help prevent malfunctions. Additionally, active and passive overheat systems safeguard the light. This light runs on the custom internal rechargeable Li-ion battery and comes with a charging cradle and cord. - Performance
-
- Low: 10 lumen
- Med: 150 lumen
- High: 425 lumen
- Turbo: 1000 lumen
- One white Cree XM-L2 (U2) LED emitter
- 1000-lumen strobe to signal or disorientate
- Switching
-
- Location: Tailcap
- Type: Dual pushbutton:
- Round button: On/Off. Press for momentary or click for constant-on
- Half-circle button: Beam intensity and mode selection
- Instant-access to strobe mode, even if light is off
- Last mode memory: automatically enters the previously used brightness level when turned on again
- Selectable modes:
- General Mode all four brightness levels plus strobe
- Simplified Mode with two brightness levels (150/1000 lumens) and strobe for easier use in high-stress situations
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant Type III hard anodized finish
- Scratch and impact-resistant tempered and anti-reflection coated glass window
- Slip-resistant 'grenade' grip handle
- Heat dissipating fins on the head help prevent overheating
- Electronics
-
- Battery level and low-voltage indicators
- Digitally regulated output maintains constant brightness
- Over-heat protection to avoid high temperature of the surface
- Short-circuit protection
- Overcharge protection prevents damage to the battery
- Over-discharge protection prevents battery from being critically depleted
- Charging
-
- Runs a custom internal 2600mAh 3.7V rechargeable Li-ion battery

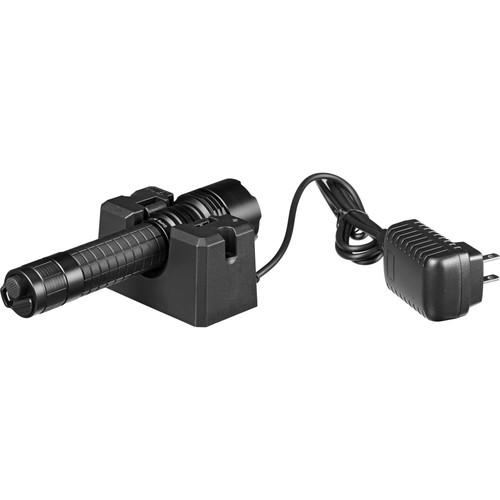

- Includes charging cradle and USB charging cord
- Charge at home with user-supplied 110 VAC outlet or car/vehicle 12 VDC plug adapter
In the Box Fenix Flashlight RC20 Rechargeable LED Flashlight USB Charging Cradle USB Adaptor Holster Lanyard Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight RC20 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight RC20-L2U2 Specs | | | Lumen Output | Low: 10 Lumens
Medium: 150 Lumens
High: 425 Lumens
Turbo: 1000 Lumens
Strobe: 1000 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | High: 2.9 Hours
Medium: 9.5 Hours
Low: 120 Hours
Turbo: 1.1 Hours | | Battery Type | 1 x Built-In Lithium-Ion | | Internal Battery Capacity | 2600 mAh | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.6" / 40.6 mm | | Dimensions |
