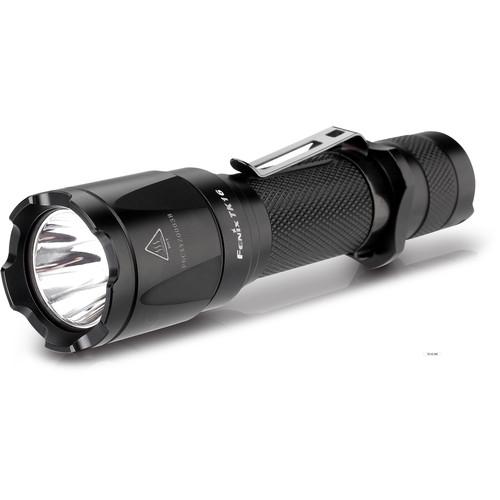

User Manual for Fenix Flashlight TK16 LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight TK16 LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight TK16 LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

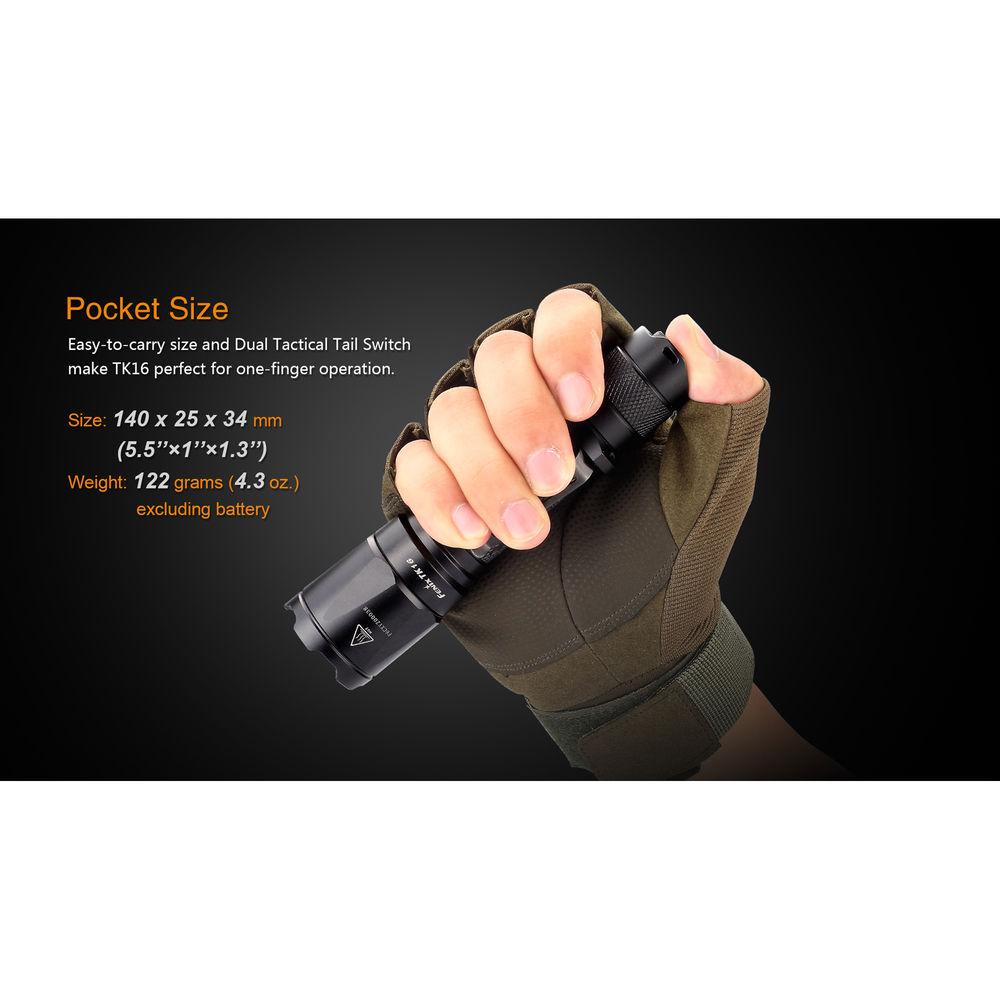

Product description With four brightness settings useful for outdoor and all-around use, and instant access to a 1,000-lumen strobe that can disorient an adversary, the Fenix TK16 LED Flashlight combines the tactical with the practical in a sleek and sturdy package. At 5.5 x 1.3" and 4.3 oz (plus batteries), it can serve as an everyday carry light. The TK16 features dual tailcap switches – one for momentary on and on/off, the other for cycling through settings and instant strobe. Brightness settings range from 10 lumens on low to 1,000 on turbo; the maximum runtime is 150 hours on low. The light comes from a Cree XM-L2 U2 white LED with a lifespan of 50,000 hours. The light runs on a single user-supplied 18650 or two CR123 batteries, and features active and passive over-heat protection, digitally regulated output, and reverse-polarity protection.Complementing the light's performance is a lightweight and durable aluminum alloy body with a protective corrosion and scratch-resistant type III hard anodized finish. The light is impact-resistant tested to 3.3' drops, and IPX8-rated to be submersible to a depth of up to 6.6'. - Light Performance
-
- Low: 10 lumen
- Med: 150 lumen
- High: 400 lumen
- Turbo: 1000 lumen
- Cree XM-L2 U2 white LED
- 1000-lumen strobe mode: Use to disorientate or to signal in emergencies
- Switching
-
- Type: Dual push button
- Location: Tailcap
- Momentary and constant-On modes

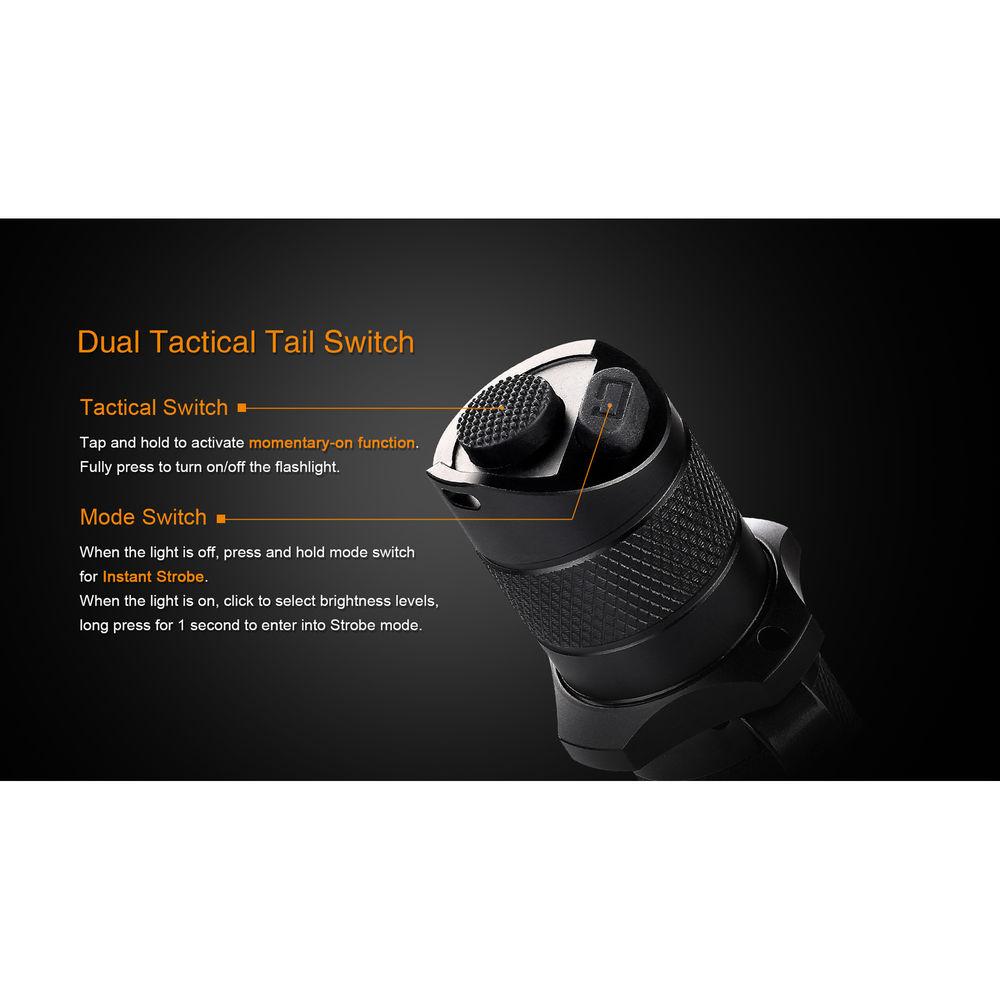

- Tactical tailcap switch for on/off. Press for momentary activation, click for constant-on
- Second tailcap switch activates instant strobe, cycles through brightness settings
- Intelligent last-mode memory switch

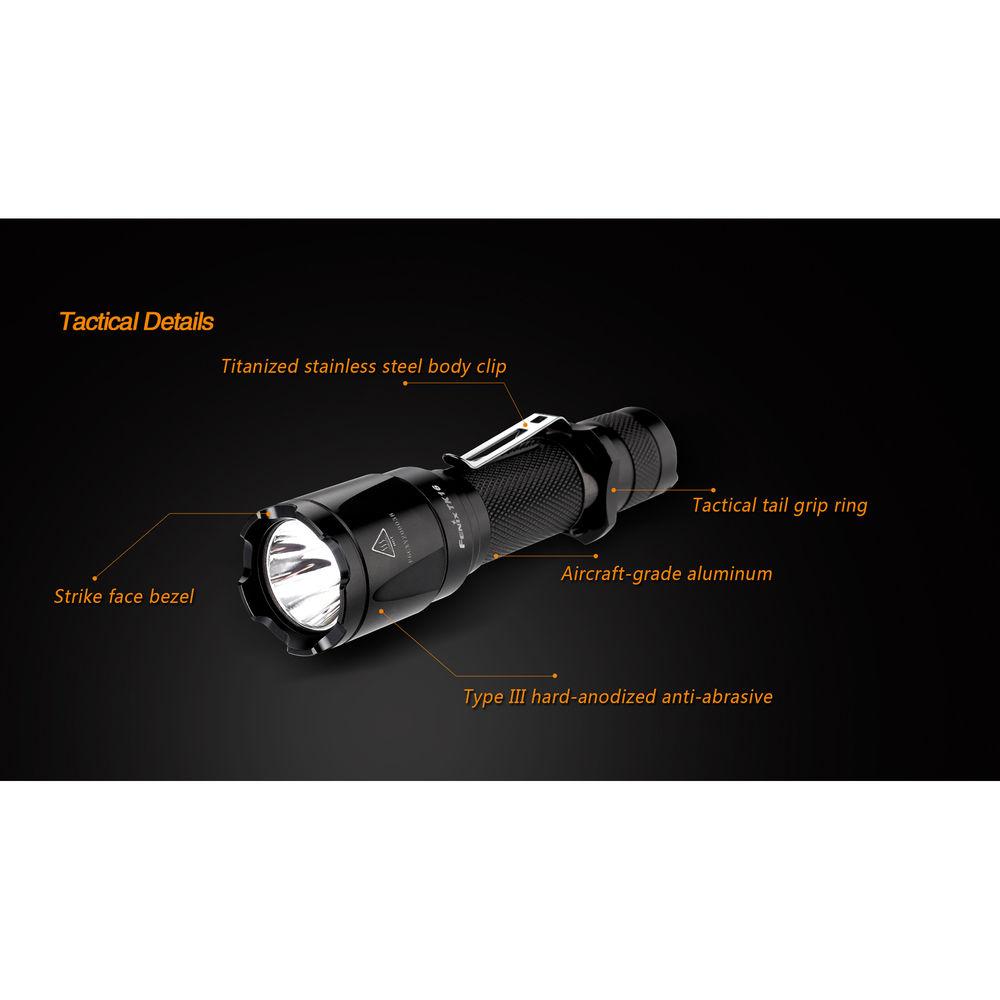

- Construction Details
-
- Lightweight and durable aluminum alloy body
- Scratch and corrosion-resistant type III black anodized finish
- Anti-reflection coated tempered glass emitter window
- Anti-roll and slip-resistant body design
- IPX8-rated, submersible to 6.6'
- Impact resistance tested to 3.3'
- Head tip has five-point crenellations allowing light to shine through when placed head down
- Heat-dissipating fins on head help to prevent overheating
- Removable belt clip
- Electronics
-
- Runs on one user-supplied 18650 rechargeable or two CR123A lithium batteries
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Over-heat protection circuitry automatically steps-down the output to prevent damage due to excessive heat
- Reverse polarity protection prevents damage to light if batteries are installed incorrectly
- Brightness is automatically stepped down when battery power gets low
In the Box Fenix Flashlight TK16 LED Flashlight Holster Clip Lanyard 2 x Spare O-Rings Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight TK16 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight TK16 Specs | | | Lumen Output | Low: 10 Lumens
Medium: 150 Lumens
High: 400 Lumens
Turbo: 1000 Lumens
Strobe: 1000 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | High: 3.4 Hours
Medium: 10 Hours
Low: 150 Hours
Turbo: 1.1 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.3" / 33.0 mm | | Dimensions |
