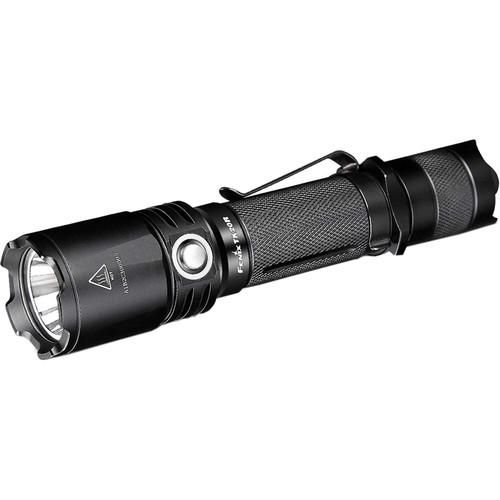

User Manual for Fenix Flashlight TK20R Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight TK20R Rechargeable LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight TK20R Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

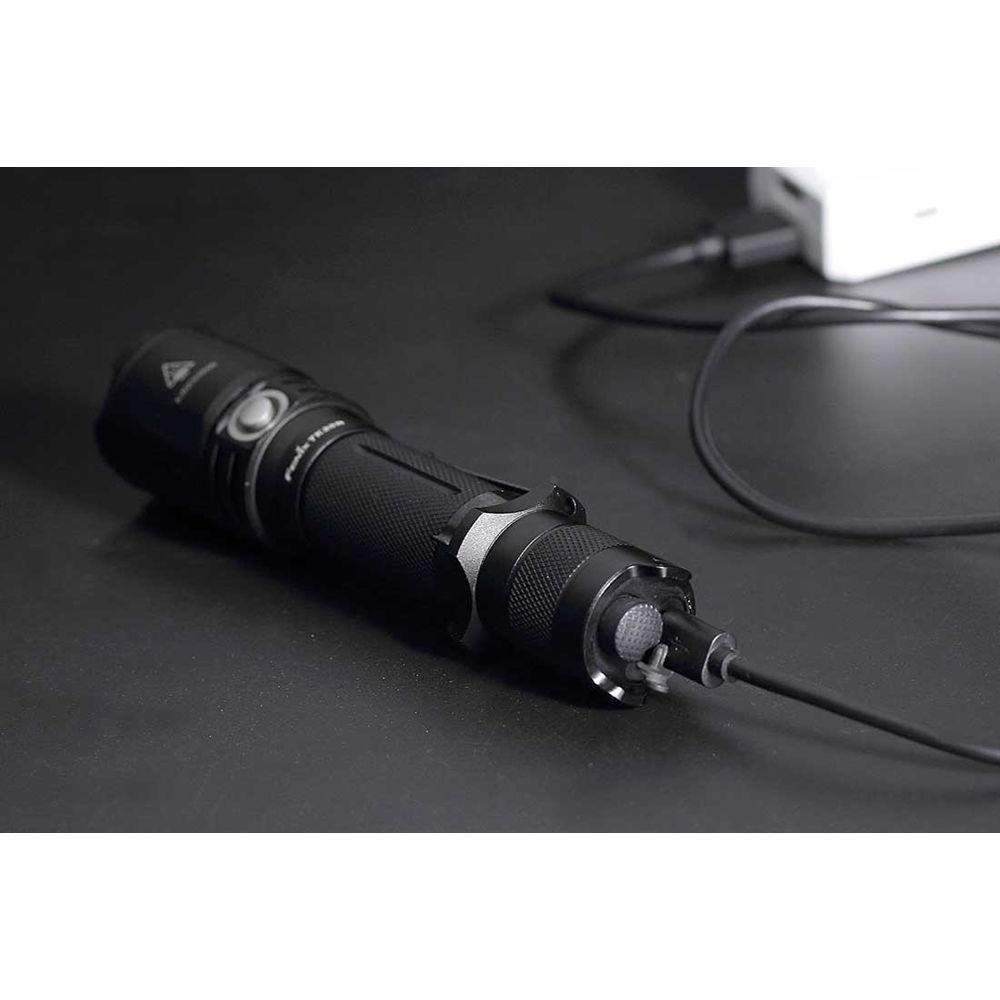

Product description Waterproof and tough, with a peak output of 1000 lumens and maximum runtime of 160 hours, the TK20R Rechargeable LED Flashlight from Fenix is a tactical/professional light that's also well-suited to personal and recreational use. No need to worry about buying fresh batteries – just plug it in and charge it up. The TK20R features a tailcap momentary and constant-on pushbutton switch and a side switch for cycling through its four brightness levels and strobe setting. Brightness settings range from 10 lumens on low to 1,000 on turbo. The light comes from a Cree XP-L HI V3 LED white LED with a lifespan of 50,000 hours. The light runs on a single, included 18650 rechargeable battery or two CR123 batteries, and features active and passive over-heat protection, digitally regulated output, and reverse-polarity protection. Complementing the light's performance is a lightweight and durable dual-layer aluminum alloy body with a protective corrosion and scratch-resistant type III hard anodized finish. The light is impact-resistant tested to 3.3' drops, and IP68-rated to be submersible to a depth of up to 6.6'. - Light Performance
-
- Low: 10 lumen
- Med: 150 lumen
- High: 350 lumen
- Turbo: 1000 lumen
- Cree XPL HI V3 white LED
- Strobe mode to disorientate an adversary or to signal in emergencies

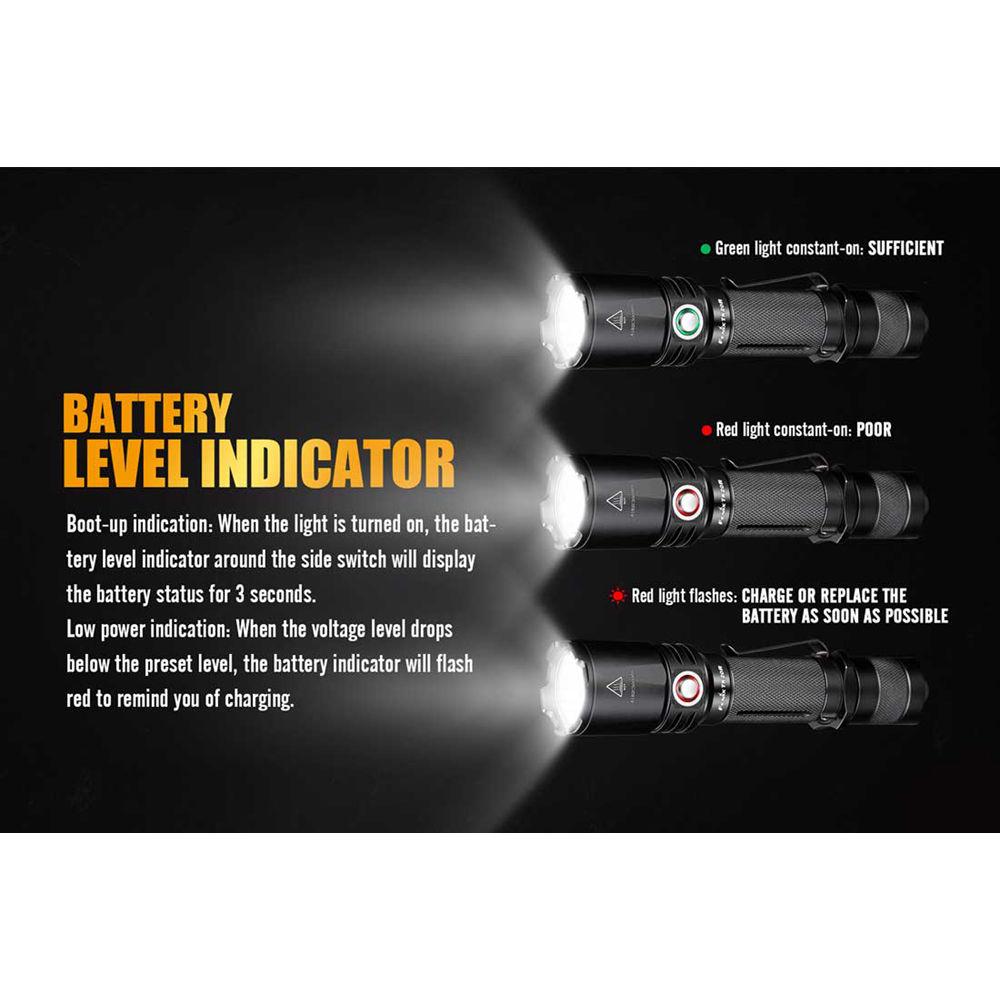

- Battery level indicator
- Switching
-
- Type: Pushbutton
- Location: Tailcap and side
- Momentary and constant-on modes

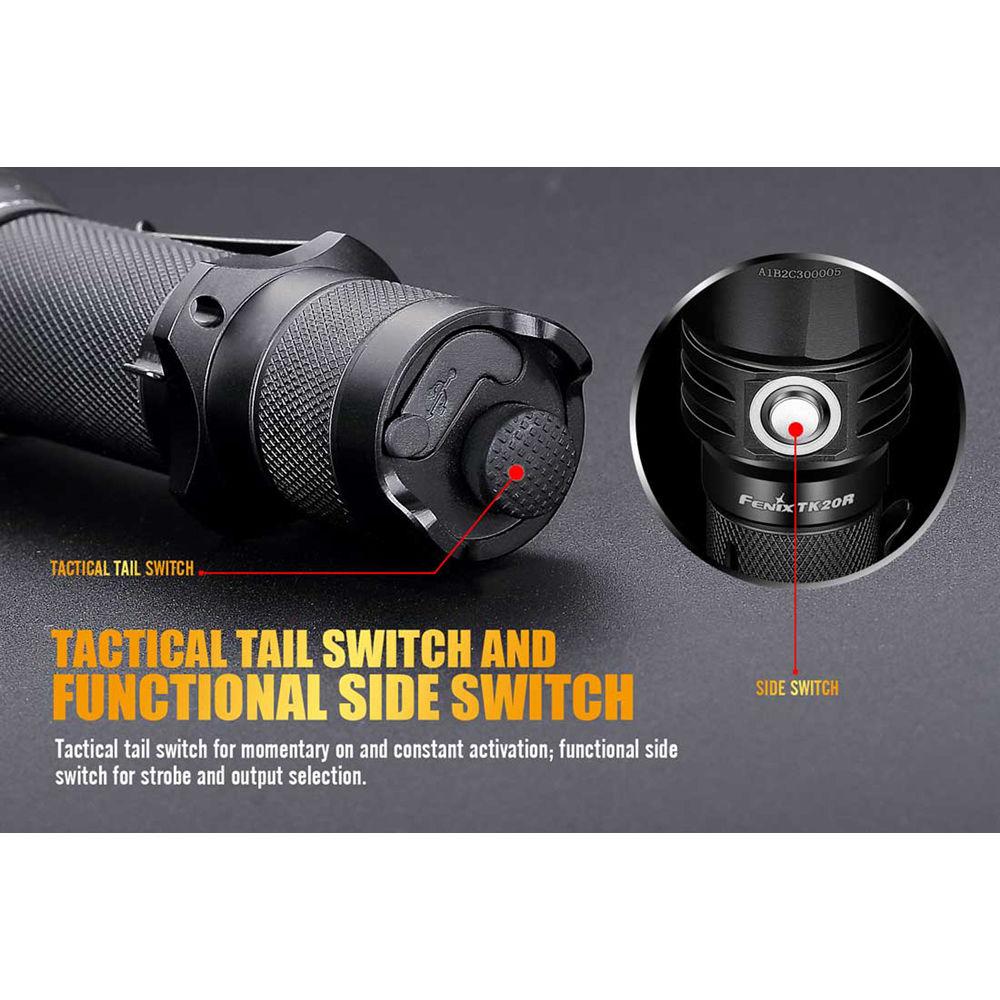

- Tactical tailcap switch for on/off. Press for momentary activation, click for constant-on
- Side switch activates instant strobe, cycles through brightness settings
- Intelligent last-mode memory switch

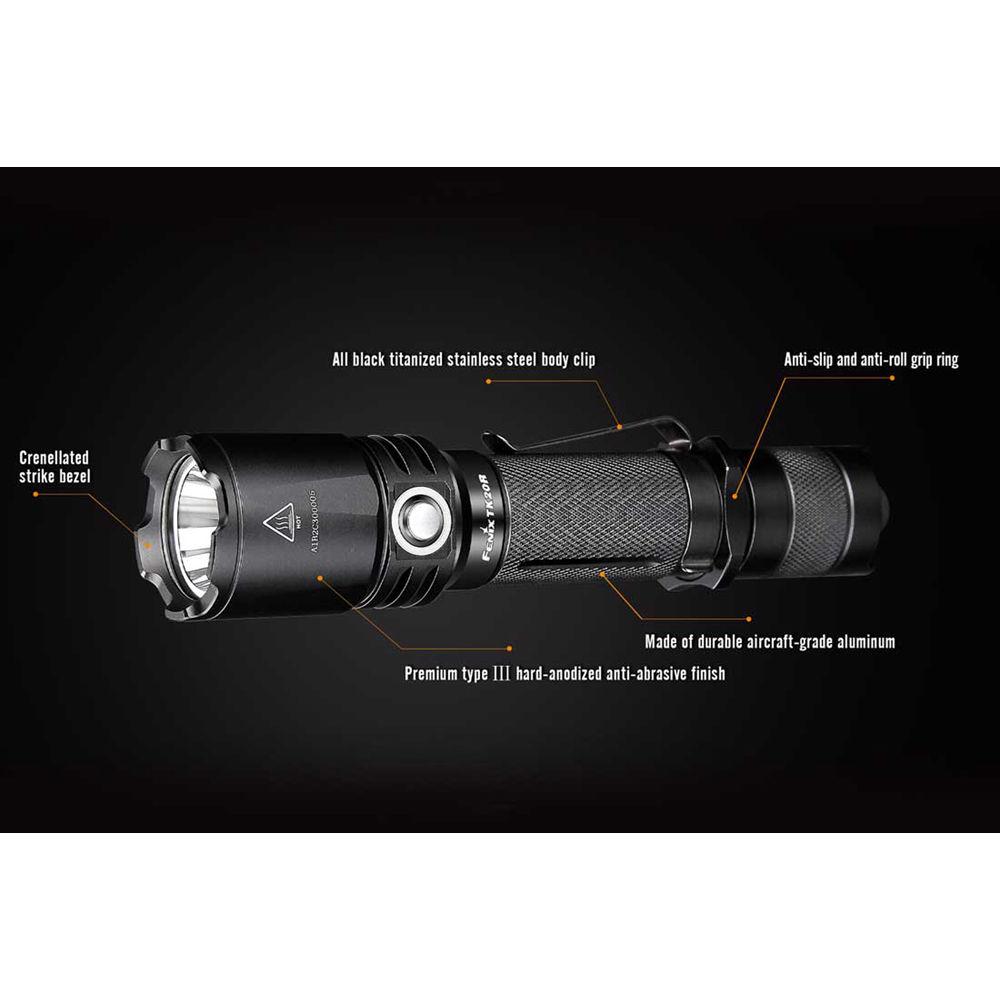

- Construction Details
-
- Lightweight and durable dual-layer aluminum alloy body
- Scratch and corrosion-resistant type III black anodized finish
- Anti-reflection coated tempered glass emitter window
- Anti-roll and slip-resistant body design
- IP68-rated, submersible to 6.6'
- Impact-resistance tested to 3.3'
- Crenellated bezel
- Removable belt clip
- Electronics
-
- Runs on one 18650 rechargeable or two CR123 lithium batteries
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Over-heat protection circuitry automatically steps-down the output to prevent damage due to excessive heat
- Reverse polarity protection prevents damage to light if batteries are installed incorrectly
- Brightness is automatically stepped down when battery power gets low
In the Box Fenix Flashlight TK20R Rechargeable LED Flashlight 3.6V/2900mAh 18650 Rechargeable Battery USB Charging Cable Holster Clip Lanyard Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight TK20R Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight TK20R Specs | | | Lumen Output | Low: 10 Lumens
Medium: 150 Lumens
High: 350 Lumens
Turbo: 1000 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | 18650
High: 4 Hours
Medium: 10.5 Hours
Low: 135 Hours
Turbo: 1.5 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.3" / 33.0 mm | | Dimensions |
