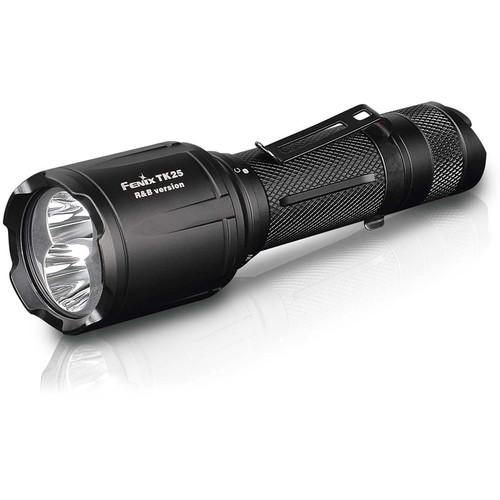

User Manual for Fenix Flashlight TK25 Blue Red Light Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight TK25 Blue Red Light
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight TK25 Blue Red Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description Combining a full-featured, 1000-lumen flashlight with red and blue-light settings, the TK25 R&B Flashlight from Fenix is a versatile tool for hunting, tactical situations, or general use. It offers four white-light settings plus a disorienting strobe. Switching from white light to red or blue involves a simple twist of the light's head. The red setting, with 25 and 150-lumen outputs, helps preserve night-acclimated vision, and the 60-lumen blue setting can be useful for tracking wounded game and fishing. Twist the head back and you have a flashlight with four settings ranging from 15 to 1000 lumens and a 1000-lumen strobe. On the tailcap, the tactical switch provides constant-on or momentary activation, while the functional switch is used to cycle through the settings and can also provide instant access to strobe. The TK25 IR employs a Cree XP-G2 S3 white-light LED. It's digitally regulated to maintain consistent brightness and features low-battery warning, reverse polarity protection to prevent damage from incorrectly installed batteries, and overheat protection. The dual-layer aluminum body has a type III hard-anodized finish with knurling in the grip area and a titanium clip. The toughened glass lens features anti-reflective coating for maximum light transmission. The light comes with a quick release belt clip and is compatible with Fenix's ALG-00 gun-mounting flashlight clip and AER-03 remote pressure switch. - White Light Performance
-
- Low: 15 lumens
- Medium: 100 lumens
- High: 300 lumens
- Turbo: 1000 lumens
- Strobe: 1000 lumens
- One Cree XP-G2 S3 LED
- Digitally-regulated output for consistent brightness
- Red & Blue Light
-

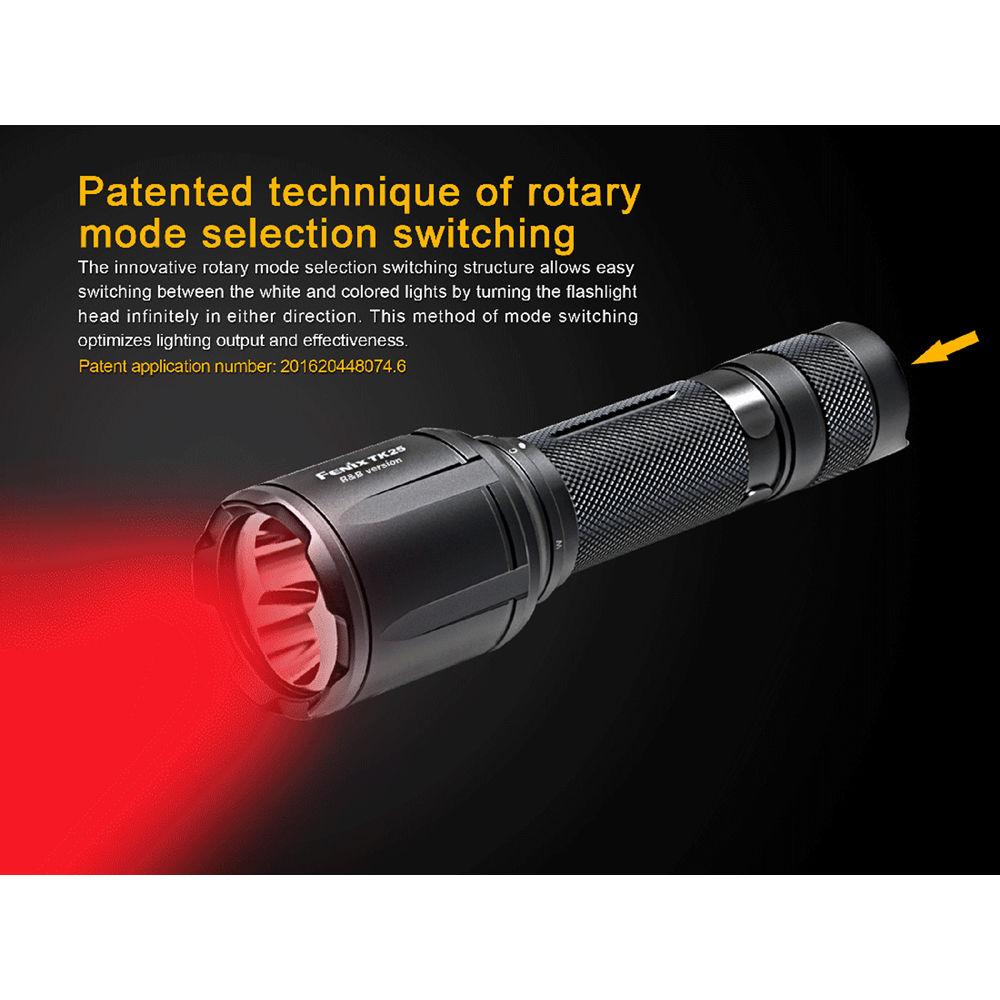

- Rotary head switch
- 25/150-lumen red light
- 60-lumen blue light

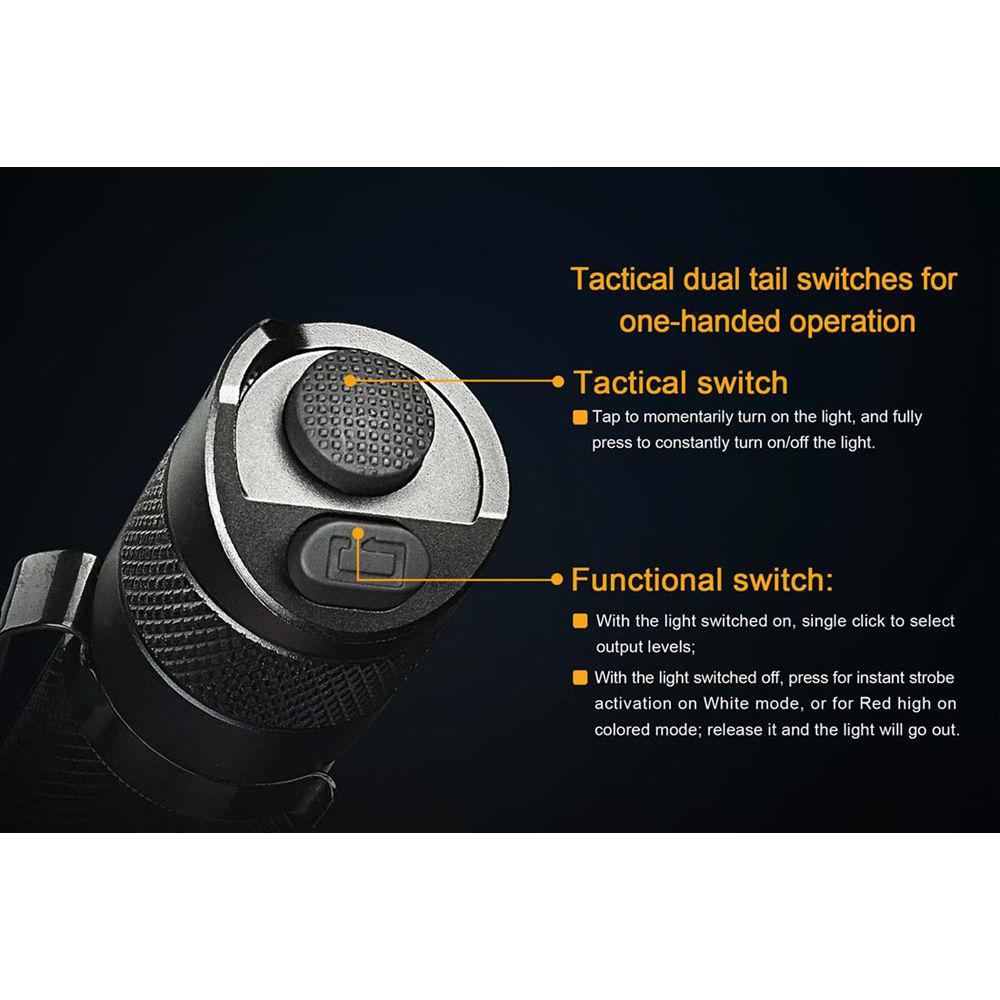

- Switching
-
- Dual tailcap push button switches
- Press tactical switch for momentary-on, clock for constant-on/off
- Function switch for selecting output level
- Hold function switch for instant strobe

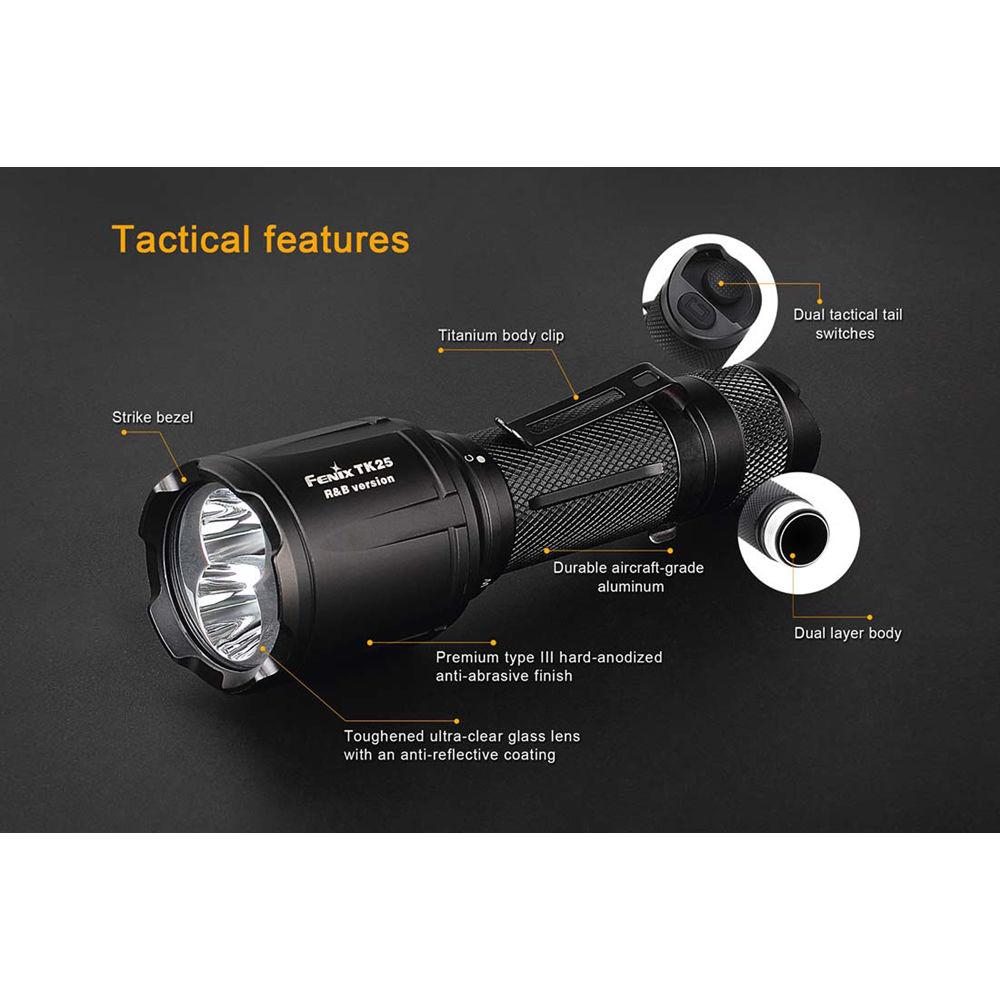

- Construction
-
- Material: Lightweight and sturdy aluminum alloy
- Finish: Type III hard anodized finish
- Emitter window: Toughened clear glass lens with anti-reflective coating
- Waterproofing: IP68-rated, dust and water-resistant
- Impact-resistant
- Low-voltage reminder indicates when battery replacement is needed
- Reverse polarity protection to prevent improper battery installation
- Runs on one 18650 rechargeable lithium-ion batteries or two CR123A lithium batteries

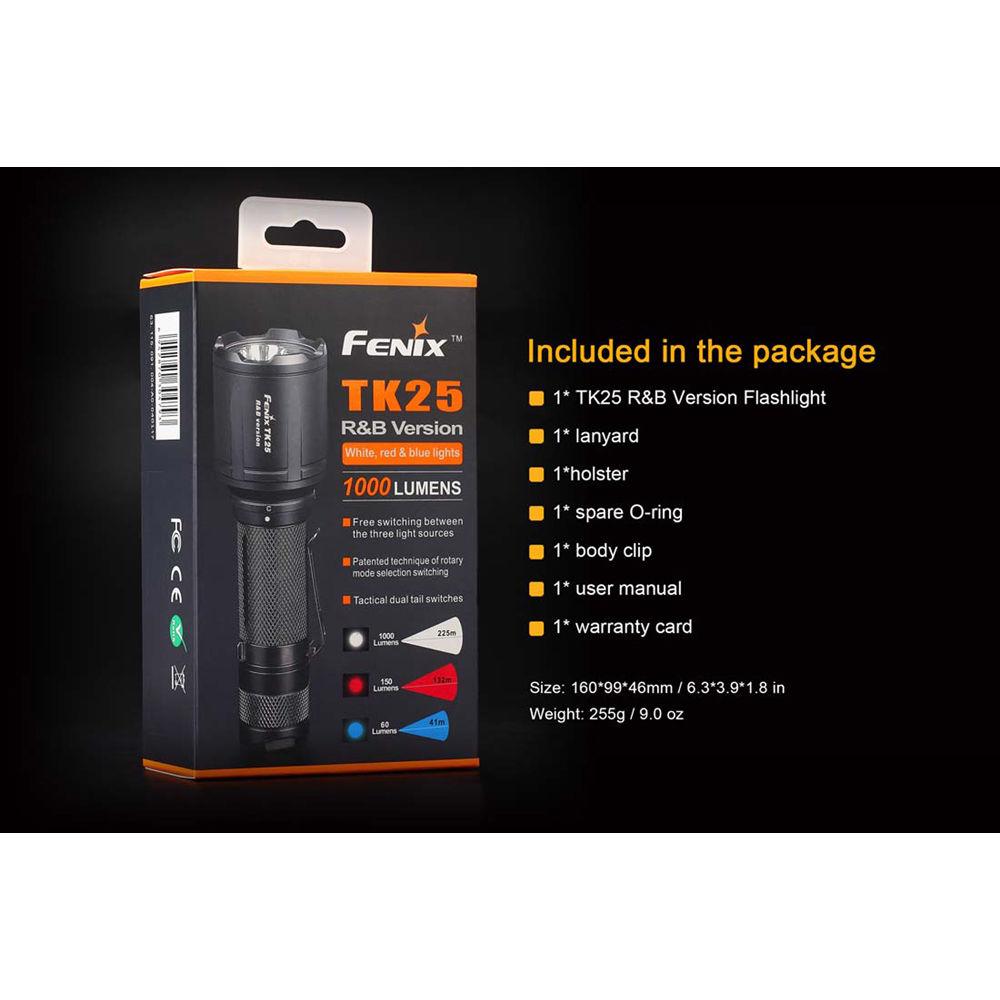

In the Box Fenix Flashlight TK25 Blue/Red Light Flashlight Lanyard Belt Clip Holster Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight TK25 Blue Red Light Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight TK25 Specs | | | Lumen Output | High (White): 300 Lumens
Medium (White): 100 Lumens
Low (White): 15 Lumens
Turbo (White): 1000 Lumens
Strobe (White): 1000 Lumens
High (Red): 150 Lumens
Low (Red): 25 Lumens
Blue: 60 Lumens | | Illumination Source | 1 x White LED
1 x Red LED
1 x Blue LED | | | | Estimated Runtime | High: 5.3 Hours
Medium: 22.3 Hours
Low: 110 Hours
Turbo: 2 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IP68 | | Bezel Diameter | 1.5" / 3.8 cm | | Dimensions |
