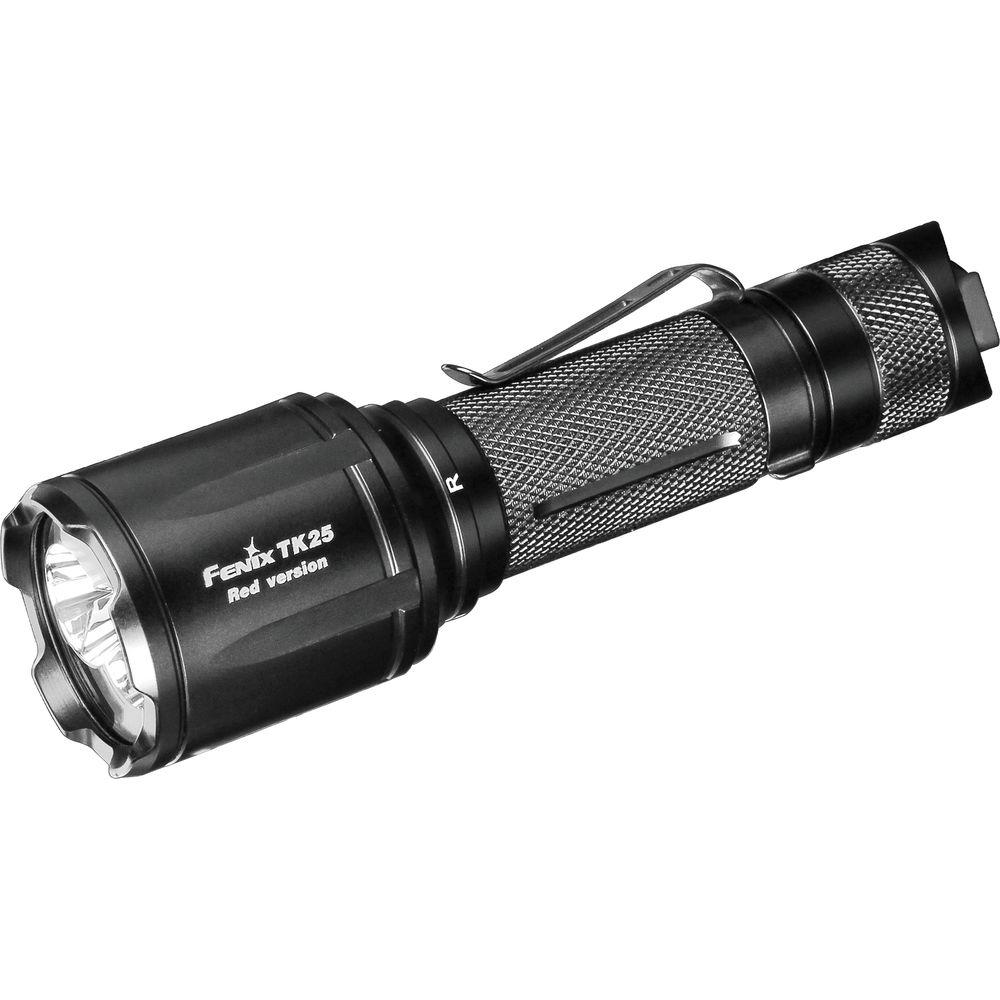

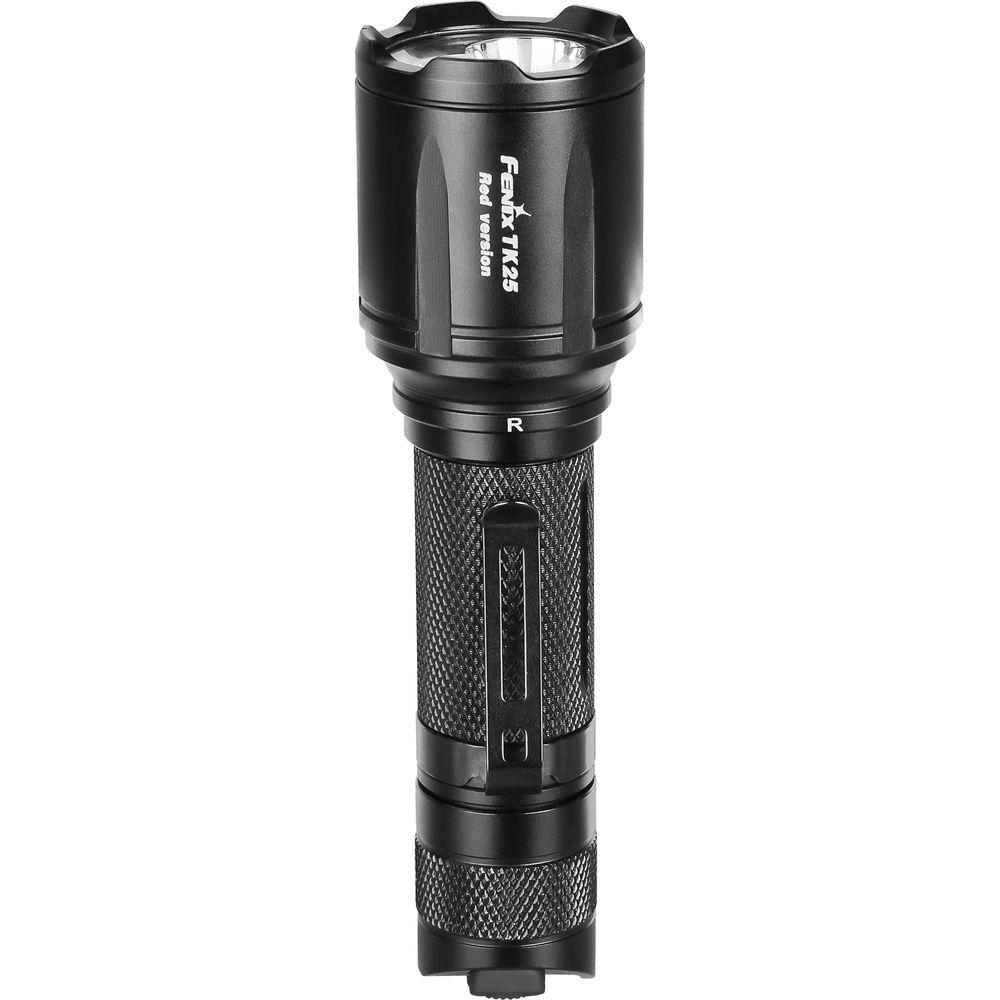

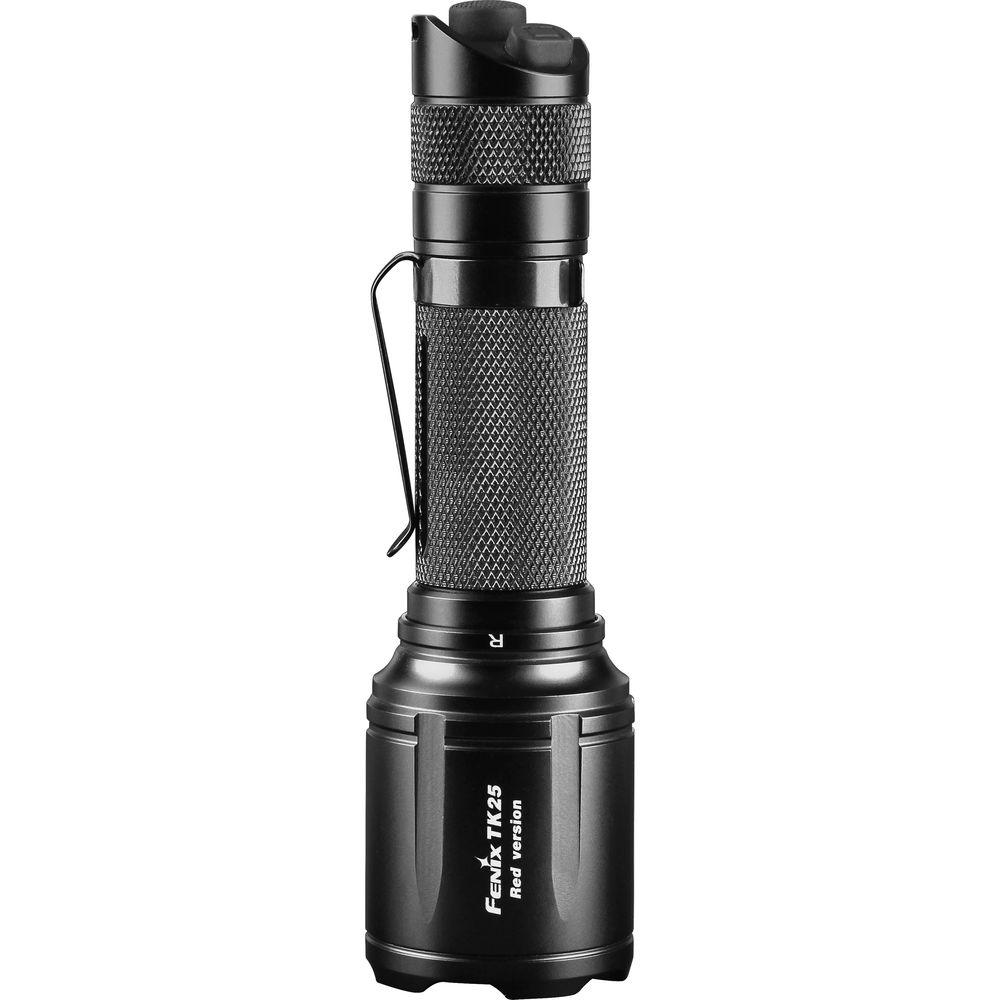

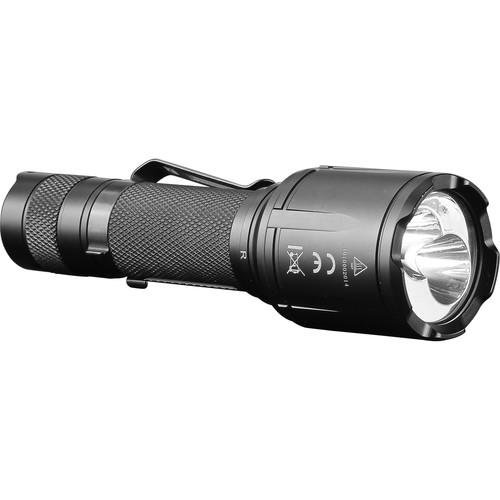

User Manual for Fenix Flashlight TK25 Red White Light Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight TK25 Red White Light
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight TK25 Red White Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description Combining a full-featured, 1000-lumen white-light flashlight with red light that protects night-acclimated vision, the TK25 Red/White Light Flashlight from Fenix is a versatile tool for hunting, tactical situations, or general use. It offers four white-light settings plus a disorienting strobe, and three red settings.
Switching from white light to red involves a simple twist of the light's head. On the tailcap, the tactical push-button switch provides constant-on or momentary activation, while the functional switch is used to cycle through the settings and can also provide instant access to strobe or red high.The TK25 Red/White employs a Cree XP-G2 S3 white-light LED and an XP-E2 red emitter. It's digitally regulated to maintain consistent brightness and features reverse polarity protection to prevent damage from incorrectly installed batteries. The dual-layer aluminum body has a Type III hard-anodized finish with knurling in the grip area and a titanium clip. The toughened glass lens features anti-reflective coating for maximum light transmission.The light is compatible with Fenix's ALG-01/ALG-00 gun-mounting flashlight clip and AER-03 remote pressure switch. - Flashlight Performance
-
- Low: 15 lumens
- Medium: 100 lumens
- High: 300 lumens
- Turbo: 1000 lumens
- Strobe: 1000 lumens
- Runtime: 2-110 hours
- One Cree XP-G2 S3 LED
- Digitally regulated output for consistent brightness
- Red Light Performance
-
- 10/100/310 Lumens
- 90/1200/5500 mW
- Runtime: 2.6-100 hours
- Cree XP-E2 red LED
- Switching
-

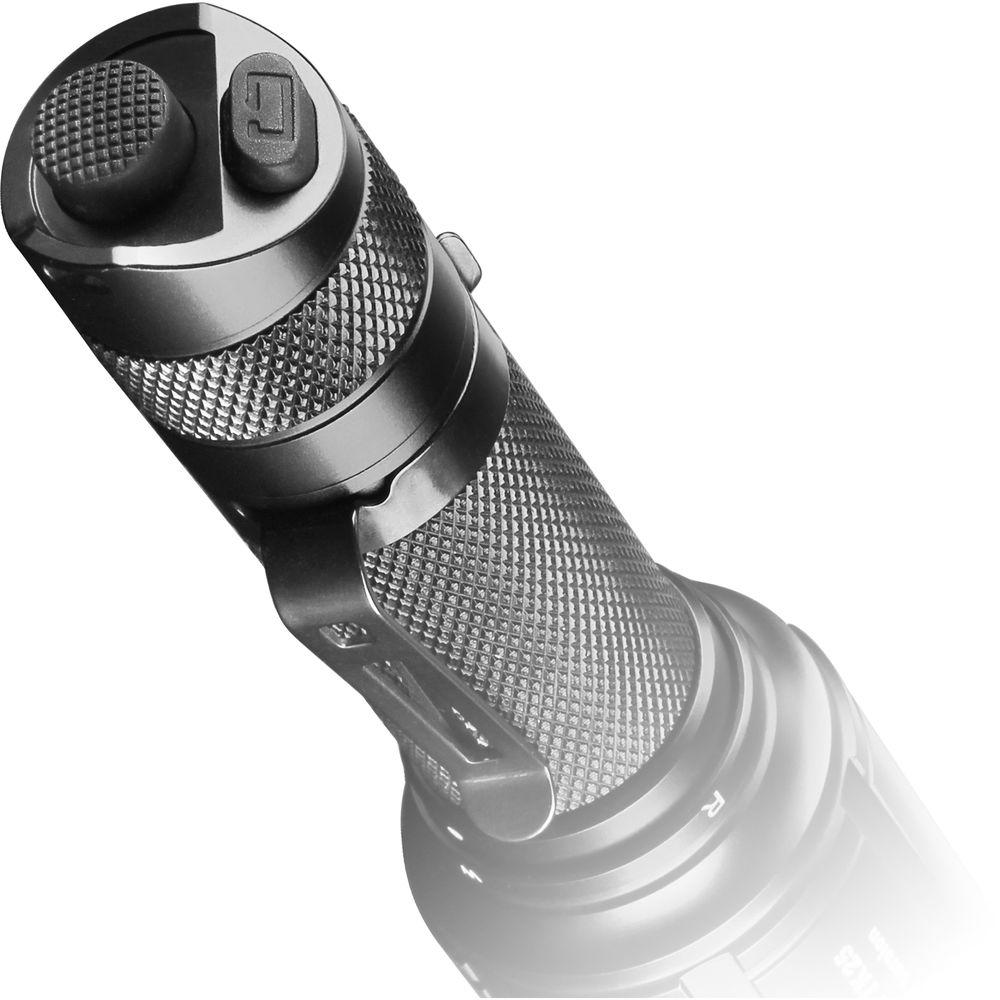

- Dual tailcap push-button switches
- Press tactical switch for momentary-on, clock for constant-on/off
- Function switch for selecting output level
- Hold function switch for instant strobe
- Rotary head switch for color selection
- Construction
-
- Lightweight and sturdy aluminum-alloy construction
- Type III hard anodized finish
- Toughened clear glass lens with anti-reflective coating
- Crenelated strike bezel
- Waterproofing: IP68-rated, submersible to 6.6'
- Impact resistant to 3.3' drops
- Reverse polarity protection to prevent improper battery installation
- Runs on one 18650 rechargeable lithium-ion battery or two CR123A lithium batteries
In the Box Fenix Flashlight TK25 Red/White Light Flashlight Lanyard Holster Body Clip Spare O-Ring Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight TK25 Red White Light Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight TK25 Specs | | | Lumen Output | Turbo (White): 1000 Lumens
High (White): 300 Lumens
Medium (White): 100 Lumens
Low (White): 15 Lumens
High (Red): 310 Lumens
Medium (Red): 100 Lumens
Low (Red): 10 Lumens | | Illumination Source | 1 x White LED
1 x Red LED | | Weapon Mountable | Yes | | | | Estimated Runtime | Low (White): 110 Hours
Medium (White): 22.3 Hours
High (White): 5.3 Hours
Turbo (White): 2 Hours
Low (Red): 100 Hours
Medium (Red): 9.3 Hours
High (Red): 2.6 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A Lithium | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.6" / 4.1 cm | | Dimensions | W: 1.0 x L: 5.6" / W: 25.4 x L: 142.2 mm | | Weight | 5.5 oz / 155.9 g (Without Batteries) | | | | Package Weight | 0.56 lb | | Box Dimensions (LxWxH) | 6.4 x 3.9 x 1.8" |
