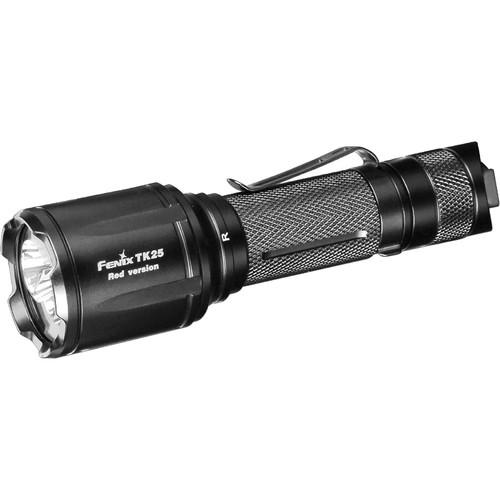

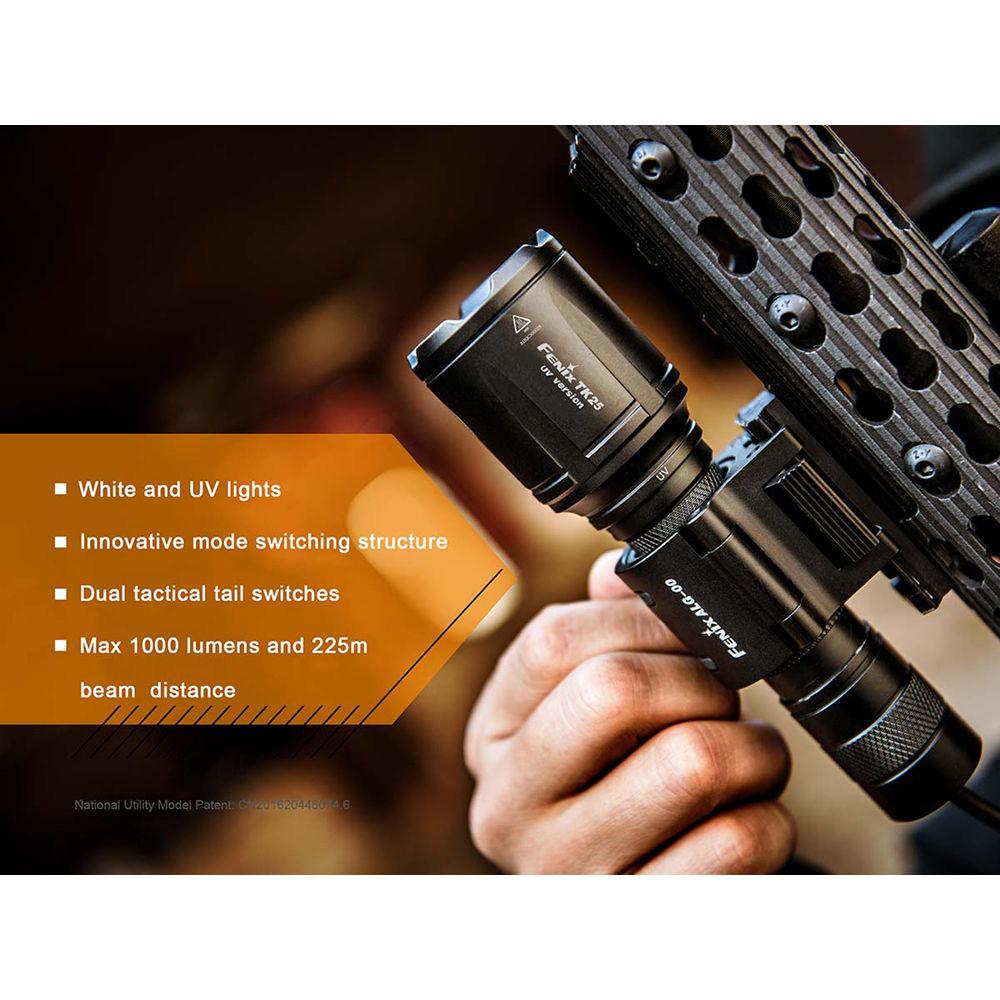

Product description Combining a full-featured, 1000-lumen flashlight with a 1000nW UV light, the TK25 UV Flashlight from Fenix is a versatile tool for police work, document authentication, or general use. It offers four white-light settings plus a disorienting strobe.Switching from white light to UV involves a simple twist of the light's head. The UV setting is for counterfeit currency detection as well as other professional applications. Twist the head back and you have a flashlight with four settings ranging from 15 to 1000 lumens and a 1000-lumen strobe. On the tailcap, the tactical switch provides constant-on or momentary activation, while the functional switch is used to cycle through the settings and can also provide instant access to strobe.The TK25 UV employs a Cree XP-G2 white-light LED. It's digitally regulated to maintain consistent brightness and features a low-battery warning, reverse polarity protection to prevent damage from incorrectly installed batteries, and overheat protection. The aluminum body has a type III hard-anodized finish with knurling in the grip area and a titanium clip. The toughened glass lens features anti-reflective coating for maximum light transmission.The light is compatible with Fenix's ALG-00 gun-mounting flashlight clip and AER-03 remote pressure switch. - White Light Performance
-
- Low: 15 lumens
- Medium: 100 lumens
- High: 300 lumens
- Turbo: 1000 lumens
- Strobe: 1000 lumens
- One Cree XP-G2 LED
- Digitally regulated output for consistent brightness
- UV Light
-
- Rotary head switch
- 3000nW
- 365nm
- Switching
-

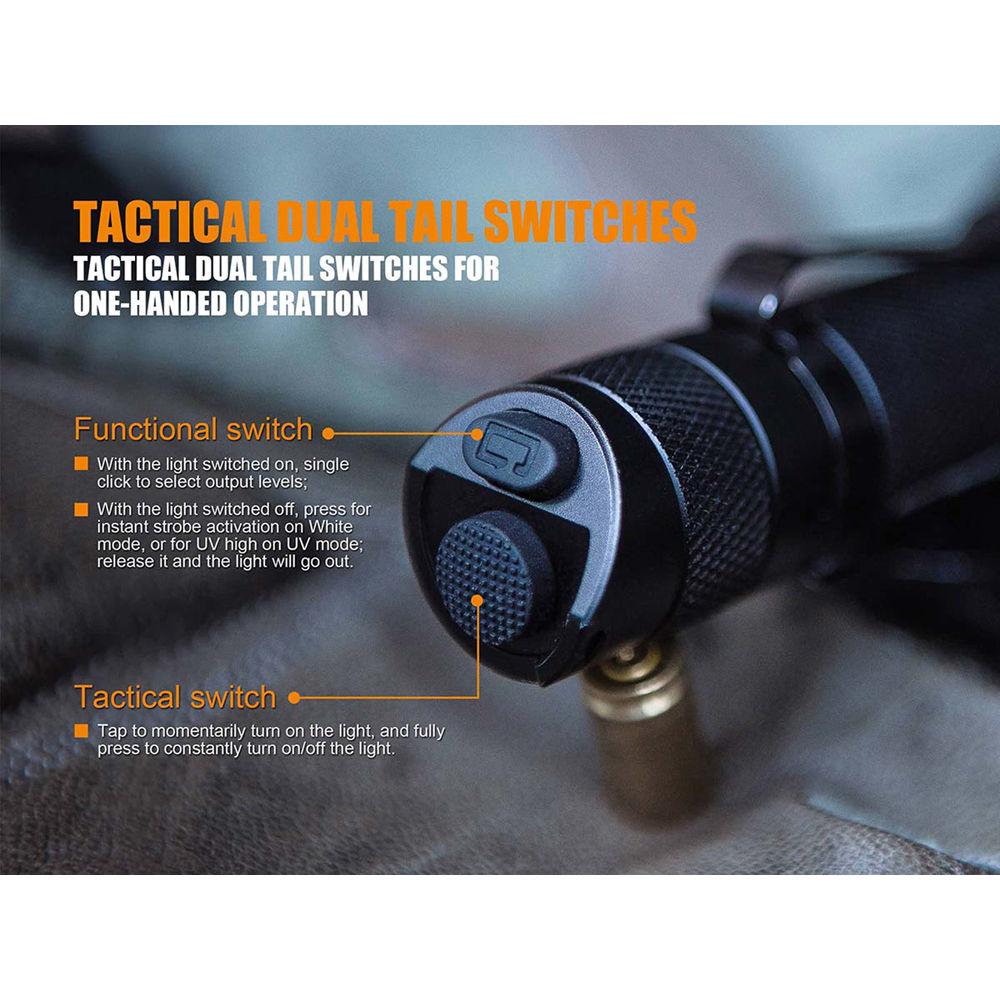

- Dual tailcap push-button switches
- Press tactical switch for momentary on, clock for constant on/off
- Function switch for selecting output level
- Hold function switch for instant strobe

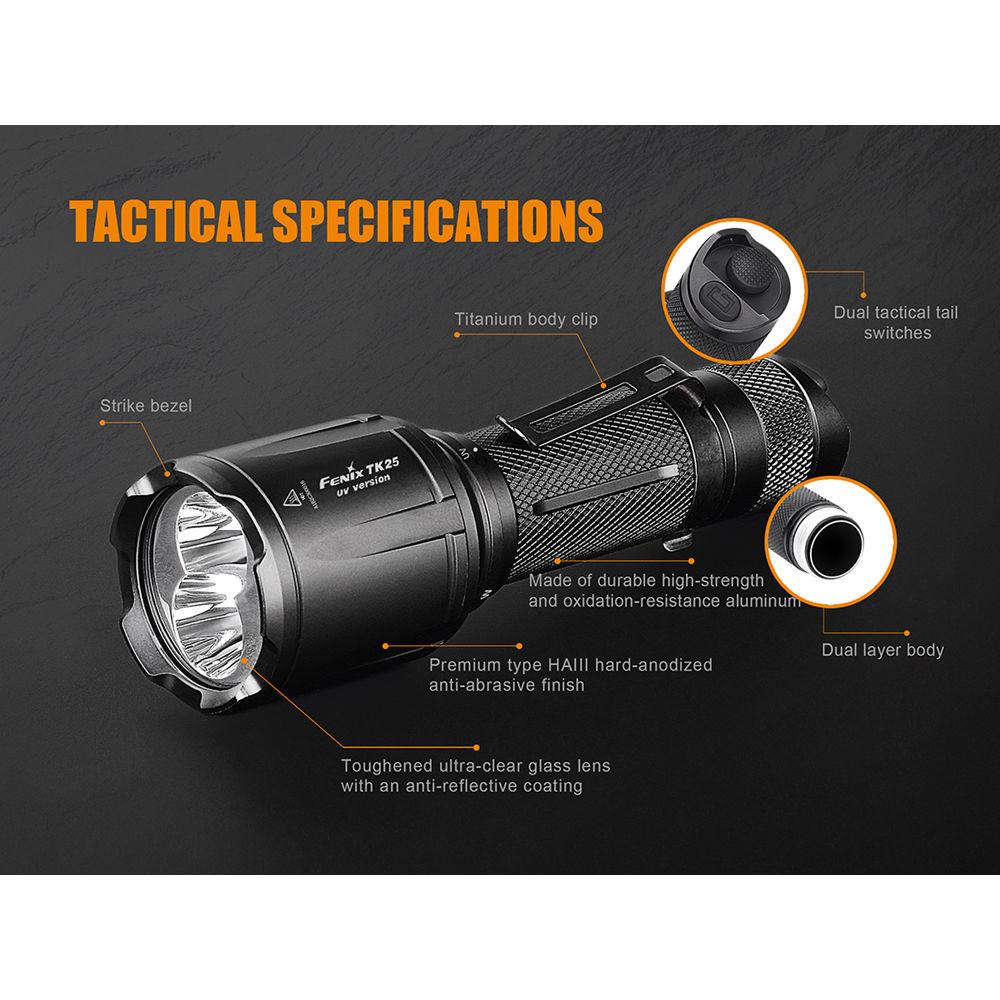

- Construction
-
- Material: Lightweight and sturdy aluminum alloy
- Finish: Type III hard anodized finish
- Emitter window: Toughened clear glass lens with anti-reflective coating
- Waterproofing: IP68-rated, dust and water resistant
- Impact resistant
- Low-voltage reminder indicates when battery replacement is needed
- Reverse polarity protection to prevent improper battery installation
- Runs on one 18650 rechargeable lithium-ion battery or two CR123A lithium batteries

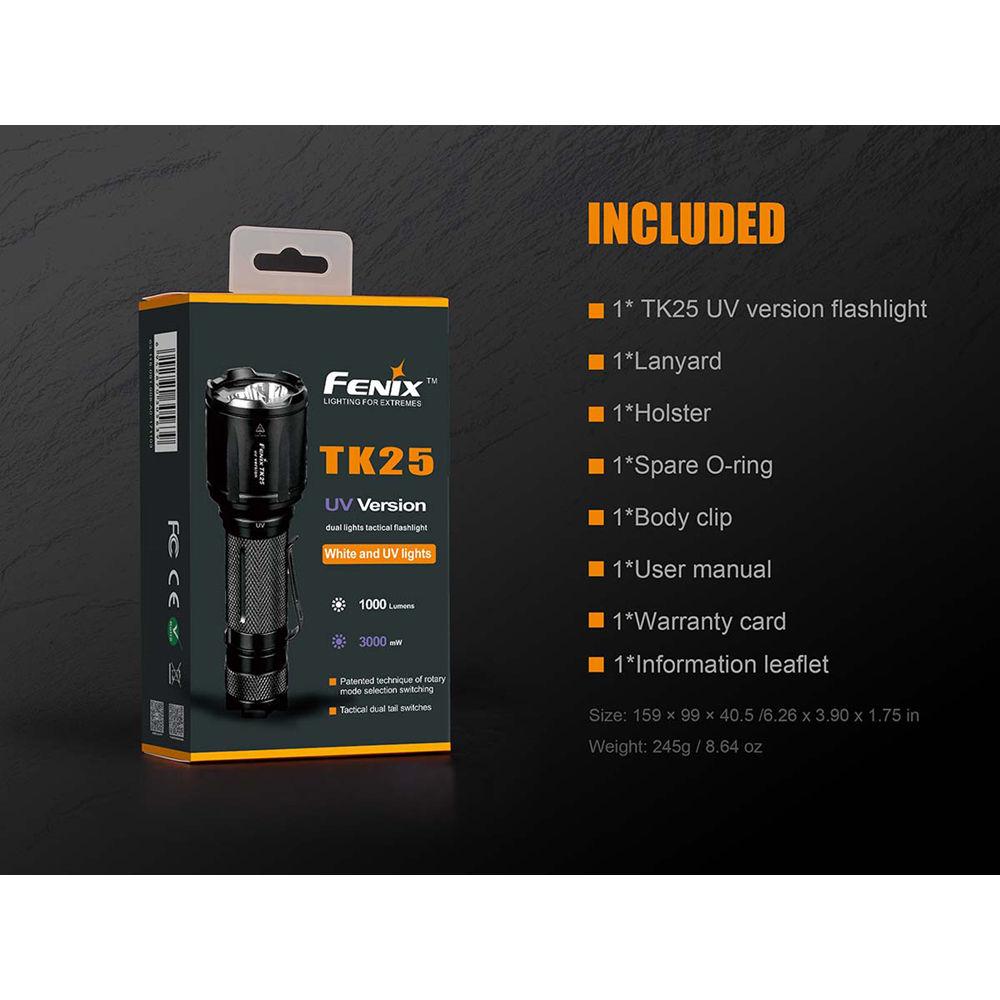

In the Box Fenix Flashlight TK25 UV LED Flashlight Lanyard Body Clip Holster Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight TK25 UV LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

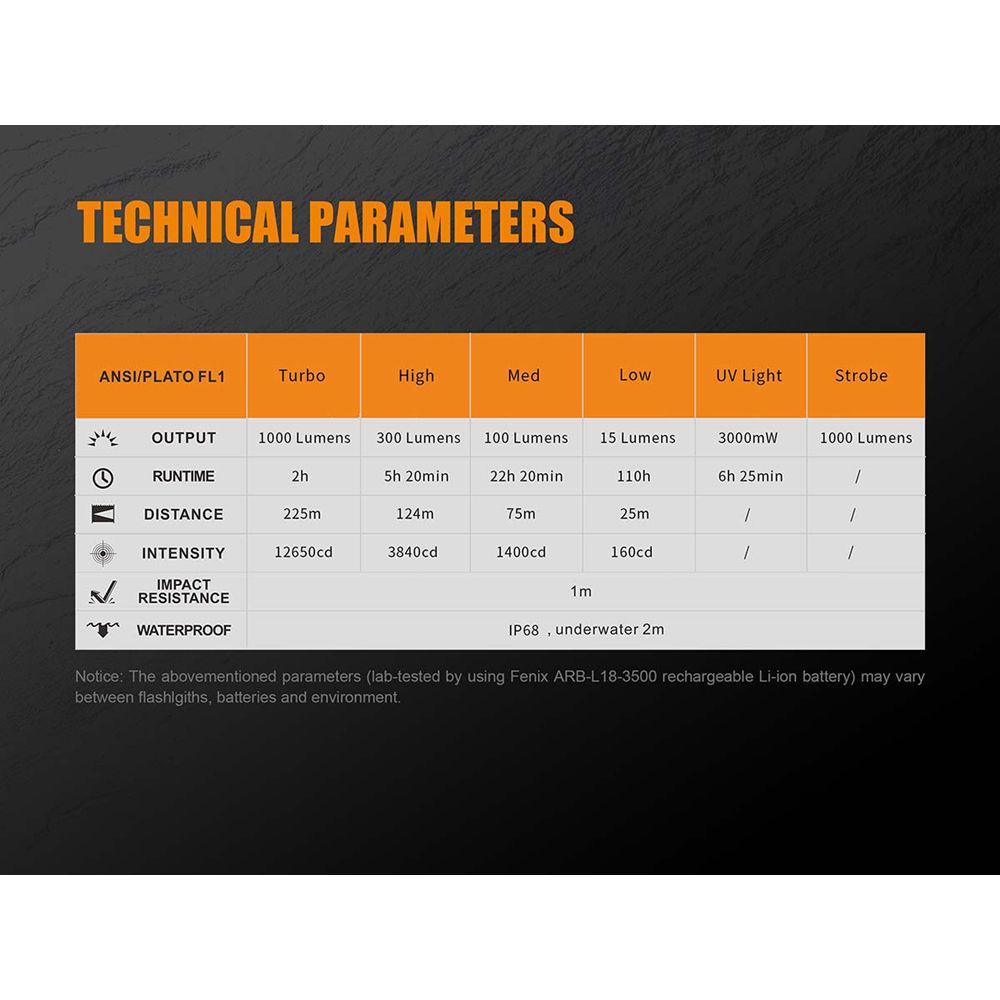

Technical parametersFenix Flashlight TK25 UV Specs | | | Lumen Output | Turbo (White): 1000 Lumens
High: 300 Lumens
Medium: 100 Lumens
Low: 15 Lumens
Strobe: 1000 Lumens | | Illumination Source | 1 x White LED
1 x UV LED | | Colored Output | UV: 365 nm | | | | Estimated Runtime | Low: 110 Hours
Medium: 22.3 Hours
High: 5.3 Hours
Turbo: 2 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A Lithium-Ion | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.6" / 4.1 cm | | Dimensions |
