User Manual for Fenix Flashlight TK35 LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight TK35 LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight TK35 LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

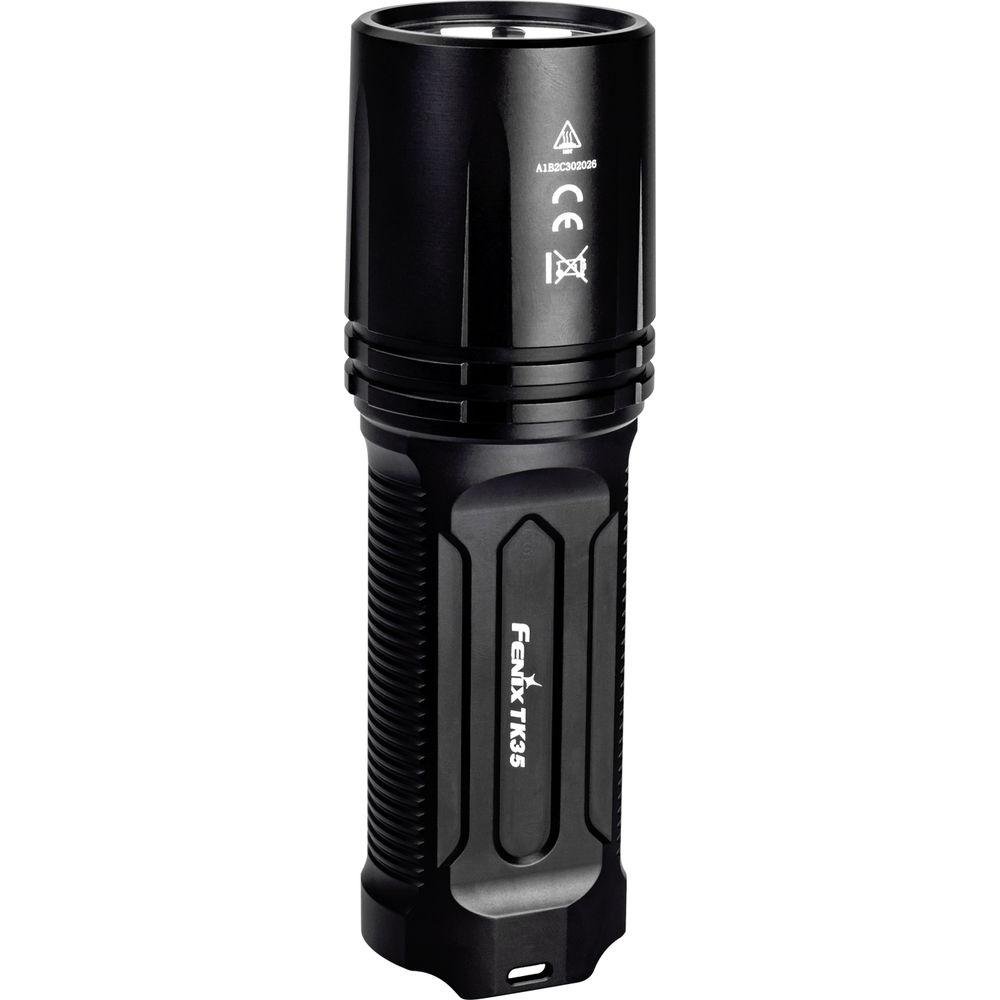

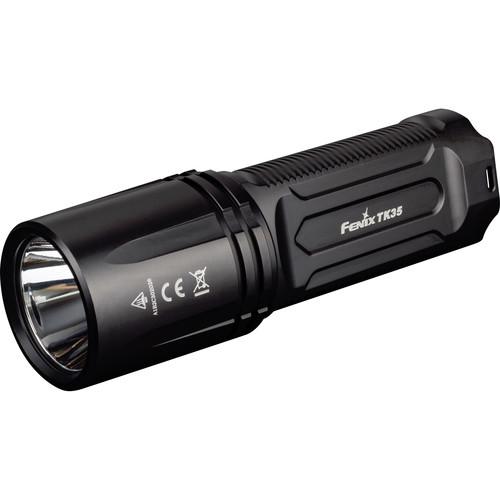

Product description Fenix's TK35 LED Flashlight features a neutral white Cree XHP35 HI LED that produces a wide range of beam intensities from a task-oriented low of 10 lumens to a darkness-piercing 1300-lumen turbo mode that will light up large areas or rooms.
Complementing the wide output range is a 1300-lumen strobe mode and a 50-lumen SOS emergency signal that balances beam intensity with battery conservation, ensuring that the distress signal will be visible without draining the battery too quickly. Control of the outputs and modes is done via dual push-buttons on the tailcap. The larger tactical switch controls on/off on a momentary- or constant-on basis, while the smaller functional switch controls output intensity and flashing modes. Two button sizes with different tactile feels provides easy identification when it is dark or if you are wearing gloves.Designed for a long life in the field, the TK35 features a lightweight and durable aluminum body with a type III hard anodized finish that offers an additional level of protection from scratches and corrosion. The light is impact resistant and O-ring sealed for an IP68 rating, making it submersible to a depth of 6.6'. Integrated circuitry provides protection from overheating and prevents damage to the light if the batteries are installed incorrectly. The output is also digitally regulated for a consistent beam intensity throughout the life or charge of the battery. Adding to the light's versatility, it can run on different battery sizes and chemistries—it takes either two 18650 rechargeable or four CR123A disposable batteries, all user supplied. The removable battery holder has a micro-USB jack for charging the 18650s. - Performance
-
- Eco: 10 lumens
- Low: 50 lumens
- Medium: 150 lumens
- High: 500 lumens
- Turbo: 1300 lumens

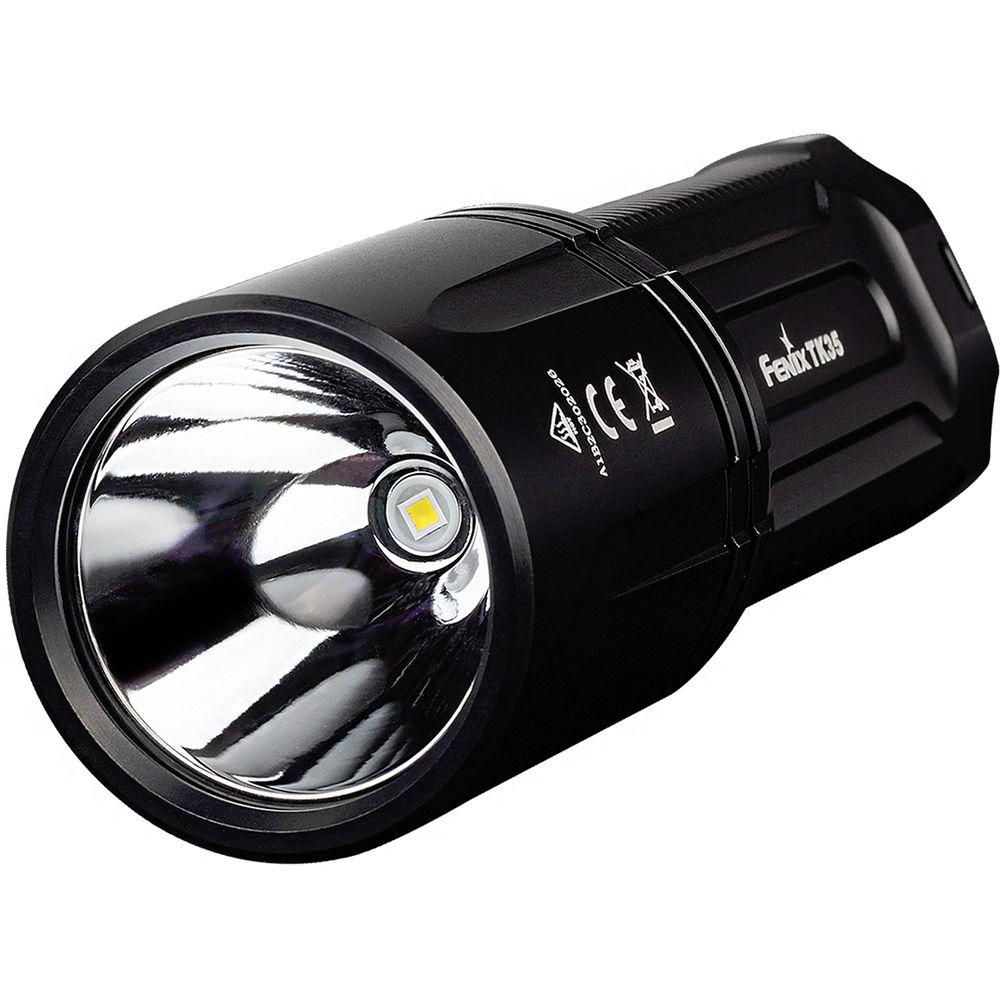

- Cree XHP35 HI LED emitter
- Strobe for signaling or self-defense
- SOS distress signal

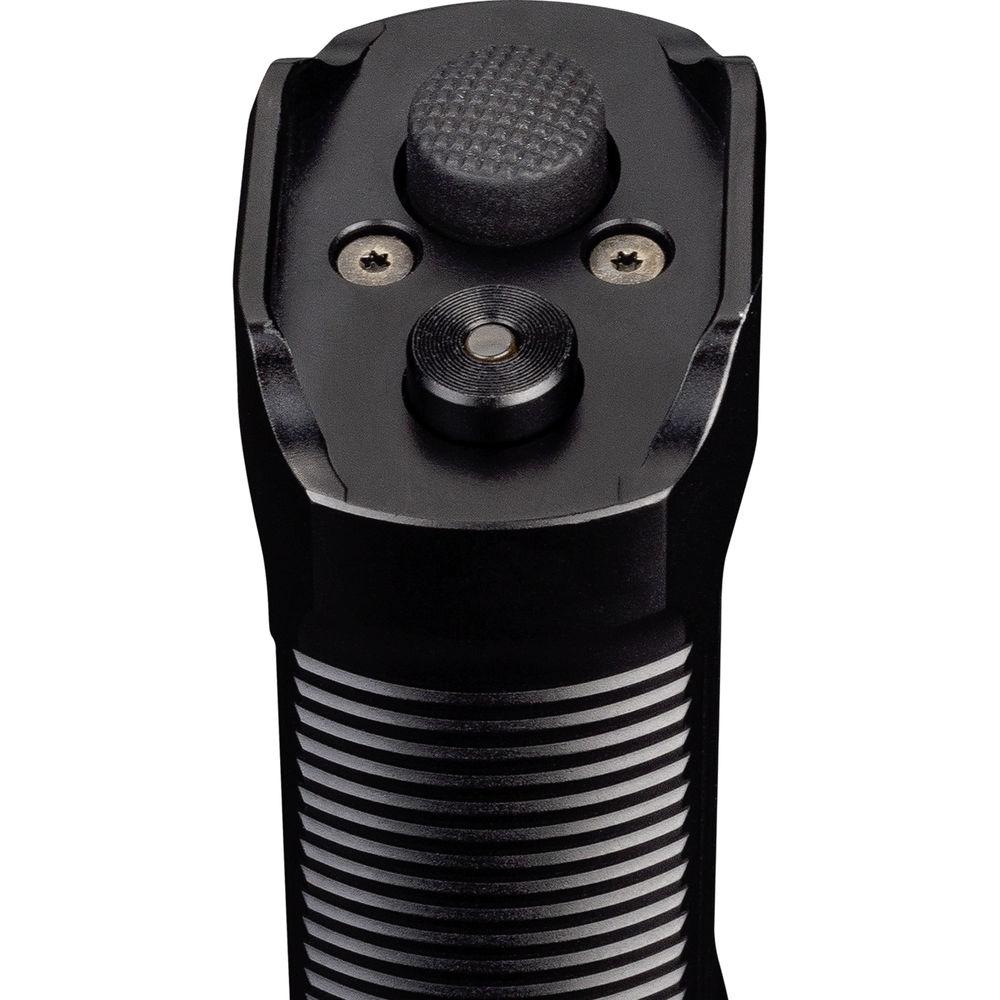

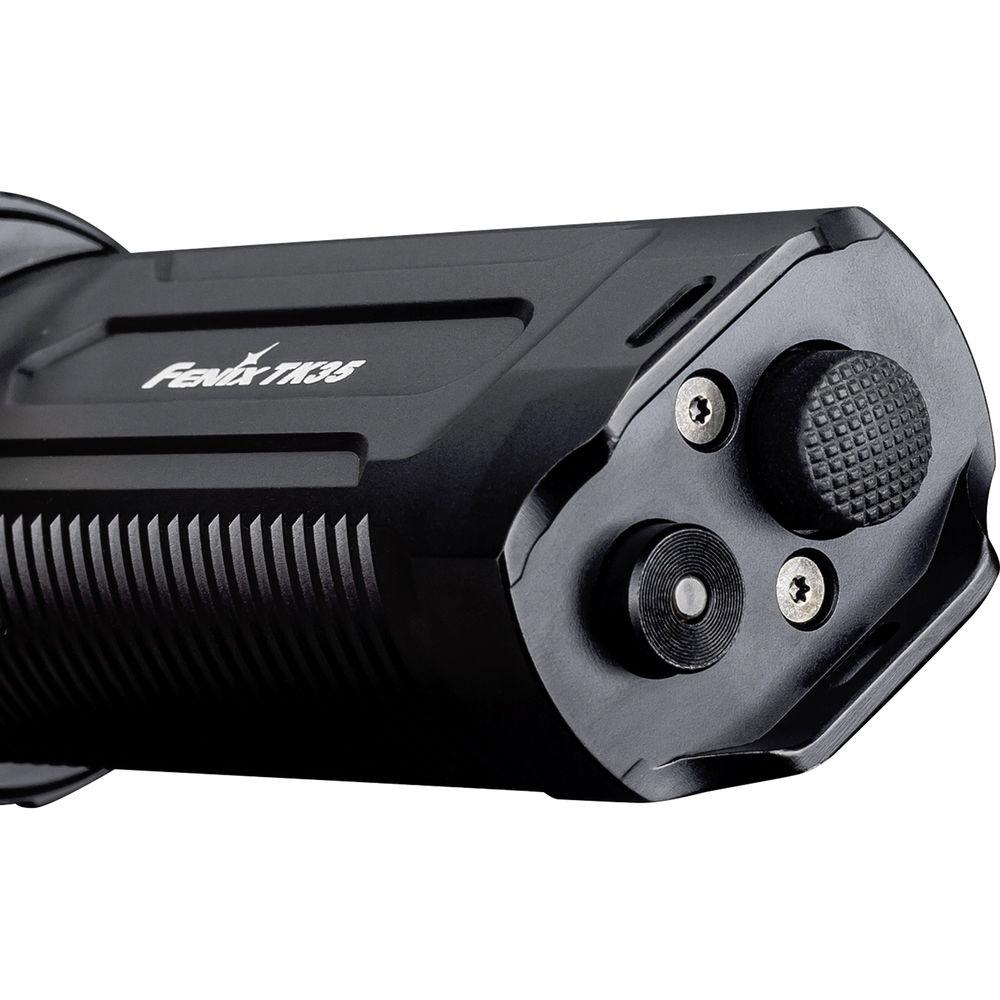

- Switching
-
- Dual tailcap push-button switches
- Momentary- and constant-on activation
- Large on/off button with non-slip dimpling
- Smaller mode button for output intensity and mode selection
- Construction
-
- Lightweight and durable aluminum-alloy housing
- Scratch- and corrosion-resistant type III anodized finish
- Anti-reflection coated tempered glass emitter window
- Anti-roll and slip-resistant grip design
- IP68-rated, submersible to 6.6'
- Impact resistance tested to 3.3'
- Electronics
-
- Runs on two 18650 rechargeable or four CR123A lithium batteries (user supplied)
- Removable battery holder as micro-USB port for charging 18650s
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Reverse polarity protection
- Low-voltage indicator when using rechargeable batteries
In the Box Fenix Flashlight TK35 LED Flashlight Holster Lanyard Charging Cable Spare O-Ring Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight TK35 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight TK35 Specs | | | Lumen Output | Minimum: 10 Lumens
Low: 50 Lumens
Medium: 150 Lumens
High: 500 Lumens
Turbo: 1300 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Minimum: 235 Hours
Low: 68.3 Hours
Medium: 21.5 Hours
High: 5.8 Hours
Turbo: 3.2 Hours | | Battery Type | 2 x 18650 Lithium-Ion or
4 x CR123A Lithium-Ion | | Charging Time | 4.5 Hours | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.9" / 4.8 cm | | Dimensions | W: 1.7 x L: 6.5" / W: 4.3 x L: 16.5 cm | | Weight | 10 oz / 284 g (Without Batteries) | | | | Package Weight | 0.915 lb | | Box Dimensions (LxWxH) | 9.05 x 4.15 x 2.35" |
