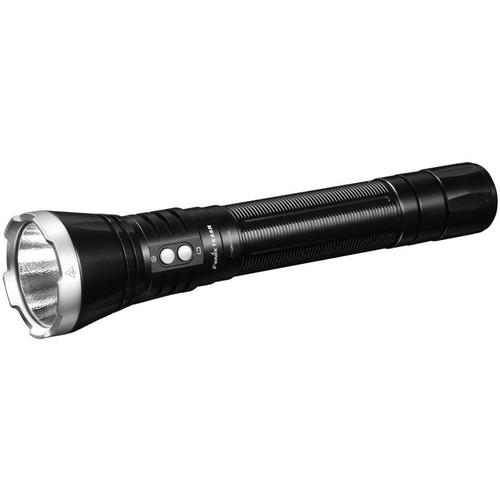

User Manual for Fenix Flashlight TK65R Rechargeable Security Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight TK65R Rechargeable Security Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight TK65R Rechargeable Security Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

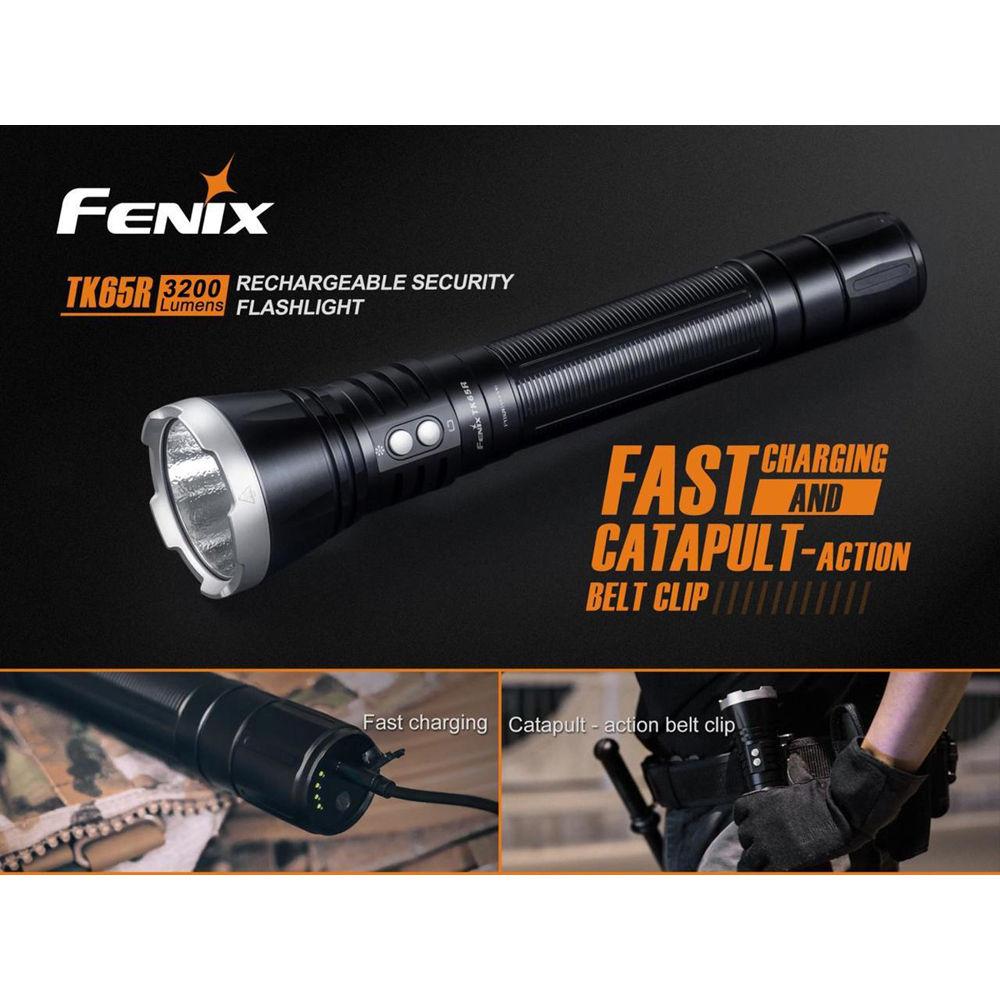

Product description Tackle your tasks using the Fenix TK65R Rechargeable Security Flashlight. Packed into a strong and durable body are a powerful Cree XHP70 LED, capable electronics, and a rechargeable 5000mAh Li-Ion battery. To help you achieve maximum performance, the lighting system delivers several light modes ranging from a 30-lumen Eco mode to a blasting 3200-lumen Turbo mode. You can control light output seamlessly using the dual stainless steel pushbuttons, which allow you to switch between various outputs and functions, including a flashing mode and a battery-saving lockout feature. These pushbuttons are conveniently located at the base of the head and can be easily operated with your thumb. To ensure that the flashlight performs smoothly and without a fault in demanding high-pressure situations, its electronic circuitry contains overheat protection, reverse polarity protection, and a digital output regulation function. The tailcap holds battery status and charging indicators and a guarded micro-USB port for charging the flashlight.
To create a versatile tool, Fenix outfitted this device with a durable aluminum housing, a steel bezel, and an impact-resistant front glass window. The entire construction is also completely waterproof (and submersible to 6.6') and impact-resistant to drops up to 3.3'. The body is treated with Type III hard anodized finish to prevent scratches abrasions. - Light Performance
-
- Eco: 30 lumens
- Low: 150 lumens
- Med: 400 lumens
- High: 1000 lumens
- Turbo: 3200 lumens
- One white Cree XHP70 LED
- Switching
-
- Type: dual stainless steel pushbuttons
- Location: side of the body
- Activation: constant on
- Instant access to strobe modes
- Lock-out function
- Construction
-
- Aluminum housing
- Type III hard anodized finish
- Waterproof and submersible to 6.6'

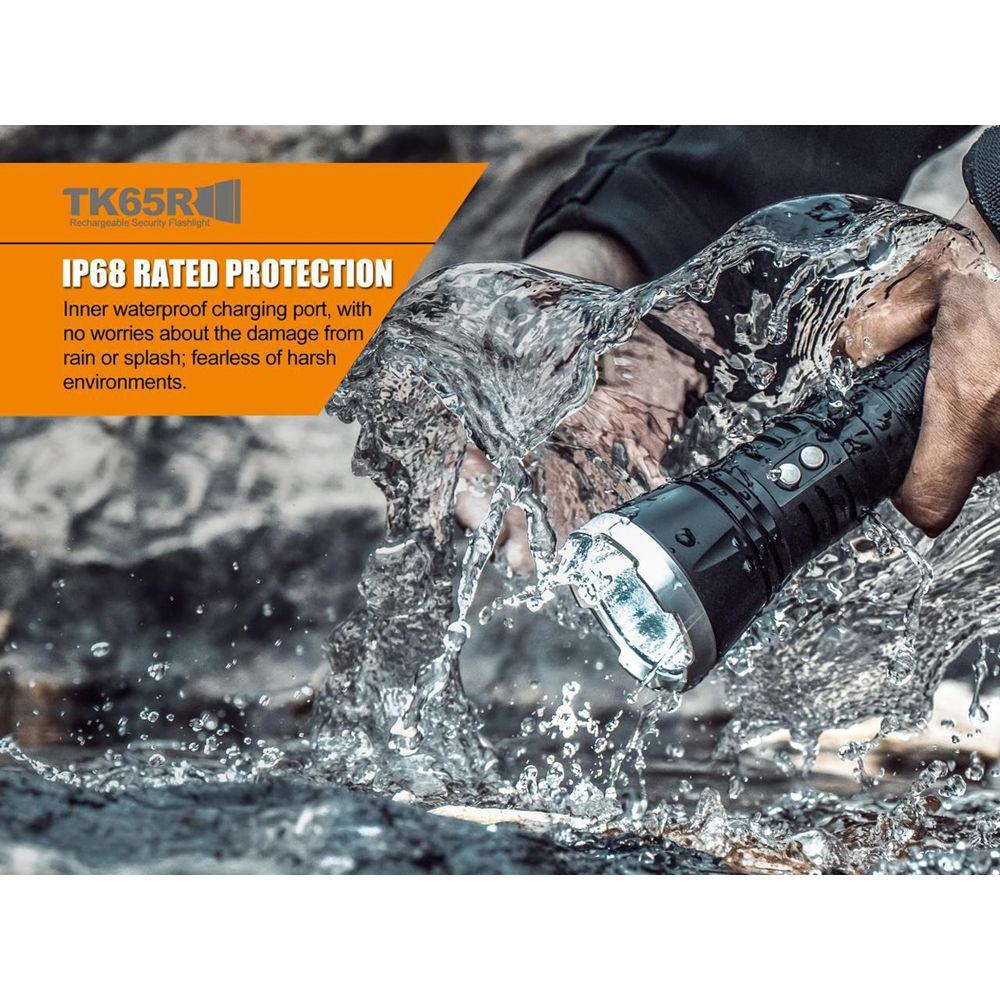

- O-ring seal, rated IP68, dustproof

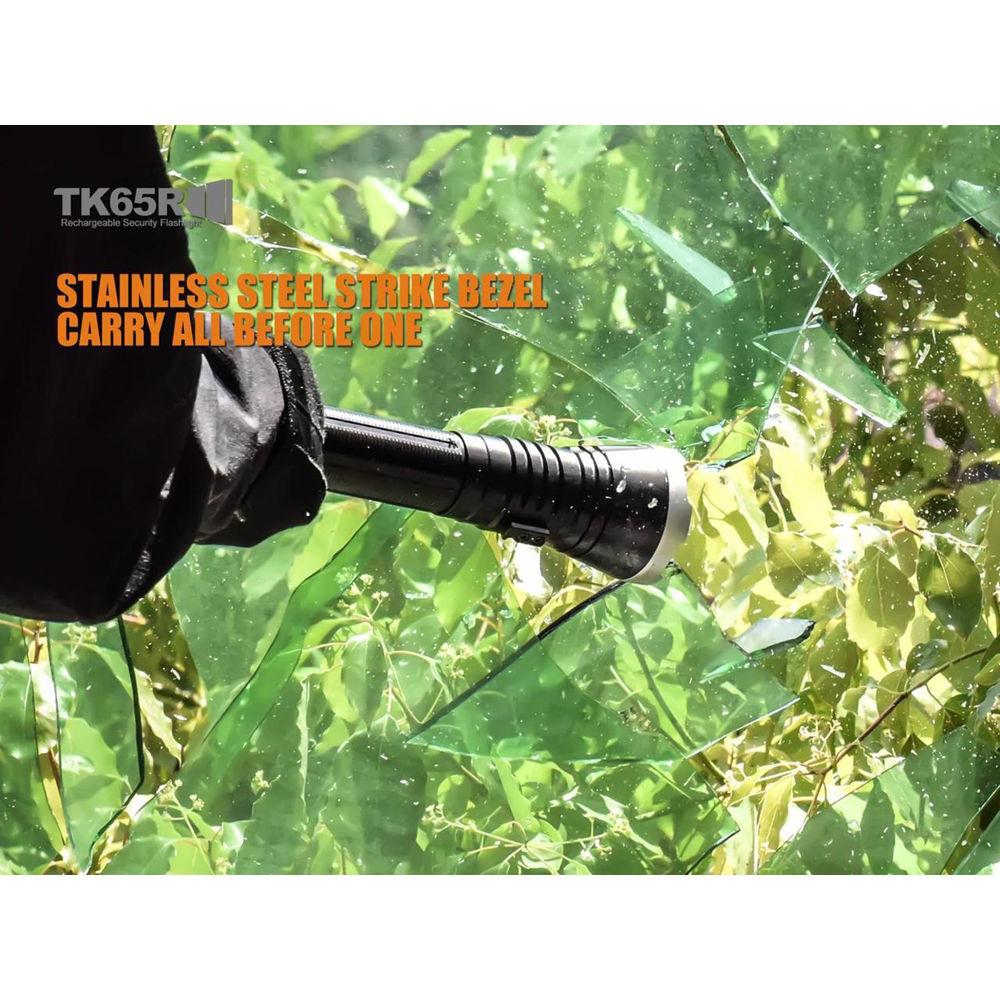

- Steel bezel for striking glass
- Impact-resistant AR-coated lens

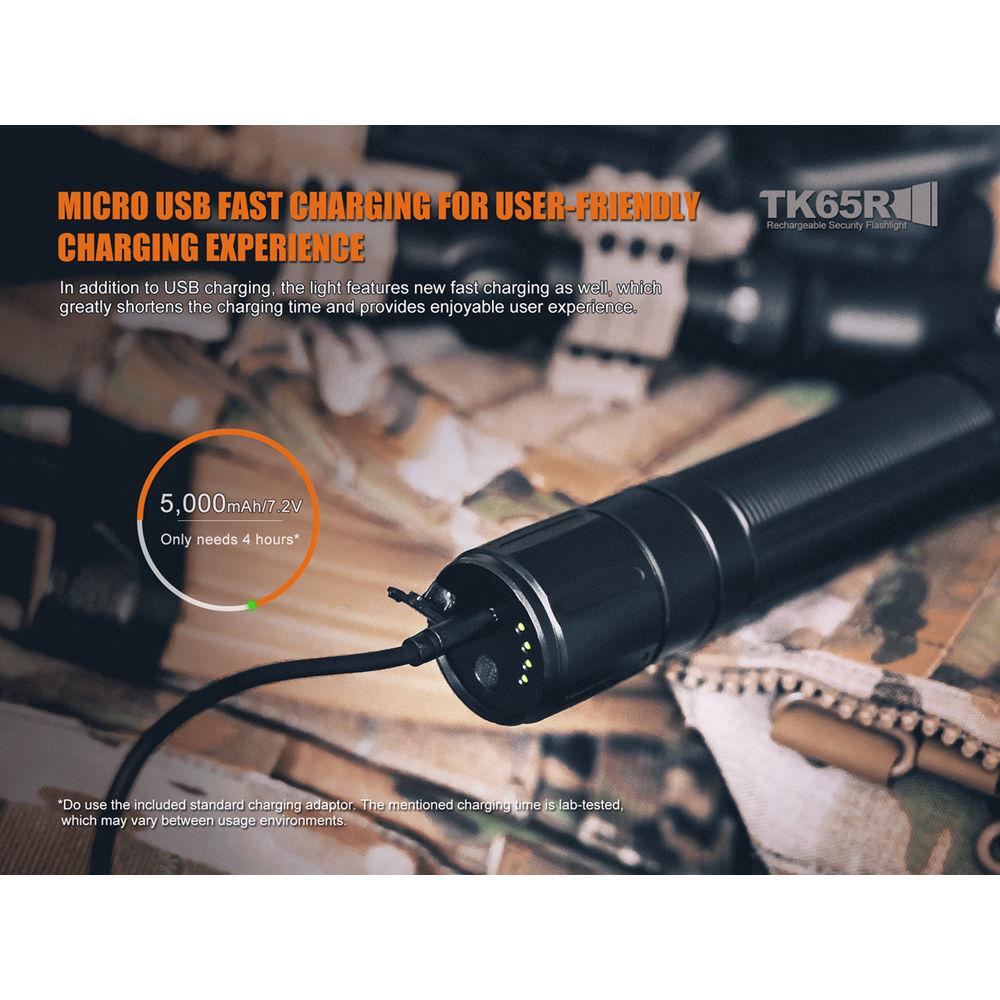

- Waterproof micro-USB fast charging port
- Impact-resistant to 3.3' drops

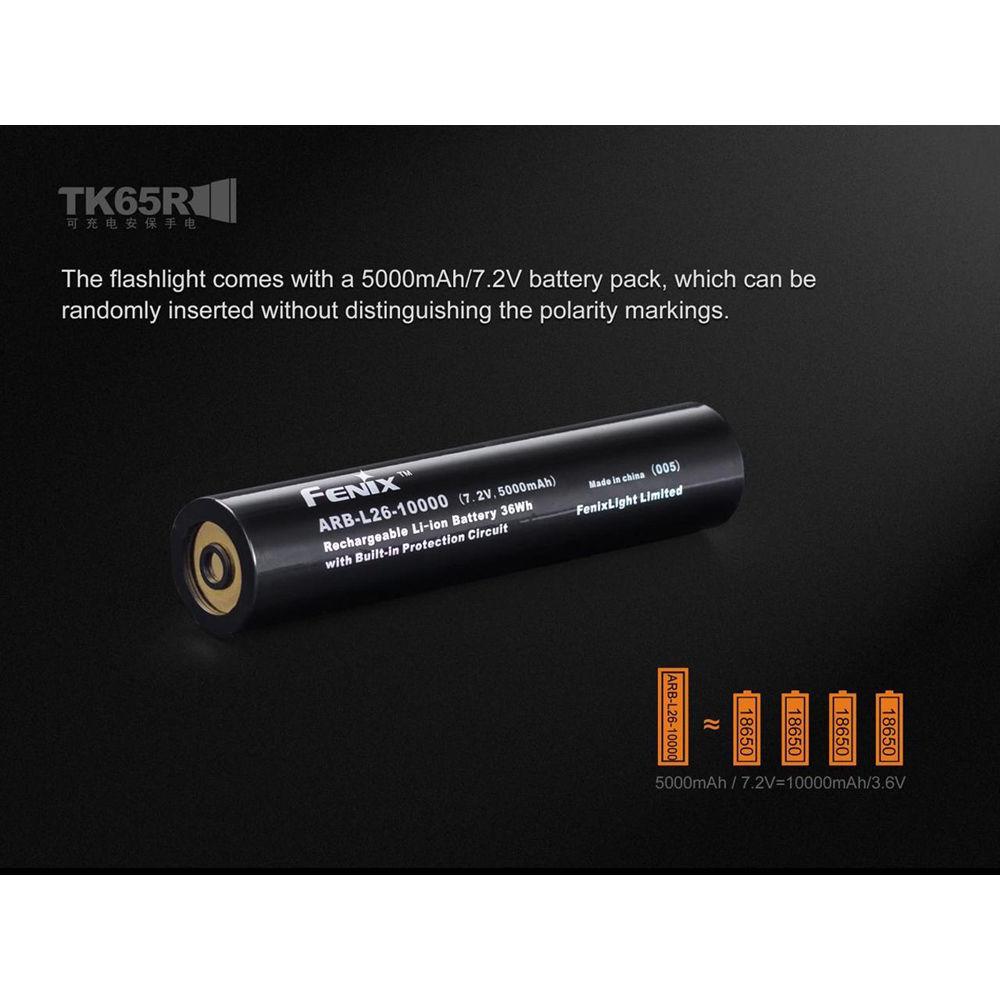

- Built-in 5,000mAh Li-ion battery pack
- Textured slip-free handle
- Overheat protection

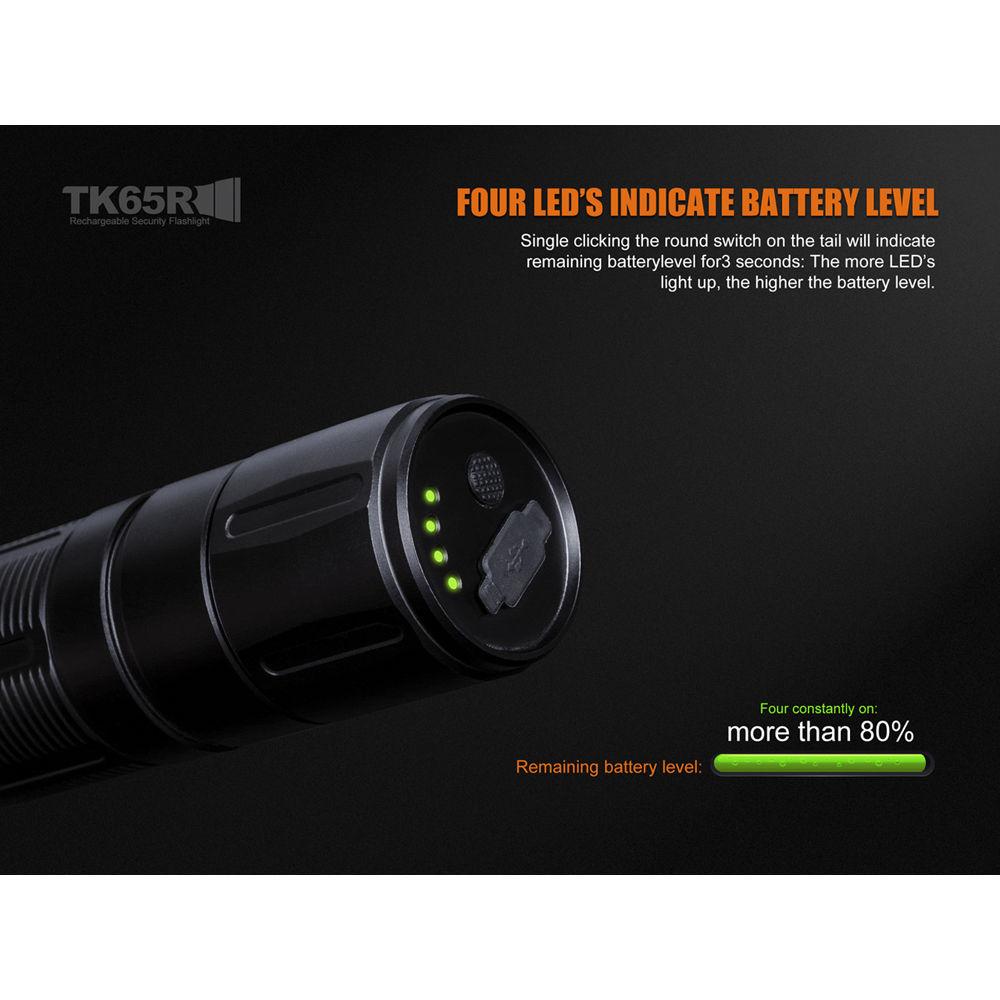

- Battery level indicator
- Digitally regulated output
- Quick-release belt clip
In the Box Fenix Flashlight TK65R Rechargeable Security Flashlight (Matte Black) - Spare O-Ring
- Li-Ion Battery Pack
- Micro-USB Cable
- USB Adapter
- Belt Clip
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight TK65R Rechargeable Security Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight TK65R Specs | | | Lumen Output | Minimum: 30 Lumens
Low: 150 Lumens
Medium: 400 Lumens
High: 1000 Lumens
Turbo: 3200 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 5 Hours
Medium: 13 Hours
Low: 35.75 Hours
Turbo: 1.75 Hours
Minimum: 113 Hours | | Battery Type | 1 x Rechargeable Pack Lithium-Ion | | Internal Battery Capacity | 5000 mAh | | Output Voltage | 7.2 VDC | | | | Material of Construction | Aluminum, Stainless Steel | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 2.4" / 6.1 cm | | Dimensions |
