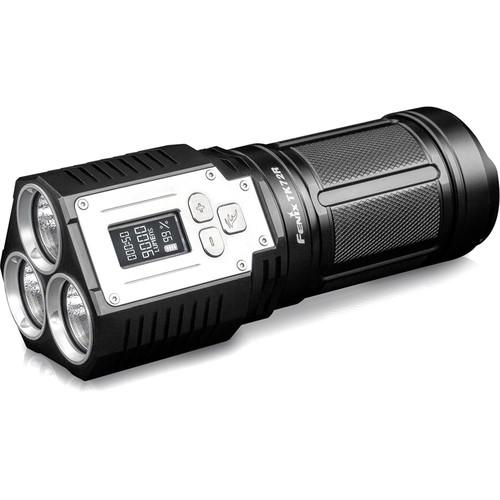

User Manual for Fenix Flashlight TK72R Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight TK72R Rechargeable LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
|
User manual for the Fenix Flashlight TK72R Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description One of the most powerful torches in the B&H catalog, the TK72R Rechargeable LED Flashlight from Fenix boasts a brightness level range from 100 to 9000 lumens. Its internal-charging, 7.2 VDC, 7000 mAh battery can serve as a power pack for other devices, thanks to the USB output jack, and runtimes range from 50 minutes at peak output to 50 hours on low power.The winner of the 2017 Red Dot Award for product design, the TK72R features an OLED display showing output level, remaining battery power and runtime, offers instant access to the maximum output and a disorienting 4000-lumen strobe for self-defense. Its micro-USB charge port and USB power output are waterproof. Three stainless-steel buttons control the light's functions: press the Fenix button to turn the light on at the last-used brightness level and use the Plus and Minus buttons to increase or decrease the output in 100-lumen increments. You can activate the light at 200 lumens by pressing the Minus button or at 5000 lumens with the Plus button. Click the Fenix button for instant turbo, or click and hold it for the strobe.The TK72R is equipped with the protective circuitry common to modern, professional-grade flashlights, including digitally regulated output for consistent brightness, overheat and reverse polarity safeguards, a low-voltage indicator and a lockout function to prevent unintentional activation during transport or storage. Its housing is type III anodized aluminum and the glass lens bears anti-reflective coating for optimal light transmission. - Performance
-
- 100-9000 lumens, adjustable in 100-lumen increments
- Cree XHP70 LED, rated for 50,000 hours
- Digitally regulated output maintains constant brightness
- Runtimes: 50 hours on low to 50 minutes on high
- Switching
-
- Type: Three side-mounted stainless-steel push buttons
- Plus and Minus switches control brightness level, Fenix switch for on/off and quick access to turbo and strobe
- Construction
-
- OLED display shows output level and remaining battery power & runtime
- On-board charging via waterproof micro-USB port
- 7.2VDC/7000mAh battery can be used to charge other devices via waterproof USB power port
- Lightweight aluminum alloy housing
- Scratch and corrosion-resistant Type III hard-anodized finish
- Anti-reflection coated impact and scratch resistant tempered glass window
- Impact resistant to 3.3', IP68-rated submersible to 6.6'
- Reverse polarity protection
- Intelligent temperature control
In the Box Fenix Flashlight TK72R Rechargeable LED Flashlight Lanyard ARB-L45-14000 Battery Pack USB Charging Cable & Adapter Nylon Holster 2 x Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight TK72R Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight TK72R Specs | | | Lumen Output | High: 9000 Lumens
Low: 100 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 0.9 Hour
Low: 50 Hours | | Battery Type | 1 x Rechargeable Pack | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 2.3" / 58.4 mm | | Dimensions |
