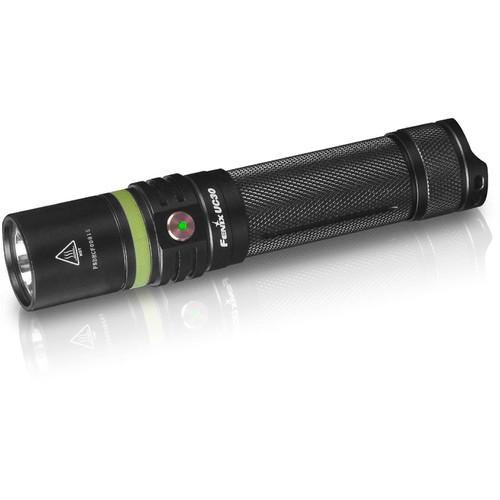

Product description Upgrade your inventory of outdoor gear with a 1000-lumen Fenix UC30 Rechargeable LED Flashlight. This robust and lightweight flashlight features a slim body design and durable construction. Outfitted with a tempered anti-reflection coated window to protect its Cree XP-L HI V3 LED, the light produces five brightness levels (from 5 to 1000 lumens), controllable by a single stainless steel side pushbutton with green LED indicator. In addition to constant beams, the light is capable of delivering a flashing strobe beacon. Among many highlights are a built-in digital regulating circuit, a low battery indicator, and reverse polarity and overheat protection functions. To prevent accidental battery drain, it also offers a lock/unlock function. You can power the device with the included 18,650 rechargeable Li-ion battery or two user-supplied CR123A batteries. To offer an option for charging the battery internally, the flashlight is also outfitted with a micro-USB charging port, guarded by a luminous rubber cover.
For durability and strength, this light is outfitted with a high-quality aluminum housing and treated with a Type III hard anodized finish. It is waterproof, submersible 6.6', and impact-resistant to 3.3' drops. Also included with this flashlight are a micro-USB cable, a spare O-ring, a lanyard, a holster, and two spare colored rubber USB port covers. - Light Performance
-
- Eco: 5 lumen
- Low: 50 lumen
- Med: 150 lumen
- High: 350 lumen
- Turbo: 1000 lumen
- One white Cree XP-L HI V3 LED

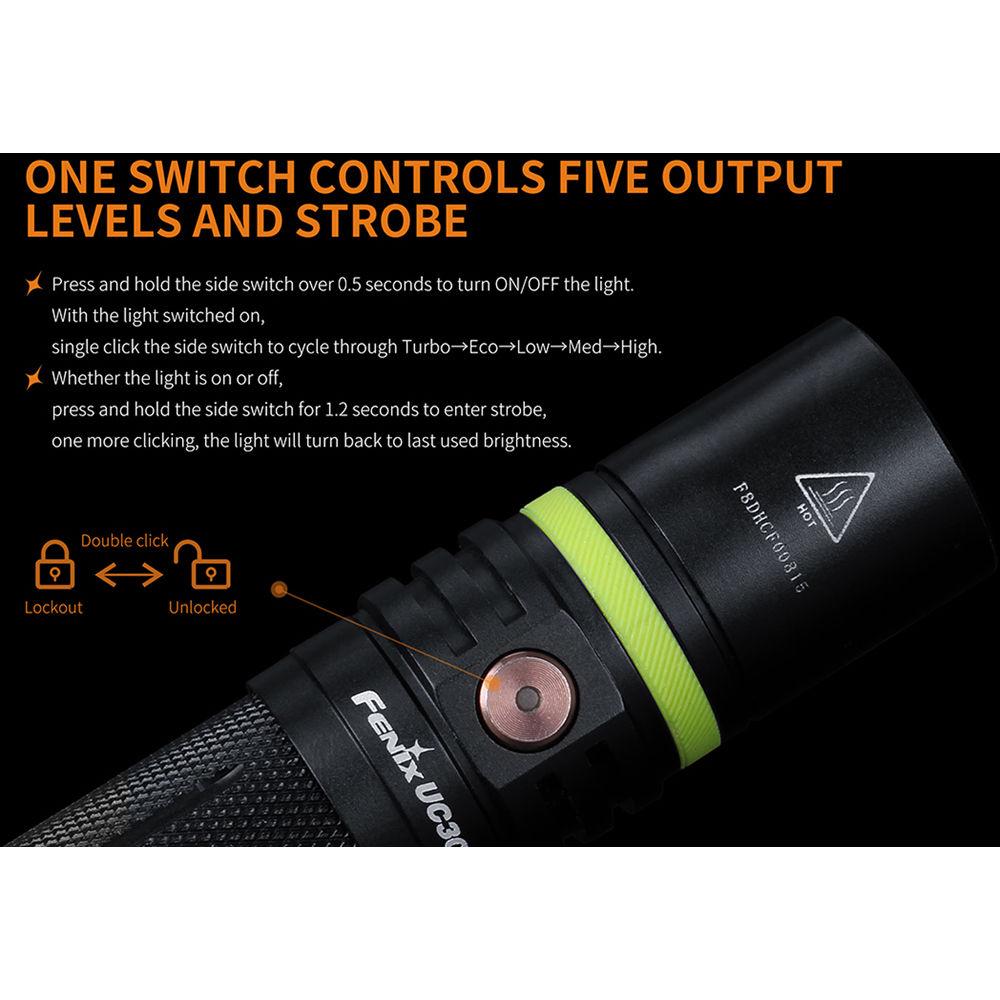

- Switching
-
- Type: stainless steel pushbutton
- Location: side of the body
- Activation: constant on
- Instant access to strobe modes
- Lock-out function
- Construction
-
- Aluminum housing
- Type III hard anodized finish
- Waterproof and submersible to 6.6'

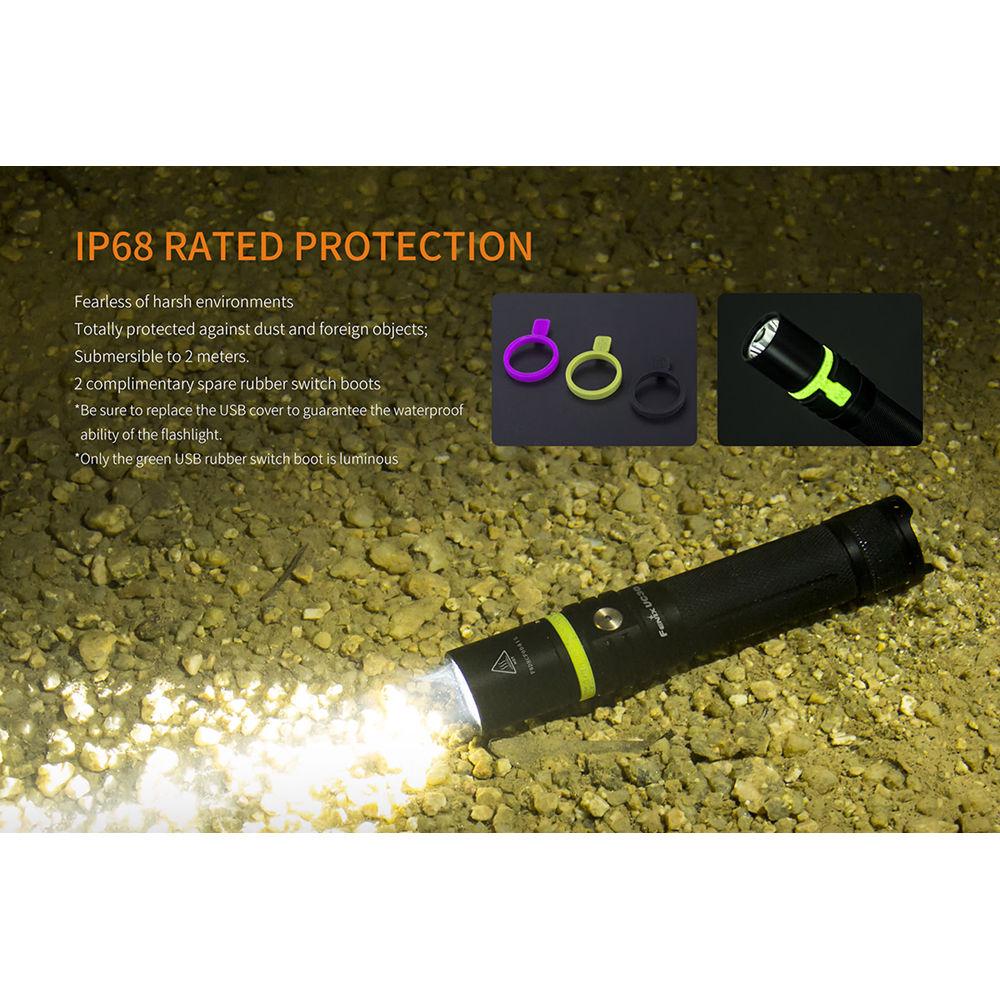

- O-ring sealed, rated IP68, dustproof
- Impact-resistant AR-coated lens

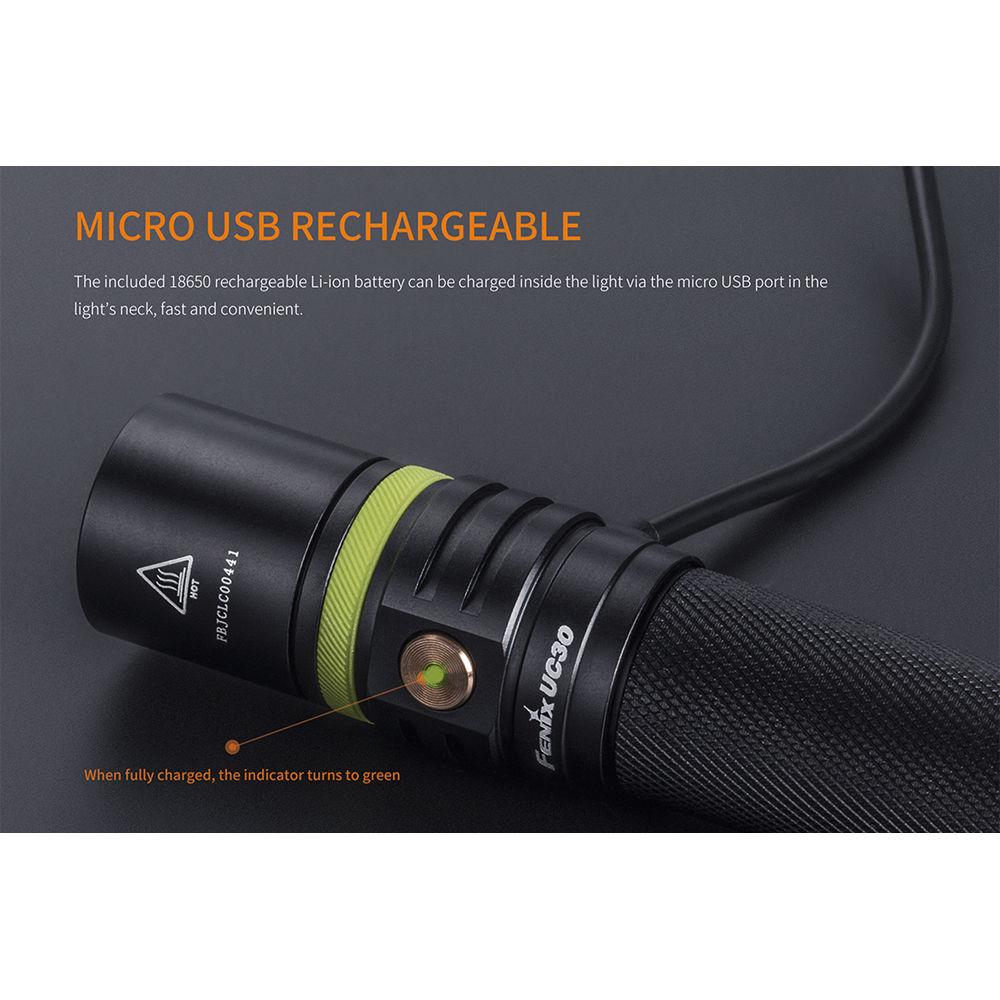

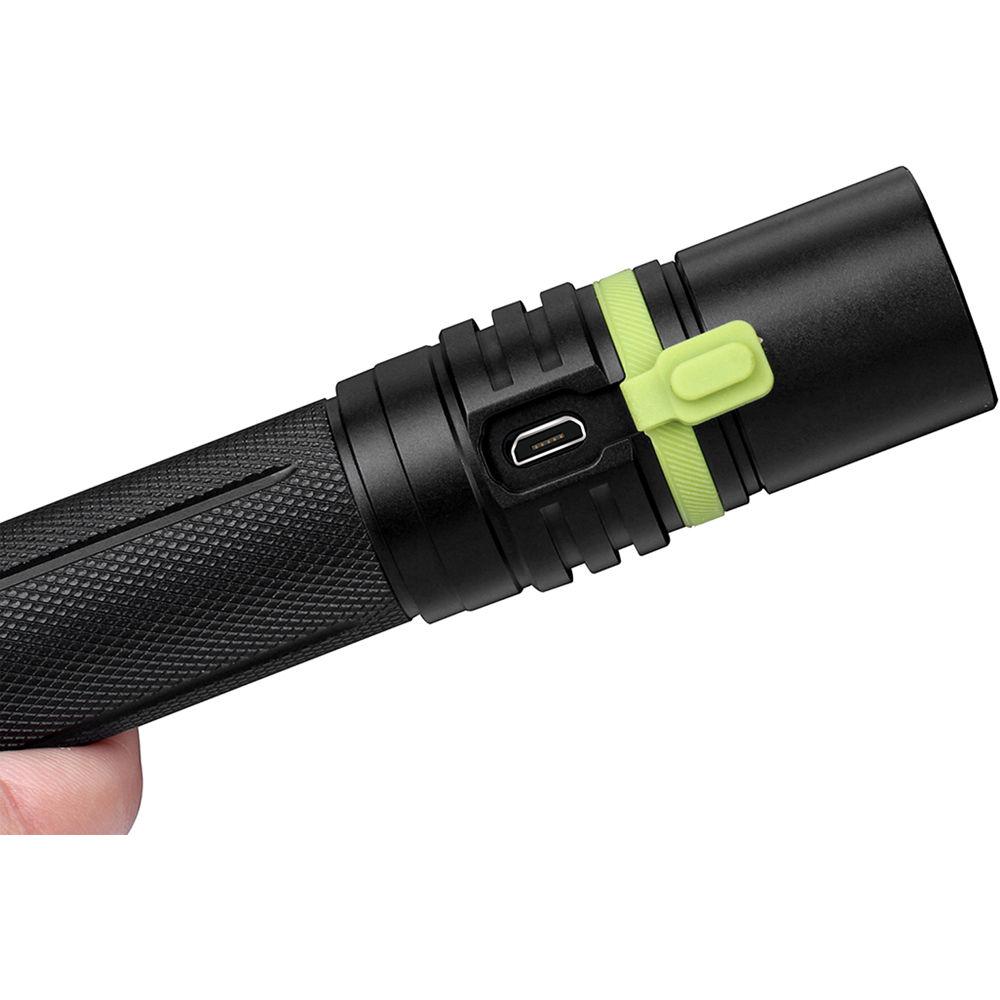

- Waterproof micro-USB charging port

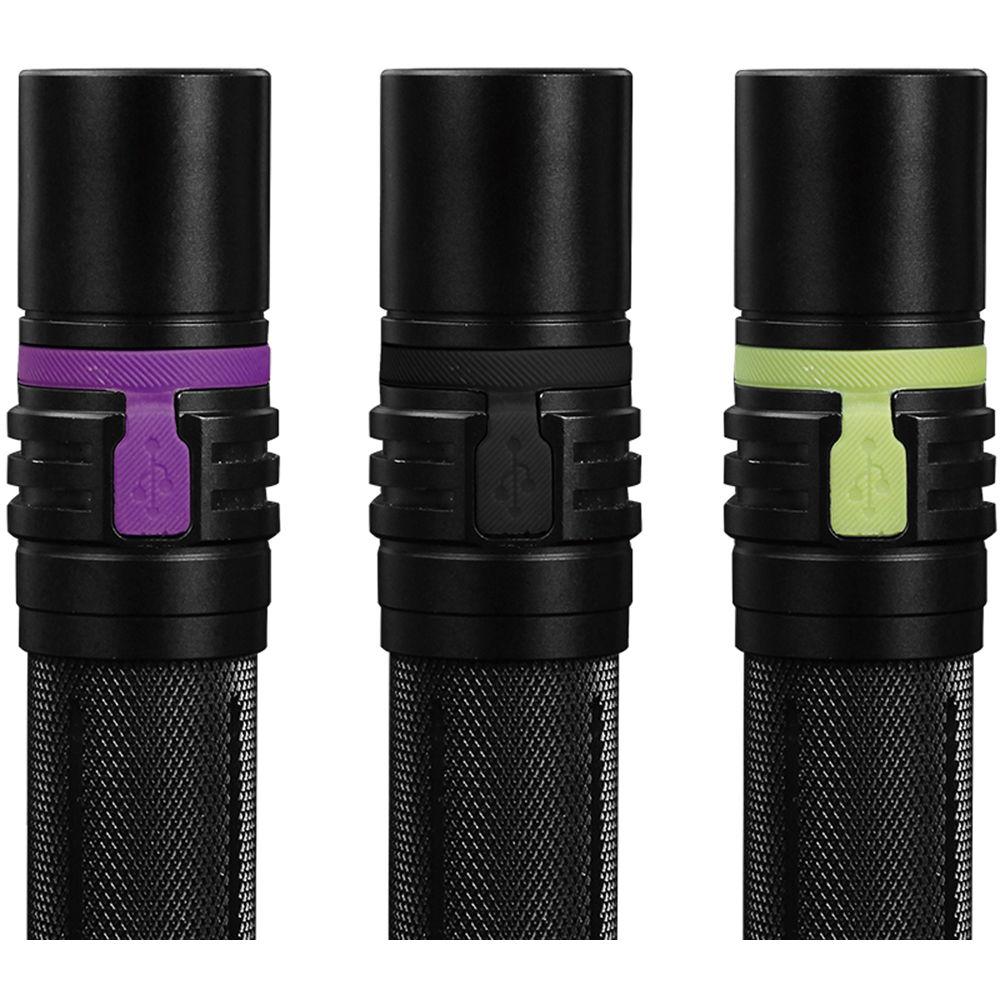

- Total of three USB rubber covers
- Impact-resistant to 3.3' drops
- Power: one 18,650 rechargeable or two CR123A Li-ion batteries
- Textured slip-free handle
- Overheat protection
- Battery level indicator
- Digitally regulated output

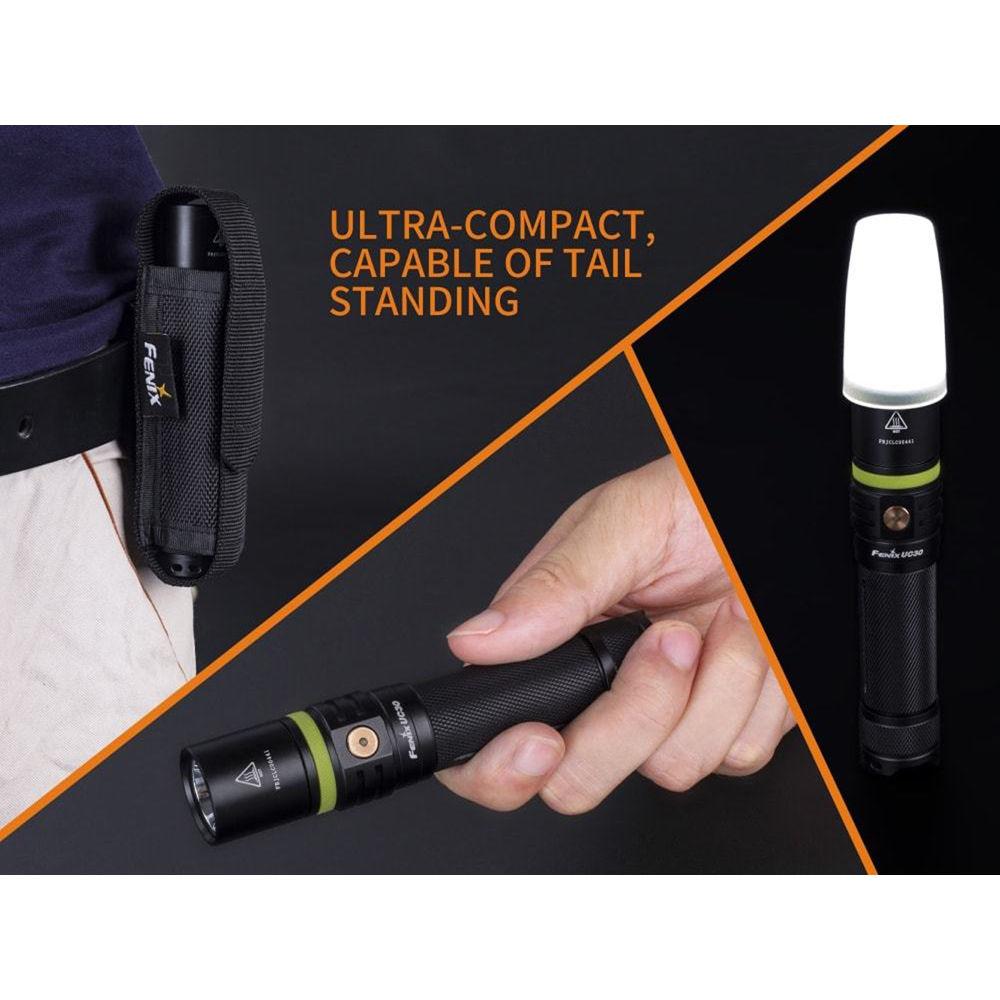

- Holster and lanyard included

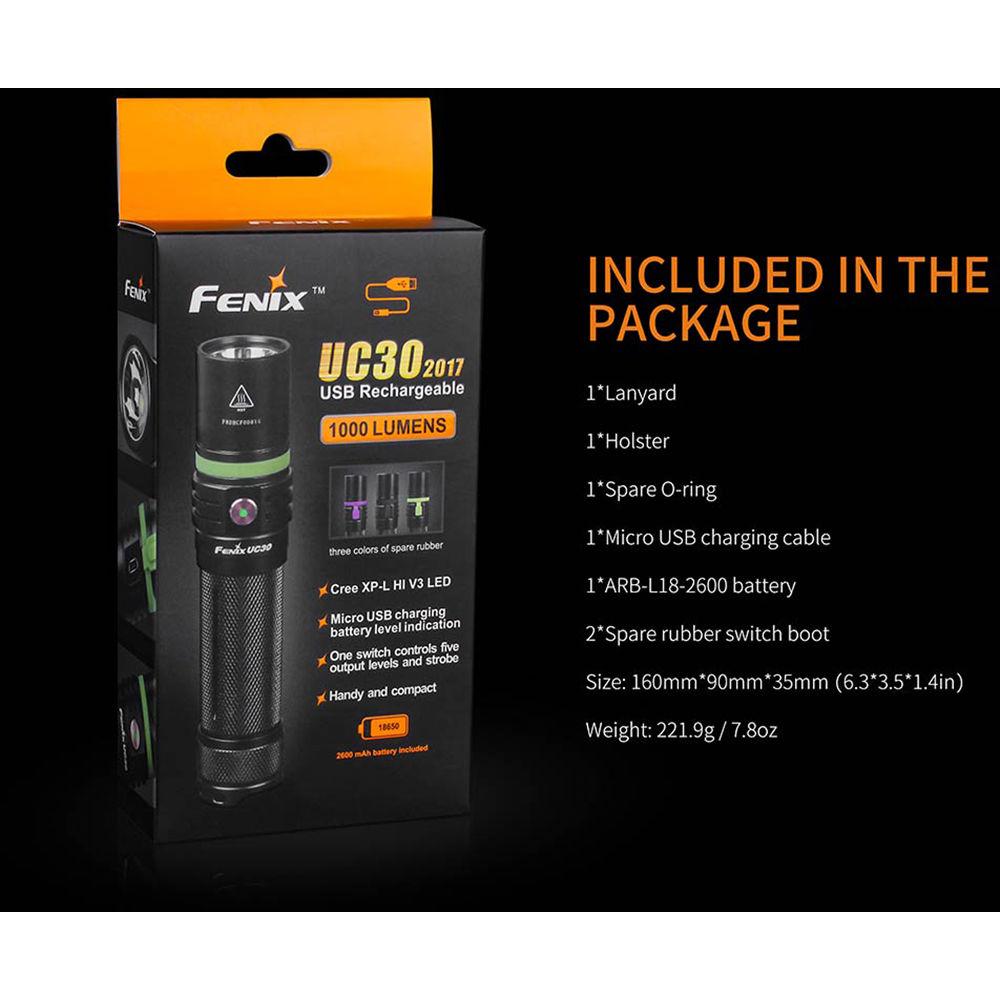

In the Box Fenix Flashlight UC30 Rechargeable LED Flashlight (2017 Upgrade Edition, Matte Black) - 18650 Lithium-Ion Battery with Micro-USB Charging Port (3.6V, 2600mAh)
- Micro-USB Cable
- Spare O-Ring
- 2 x Color Rubber USB Port Covers
- Lanyard
- Holster
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight UC30 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight UC30 Specs | | | Lumen Output | High: 350 Lumens
Medium: 150 Lumens
Low: 50 Lumens
Turbo: 1000 Lumens
Minimum: 5 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 3.3 Hours
Medium: 8.75 Hours
Low: 28.4 Hours
Turbo: 1.4 Hours
Minimum: 150 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A Lithium-Ion | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions |
