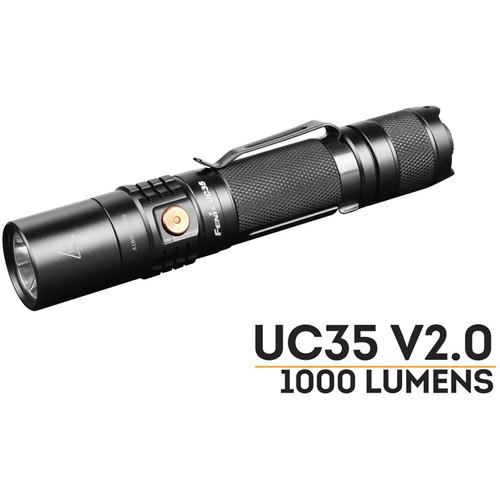

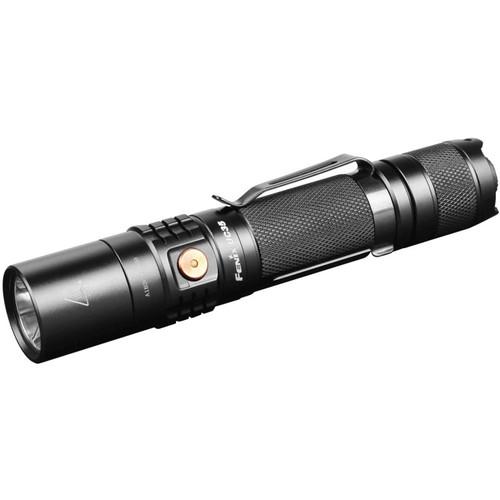

User Manual for Fenix Flashlight UC35 v.2 Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight UC35 v.2 Rechargeable LED
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
 |
User manual for the Fenix Flashlight UC35 v.2 Rechargeable LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|

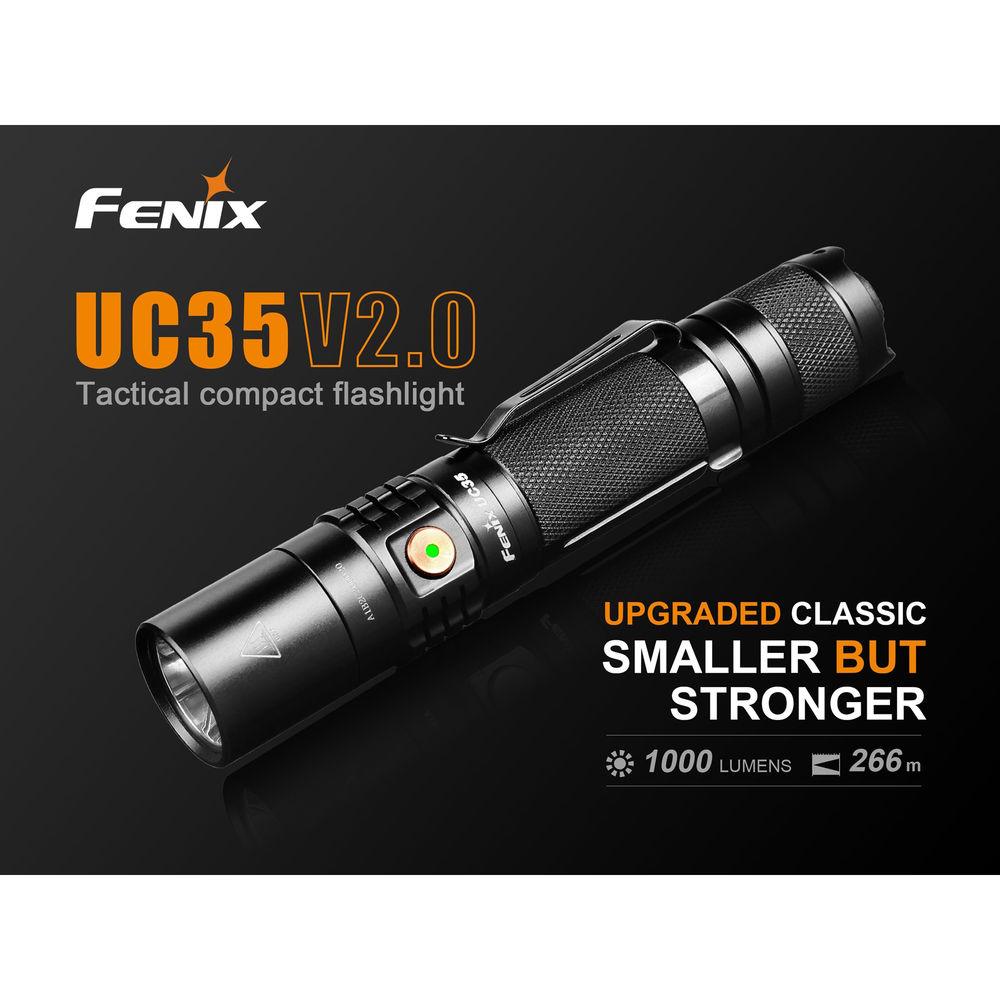

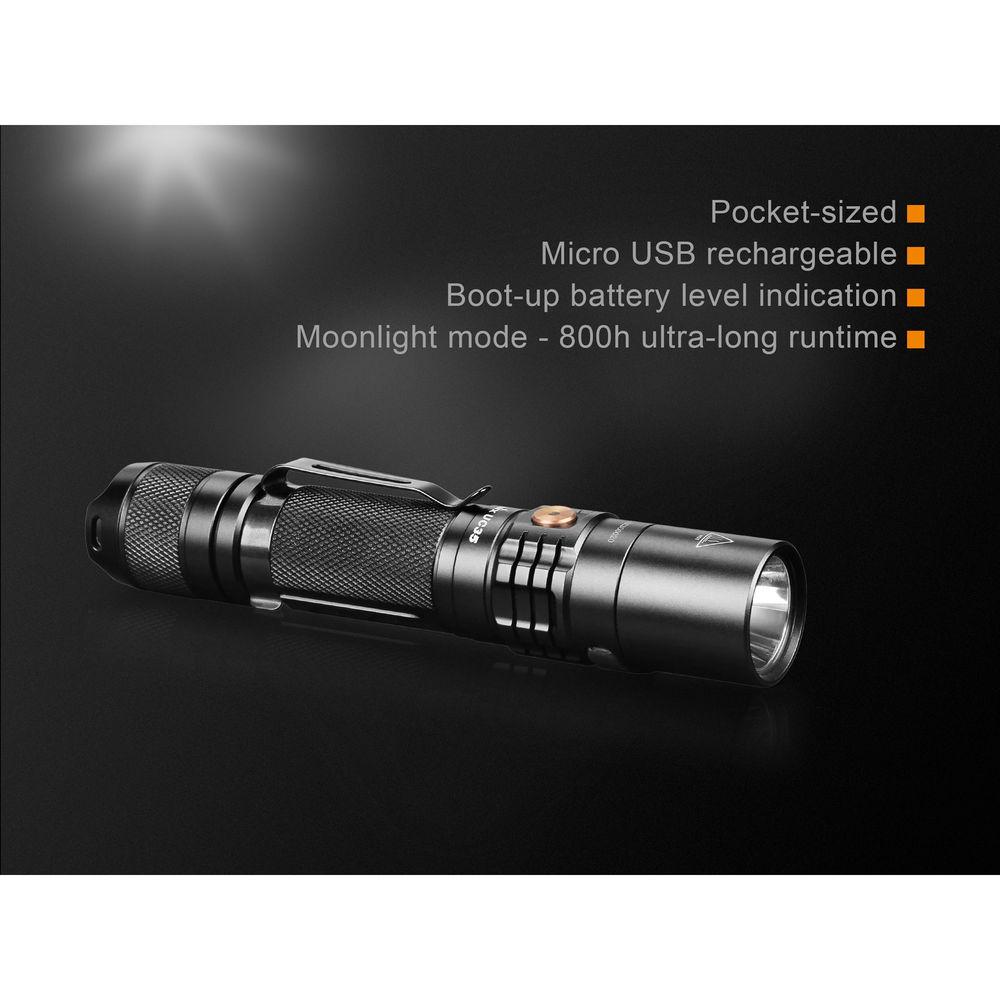

Product description Fenix's UC35 v.2 Rechargeable LED Flashlight is small enough for a backup light, but powerful enough to be used as a professional's primary everyday carry illumination tool. Featuring five output levels from the ultra-low 1-lumen economy moonlight to a darkness-piercing 1000-lumen turbo mode, its wide output range and high-intensity signal/emergency strobe make it ideally suited for virtually any situation around the house, in camp, or on the job. A two-stage tactical tailcap switch lets you choose from momentary or constant-on activation, and a mode selector switch on the body gives you access to the brightness levels and strobe mode. The switch remembers the last output selected and automatically goes to that level the next time it's turned on.The UC35's housing is made of light and durable aluminum with a Type III hard-anodized finish. It is impact resistant to 3.3' and IP68-rated to be submersible to 6.6' and dustproof. An integrated micro-USB charging port next to the mode switch charges the included 18650 battery in the light, and while charging the mode switch pulls double-duty as a charging/charged indicator. When the battery level gets depleted, the switch also blinks to warn you to recharge the battery. Reverse-polarity protection prevents damage to the light if the battery is put in wrong, and overheat protection automatically drops the output if the light gets too hot. - Performance
-
- Ultra-low 1 lumen economy moonlight output maximizes battery life
- Low 50 lumens output makes tasks like reading easy
- Medium 150 lumens provides enough light to illuminate a room or tent
- 350-lumen high output lets you perform tasks such as cooking and setting up camp without straining your eyes
- Darkness-piercing 1000-lumen turbo mode will light the trail fare ahead of you or disperse deep shadows during searches

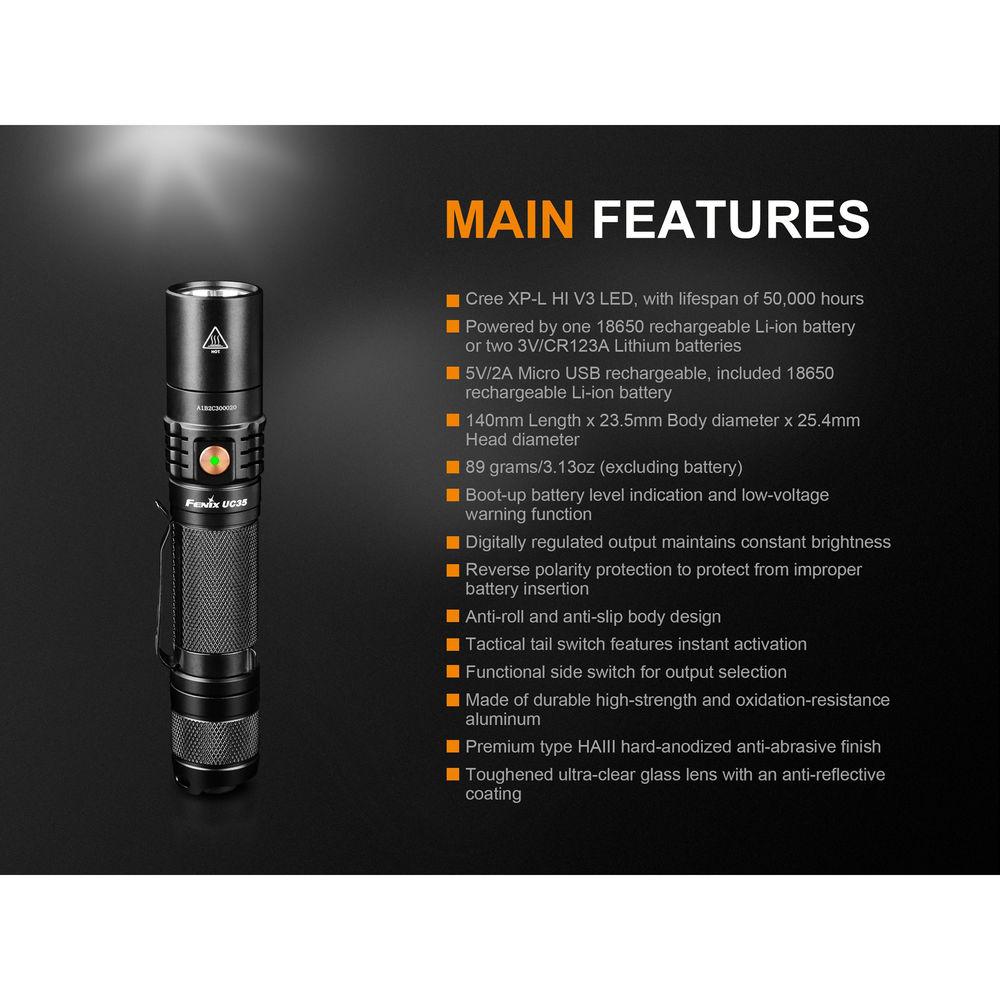

- Cree XP-L HI V3 LED emitter
- 1000-lumen signal/disorientating strobe mode

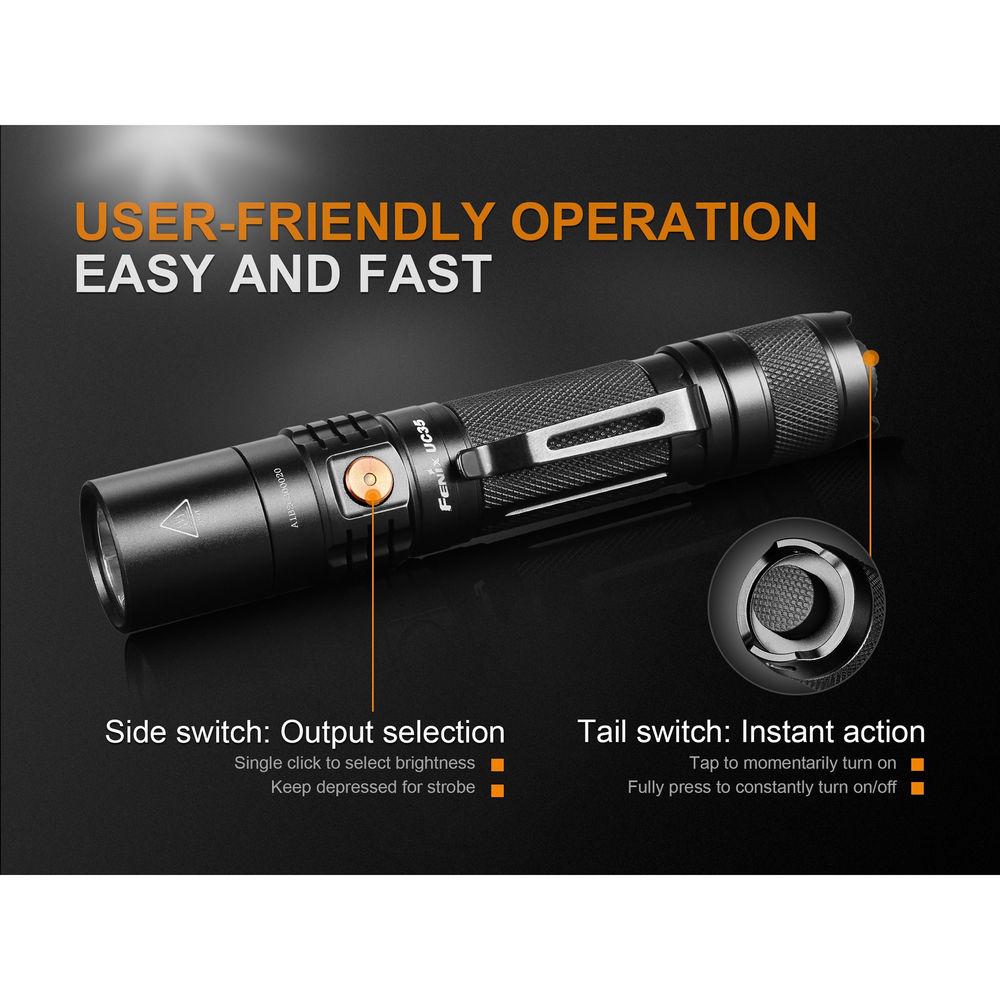

- Switching
-
- Tactical tailcap push-button switch
- Mode selector switch on body behind head
- Press tailcap for momentary activation, click for constant-on
- Press mode switch to cycle through moonlight to turbo outputs
- Press and hold for 1 second to activate strobe mode
- Intelligent switch remembers last output intensity used
- Construction
-
- Lightweight and durable aluminum housing
- Corrosion and scratch-resistant Type III anodized finish
- Anti-reflection coated tempered emitter window

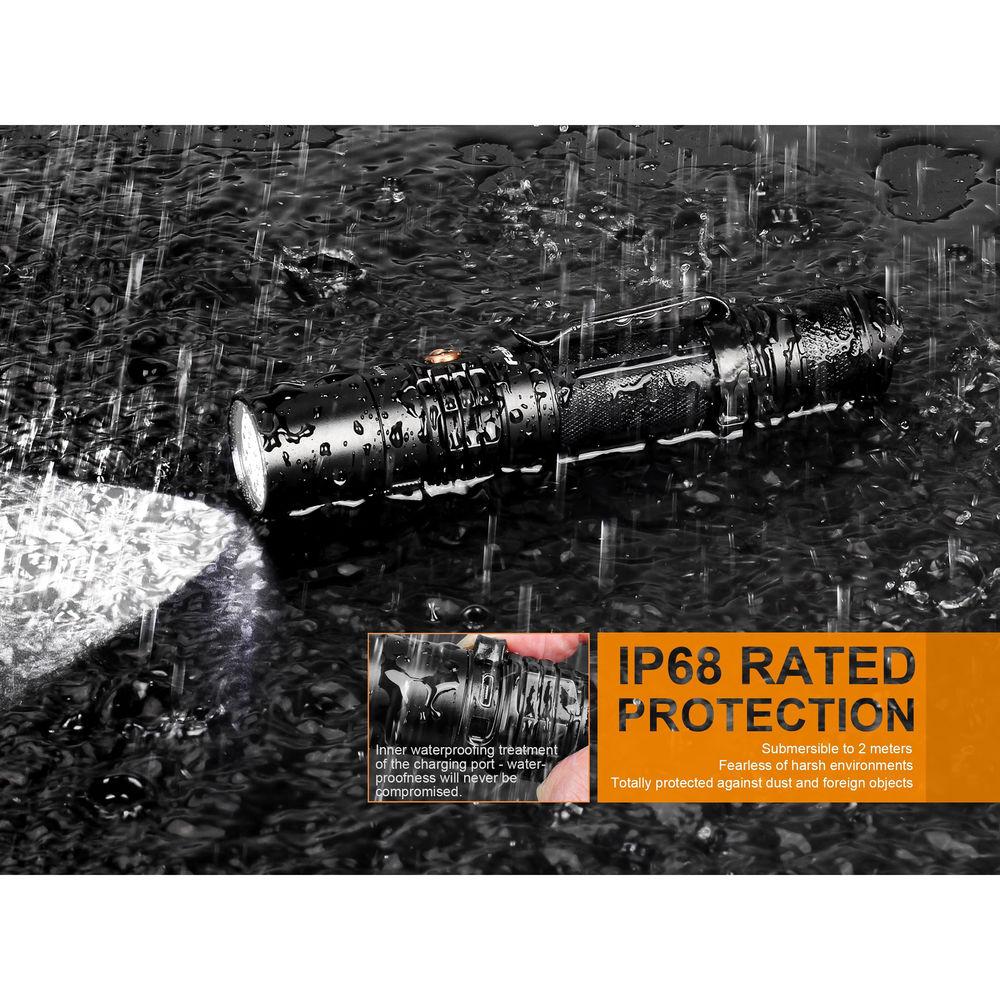

- Impact resistant to 3.3' and IP68-rated submersible to 6.6' for up to 30 minutes and dustproof
- Body clip, lanyard, holster included
- Electronics
-
- Runs on one included 18650 Li-ion battery or two user-supplied CR123 disposable lithium batteries
- Digitally regulated output maintains consistent beam intensity throughout life of battery

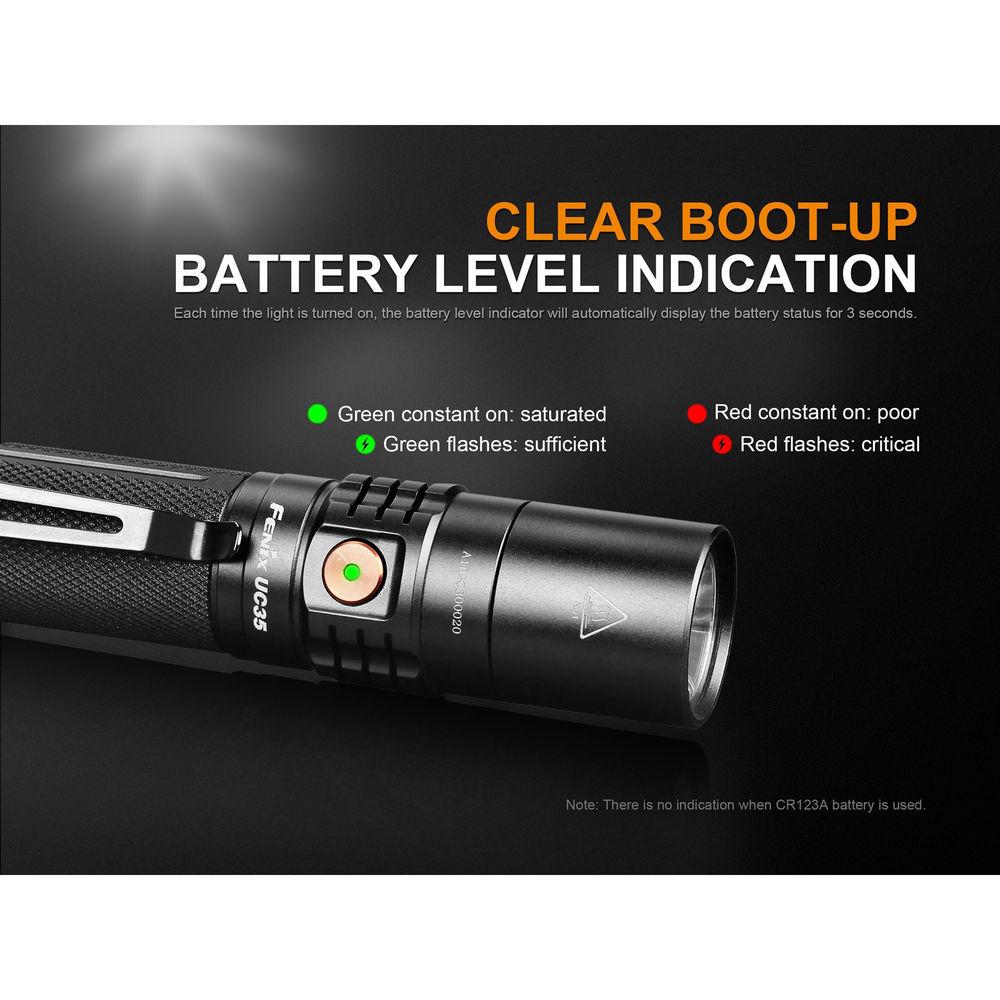

- Charging/charged and low-voltage indicators (not available when using CR123 batteries)
- Overcharge, reverse polarity, and overheat protection prevents damage to light

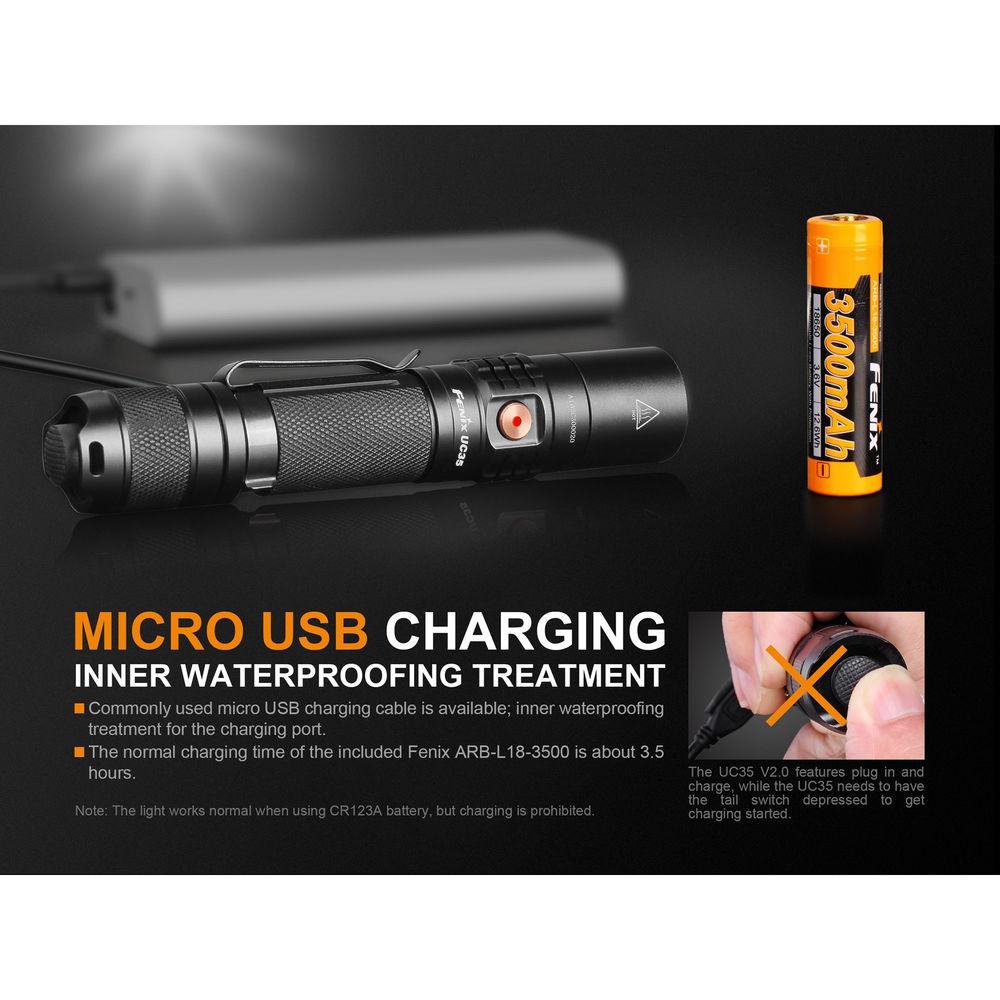

- 18650 battery charges in the light for added convenience using the included micro-USB charging cable
In the Box Fenix Flashlight UC35 v.2 Rechargeable LED Flashlight Lanyard Holster Belt/Body Clip 2 x Spare O-Ring Spare Tailcap Switch Boot USB Charging Cable 18650 Rechargeable Lithium-Ion Battery (3.6V, 3500mAh) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight UC35 v.2 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight UC35V2.0 Specs | | | Lumen Output | Minimum: 1 Lumen
Low: 50 Lumens
Medium: 150 Lumens
High: 350 Lumens
Turbo: 1000 Lumens
Strobe: 1000 Lumens | | Illumination Source | 1 x White LED | | Input Charging Port | Micro-USB | | | | Estimated Runtime | Minimum: 800 Hours
Low: 28.2 Hours
Medium: 10.6 Hours
High: 4.2 Hours
Turbo: 2.25 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A Lithium | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.0" / 2.5 cm | | Dimensions |
